1ofu

Crystal structure of SulA:FtsZ from Pseudomonas aeruginosa

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CELL DIVISION PROTEIN FTSZ

PSEUDOMONAS AERUGINOSA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	HYPOTHETICAL PROTEIN PA3008 × 2 （Q9HZJ8） GUANOSINE-5'-DIPHOSPHATE × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FTSZ_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–320； UniProt 1–320 Author chain B； PDBConstruct 1–320； UniProt 1–320

HYPOTHETICAL PROTEIN PA3008

PSEUDOMONAS AERUGINOSA

UniProt Q9HZJ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	CELL DIVISION PROTEIN FTSZ × 2 （P47204） GUANOSINE-5'-DIPHOSPHATE × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HZJ8
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 1–119； UniProt 43–161 Author chain Y； PDBConstruct 1–119； UniProt 43–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ofu
Deposition date deposition_date	2003-04-21
Structure title title	Crystal structure of SulA:FtsZ from Pseudomonas aeruginosa
Keywords keywords	BACTERIAL CELL DIVISION INHIBITOR, FTSZ, SULA PROTEIN; BACTERIAL CELL DIVISION INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ofu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ofu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

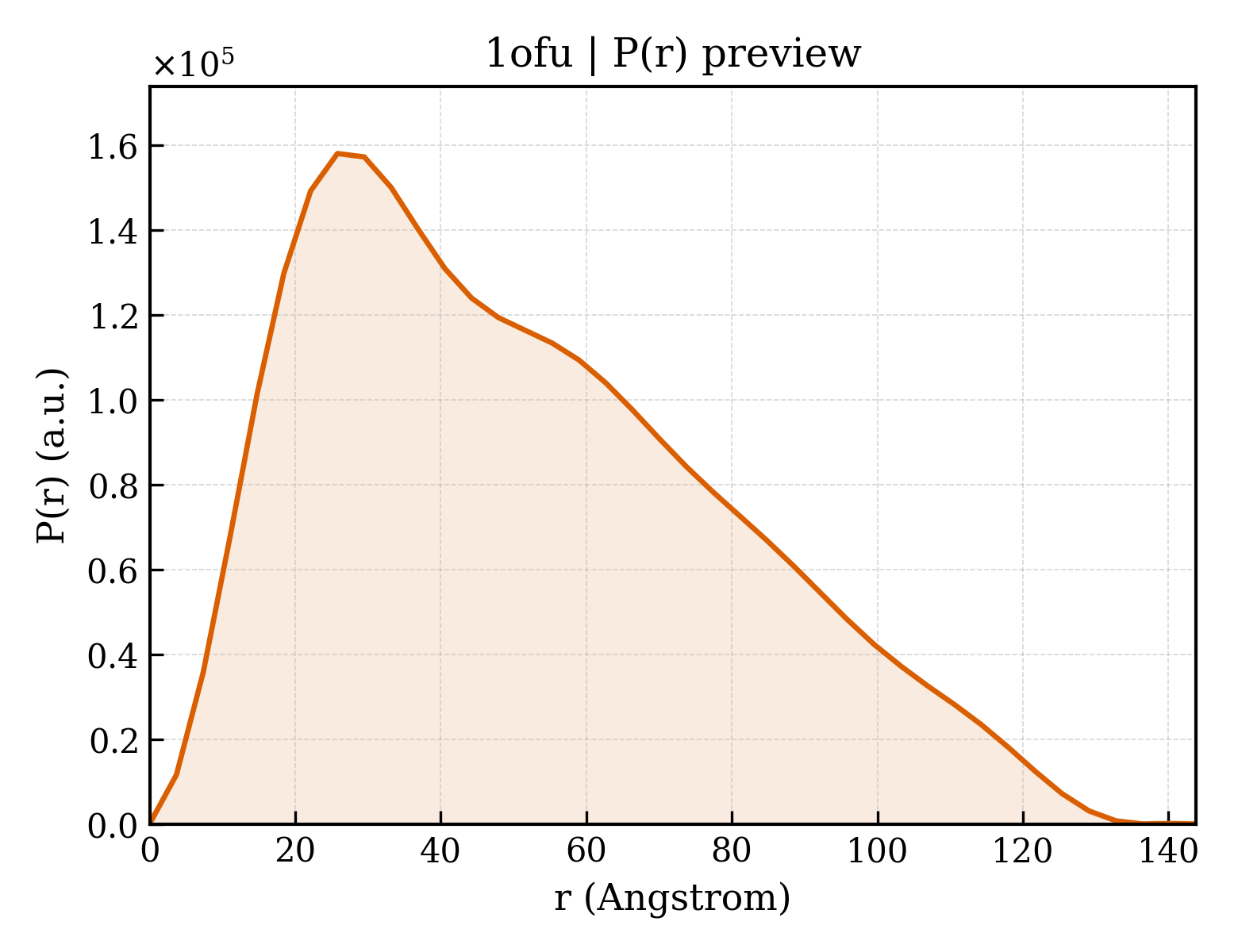

1ofu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.92 Å
Rg (electron density)	41.08 Å
Total Rg	41.21 Å
Atom count	6300
Residues	852
Excluded volume	112200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ofu__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CELL DIVISION PROTEIN FTSZ
Molecular weight formula_weight	33147.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6741

MFELVDNIAQTAVIKVIGVGGGGGNAVNHMAKNNVEGVEFICANTDAQALKNIAARTVLQLGPGVTKGLGAGANPEVGRQAALEDRERISEVLEGADMVFITTGMGGGTGTGAAPIIAEVAKEMGILTVAVVTRPFPFEGRKRMQIADEGIRALAESVDSLITIPNEKLLTILGKDASLLAAFAKADDVLAGAVRGISDIIKRPGMINVDFADVKTVMSEMGMAMMGTGCASGPNRAREATEAAIRNPLLEDVNLQGARGILVNITAGPDLSLGEYSDVGNIIEQFASEHATVKVGTVIDADMRDELHVTVVATGLGARL

Source Source

Source organism organism	PSEUDOMONAS AERUGINOSA
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	HYPOTHETICAL PROTEIN PA3008
Molecular weight formula_weight	13023.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

PAAFSELSLSGLPGHCLTLLAPILRELSEEQDARWLTLIAPPASLTHEWLRRAGLNRERILLLQAKDNAAALALSCEALRLGRSHTVVSWLEPLSRAARKQLSRAAQLGQAQSLNIRLG

Source Source

Source organism organism	PSEUDOMONAS AERUGINOSA
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	441

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1ofua1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.32 — Tubulin nucleotide-binding domain-like
Superfamily Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
Family Family family	c.32.1.1 — Tubulin, GTPase domain

Domain ID domain_id	d1ofua2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
Family Family family	d.79.2.1 — Tubulin, C-terminal domain

Domain ID domain_id	d1ofub1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.32 — Tubulin nucleotide-binding domain-like
Superfamily Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
Family Family family	c.32.1.1 — Tubulin, GTPase domain

Domain ID domain_id	d1ofub2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
Family Family family	d.79.2.1 — Tubulin, C-terminal domain

Domain ID domain_id	d1ofux_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.22 — Bacterial cell division inhibitor SulA

Domain ID domain_id	d1ofuy_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.22 — Bacterial cell division inhibitor SulA

CATH v4.4 (6 domains)

Domain ID domain_id	1ofuA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

Domain ID domain_id	1ofuA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

Domain ID domain_id	1ofuB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1440 — Tubulin/FtsZ, GTPase domain

Domain ID domain_id	1ofuB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	20 — Tubulin/FtsZ, C-terminal domain

Domain ID domain_id	1ofuX00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1ofuY00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	55.590 Å
Unit-cell length b length_b	75.410 Å
Unit-cell length c length_c	241.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2159
R_work r_work	0.2159
R_free r_free	0.2554
