1. Protein Identity and Related Structures Protein Identity & Related Structures

NINE HEME CYTOCHROME C

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	HEME C × 18 ACETATE ION × 1 GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYC9_DESDE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–296； UniProt 31–326 Author chain B； PDBConstruct 1–296； UniProt 31–326

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ofy
Deposition date deposition_date	2003-04-22
Structure title title	three dimensional structure of the reduced form of nine-heme cytochrome c at ph 7.5
Keywords keywords	MULTIHEME CYTOCHROME C, ELECTRON TRANSPORT, ELECTRON TRANSFER; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ofy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ofy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

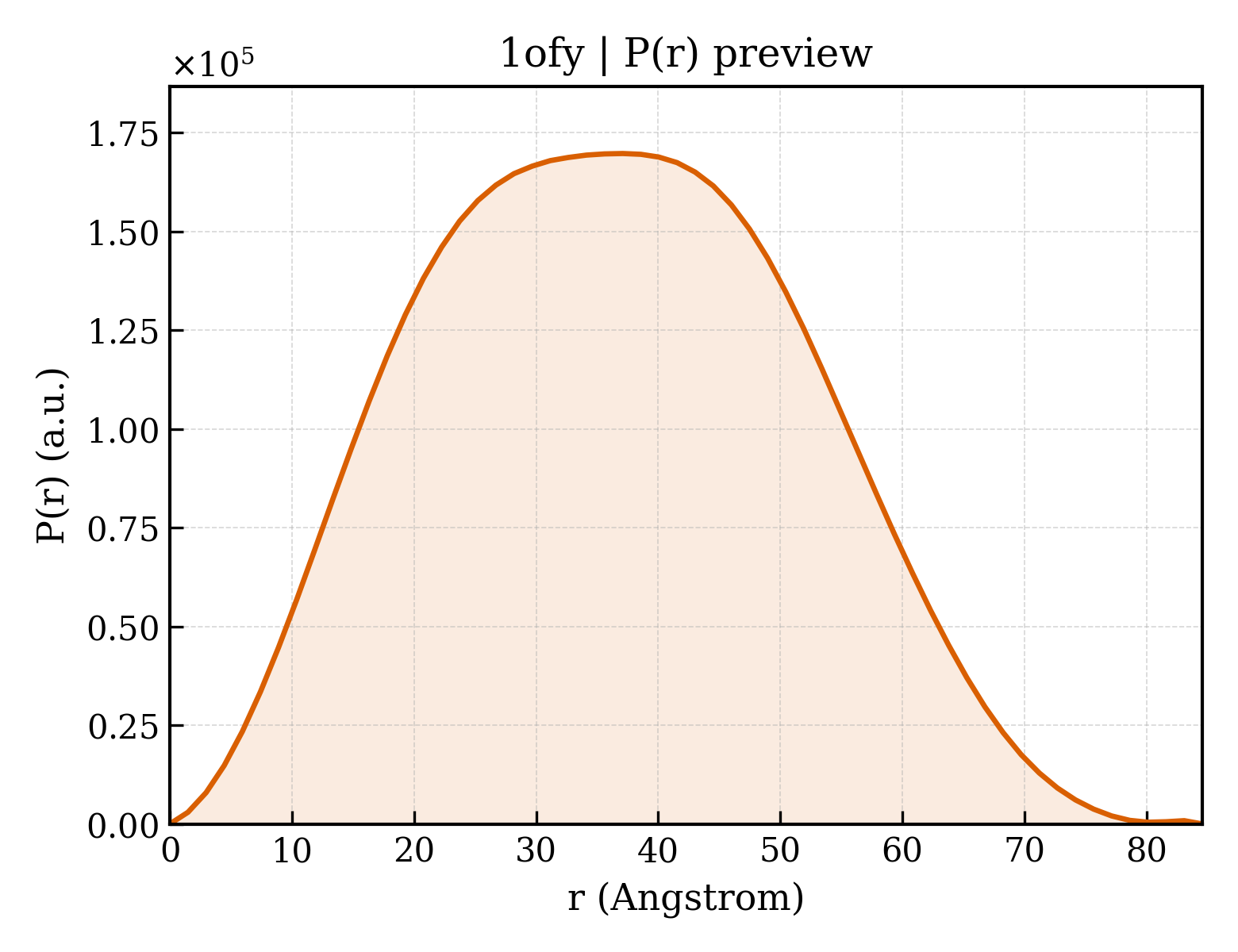

1ofy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.97 Å
Rg (electron density)	27.01 Å
Total Rg	27.82 Å
Atom count	5214
Residues	586
Excluded volume	92996 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ofy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	NINE HEME CYTOCHROME C
Molecular weight formula_weight	32264.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5755

AALEPTDSGAPSAIVMFPVGEKPNPKGAAMKPVVFNHLIHEKKIDNCETCHHTGDPVSCSTCHTVEGKAEGNYITLDRAMHATNIAKRAKGNTPVSCVSCHEQQTKERRECAGCHAIVTPKRDEAWCATCHNITPSMTPEQMQKGINGTLLPGDNEALAAETVLAQKTVEPVSPMLAPYKVVIDALADKYEPSNFTHRRHLTSLMERIKDDKLAQAFHNKPEILCATCHHRSPLSLTPPKCGSCHTKEIDKANPGRPNLMAAYHLQCMGCHKGMDVARPRDTDCTTCHKAAPKSAD

Entity 2 Entity 2 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	505

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ofya_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.1 — Cytochrome c3-like

Domain ID domain_id	d1ofyb_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.1 — Cytochrome c3-like

CATH v4.4 (4 domains)

Domain ID domain_id	1ofyA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	10 — Cytochrome C3
Homologous superfamily homologous superfamily	10 — Cytochrome C3

Domain ID domain_id	1ofyA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	10 — Cytochrome C3
Homologous superfamily homologous superfamily	10 — Cytochrome C3

Domain ID domain_id	1ofyB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	10 — Cytochrome C3
Homologous superfamily homologous superfamily	10 — Cytochrome C3

Domain ID domain_id	1ofyB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	10 — Cytochrome C3
Homologous superfamily homologous superfamily	10 — Cytochrome C3

▶

Unit-cell length a length_a	60.400 Å
Unit-cell length b length_b	105.660 Å
Unit-cell length c length_c	80.940 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.35 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2151
R_work r_work	—
R_free r_free	0.2751
