1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ogs
沉积日期 deposition_date	2003-05-13
结构标题 title	human acid-beta-glucosidase
关键词 keywords	;HYDROLASE, GAUCHER DISEASE, GLUCOSIDASE, GLUCOCEREBROSIDASE, CEREZYME HYDROLASE, GLYCOSIDASE, SPHINGOLIPID METABOLISM, GLYCOPROTE LYSOSOME, MEMBRANE, DISEASE MUTATI POLYMORPHISM, ALTERNATIVE INITIATION, PHARMACEUTICAL, ISRAEL STRUCTURAL PROTEOMICS CENTER, ISPC, STRUCTURAL GENOMICS ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.44 Å
回转半径 Rg (电子) rg_electron	39.78 Å
零角强度 I(0) i0	191843000.00
分子量 molecular_weight	113190.0 kDa
排除体积 excluded_volume	141560 Å³
包络体积 envelope_volume	172440 Å³
水化壳体积 shell_volume	38293 Å³
包络直径 envelope_diameter	140.1 Å
壳层 Rg shell_rg	42.01 Å
包络 Rg envelope_rg	39.77 Å
形状 Rg shape_rg	39.76 Å
总 Rg total_rg	39.97 Å
总原子数 total_atoms	7976
残基数 n_residues	994
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	138.6 Å
Rg (实空间) rg_real	40.05 Å
Rg 误差 (实空间) rg_real_error	1.62 Å
I(0) (实空间) i0_real	1.9180e+08
I(0) 误差 (实空间) i0_real_error	3.7800e+06
Rg (倒空间) rg_reciprocal	39.68 Å
I(0) (倒空间) i0_reciprocal	191800000.0000
解质量估计 total_estimate	0.7425
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	31.2 Å
偏度 Skewness skewness	0.519
峰度 Kurtosis kurtosis	-0.604
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42550000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.471; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.411; Smooth: 0.822

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Glucosylceramidase
分子量 formula_weight	55640.2 kDa
EC 编号 ec_number	3.2.1.45,2.4.1.-,3.2.1.104
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9020

ARPCIPKSFGYSSVVCVCNATYCDSFDPPTFPALGTFSRYESTRSGRRMELSMGPIQANHTGTGLLLTLQPEQKFQKVKGFGGAMTDAAALNILALSPPAQNLLLKSYFSEEGIGYNIIRVPMASCDFSIRTYTYADTPDDFQLHNFSLPEEDTKLKIPLIHRALQLAQRPVSLLASPWTSPTWLKTNGAVNGKGSLKGQPGDIYHQTWARYFVKFLDAYAEHKLQFWAVTAENEPSAGLLSGYPFQCLGFTPEHQRDFIARDLGPTLANSTHHNVRLLMLDDQRLLLPHWAKVVLTDPEAAKYVHGIAVHWYLDFLAPAKATLGETHRLFPNTMLFASEACVGSKFWEQSVRLGSWDRGMQYSHSIITNLLYHVVGWTDWNLALNPEGGPNWVRNFVDSPIIVDITKDTFYKQPMFYHLGHFSKFIPEGSQRVGLVASQKNDLDAVALMHPDGSAVVVVLNRSSKDVPLTIKDPAVGFLETISPGYSIHTYLWHRQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	15

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	938

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1ogsa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.71 — Glycosyl hydrolase domain
超家族 Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
家族 Family family	b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51

结构域编号 domain_id	d1ogsa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.3 — beta-glycanases

结构域编号 domain_id	d1ogsb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.71 — Glycosyl hydrolase domain
超家族 Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
家族 Family family	b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51

结构域编号 domain_id	d1ogsb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.3 — beta-glycanases

CATH v4.4 (4 domains)

结构域编号 domain_id	1ogsA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1ogsA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

结构域编号 domain_id	1ogsB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1ogsB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	107.735 Å
晶胞边长 b length_b	285.232 Å
晶胞边长 c length_c	91.678 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	14.400 Å
R 因子 r_factor	0.1950
R_work r_work	0.1950
R_free r_free	0.2300

fit	/app/data/saxs_computation/og/1ogs/1ogs.fit
pddf	/app/data/pr_computation/og/1ogs/1ogs.pr.out
profile	/app/data/saxs_computation/og/1ogs/1ogs.dat

human acid-beta-glucosidase

SAXS 散射曲线 SAXS Profile

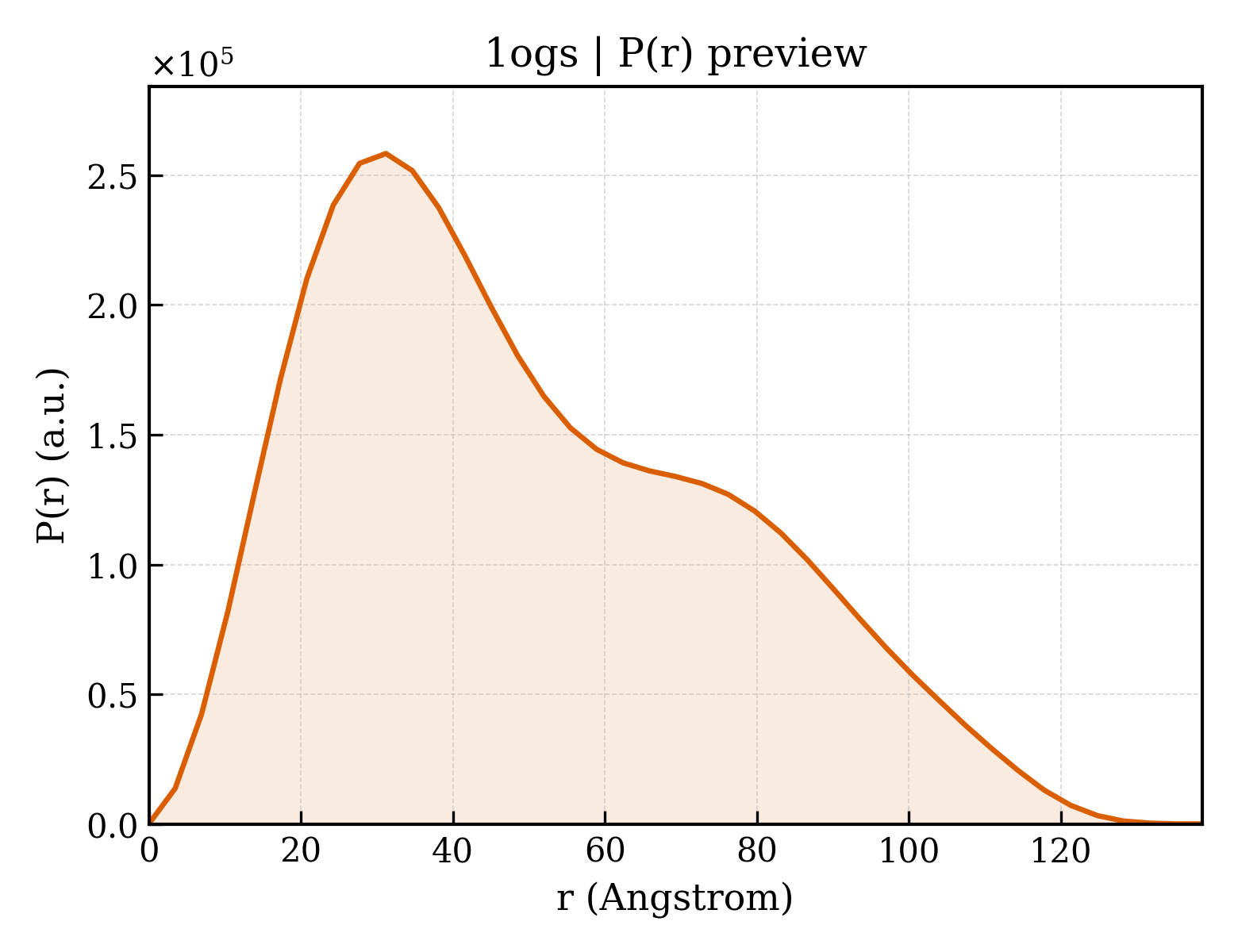

P(r) 距离分布 P(r) Distribution
