SAXSdb — 1oin

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-GLUCOSIDASE A

THERMOTOGA MARITIMA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-deoxy-2-fluoro-alpha-D-glucopyranose × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	2-deoxy-2-fluoro-alpha-D-glucopyranose × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BGLA_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–468； UniProt 2–446 Author chain B； PDBConstruct 24–468； UniProt 2–446

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oin
Deposition date deposition_date	2003-06-19
Structure title title	Family 1 b-glucosidase from Thermotoga maritima
Keywords keywords	HYDROLASE, GLUCOSIDE HYDROLYSIS, FAMILY GH1; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1oin__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1oin__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

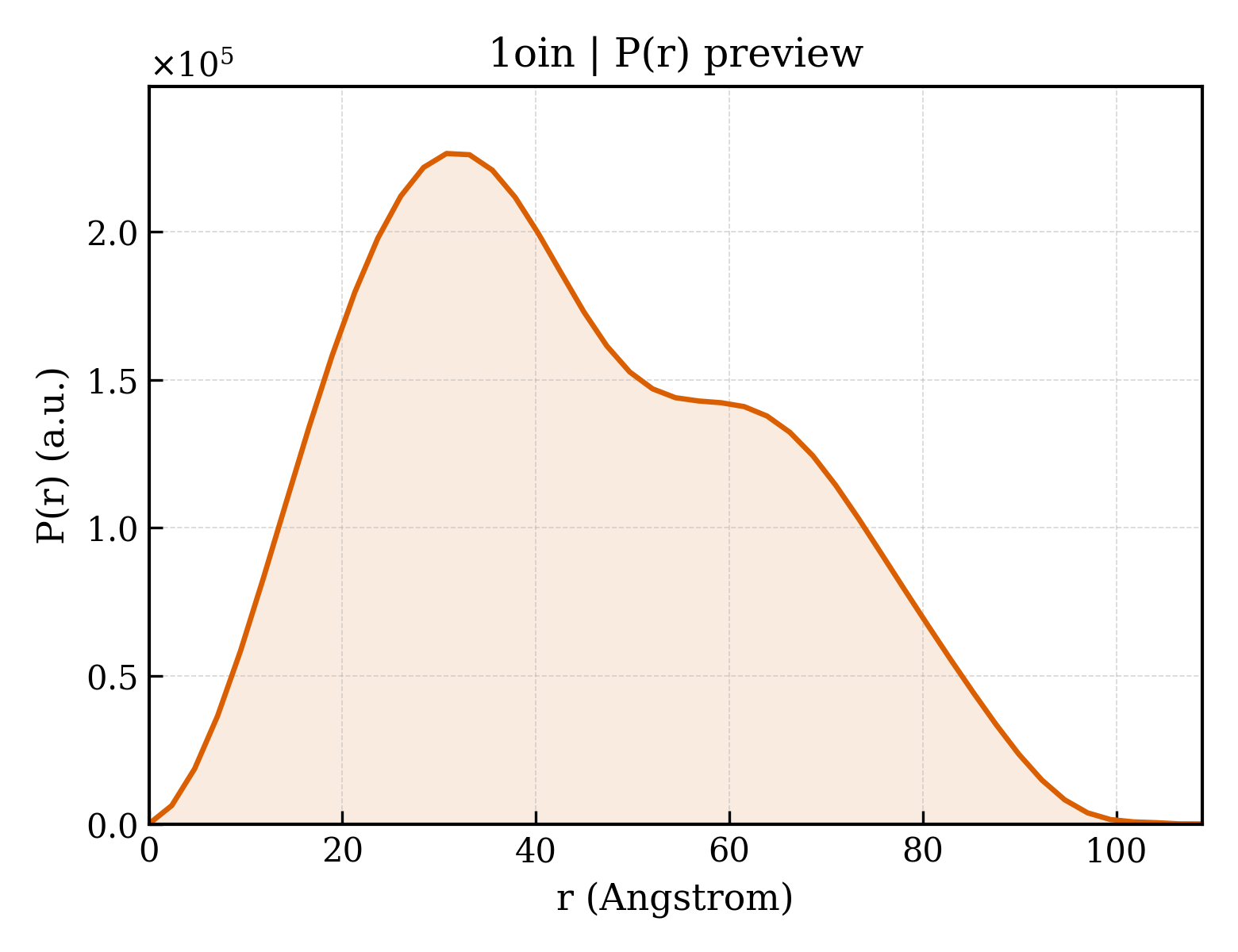

1oin__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.98 Å
Rg (electron density)	20.57 Å
Total Rg	21.62 Å
Atom count	3580
Residues	442
Excluded volume	63454 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1oin__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1oin__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BETA-GLUCOSIDASE A
Molecular weight formula_weight	53940.6 kDa
EC 编号 ec_number	3.2.1.21
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7550

MGSSHHHHHHSSGLVPRGSHMASNVKKFPEGFLWGVATASYQIEGSPLADGAGMSIWHTFSHTPGNVKNGDTGDVACDHYNRWKEDIEIIEKLGVKAYRFSISWPRILPEGTGRVNQKGLDFYNRIIDTLLEKGITPFVTIYHWDLPFALQLKGGWANREIADWFAEYSRVLFENFGDRVKNWITLNEPWVVAIVGHLYGVHAPGMRDIYVAFRAVHNLLRAHARAVKVFRETVKDGKIGIVFNNGYFEPASEKEEDIRAVRFMHQFNNYPLFLNPIYRGDYPELVLEFAREYLPENYKDDMSEIQEKIDFVGLNYYSGHLVKFDPDAPAKVSFVERDLPKTAMGWEIVPEGIYWILKKVKEEYNPPEVYITENGAAFDDVVSEDGRVHDQNRIDYLKAHIGQAWKAIQEGVPLKGYFVWSLLDNFEWAEGYSKRFGIVYVDYSTQKRIVKDSGYWYSNVVKNNGLED

Source Source

Source organism organism	THERMOTOGA MARITIMA
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	2-deoxy-2-fluoro-alpha-D-glucopyranose
Molecular weight formula_weight	182.1 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	413

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1oina_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.4 — Family 1 of glycosyl hydrolase

Domain ID domain_id	d1oinb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.4 — Family 1 of glycosyl hydrolase

CATH v4.4 (2 domains)

Domain ID domain_id	1oinA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1oinB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

Unit-cell length a length_a	94.910 Å
Unit-cell length b length_b	94.980 Å
Unit-cell length c length_c	113.928 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	72.550 Å
R factor r_factor	0.2040
R_work r_work	0.2010
R_free r_free	0.2560

Family 1 b-glucosidase from Thermotoga maritima
