1ojd

HUMAN MONOAMINE OXIDASE B IN COMPLEX WITH Lauryldimethylamine-N-oxide (LDAO)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AMINE OXIDASE [FLAVIN-CONTAINING] B

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 LAURYL DIMETHYLAMINE-N-OXIDE × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 LAURYL DIMETHYLAMINE-N-OXIDE × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 LAURYL DIMETHYLAMINE-N-OXIDE × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 LAURYL DIMETHYLAMINE-N-OXIDE × 2	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 LAURYL DIMETHYLAMINE-N-OXIDE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AOFB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–520； UniProt 1–519 Author chain B； PDBConstruct 2–520； UniProt 1–519 Author chain C； PDBConstruct 2–520； UniProt 1–519 Author chain D； PDBConstruct 2–520； UniProt 1–519 Author chain E； PDBConstruct 2–520； UniProt 1–519 Author chain F； PDBConstruct 2–520； UniProt 1–519 Author chain G； PDBConstruct 2–520； UniProt 1–519 Author chain H； PDBConstruct 2–520； UniProt 1–519 Author chain I； PDBConstruct 2–520； UniProt 1–519 Author chain L； PDBConstruct 2–520； UniProt 1–519

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ojd
Deposition date deposition_date	2003-07-08
Structure title title	HUMAN MONOAMINE OXIDASE B IN COMPLEX WITH Lauryldimethylamine-N-oxide (LDAO)
Keywords keywords	OXIDOREDUCTASE, FAD-CONTAINING AMINE OXIDASE, MAOB; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ojd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ojd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

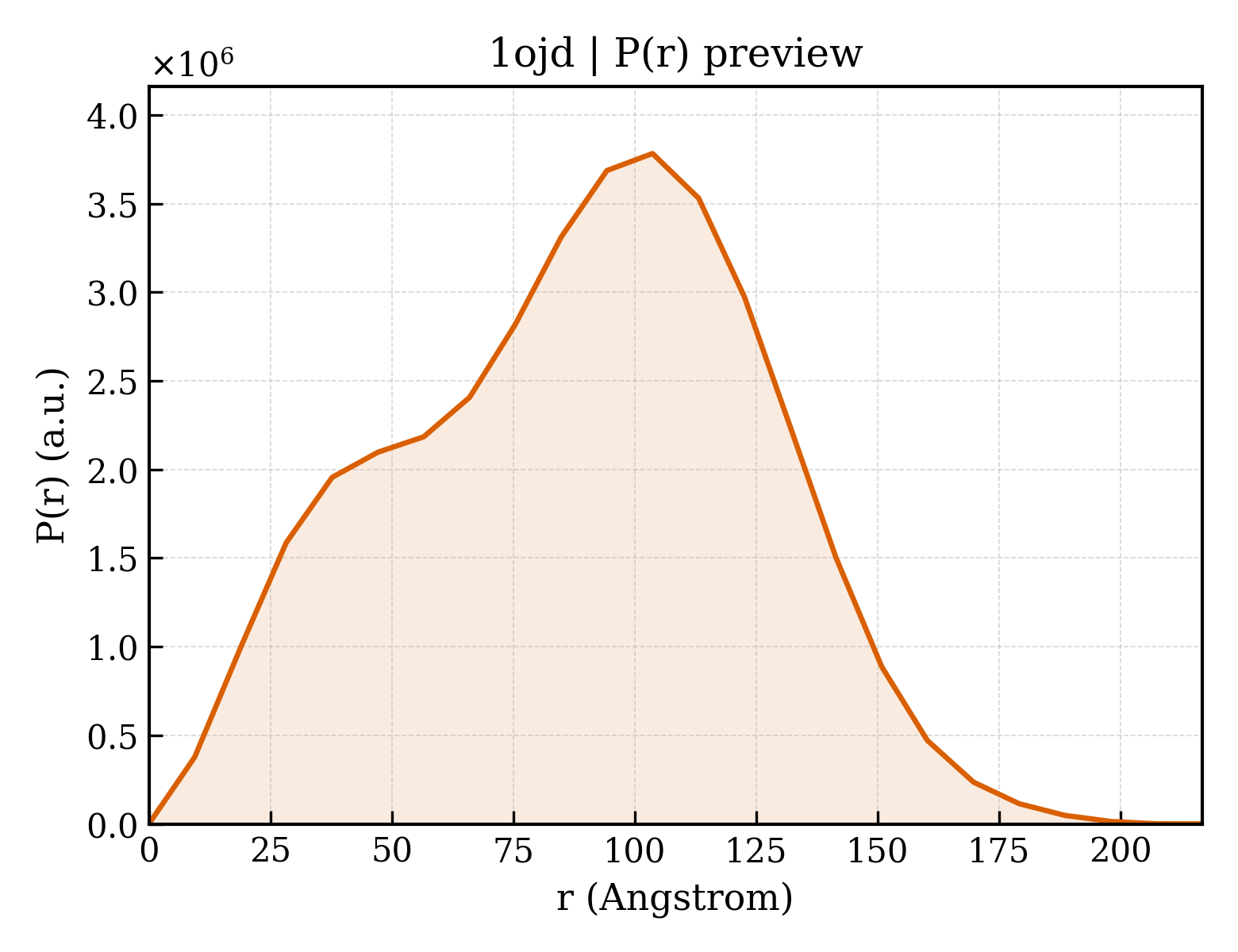

1ojd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.48 Å
Rg (electron density)	29.78 Å
Total Rg	30.51 Å
Atom count	8032
Residues	991
Excluded volume	143650 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ojd__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ojd__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ojd__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1ojd__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1ojd__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	AMINE OXIDASE [FLAVIN-CONTAINING] B
Molecular weight formula_weight	58837.7 kDa
EC 编号 ec_number	1.4.3.4
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,L
Atom count atom_count	40219

MSNKCDVVVVGGGISGMAAAKLLHDSGLNVVVLEARDRVGGRTYTLRNQKVKYVDLGGSYVGPTQNRILRLAKELGLETYKVNEVERLIHHVKGKSYPFRGPFPPVWNPITYLDHNNFWRTMDDMGREIPSDAPWKAPLAEEWDNMTMKELLDKLCWTESAKQLATLFVNLCVTAETHEVSALWFLWYVKQCGGTTRIISTTNGGQERKFVGGSGQVSERIMDLLGDRVKLERPVIYIDQTRENVLVETLNHEMYEAKYVISAIPPTLGMKIHFNPPLPMMRNQMITRVPLGSVIKCIVYYKEPFWRKKDYCGTMIIDGEEAPVAYTLDDTKPEGNYAAIMGFILAHKARKLARLTKEERLKKLCELYAKVLGSLEALEPVHYEEKNWCEEQYSGGCYTTYFPPGILTQYGRVLRQPVDRIYFAGTETATHWSGYMEGAVEAGERAAREILHAMGKIPEDEIWQSEPESVDVPAQPITTTFLERHLPSVPGLLRLIGLTTIFSATALGFLAHKRGLLVRV

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	PICHIA PASTORIS

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 3 Entity 3 non-polymer

Description description	LAURYL DIMETHYLAMINE-N-OXIDE
Molecular weight formula_weight	229.4 kDa
Source method src_method	syn
Copy count entity_count	10

▼

6. Fold Classification (SCOP + CATH) 50 domains

SCOP 2.08 (20 domains)

Domain ID domain_id	d1ojda1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojda2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojde1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojde2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdg1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdh1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdi1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdi2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

Domain ID domain_id	d1ojdl1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

Domain ID domain_id	d1ojdl2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.5 — L-aminoacid/polyamine oxidase

CATH v4.4 (30 domains)

Domain ID domain_id	1ojdA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdB01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdC01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdC03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdD01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdD02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdE01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdE02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdE03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdF01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdF02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdF03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdG01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdG02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdG03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdH01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdH02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdH03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdI01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdI02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdI03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1ojdL01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1ojdL02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	660 — Polyamine Oxidase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1ojdL03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

▶

Unit-cell length a length_a	108.405 Å
Unit-cell length b length_b	132.431 Å
Unit-cell length c length_c	154.838 Å
Unit-cell angle α angle_alpha	90.14 °
Unit-cell angle β angle_beta	90.45 °
Unit-cell angle γ angle_gamma	114.02 °
Molecules per unit cell Z z_pdb	10

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2523
R_work r_work	0.2522
R_free r_free	0.2604

HUMAN MONOAMINE OXIDASE B IN COMPLEX WITH Lauryldimethylamine-N-oxide (LDAO)

1. Protein Identity and Related Structures Protein Identity & Related Structures

AMINE OXIDASE [FLAVIN-CONTAINING] B

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ojd__assembly_1__model_1

1ojd__assembly_1__model_1 | I(q)

1ojd__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 50 domains

SCOP 2.08 (20 domains)

CATH v4.4 (30 domains)

7. Citations (1)

HUMAN MONOAMINE OXIDASE B IN COMPLEX WITH Lauryldimethylamine-N-oxide (LDAO)

1. Protein Identity and Related Structures Protein Identity & Related Structures

AMINE OXIDASE [FLAVIN-CONTAINING] B

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ojd__assembly_1__model_1

1ojd__assembly_1__model_1 | I(q)

1ojd__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 50 domains

SCOP 2.08 (20 domains)

CATH v4.4 (30 domains)

7. Citations (1)
