1onq

Crystal Structure of CD1a in Complex with a Sulfatide

Method: X-RAY DIFFRACTION D_max: 127.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell surface glycoprotein CD1a

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 3 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 18–294	Not recorded	Beta-2-microglobulin × 1 （P01884） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1 SLF SULFATE-3-D-GALACTOSYL-BETA-1-1-N-STEAROYL-D-SPHINGOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；277 K；MPEG 2000, Tris, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K, pH 8.50	Resolution 2.15 Å R-free 0.276
2	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 18–294	Not recorded	Beta-2-microglobulin × 1 （P01884） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1 SLF SULFATE-3-D-GALACTOSYL-BETA-1-1-N-STEAROYL-D-SPHINGOSINE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；277 K；MPEG 2000, Tris, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K, pH 8.50	Resolution 2.15 Å R-free 0.276

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ONQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XZ0 Crystal structure of CD1a in complex with a synthetic mycobactin lipopeptide Deposited 2004-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 18–294（277 aa）	Not recorded	JH0 6-(HYDROXY-HEXADECANOYL-AMINO)-2-{[(4S)-2-(2-HYDROXY-PHENYL)-4,5-DIHYDRO-OXAZOLE-4-CARBONYL]-AMINO}-HEXANOIC ACID 2-[(3S)-1-(TERT-BUTYL-DIPHENYL-SILANYLOXY)-2-OXO-AZEPAN-3-YLCARBAMOYL]-(1S)-1-METHYL-ETHYL ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；PEG 2000 MME, Tris, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.80 Å R-free 0.277
1XZ0 Crystal structure of CD1a in complex with a synthetic mycobactin lipopeptide Deposited 2004-11-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 18–294（277 aa）	Not recorded	JH0 6-(HYDROXY-HEXADECANOYL-AMINO)-2-{[(4S)-2-(2-HYDROXY-PHENYL)-4,5-DIHYDRO-OXAZOLE-4-CARBONYL]-AMINO}-HEXANOIC ACID 2-[(3S)-1-(TERT-BUTYL-DIPHENYL-SILANYLOXY)-2-OXO-AZEPAN-3-YLCARBAMOYL]-(1S)-1-METHYL-ETHYL ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；PEG 2000 MME, Tris, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.80 Å R-free 0.277
4X6C CD1a ternary complex with lysophosphatidylcholine and BK6 TCR Deposited 2014-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 21–295（275 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 42H (4R,7R,18Z)-4,7-dihydroxy-N,N,N-trimethyl-10-oxo-3,5,9-trioxa-4-phosphaheptacos-18-en-1-aminium 4-oxide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；sodium citrate, bis-tris propane, PEG 3350	Resolution 2.80 Å R-free 0.236
4X6C CD1a ternary complex with lysophosphatidylcholine and BK6 TCR Deposited 2014-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 21–295（275 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 42H (4R,7R,18Z)-4,7-dihydroxy-N,N,N-trimethyl-10-oxo-3,5,9-trioxa-4-phosphaheptacos-18-en-1-aminium 4-oxide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；sodium citrate, bis-tris propane, PEG 3350	Resolution 2.80 Å R-free 0.236
4X6D CD1a ternary complex with endogenous lipids and BK6 TCR Deposited 2014-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 21–295（275 aa）	Not recorded	OLA OLEIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；sodium citrate, bis-tris propane, PEG 3350	Resolution 2.98 Å R-free 0.229
4X6D CD1a ternary complex with endogenous lipids and BK6 TCR Deposited 2014-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 21–295（275 aa）	Not recorded	PAM PALMITOLEIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；sodium citrate, bis-tris propane, PEG 3350	Resolution 2.98 Å R-free 0.229
4X6E CD1a binary complex with lysophosphatidylcholine Deposited 2014-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–295（275 aa）	Not recorded	MLT D-MALATE × 1 42H (4R,7R,18Z)-4,7-dihydroxy-N,N,N-trimethyl-10-oxo-3,5,9-trioxa-4-phosphaheptacos-18-en-1-aminium 4-oxide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20 mM DL-malic acid, 40 mM MES, 40 mM tris, PEG 1500	Resolution 2.10 Å R-free 0.234
4X6F CD1a binary complex with sphingomyelin Deposited 2014-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–295（275 aa）	Not recorded	3XU (4S,7S,23Z)-4-hydroxy-7-[(1S,2Z)-1-hydroxyhexadec-2-en-1-yl]-N,N,N-trimethyl-9-oxo-3,5-dioxa-8-aza-4-phosphadotriacont- 23-en-1-aminium 4-oxide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20 mM DL-malic acid, 40 mM MES, 40 mM tris, PEG 1500	Resolution 1.91 Å R-free 0.224
5J1A Antigen presenting molecule Deposited 2016-03-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–295（295 aa）	Mutation：T30I, C51W	6F8 3-[(8Z,11Z)-pentadeca-8,11-dien-1-yl]benzene-1,2-diol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20-25% PEG 1500 / 10% MMT buffer pH 5-6	Resolution 1.86 Å R-free 0.217
7KOZ CD1a-36:2 SM binary complex Deposited 2020-11-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 18–295（278 aa）	Not recorded	WU7 (4S,7S,17Z)-4-hydroxy-7-[(1S,2E)-1-hydroxyhexadec-2-en-1-yl]-N,N,N-trimethyl-4,9-dioxo-3,5-dioxa-8-aza-4lambda~5~-phosphahexacos-17-en-1-aminium × 1 EDO 1,2-ETHANEDIOL × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20-25% PEG 1500, 0.1M MMT pH 5.5	Resolution 2.25 Å R-free 0.246
7KP0 CD1a-42:1 SM binary complex Deposited 2020-11-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 18–295（278 aa）	Not recorded	WUA (4R,7S)-4-hydroxy-7-[(1S,2E)-1-hydroxyhexadec-2-en-1-yl]-N,N,N-trimethyl-4,9-dioxo-3,5-dioxa-8-aza-4lambda~5~-phosphadotriacontan-1-aminium × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20-25% PEG 1500, 0.1M MMT pH 5.5	Resolution 2.40 Å R-free 0.264
7KP1 CD1a-42:2 SM binary complex Deposited 2020-11-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 18–295（278 aa）	Not recorded	FO4 sphingomyelin × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20-25% PEG 1500, 0.1M MMT pH 5.5	Resolution 2.02 Å R-free 0.226
7RYM CD1a-endo-gdTCR complex Deposited 2021-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 18–295（278 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG3350, 0.2M Ammonium Sulfate	Resolution 3.20 Å R-free 0.286
7RYN CD1a-sulfatide-gdTCR complex Deposited 2021-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 18–295（278 aa）	Not recorded	CIS (15Z)-N-((1S,2R,3E)-2-HYDROXY-1-{[(3-O-SULFO-BETA-D-GALACTOPYRANOSYL)OXY]METHYL}HEPTADEC-3-ENYL)TETRACOS-15-ENAMIDE × 1 EDO 1,2-ETHANEDIOL × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PEG DI(HYDROXYETHYL)ETHER × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；15% PEG 4000, 0.15M Ammonium Sulfate, 0.1M MES pH6	Resolution 2.70 Å R-free 0.268
7RYO CD1a-dideoxymycobactin-gdTCR complex Deposited 2021-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 18–295（278 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 WGR dideoxymycobactin-838 × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG 3350, 0.2M Ammonium sulfate	Resolution 3.00 Å R-free 0.267
7SH4 CD1a-phosphatidylglycerol binary structure Deposited 2021-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 18–295（278 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MW9 (21R,24R,27S)-24,27,28-trihydroxy-18,24-dioxo-19,23,25-trioxa-24lambda~5~-phosphaoctacosan-21-yl (9Z)-octadec-9-enoate × 1 EDO 1,2-ETHANEDIOL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；20-25% PEG 1500, 0.1M MMT pH 5.5	Resolution 2.00 Å R-free 0.230
9OHZ Crystal structure of CD1a presenting ganglioside GD3 Deposited 2025-05-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–295（276 aa）	Mutation：C68W	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 A1CB9 N-{(2S,3R)-1-[(4-O-beta-D-galactopyranosyl-beta-D-glucopyranosyl)oxy]-3-hydroxyoctadecan-2-yl}tetracosanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；21% PEG 1500, 0.1M MMT pH 5.5	Resolution 2.14 Å R-free 0.247

14 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CD1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–277； UniProt 18–294 Author chain C； PDBConstruct 1–277； UniProt 18–294

Beta-2-microglobulin

Homo sapiens

UniProt P01884

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 3 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 21–119	Not recorded	T-cell surface glycoprotein CD1a × 1 （P06126） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1 SLF SULFATE-3-D-GALACTOSYL-BETA-1-1-N-STEAROYL-D-SPHINGOSINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；277 K；MPEG 2000, Tris, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K, pH 8.50	Resolution 2.15 Å R-free 0.276
2	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 21–119	Not recorded	T-cell surface glycoprotein CD1a × 1 （P06126） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1 SLF SULFATE-3-D-GALACTOSYL-BETA-1-1-N-STEAROYL-D-SPHINGOSINE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；277 K；MPEG 2000, Tris, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K, pH 8.50	Resolution 2.15 Å R-free 0.276

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1ONQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1E27 Nonstandard peptide binding of HLA-B*5101 complexed with HIV immunodominant epitope KM1(LPPVVAKEI) Deposited 2000-05-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa） Fragment：EXTRACELLULAR RESIDUES 21-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.20 Å R-free 0.255
1E28 Nonstandard peptide binding of HLA-B*5101 complexed with HIV immunodominant epitope KM2(TAFTIPSI) Deposited 2000-05-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa） Fragment：EXTRACELLULAR RESIDUES 21-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 3.00 Å R-free 0.253
1EEY Crystal Structure Determination Of HLA A2 Complexed to Peptide GP2 with the substitution (I2L/V5L/L9V) Deposited 2000-02-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–119（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；14% PEG 8000, 25 mM MES, pH6.5., VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.25 Å R-free 0.286
1EEY Crystal Structure Determination Of HLA A2 Complexed to Peptide GP2 with the substitution (I2L/V5L/L9V) Deposited 2000-02-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 20–119（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；14% PEG 8000, 25 mM MES, pH6.5., VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.25 Å R-free 0.286
1EEZ Crystal Structure Determination of HLA-A2.1 Complexed to GP2 Peptide Variant(I2L/V5L) Deposited 2000-02-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–119（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；18% PEG8000, 25 mM MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.290
1EEZ Crystal Structure Determination of HLA-A2.1 Complexed to GP2 Peptide Variant(I2L/V5L) Deposited 2000-02-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 20–119（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；18% PEG8000, 25 mM MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.290
1GZP CD1b in complex with GM2 ganglioside Deposited 2002-05-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–119（99 aa）	Not recorded	GM2 N-[(1S,2S)-2-HYDROXY-1-({[(2R,3R,4S,5S,6R)-3,4,5-TRIHYDROXY-6-(HYDROXYMETHYL)TETRAHYDRO-2H-PYRAN-2-YL]OXY}METHYL)OCTADECYL]OCTADECANAMIDE × 1 D12 DODECANE × 1 TWT DOCOSANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.1；293 K；20 DEGREE C 2UL OF PROTEIN + 1UL OF MOTHER LIQUOR 0.2M LITHIUM NITRATE 20% W/V POLYETHYLENE GLYCOL 3350, PH 7.1	Resolution 2.80 Å R-free 0.273
1GZQ CD1b in complex with Phophatidylinositol Deposited 2002-05-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–119（99 aa）	Not recorded	PII 2-[(HYDROXY{[(2R,3R,5S,6R)-2,3,4,5,6-PENTAHYDROXYCYCLOHEXYL]OXY}PHOSPHORYL)OXY]-1-[(PALMITOYLOXY)METHYL]ETHYL HEPTADECANOATE × 1 NO3 NITRATE ION × 3 D12 DODECANE × 1 TWT DOCOSANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.1；293 K；20 DEGREES C, 2UL OF PROTEIN + 1UL OF MOTHER LIQUOR, 0.2M LITHIUM NITRATE, 20% W/V POLYETHYLENE GLYCOL 3350, PH 7.1	Resolution 2.26 Å R-free 0.237
1I7R CRYSTAL STRUCTURE OF CLASS I MHC A2 IN COMPLEX WITH PEPTIDE P1058 Deposited 2001-03-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG6000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.307
1I7R CRYSTAL STRUCTURE OF CLASS I MHC A2 IN COMPLEX WITH PEPTIDE P1058 Deposited 2001-03-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG6000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.307
1I7T CRYSTAL STRUCTURE OF CLASS I MHC A2 IN COMPLEX WITH PEPTIDE P1049-5V Deposited 2001-03-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG6000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.285
1I7T CRYSTAL STRUCTURE OF CLASS I MHC A2 IN COMPLEX WITH PEPTIDE P1049-5V Deposited 2001-03-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG6000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.285
1I7U CRYSTAL STRUCTURE OF CLASS I MHC A2 IN COMPLEX WITH PEPTIDE P1049-6V Deposited 2001-03-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG6000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.258
1I7U CRYSTAL STRUCTURE OF CLASS I MHC A2 IN COMPLEX WITH PEPTIDE P1049-6V Deposited 2001-03-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG6000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.258
1KTL The human non-classical major histocompatibility complex molecule HLA-E Deposited 2002-01-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；ammonium sulfate, PEG 400, Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP at 295K, pH 8.00	Resolution 3.10 Å R-free 0.280
1KTL The human non-classical major histocompatibility complex molecule HLA-E Deposited 2002-01-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；ammonium sulfate, PEG 400, Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP at 295K, pH 8.00	Resolution 3.10 Å R-free 0.280
1KTL The human non-classical major histocompatibility complex molecule HLA-E Deposited 2002-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 21–119（99 aa） Chain D 21–119（99 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；ammonium sulfate, PEG 400, Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP at 295K, pH 8.00	Resolution 3.10 Å R-free 0.280
1M6O Crystal Structure of HLA B4402 in complex with HLA DPA0201 peptide Deposited 2002-07-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；20-30% PEG 4K, 0.1M citrate, 0.2M ammonium acetate, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.234
1OF2 Crystal structure of HLA-B*2709 complexed with the vasoactive intestinal peptide type 1 receptor (VIPR) peptide (residues 400-408) Deposited 2003-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa） Fragment：RESIDUES 21-119	Not recorded	GOL GLYCEROL × 3 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；TRIS PH 8.5, 19% PEG 8000 HANGING DROP, TEMPERATURE 291K	Resolution 2.20 Å R-free 0.244
1OGA A structural basis for immunodominant human T-cell receptor recognition. Deposited 2003-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 21–119（99 aa） Fragment：BETA-2-MICROGLOBULIN, RESIDUES 21-119	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；14% PEG8000, 50MM MES PH 6.5	Resolution 1.40 Å R-free 0.231
1OGT CRYSTAL STRUCTURE OF HLA-B*2705 COMPLEXED WITH THE VASOACTIVE INTESTINAL PEPTIDE TYPE 1 RECEPTOR (VIPR) PEPTIDE (RESIDUES 400-408) Deposited 2003-05-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa） Fragment：RESIDUES 21-119	Not recorded	GOL GLYCEROL × 5 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；TRIS PH 8.0, 16% PEG 8000, HANGING DROP, TEMPERATURE 291K	Resolution 1.47 Å R-free 0.178
1QEW HUMAN CLASS I HISTOCOMPATIBILITY ANTIGEN (HLA-A 0201) COMPLEX WITH A NONAMERIC PEPTIDE FROM MELANOMA-ASSOCIATED ANTIGEN 3 (RESIDUES 271-279) Deposited 1999-04-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–119（100 aa） Fragment：residues 21-199, SWS P01884	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；20 % POLYETHYLENGLYCOL 8000, SODIUM CITRATE, PH 5.6	Resolution 2.20 Å R-free 0.242
1QLF MHC CLASS I H-2DB COMPLEXED WITH GLYCOPEPTIDE K3G Deposited 1999-08-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa） Fragment：MHC ASSOCIATED LIGHT CHAIN	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；pH 5.00	Resolution 2.65 Å R-free 0.267
1S8D Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9-3A Deposited 2004-02-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；15% polyethylene glycol 6000, 25mM MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 6.50	Resolution 2.20 Å R-free 0.252
1T1W Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9-3F6I8V Deposited 2004-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG, MES, pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.237
1T1X Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9-4L Deposited 2004-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG/MES, pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.240
1T1Y Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9-5V Deposited 2004-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG, MES, pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.239
1T1Z Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9-6A Deposited 2004-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG, MES, pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.225
1T20 Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9-6I Deposited 2004-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG, MES, pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.247
1T21 Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9, monoclinic crystal Deposited 2004-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG, MES, pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.19 Å R-free 0.238
1T22 Structural basis for degenerate recognition of HIV peptide variants by cytotoxic lymphocyte, variant SL9, orthorhombic crystal Deposited 2004-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG, MES, pH 6.50, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.231
1UQS The Crystal Structure of Human CD1b with a Bound Bacterial Glycolipid Deposited 2003-10-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–119（99 aa）	Not recorded	GMM GLUCOSE MONOMYCOLATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；0.1M SODIUM CITRATE PH 5.6, 0.5M AMMONIUM SULFATE, 0.5M LITHIUM SULFATE	Resolution 3.10 Å R-free 0.290
1UXS CRYSTAL STRUCTURE OF HLA-B*2705 COMPLEXED WITH THE LATENT MEMBRANE PROTEIN 2 PEPTIDE (LMP2)OF EPSTEIN-BARR VIRUS Deposited 2004-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa） Fragment：IMMUNOGLOBULIN DOMAIN, RESIDUES 21-119	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1M TRIS, PH 7.5, 15% PEG8000	Resolution 1.55 Å R-free 0.177
1UXW CRYSTAL STRUCTURE OF HLA-B*2709 COMPLEXED WITH THE LATENT MEMBRANE PROTEIN 2 PEPTIDE (LMP2) OF EPSTEIN-BARR VIRUS Deposited 2004-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–119（99 aa） Fragment：IMMUNOGLOBULIN DOMAIN, RESIDUES 21-119	Not recorded	GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1M TRIS, PH 8.5, 21% PEG8000	Resolution 1.71 Å R-free 0.190

27 other PDB entries and 34 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–99； UniProt 21–119 Author chain D； PDBConstruct 1–99； UniProt 21–119

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

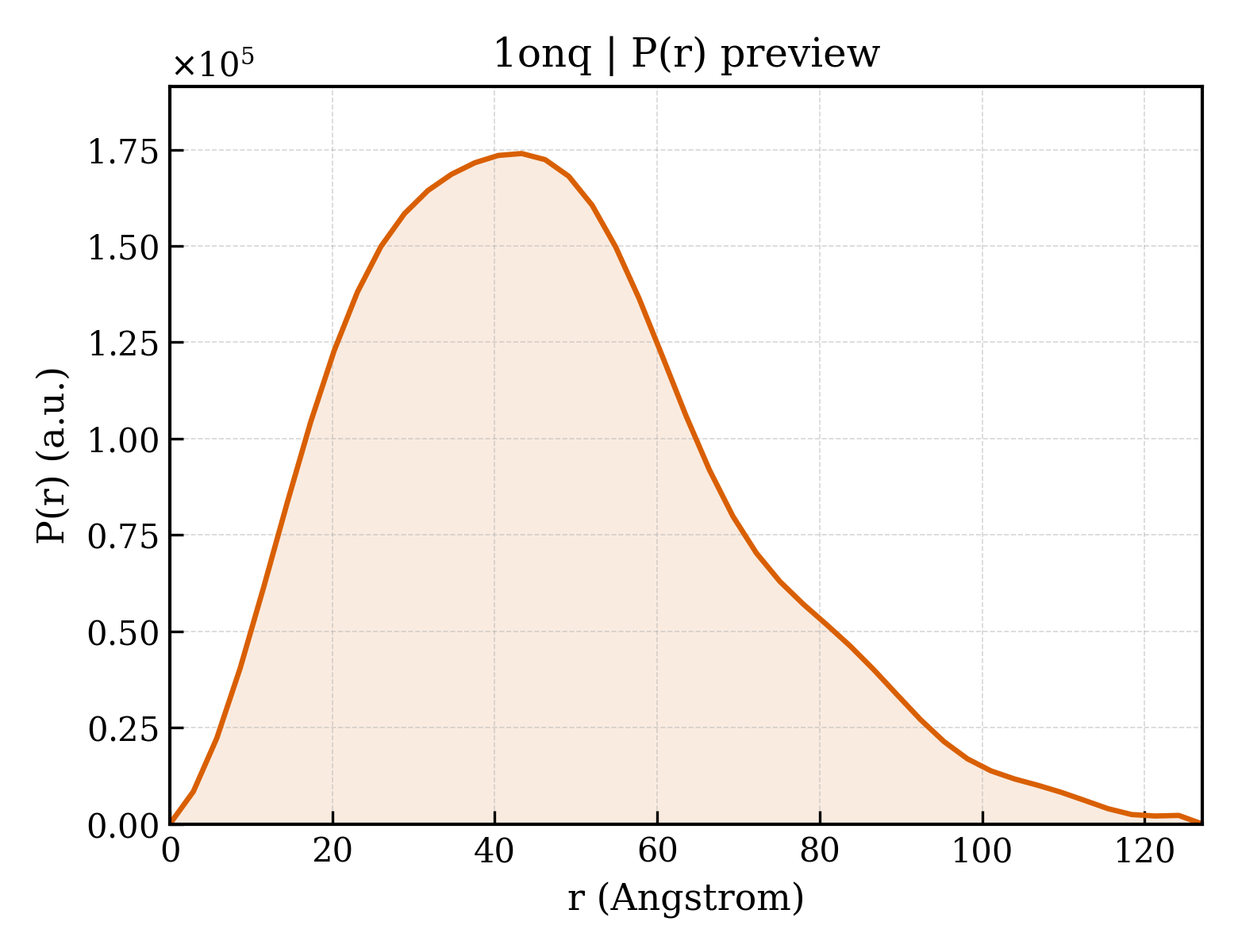

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1onq
Deposition date deposition_date	2003-02-28
Structure title title	Crystal Structure of CD1a in Complex with a Sulfatide
Keywords keywords	Protein-Glycolipid complex, beta sheet platform, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.06 Å
Radius of gyration Rg (electron density) rg_electron	35.47 Å
Forward intensity I(0) i0	123959000.00
Molecular weight molecular_weight	89614.0 kDa
Excluded volume excluded_volume	112220 Å³
Envelope volume envelope_volume	152250 Å³
Hydration-shell volume shell_volume	37859 Å³
Envelope diameter envelope_diameter	133.1 Å
Shell Rg shell_rg	39.16 Å
Envelope Rg envelope_rg	35.31 Å
Shape Rg shape_rg	35.43 Å
Total Rg total_rg	35.90 Å
Total atoms total_atoms	6341
Residues n_residues	745
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	127.1 Å
Rg (real space) rg_real	36.32 Å
Rg uncertainty (real space) rg_real_error	1.14 Å
I(0) (real space) i0_real	1.2400e+08
I(0) uncertainty (real space) i0_real_error	1.9630e+06
Rg (reciprocal space) rg_reciprocal	36.16 Å
I(0) (reciprocal space) i0_reciprocal	123900000.0000
Solution quality estimate total_estimate	0.8463
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	43.3 Å
Skewness Skewness skewness	0.549
Kurtosis Kurtosis kurtosis	-0.008
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	19290000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.767; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.852; Smooth: 0.846

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	T-cell surface glycoprotein CD1a
Molecular weight formula_weight	32510.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6791

ADGLKEPLSFHVIWIASFYNHSWKQNLVSGWLSDLQTHTWDSNSSTIVFLWPWSRGNFSNEEWKELETLFRIRTIRSFEGIRRYAHELQFEYPFEIQVTGGCELHSGKVSGSFLQLAYQGSDFVSFQNNSWLPYPVAGNMAKHFCKVLNQNQHENDITHNLLSDTCPRFILGLLDAGKAHLQRQVKPEAWLSHGPSPGPGHLQLVCHVSGFYPKPVWVMWMRGEQEQQGTQRGDILPSADGTWYLRATLEVAAGEAADLSCRVKHSSLEGQDIVLYWHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Drosophila melanogaster

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11748.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

IQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Drosophila melanogaster

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 branched

Description description	alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	367.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	alpha-L-fucopyranose
Molecular weight formula_weight	164.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	SULFATE-3-D-GALACTOSYL-BETA-1-1-N-STEAROYL-D-SPHINGOSINE
Molecular weight formula_weight	808.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	450

▼

7. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1onqa1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1onqa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d1onqa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1onqb_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1onqc1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1onqc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d1onqc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1onqd_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (6 domains)

Domain ID domain_id	1onqA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	1onqA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1onqB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1onqC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	1onqC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1onqD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	55.407 Å
Unit-cell length b length_b	42.711 Å
Unit-cell length c length_c	204.217 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.78 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2290
R_work r_work	0.2270
R_free r_free	0.2760

fit	/app/data/saxs_computation/on/1onq/1onq.fit
pddf	/app/data/pr_computation/on/1onq/1onq.pr.out
profile	/app/data/saxs_computation/on/1onq/1onq.dat

Crystal Structure of CD1a in Complex with a Sulfatide

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell surface glycoprotein CD1a

State in the Current Structure

Other States of the Same Protein in the Database

Beta-2-microglobulin

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 water

7. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
