SAXSdb — 1oo2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

transthyretin

Sparus aurata

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	CADMIUM ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O93330_SPAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–119； UniProt 32–150 Author chain B； PDBConstruct 1–119； UniProt 32–150 Author chain C； PDBConstruct 1–119； UniProt 32–150 Author chain D； PDBConstruct 1–119； UniProt 32–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oo2
Deposition date deposition_date	2003-03-03
Structure title title	Crystal structure of transthyretin from Sparus aurata
Keywords keywords	Transthyretin, retinol-binding protein, tetramer, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1oo2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

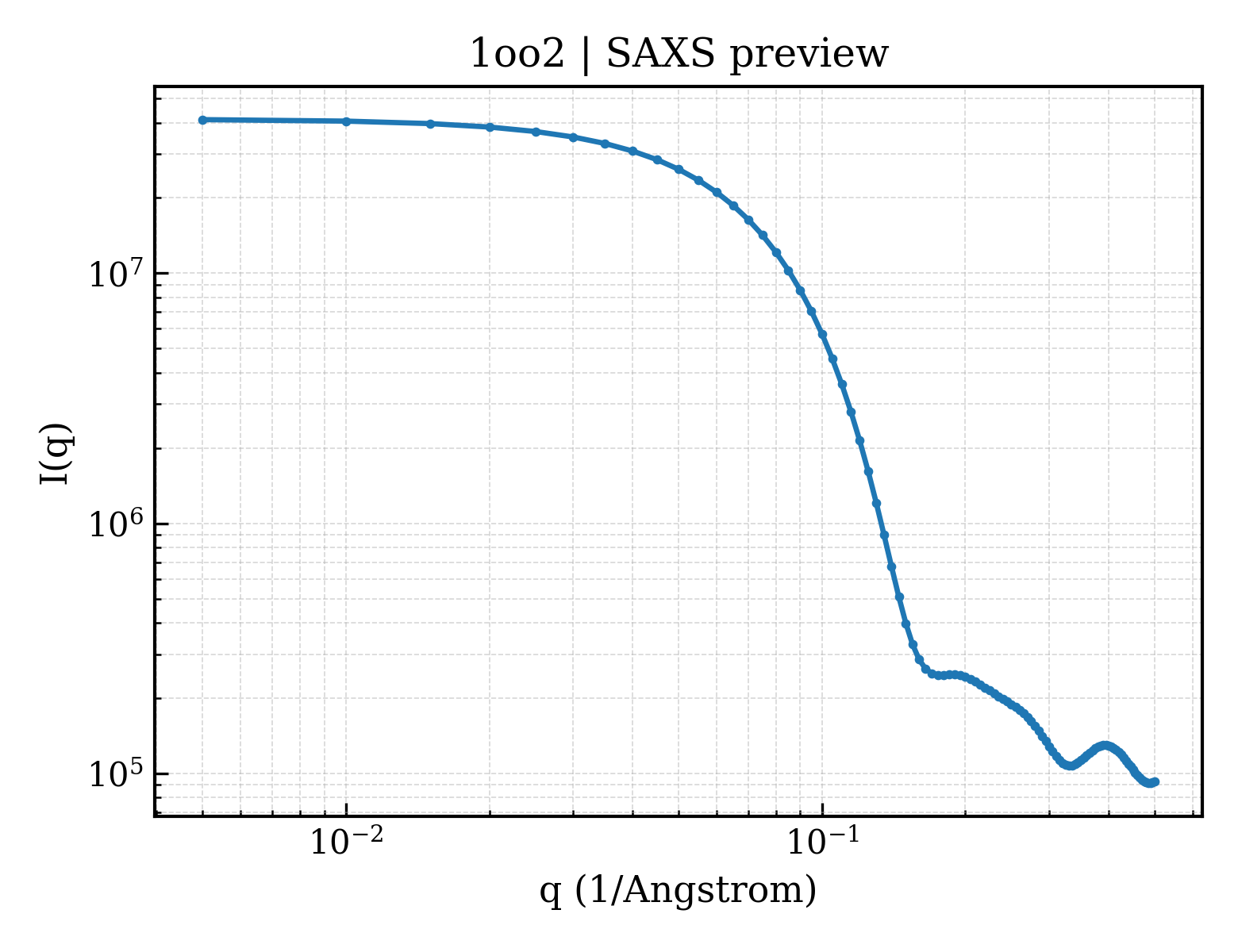

1oo2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

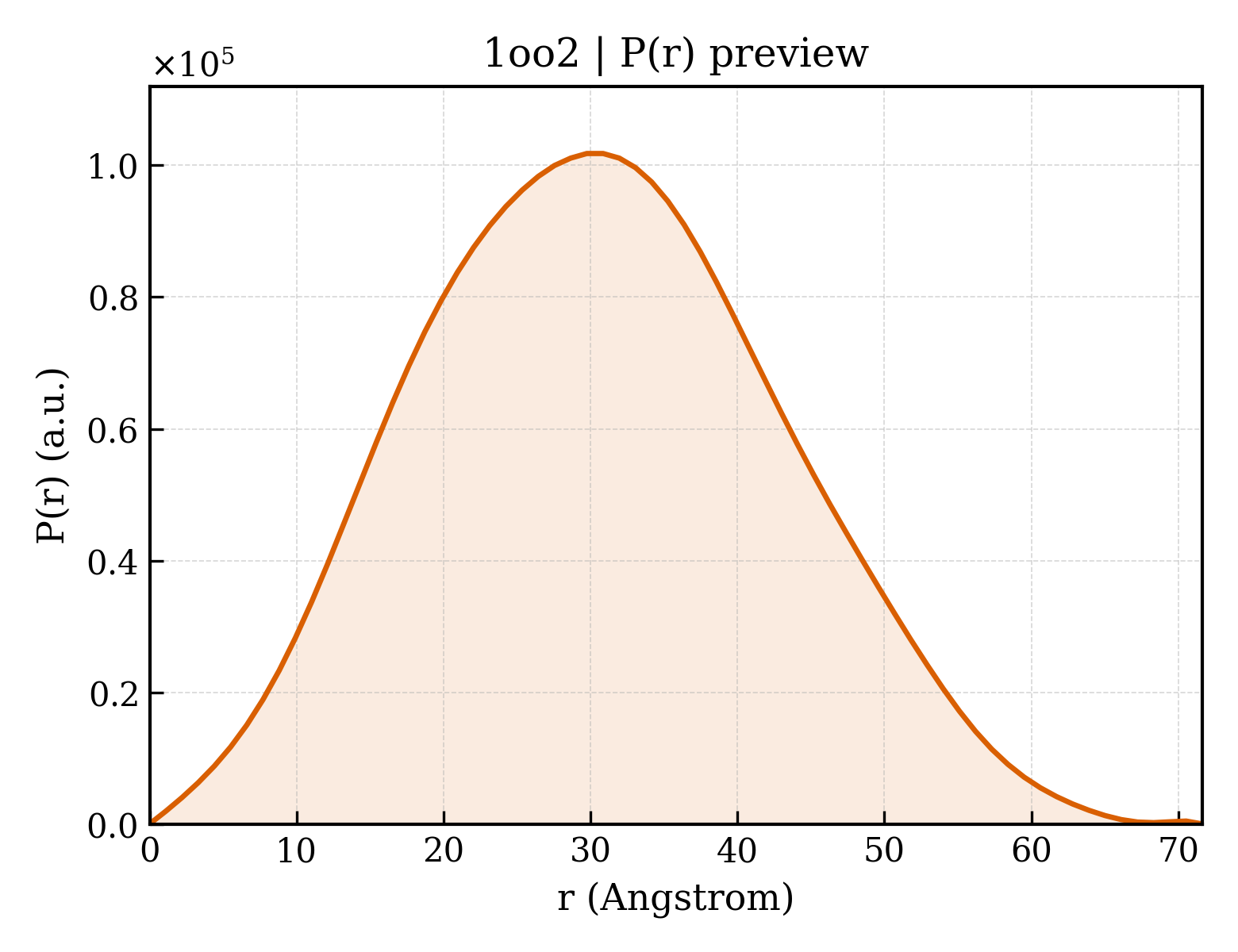

1oo2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.46 Å
Rg (electron density)	21.88 Å
Total Rg	22.89 Å
Atom count	3518
Residues	464
Excluded volume	62488 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1oo2__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	transthyretin
Molecular weight formula_weight	12828.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3883

RCPLMVKILDAVKGTPAGSVALKVSQKTADGGWTQIATGVTDATGEIHNLITEQQFPAGVYRVEFDTKAYWTNQGSTPFHEVAEVVFDAHPEGHGHYTLALLLSPFSYTTTAVVSSVHE

Source Source

Source organism organism	Sparus aurata
Common name common_name	gilthead seabream
NCBI taxonomy ID ncbi_taxonomy_id	8175
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	365

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1oo2a_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.1 — Transthyretin (synonym: prealbumin)

Domain ID domain_id	d1oo2b_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.1 — Transthyretin (synonym: prealbumin)

Domain ID domain_id	d1oo2c_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.1 — Transthyretin (synonym: prealbumin)

Domain ID domain_id	d1oo2d_
Class class	b — All beta proteins
Fold Fold fold	b.3 — Prealbumin-like
Superfamily Superfamily superfamily	b.3.4 — Transthyretin (synonym: prealbumin)
Family Family family	b.3.4.1 — Transthyretin (synonym: prealbumin)

CATH v4.4 (4 domains)

Domain ID domain_id	1oo2A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

Domain ID domain_id	1oo2B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

Domain ID domain_id	1oo2C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

Domain ID domain_id	1oo2D00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	180 — Transthyretin/hydroxyisourate hydrolase domain

▶

Unit-cell length a length_a	96.452 Å
Unit-cell length b length_b	65.622 Å
Unit-cell length c length_c	70.834 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.40 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.560 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1973
R_work r_work	0.1973
R_free r_free	0.2235
