1oqs

Crystal Structure of RV4/RV7 Complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phospholipase A2 RV-7

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-4 × 1 （Q02471） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-4 × 1 （Q02471） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-4 × 1 （Q02471） water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-4 × 1 （Q02471） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PA27_DABRU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–122； UniProt 17–138 Author chain C； PDBConstruct 1–122； UniProt 17–138 Author chain E； PDBConstruct 1–122； UniProt 17–138 Author chain G； PDBConstruct 1–122； UniProt 17–138

Phospholipase A2 RV-4

OrganismNot specified

UniProt Q02471

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-7 × 1 （P31100） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-7 × 1 （P31100） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-7 × 1 （P31100） water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Phospholipase A2 RV-7 × 1 （P31100） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PA24_DABRU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–122； UniProt 17–138 Author chain D； PDBConstruct 1–122； UniProt 17–138 Author chain F； PDBConstruct 1–122； UniProt 17–138 Author chain H； PDBConstruct 1–122； UniProt 17–138

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oqs
Deposition date deposition_date	2003-03-11
Structure title title	Crystal Structure of RV4/RV7 Complex
Keywords keywords	HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1oqs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1oqs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

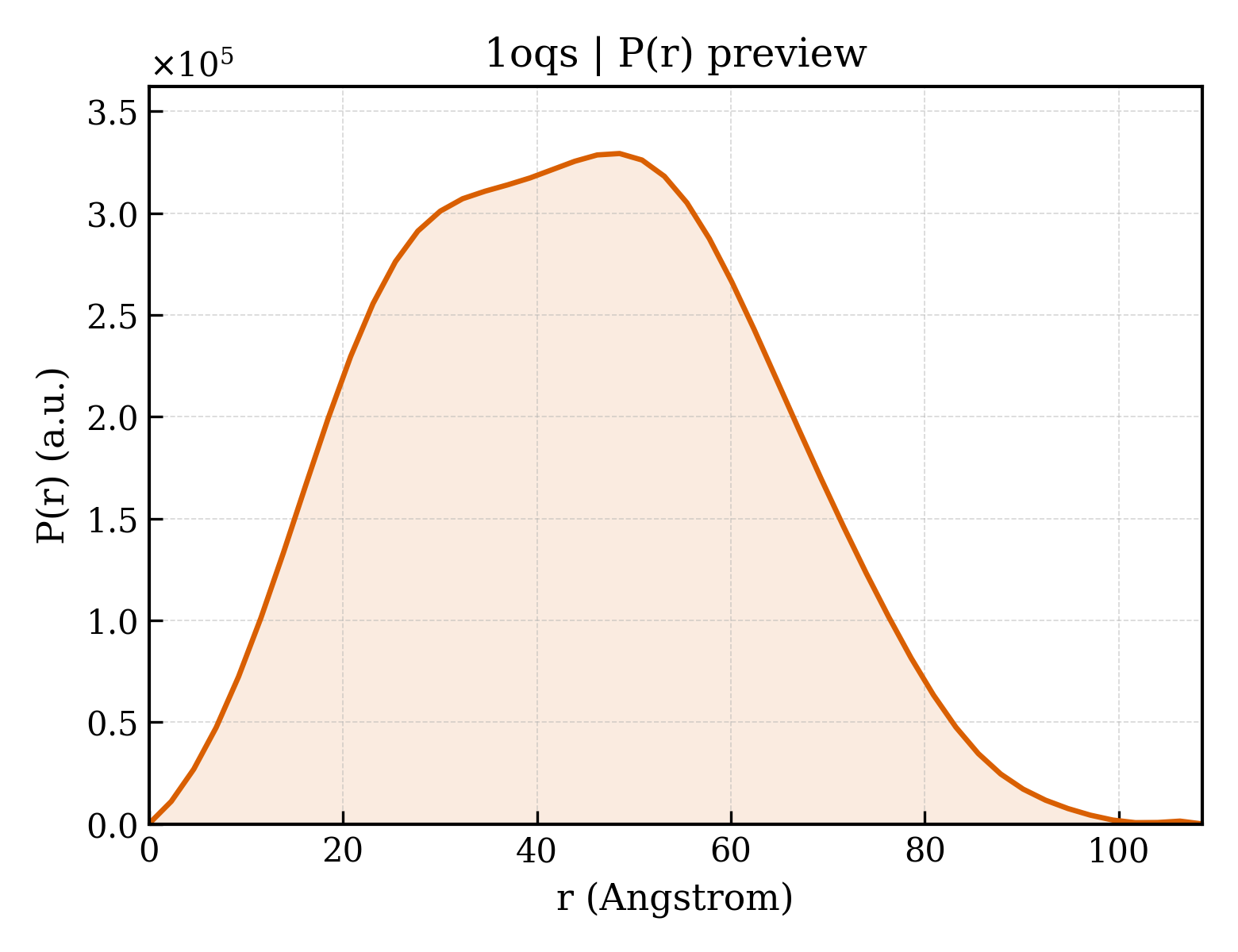

1oqs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.43 Å
Rg (electron density)	17.22 Å
Total Rg	18.22 Å
Atom count	1910
Residues	244
Excluded volume	33247 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1oqs__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1oqs__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1oqs__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1oqs__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Phospholipase A2 RV-7
Molecular weight formula_weight	13689.1 kDa
EC 编号 ec_number	3.1.1.4
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	8012

NLFQFGEMILQKTGKEVVHSYAIYGCYCGWGGQGRAQDATDRCCFVHDCCYGTVNDCNPKTATYSYSFENGDIVCGDNDLCLRTVCECDRAAAICLGQNVNTYDKNYEYYSISHCTEESEQC

Entity 2 Entity 2 polymer

Description description	Phospholipase A2 RV-4
Molecular weight formula_weight	13830.8 kDa
EC 编号 ec_number	3.1.1.4
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

NLFQFARMINGKLGAFSVWNYISYGCYCGWGGQGTPKDATDRCCFVHDCCYGGVKGCNPKLAIYSYSFQRGNIVCGRNNGCLRTICECDRVAANCFHQNKNTYNKEYKFLSSSKCRQRSEQC

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	357

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1oqsa_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1oqsb_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1oqsc_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1oqsd_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1oqse_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1oqsf_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1oqsg_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1oqsh_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

CATH v4.4 (8 domains)

Domain ID domain_id	1oqsA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1oqsB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1oqsC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1oqsD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1oqsE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1oqsF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1oqsG00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1oqsH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

▶

Unit-cell length a length_a	74.918 Å
Unit-cell length b length_b	85.125 Å
Unit-cell length c length_c	78.159 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.10 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2229
R_work r_work	0.2218
R_free r_free	0.2841
