1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1or0
沉积日期 deposition_date	2003-03-11
结构标题 title	Crystal Structures of Glutaryl 7-Aminocephalosporanic Acid Acylase: Insight into Autoproteolytic Activation
关键词 keywords	;Glutaryl 7-aminocephalosporanic acid, N-terminal nucleophile (Ntn) hydrolases, Glutaryl 7-aminocephalosporanic acid Acylase, HYDROLASE ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.85 Å
回转半径 Rg (电子) rg_electron	44.00 Å
零角强度 I(0) i0	354471000.00
分子量 molecular_weight	151070.0 kDa
排除体积 excluded_volume	186590 Å³
包络体积 envelope_volume	243750 Å³
水化壳体积 shell_volume	47133 Å³
包络直径 envelope_diameter	144.5 Å
壳层 Rg shell_rg	47.46 Å
包络 Rg envelope_rg	43.03 Å
形状 Rg shape_rg	43.97 Å
总 Rg total_rg	44.23 Å
总原子数 total_atoms	10617
残基数 n_residues	1323
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	139.4 Å
Rg (实空间) rg_real	44.10 Å
Rg 误差 (实空间) rg_real_error	1.24 Å
I(0) (实空间) i0_real	3.5450e+08
I(0) 误差 (实空间) i0_real_error	6.8710e+06
Rg (倒空间) rg_reciprocal	43.86 Å
I(0) (倒空间) i0_reciprocal	354400000.0000
解质量估计 total_estimate	0.8117
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.8 Å
偏度 Skewness skewness	0.320
峰度 Kurtosis kurtosis	-0.883
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	30160000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.764; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.802; Smooth: 0.455

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Glutaryl 7-Aminocephalosporanic Acid Acylase
分子量 formula_weight	17644.2 kDa
EC 编号 ec_number	3.5.1.-
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	12046

EPTSTPQAPIAAYKPRSNEILWDGYGVPHIYGVDAPSAFYGYGWAQARSHGDNILRLYGEARGKGAEYWGPDYEQTTVWLLTNGVPERAQQWYAQQSPDFRANLDAFAAGINAYAQQNPDDISPDVRQVLPVSGADVVAHAHRLMNFLYVASPGRTLGEG

来源 Source

来源生物 organism	Pseudomonas sp. SY-77-1
NCBI 分类编号 ncbi_taxonomy_id	269086
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	glutaryl acylase
分子量 formula_weight	59624.6 kDa
EC 编号 ec_number	3.5.1.-
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

SNSWAVAPGKTANGNALLLQNPHLSWTTDYFTYYEAHLVTPDFEIYGATQIGLPVIRFAFNQRMGITNTVNGMVGATNYRLTLQDGGYLYDGQVRPFERPQASYRLRQADGTTVDKPLEIRSSVHGPVFERADGTAVAVRVAGLDRPGMLEQYFDMITADSFDDYEAALARMQVPTFNIVYADREGTINYSFNGVAPKRAEGDIAFWQGLVPGDSSRYLWTETHPLDDLPRVTNPPGGFVQNSNDPPWTPTWPVTYTPKDFPSYLAPQTPHSLRAQQSVRLMSENDDLTLERFMALQLSHRAVMADRTLPDLIPAALIDPDPEVQAAARLLAAWDREFTSDSRAALLFEEWARLFAGQNFAGQAGFATPWSLDKPVSTPYGVRDPKAAVDQLRTAIANTKRKYGAIDRPFGDASRMILNDVNVPGAAGYGNLGSFRVFTWSDPDENGVRTPVHGETWVAMIEFSTPVRAYGLMSYGNSRQPGTTHYSDQIERVSRADFRELLLRREQVEAAVQERTPFNFKPHHHHHH

来源 Source

来源生物 organism	Pseudomonas sp. SY-77-1
NCBI 分类编号 ncbi_taxonomy_id	269086
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	1,2-ETHANEDIOL
分子量 formula_weight	62.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1429

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1or0.1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.2 — Penicillin acylase, catalytic domain

结构域编号 domain_id	d1or0.2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.2 — Penicillin acylase, catalytic domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1or0A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	439 — Penicillin Amidohydrolase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Penicillin Amidohydrolase, domain 1

结构域编号 domain_id	1or0B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1or0B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1400 — Penicillin amidase (Acylase) alpha subunit, N-terminal domain
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, alpha-helical knob region

结构域编号 domain_id	1or0B03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	120 — Penicillin G acylase, beta-roll domain
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain, beta-sheet knob region

结构域编号 domain_id	1or0C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	439 — Penicillin Amidohydrolase; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Penicillin Amidohydrolase, domain 1

结构域编号 domain_id	1or0D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1or0D02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1400 — Penicillin amidase (Acylase) alpha subunit, N-terminal domain
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, alpha-helical knob region

结构域编号 domain_id	1or0D03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	120 — Penicillin G acylase, beta-roll domain
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain, beta-sheet knob region

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	229.667 Å
晶胞边长 b length_b	69.907 Å
晶胞边长 c length_c	113.726 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.63 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	19.950 Å
R 因子 r_factor	0.1890
R_work r_work	0.1710
R_free r_free	0.1840

fit	/app/data/saxs_computation/or/1or0/1or0.fit
pddf	/app/data/pr_computation/or/1or0/1or0.pr.out
profile	/app/data/saxs_computation/or/1or0/1or0.dat

Crystal Structures of Glutaryl 7-Aminocephalosporanic Acid Acylase: Insight into Autoproteolytic Activation

SAXS 散射曲线 SAXS Profile

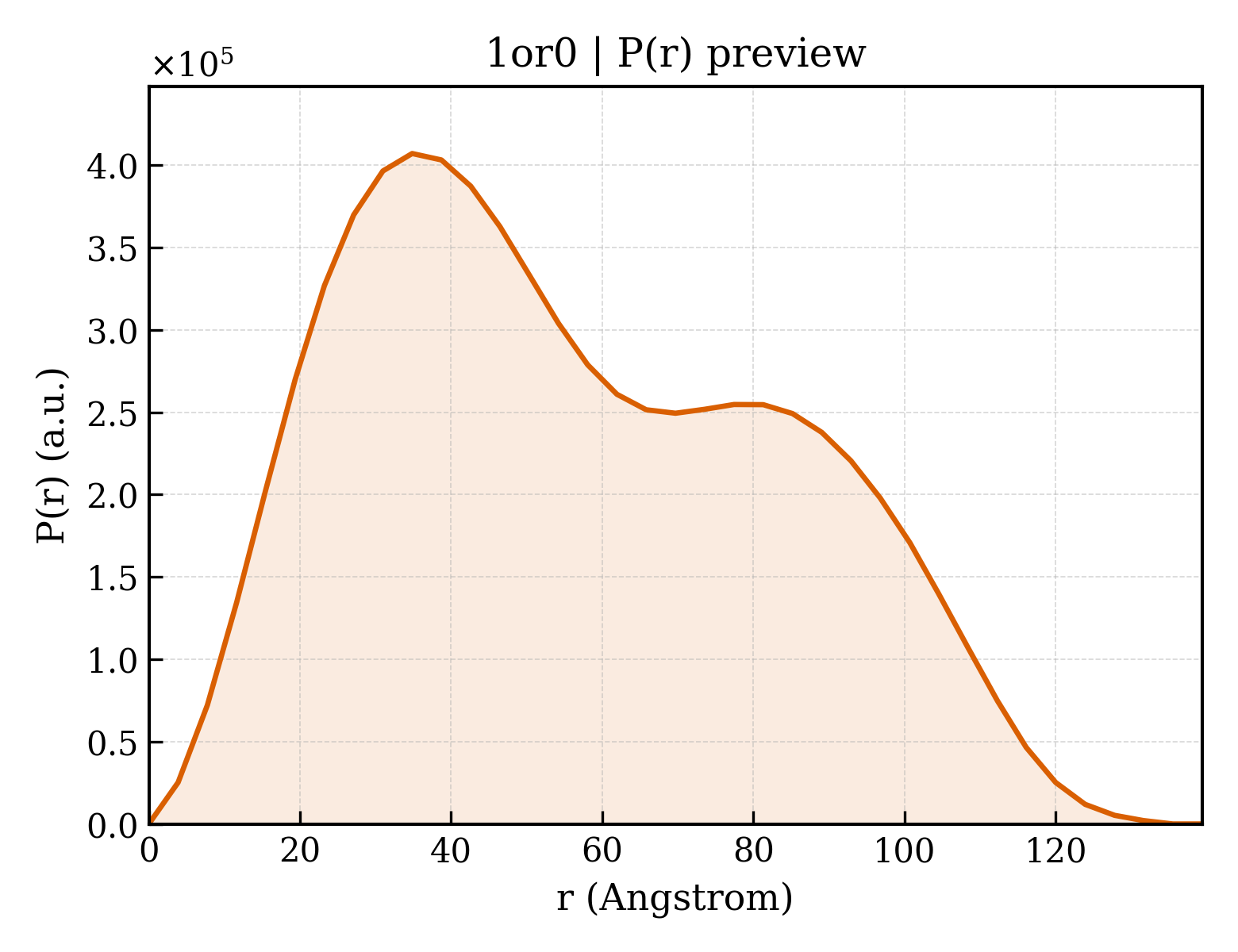

P(r) 距离分布 P(r) Distribution
