Streptomyces roseofulvus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | Q54996_9ACTO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–83； UniProt 1–83 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1or5 |
| Deposition date deposition_date | 2003-03-11 |
| Structure title title | SOLUTION STRUCTURE OF THE HOLO-FORM OF THE FRENOLICIN ACYL CARRIER PROTEIN, MINIMIZED MEAN STRUCTURE |
| Keywords keywords | ACYL CARRIER PROTEIN, ACP, BIOSYNTHESIS, FRENOLICIN, HOLO, POLYKETIDE SYNTHASE, PKS, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN |
| Experimental Method method | SOLUTION NMR |

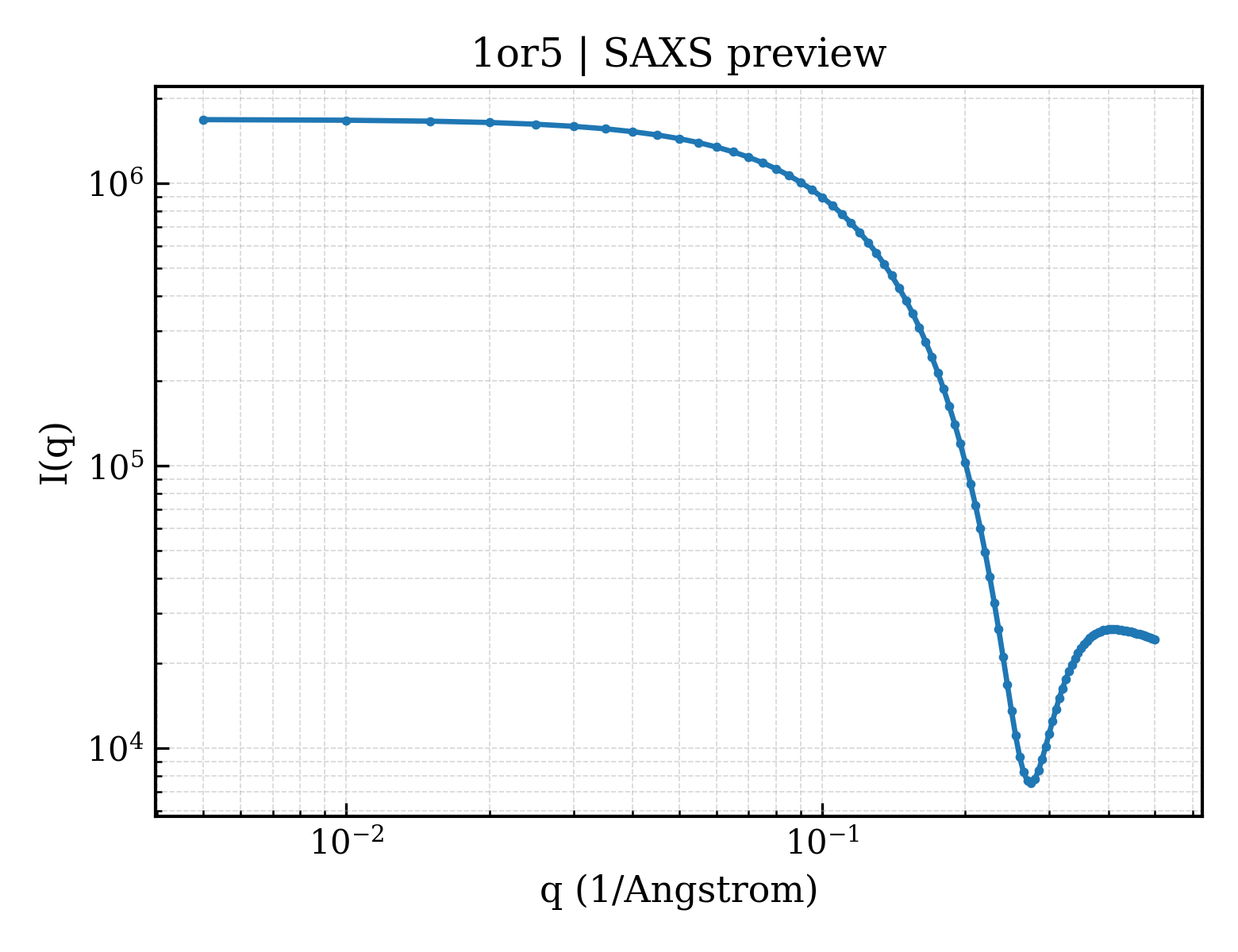

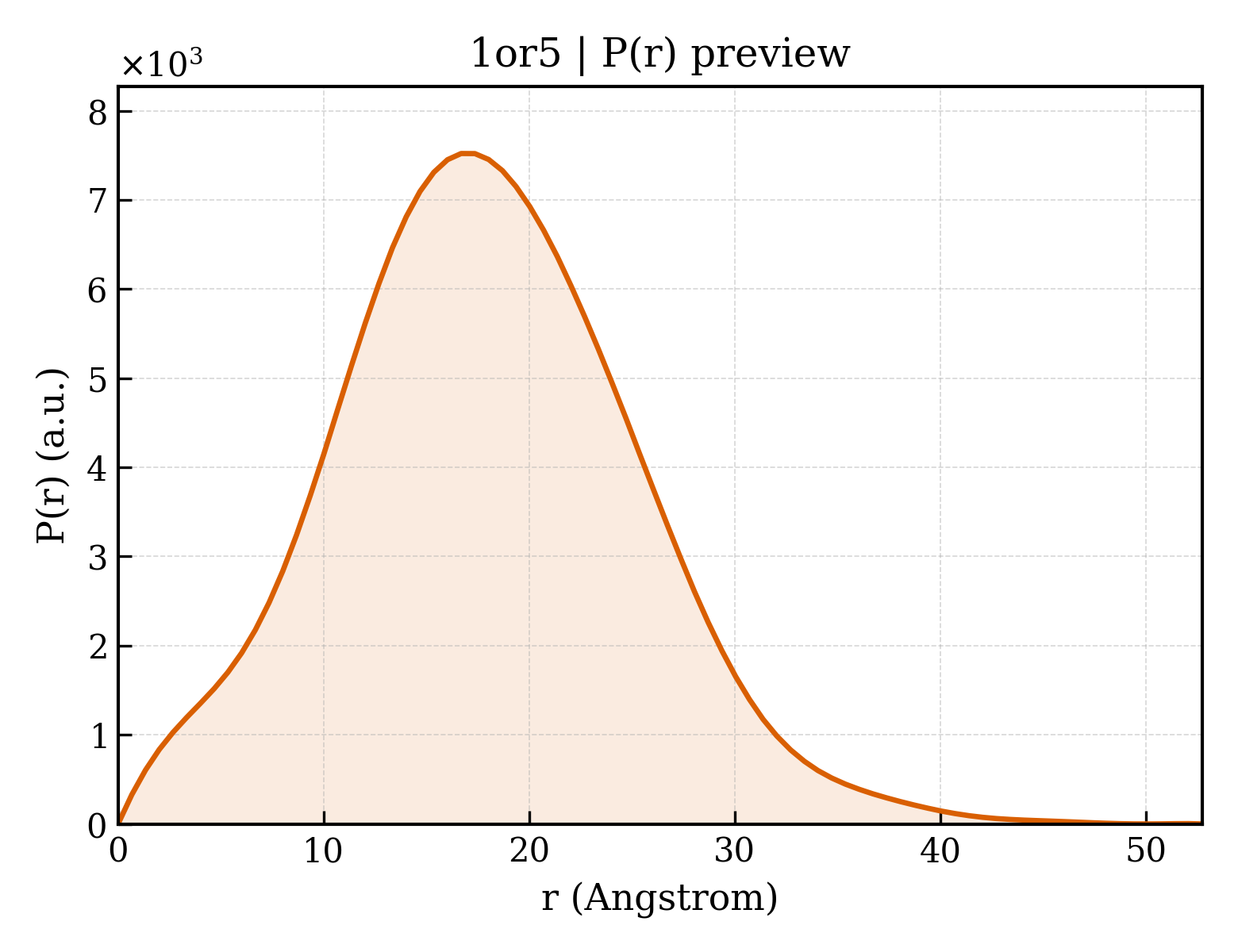

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 13.71 Å |
| Rg (electron density) | 11.96 Å |
| Total Rg | 13.35 Å |
| Atom count | 1220 |
| Residues | 82 |
| Excluded volume | 10787 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1or5a_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.28 — Acyl carrier protein-like |
| Superfamily Superfamily superfamily | a.28.1 — ACP-like |
| Family Family family | a.28.1.1 — Acyl-carrier protein (ACP) |
| Domain ID domain_id | 1or5A00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A |
| Homologous superfamily homologous superfamily | 10 — ACP-like |
