1ou5
Crystal structure of human CCA-adding enzyme
SAXS 散射曲线 SAXS Profile

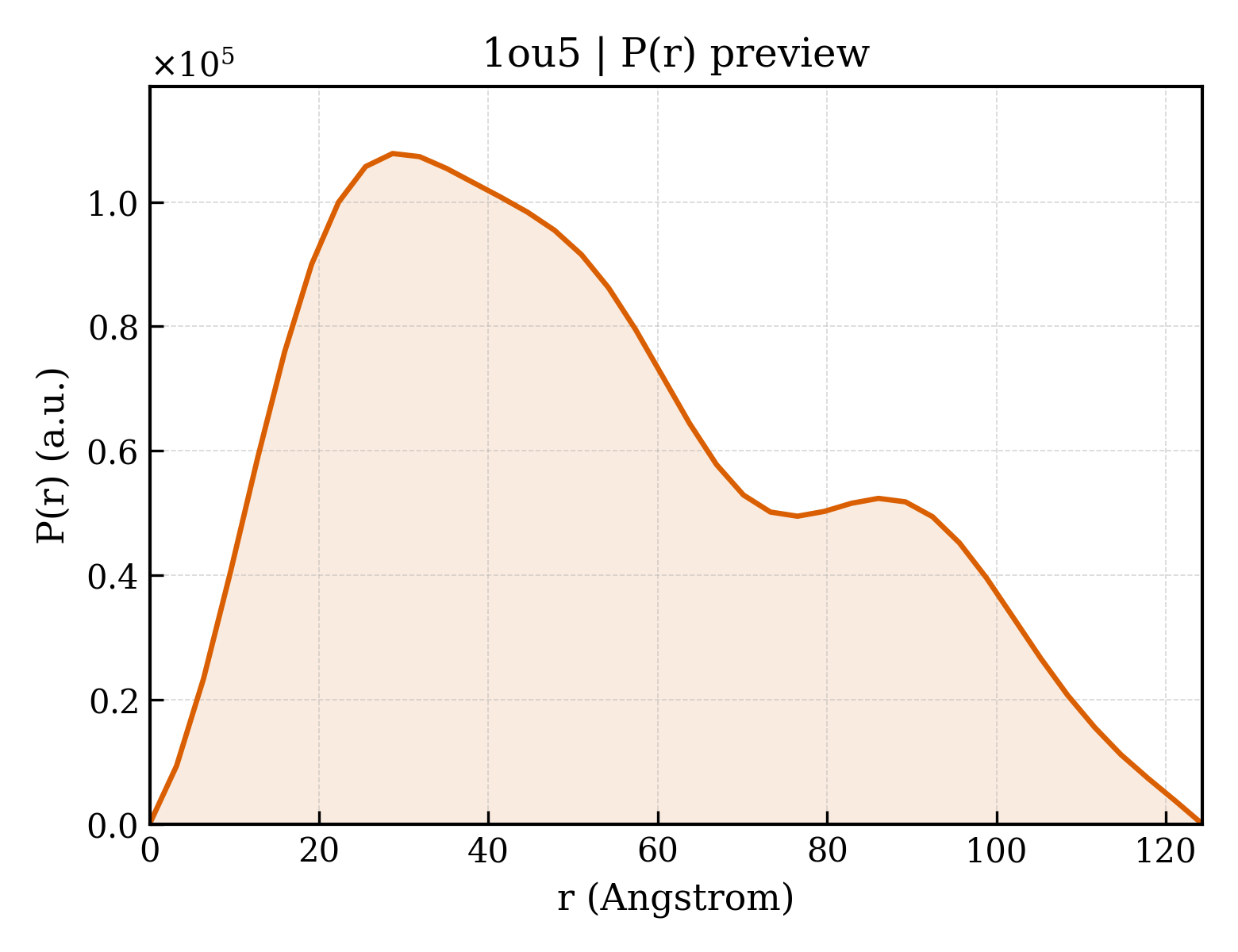

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1ou5 |
| 沉积日期 deposition_date | 2003-03-24 |
| 结构标题 title | Crystal structure of human CCA-adding enzyme |
| 关键词 keywords | tRNA, polymerase, nucleotidyltransferase, TRANSLATION, TRANSFERASE; TRANSLATION, TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 40.47 Å |
| 回转半径 Rg (电子) rg_electron | 40.62 Å |
| 零角强度 I(0) i0 | 92660400.00 |
| 分子量 molecular_weight | 78945.0 kDa |
| 排除体积 excluded_volume | 99550 ų |
| 包络体积 envelope_volume | 146000 ų |
| 水化壳体积 shell_volume | 33245 ų |
| 包络直径 envelope_diameter | 130.7 Å |
| 壳层 Rg shell_rg | 40.83 Å |
| 包络 Rg envelope_rg | 39.61 Å |
| 形状 Rg shape_rg | 40.62 Å |
| 总 Rg total_rg | 40.62 Å |
| 总原子数 total_atoms | 5570 |
| 残基数 n_residues | 687 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 124.3 Å |
| Rg (实空间) rg_real | 41.01 Å |
| Rg 误差 (实空间) rg_real_error | 0.38 Å |
| I(0) (实空间) i0_real | 9.1500e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.3150e+06 |
| Rg (倒空间) rg_reciprocal | 40.47 Å |
| I(0) (倒空间) i0_reciprocal | 92620000.0000 |
| 解质量估计 total_estimate | 0.6075 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 28.7 Å |
| 偏度 Skewness skewness | 0.459 |
| 峰度 Kurtosis kurtosis | -0.720 |
| 角度范围 angular_range | — – 0.1950 Å−1 |
| 当前正则化参数 α current_alpha | 2.7240 |
| 最高正则化参数 α highest_alpha | 4966000.0000 |
| 实空间数据点数 n_real_points | 40 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.831; Stabil: 0.952; Sysdev: 0.000; Positv: 1.000; Valcen: 0.544; Smooth: 0.002 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 10 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1ou5a1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.173 — Poly A polymerase C-terminal region-like |
| 超家族 Superfamily superfamily | a.173.1 — Poly A polymerase C-terminal region-like |
| 家族 Family family | a.173.1.1 — Poly A polymerase C-terminal region-like |
| 结构域编号 domain_id | d1ou5a2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.218 — Nucleotidyltransferase |
| 超家族 Superfamily superfamily | d.218.1 — Nucleotidyltransferase |
| 家族 Family family | d.218.1.4 — Poly A polymerase head domain-like |
| 结构域编号 domain_id | d1ou5a3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1ou5b1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.173 — Poly A polymerase C-terminal region-like |
| 超家族 Superfamily superfamily | a.173.1 — Poly A polymerase C-terminal region-like |
| 家族 Family family | a.173.1.1 — Poly A polymerase C-terminal region-like |
| 结构域编号 domain_id | d1ou5b2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.218 — Nucleotidyltransferase |
| 超家族 Superfamily superfamily | d.218.1 — Nucleotidyltransferase |
| 家族 Family family | d.218.1.4 — Poly A polymerase head domain-like |
| 结构域编号 domain_id | d1ou5b3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1ou5A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 460 — Beta Polymerase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Beta Polymerase, domain 2 |
| 结构域编号 domain_id | 1ou5A02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 3090 — cca-adding enzyme, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — cca-adding enzyme, domain 2 |
| 结构域编号 domain_id | 1ou5B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 460 — Beta Polymerase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Beta Polymerase, domain 2 |
| 结构域编号 domain_id | 1ou5B02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 3090 — cca-adding enzyme, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — cca-adding enzyme, domain 2 |
