1ow6
Paxillin LD4 motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase
SAXS 散射曲线 SAXS Profile

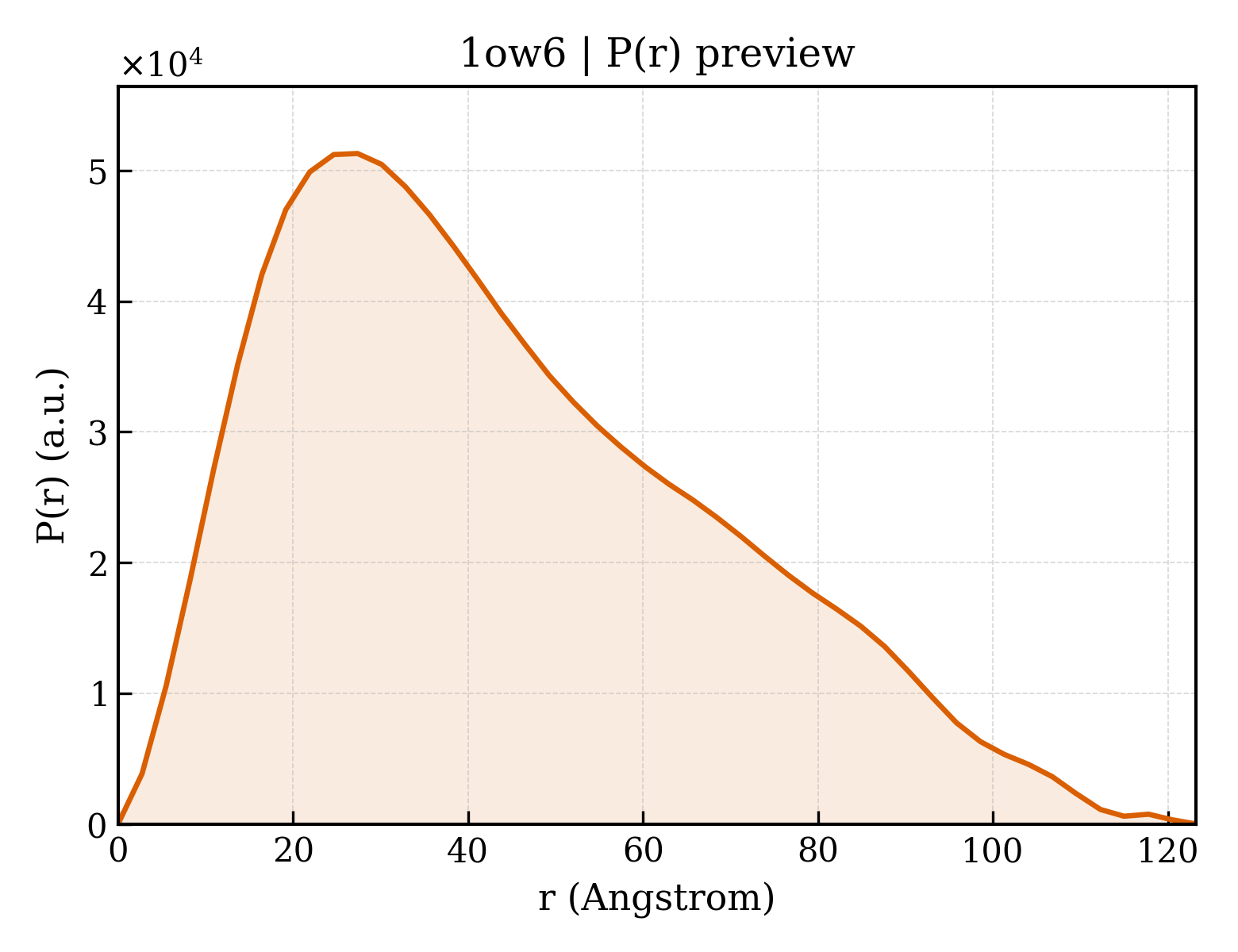

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1ow6 |
| 沉积日期 deposition_date | 2003-03-28 |
| 结构标题 title | Paxillin LD4 motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase |
| 关键词 keywords | 4 helical bundle, domain swapping, amphiphatic helix, TRANSFERASE; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 34.97 Å |
| 回转半径 Rg (电子) rg_electron | 35.41 Å |
| 零角强度 I(0) i0 | 36139600.00 |
| 分子量 molecular_weight | 48227.0 kDa |
| 排除体积 excluded_volume | 61057 ų |
| 包络体积 envelope_volume | 91647 ų |
| 水化壳体积 shell_volume | 24487 ų |
| 包络直径 envelope_diameter | 128.6 Å |
| 壳层 Rg shell_rg | 36.11 Å |
| 包络 Rg envelope_rg | 35.63 Å |
| 形状 Rg shape_rg | 35.41 Å |
| 总 Rg total_rg | 35.49 Å |
| 总原子数 total_atoms | 3369 |
| 残基数 n_residues | 435 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 123.2 Å |
| Rg (实空间) rg_real | 35.52 Å |
| Rg 误差 (实空间) rg_real_error | 1.97 Å |
| I(0) (实空间) i0_real | 3.6140e+07 |
| I(0) 误差 (实空间) i0_real_error | 6.5800e+05 |
| Rg (倒空间) rg_reciprocal | 35.18 Å |
| I(0) (倒空间) i0_reciprocal | 36130000.0000 |
| 解质量估计 total_estimate | 0.7464 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 27.4 Å |
| 偏度 Skewness skewness | 0.590 |
| 峰度 Kurtosis kurtosis | -0.415 |
| 角度范围 angular_range | — – 0.2250 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 2885000.0000 |
| 实空间数据点数 n_real_points | 46 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.571; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.328; Smooth: 0.662 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 9 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d1ow6a_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.14 — FAT domain of focal adhesion kinase |
| 家族 Family family | a.24.14.1 — FAT domain of focal adhesion kinase |
| 结构域编号 domain_id | d1ow6b_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.14 — FAT domain of focal adhesion kinase |
| 家族 Family family | a.24.14.1 — FAT domain of focal adhesion kinase |
| 结构域编号 domain_id | d1ow6c_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.14 — FAT domain of focal adhesion kinase |
| 家族 Family family | a.24.14.1 — FAT domain of focal adhesion kinase |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1ow6A01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 540 — Single helix bin |
| 结构域编号 domain_id | 1ow6A02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 330 — Nucleotidyltransferases domain 2 |
| 结构域编号 domain_id | 1ow6B01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 540 — Single helix bin |
| 结构域编号 domain_id | 1ow6B02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 330 — Nucleotidyltransferases domain 2 |
| 结构域编号 domain_id | 1ow6C01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 540 — Single helix bin |
| 结构域编号 domain_id | 1ow6C02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 330 — Nucleotidyltransferases domain 2 |
