SAXSdb — 1oxn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 7

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count
10	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1 water × 2	Consistent with protein count
11	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	ZINC ION × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	ZINC ION × 1 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1 water × 1	Consistent with protein count
5	Protein heterocomplex	Heteromer	Protein 2	AEAVPWKSE peptide × 1 ZINC ION × 1 water × 2	Consistent with protein count
6	Protein heterocomplex	Heteromer	Protein 6	AEAVPWKSE peptide × 1 ZINC ION × 5 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1 water × 6	Consistent with protein count
7	Protein heterocomplex	Heteromer	Protein 4	AEAVPWKSE peptide × 1 ZINC ION × 3 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1 water × 4	Consistent with protein count
8	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 water × 2	Consistent with protein count
9	Protein heterocomplex	Heteromer	Protein 3	AEAVPWKSE peptide × 1 ZINC ION × 2 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BIRC7_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–140； UniProt 63–179 Author chain B； PDBConstruct 24–140； UniProt 63–179 Author chain C； PDBConstruct 24–140； UniProt 63–179 Author chain D； PDBConstruct 24–140； UniProt 63–179 Author chain E； PDBConstruct 24–140； UniProt 63–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oxn
Deposition date deposition_date	2003-04-03
Structure title title	Structure and Function Analysis of Peptide Antagonists of Melanoma Inhibitor of Apoptosis (ML-IAP)
Keywords keywords	zinc binding, peptide complex, apoptosis inhibition, APOPTOSIS-peptide complex; APOPTOSIS/peptide
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1oxn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1oxn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

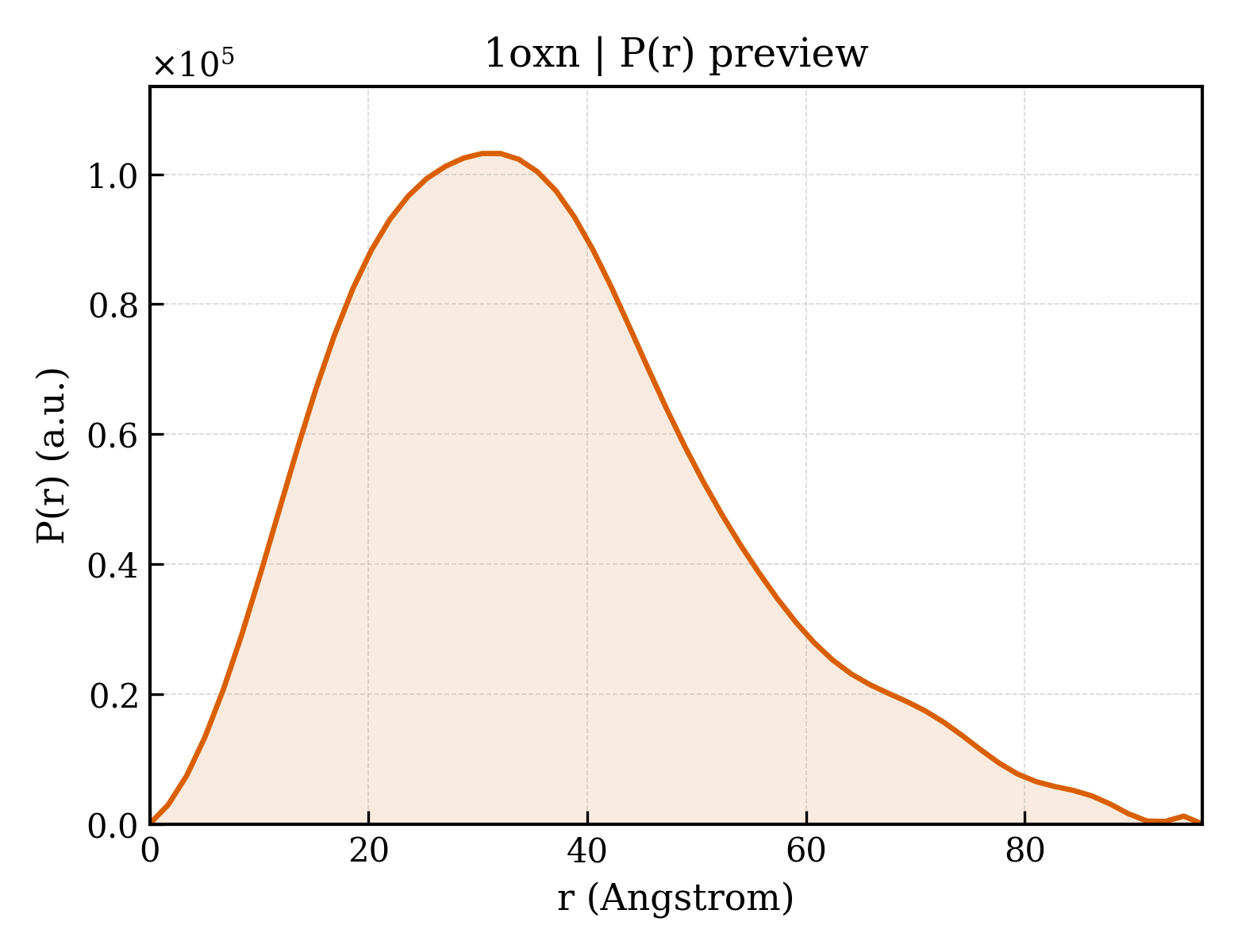

1oxn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.50 Å
Rg (electron density)	13.28 Å
Total Rg	14.55 Å
Atom count	789
Residues	99
Excluded volume	13891 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1oxn__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1oxn__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1oxn__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1oxn__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1oxn__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1oxn__assembly_6__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`1oxn__assembly_7__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`1oxn__assembly_8__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
9	1	`1oxn__assembly_9__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
10	1	`1oxn__assembly_10__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
11	1	`1oxn__assembly_11__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
12	1	`1oxn__assembly_12__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Baculoviral IAP repeat-containing protein 7
Molecular weight formula_weight	15749.4 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	4406

MGSSHHHHHHSSGLVPRGSHMLETEEEEEEGAGATLSRGPAFPGMGSEELRLASFYDWPLTAEVPPELLAAAGFFHTGHQDKVRCFFCYGGLQSWKRGDDPWTEHAKWFPSCQFLLRSKGRDFVHSVQETHSQLLGSWDP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	AEAVPWKSE peptide
Molecular weight formula_weight	1017.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

AEAVPWKSE

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL
Molecular weight formula_weight	326.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	401

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1oxna_
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

Domain ID domain_id	d1oxnb_
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

Domain ID domain_id	d1oxnc_
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

Domain ID domain_id	d1oxnd_
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

Domain ID domain_id	d1oxne_
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

CATH v4.4 (5 domains)

Domain ID domain_id	1oxnA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

Domain ID domain_id	1oxnB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

Domain ID domain_id	1oxnC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

Domain ID domain_id	1oxnD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

Domain ID domain_id	1oxnE00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

▶

Unit-cell length a length_a	82.770 Å
Unit-cell length b length_b	82.770 Å
Unit-cell length c length_c	93.170 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	15

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1720
R_work r_work	0.1693
R_free r_free	0.2250
