1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein-tyrosine phosphatase alpha

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PTPRA_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–253； UniProt 577–829 Author chain B； PDBConstruct 1–253； UniProt 577–829

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1p15
Deposition date deposition_date	2003-04-11
Structure title title	Crystal structure of the D2 domain of RPTPa
Keywords keywords	TRANSMEMBRANE, HYDROLASE, PHOSPHORYLATION; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1p15__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1p15__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

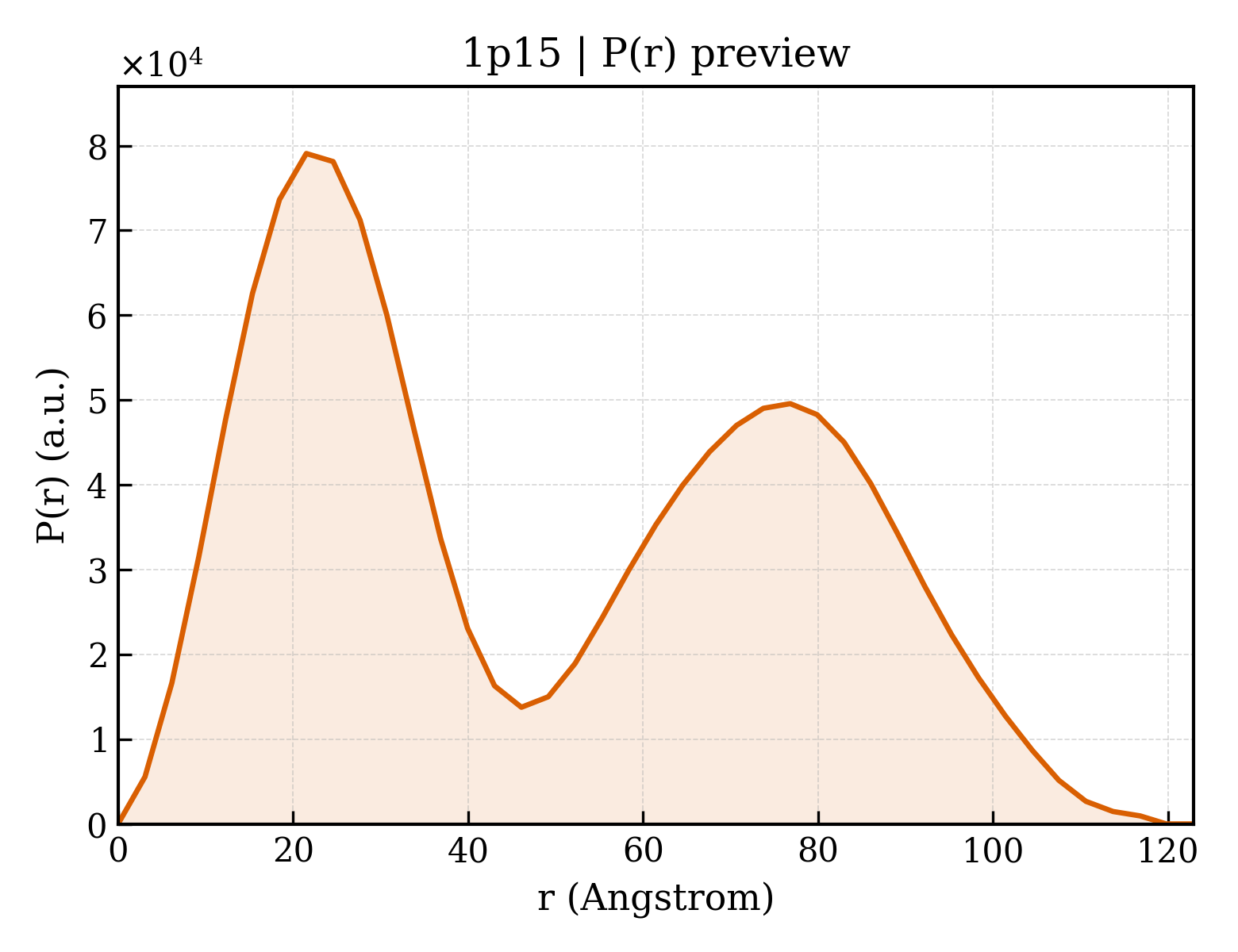

1p15__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.43 Å
Rg (electron density)	17.38 Å
Total Rg	18.39 Å
Atom count	1984
Residues	245
Excluded volume	35185 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1p15__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1p15__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1p15a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.2 — Higher-molecular-weight phosphotyrosine protein phosphatases

Domain ID domain_id	d1p15b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
Superfamily Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
Family Family family	c.45.1.2 — Higher-molecular-weight phosphotyrosine protein phosphatases

CATH v4.4 (2 domains)

Domain ID domain_id	1p15A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

Domain ID domain_id	1p15B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

▶

Unit-cell length a length_a	59.101 Å
Unit-cell length b length_b	59.101 Å
Unit-cell length c length_c	152.657 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31
Space-group number int_tables_number	144
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	51.180 Å
R factor r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2550

Description description	Protein-tyrosine phosphatase alpha
Molecular weight formula_weight	29249.2 kDa
EC 编号 ec_number	3.1.3.48
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4089

Crystal structure of the D2 domain of RPTPa

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein-tyrosine phosphatase alpha

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1p15__assembly_1__model_1

1p15__assembly_1__model_1 | I(q)

1p15__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	115
