1p1h

Crystal structure of the 1L-myo-inositol/NAD+ complex

Method: X-RAY DIFFRACTION D_max: 122.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

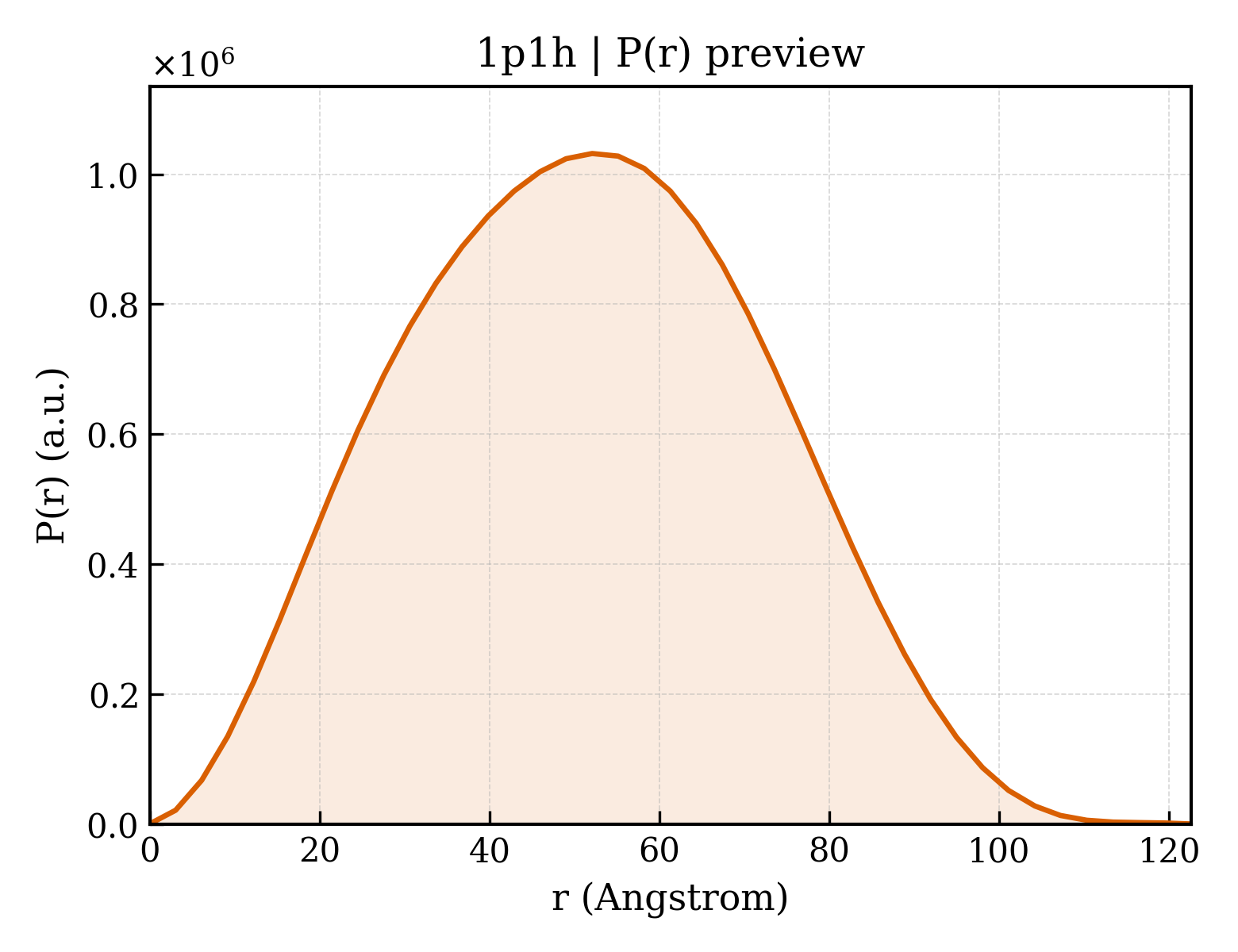

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1p1h
沉积日期 deposition_date	2003-04-12
结构标题 title	Crystal structure of the 1L-myo-inositol/NAD+ complex
关键词 keywords	NAD+, 1L-myo-inositol 1-phosphate, ISOMERASE; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.52 Å
回转半径 Rg (电子) rg_electron	38.88 Å
零角强度 I(0) i0	746462000.00
分子量 molecular_weight	226780.0 kDa
排除体积 excluded_volume	284680 Å³
包络体积 envelope_volume	349090 Å³
水化壳体积 shell_volume	71237 Å³
包络直径 envelope_diameter	134.1 Å
壳层 Rg shell_rg	47.45 Å
包络 Rg envelope_rg	38.77 Å
形状 Rg shape_rg	38.89 Å
总 Rg total_rg	39.27 Å
总原子数 total_atoms	15960
残基数 n_residues	2001
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	122.6 Å
Rg (实空间) rg_real	39.23 Å
Rg 误差 (实空间) rg_real_error	0.68 Å
I(0) (实空间) i0_real	7.4650e+08
I(0) 误差 (实空间) i0_real_error	1.2830e+07
Rg (倒空间) rg_reciprocal	39.41 Å
I(0) (倒空间) i0_reciprocal	746600000.0000
解质量估计 total_estimate	0.9041
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	52.1 Å
偏度 Skewness skewness	0.080
峰度 Kurtosis kurtosis	-0.595
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	269100000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.971

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Inositol-3-phosphate synthase
分子量 formula_weight	59707.8 kDa
EC 编号 ec_number	5.5.1.4
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	17489

MTEDNIAPITSVKVVTDKCTYKDNELLTKYSYENAVVTKTASGRFDVTPTVQDYVFKLDLKKPEKLGIMLIGLGGNNGSTLVASVLANKHNVEFQTKEGVKQPNYFGSMTQCSTLKLGIDAEGNDVYAPFNSLLPMVSPNDFVVSGWDINNADLYEAMQRSQVLEYDLQQRLKAKMSLVKPLPSIYYPDFIAANQDERANNCINLDEKGNVTTRGKWTHLQRIRRDIQNFKEENALDKVIVLWTANTERYVEVSPGVNDTMENLLQSIKNDHEEIAPSTIFAAASILEGVPYINGSPQNTFVPGLVQLAEHEGTFIAGDDLKSGQTKLKSVLAQFLVDAGIKPVSIASYNHLGNNDGYNLSAPKQFRSKEISKSSVIDDIIASNDILYNDKLGKKVDHCIVIKYMKPVGDSKVAMDEYYSELMLGGHNRISIHNVCEDSLLATPLIIDLLVMTEFCTRVSYKKVDPVKEDAGKFENFYPVLTFLSYWLKAPLTRPGFHPVNGLNKQRTALENFLRLLIGLPSQNELRFEERLL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1529

▼

6. 折叠分类 (SCOP + CATH) 17 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1p1ha1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1p1ha2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.3 — Dihydrodipicolinate reductase-like

结构域编号 domain_id	d1p1hb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1p1hb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.3 — Dihydrodipicolinate reductase-like

结构域编号 domain_id	d1p1hc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1p1hc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.3 — Dihydrodipicolinate reductase-like

结构域编号 domain_id	d1p1hd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1p1hd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.81 — FwdE/GAPDH domain-like
超家族 Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
家族 Family family	d.81.1.3 — Dihydrodipicolinate reductase-like

CATH v4.4 (9 domains)

结构域编号 domain_id	1p1hA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1p1hA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1p1hB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	2360 — Glyceraldehyde-3-phosphate dehydrogenase-like fold
同源超家族 H-superfamily homologous superfamily	10 — Glyceraldehyde-3-phosphate dehydrogenase-like domain

结构域编号 domain_id	1p1hB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1p1hB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1p1hC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1p1hC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

结构域编号 domain_id	1p1hD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1p1hD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	90.794 Å
晶胞边长 b length_b	185.581 Å
晶胞边长 c length_c	94.078 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	114.77 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.950 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.2120
R_work r_work	0.2080
R_free r_free	0.2490
