SAXSdb — 1p42

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1p42
沉积日期 deposition_date	2003-04-21
结构标题 title	Crystal structure of Aquifex aeolicus LpxC Deacetylase (Zinc-Inhibited Form)
关键词 keywords	alpha+beta fold, hydrophobic tunnel, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.53 Å
回转半径 Rg (电子) rg_electron	29.17 Å
零角强度 I(0) i0	56354400.00
分子量 molecular_weight	61752.0 kDa
排除体积 excluded_volume	78423 Å³
包络体积 envelope_volume	93171 Å³
水化壳体积 shell_volume	27698 Å³
包络直径 envelope_diameter	97.8 Å
壳层 Rg shell_rg	35.15 Å
包络 Rg envelope_rg	29.12 Å
形状 Rg shape_rg	29.16 Å
总 Rg total_rg	29.79 Å
总原子数 total_atoms	4353
残基数 n_residues	534
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	98.1 Å
Rg (实空间) rg_real	29.74 Å
Rg 误差 (实空间) rg_real_error	0.99 Å
I(0) (实空间) i0_real	5.6350e+07
I(0) 误差 (实空间) i0_real_error	8.8760e+05
Rg (倒空间) rg_reciprocal	29.66 Å
I(0) (倒空间) i0_reciprocal	56350000.0000
解质量估计 total_estimate	0.8203
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.4 Å
偏度 Skewness skewness	0.470
峰度 Kurtosis kurtosis	-0.553
角度范围 angular_range	— – 0.2700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	35810000.0000
实空间数据点数 n_real_points	55
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.702; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.817; Smooth: 0.738

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
分子量 formula_weight	30858.3 kDa
EC 编号 ec_number	3.5.1.-
突变 mutation	C193A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4750

GLEKTVKEKLSFEGVGIHTGEYSKLIIHPEKEGTGIRFFKNGVYIPARHEFVVHTNHSTDLGFKGQRIKTVEHILSVLHLLEITNVTIEVIGNEIPILDGSGWEFYEAIRKNILNQNREIDYFVVEEPIIVEDEGRLIKAEPSDTLEVTYEGEFKNFLGRQKFTFVEGNEEEIVLARTFAFDWEIEHIKKVGLGKGGSLKNTLVLGKDKVYNPEGLRYENEPVRHKVFDLIGDLYLLGSPVKGKFYSFRGGHSLNVKLVKELAKKQKLTR

来源 Source

来源生物 organism	Aquifex aeolicus
NCBI 分类编号 ncbi_taxonomy_id	63363
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 3 non-polymer

描述 description	MYRISTIC ACID
分子量 formula_weight	228.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	309

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1p42a1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.7 — UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase LpxC

结构域编号 domain_id	d1p42a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.7 — UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase LpxC

结构域编号 domain_id	d1p42b1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.7 — UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase LpxC

结构域编号 domain_id	d1p42b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.7 — UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase LpxC

CATH v4.4 (4 domains)

结构域编号 domain_id	1p42A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	20 — lpxc deacetylase, domain 1

结构域编号 domain_id	1p42A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1700 — lpxc deacetylase, domain 1
同源超家族 H-superfamily homologous superfamily	10 — lpxc deacetylase, domain 2

结构域编号 domain_id	1p42B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	20 — lpxc deacetylase, domain 1

结构域编号 domain_id	1p42B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1700 — lpxc deacetylase, domain 1
同源超家族 H-superfamily homologous superfamily	10 — lpxc deacetylase, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	101.660 Å
晶胞边长 b length_b	101.660 Å
晶胞边长 c length_c	125.100 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 61
空间群编号 int_tables_number	169
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	29.470 Å
R 因子 r_factor	0.1990
R_work r_work	0.1990
R_free r_free	0.2110

fit	/app/data/saxs_computation/p4/1p42/1p42.fit
pddf	/app/data/pr_computation/p4/1p42/1p42.pr.out
profile	/app/data/saxs_computation/p4/1p42/1p42.dat

Crystal structure of Aquifex aeolicus LpxC Deacetylase (Zinc-Inhibited Form)

SAXS 散射曲线 SAXS Profile

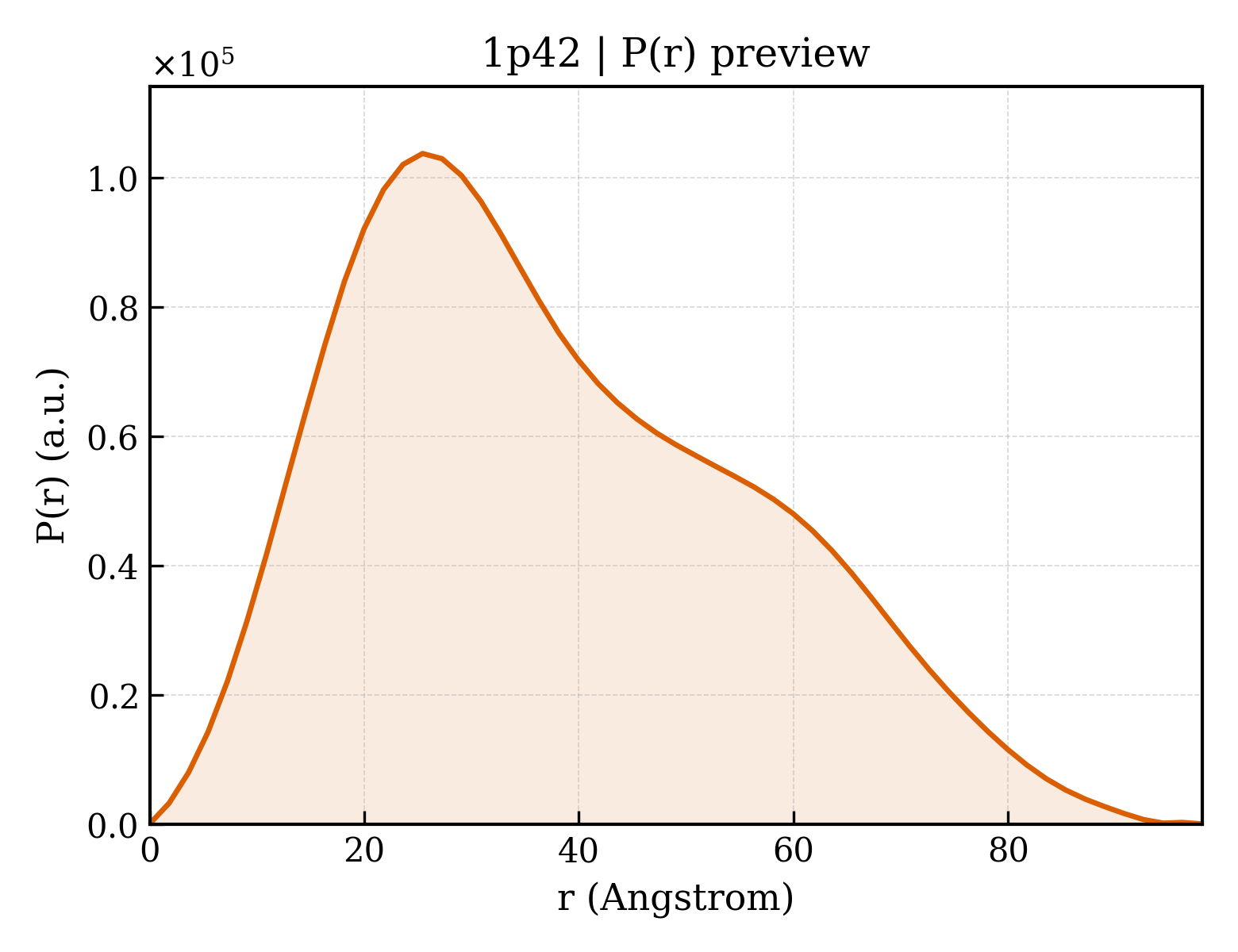

P(r) 距离分布 P(r) Distribution
