1pfi

PF1 VIRUS STRUCTURE: HELICAL COAT PROTEIN AND DNA WITH PARAXIAL PHOSPHATES

Method: FIBER DIFFRACTION D_max: 78.7 Å Quality: GOOD

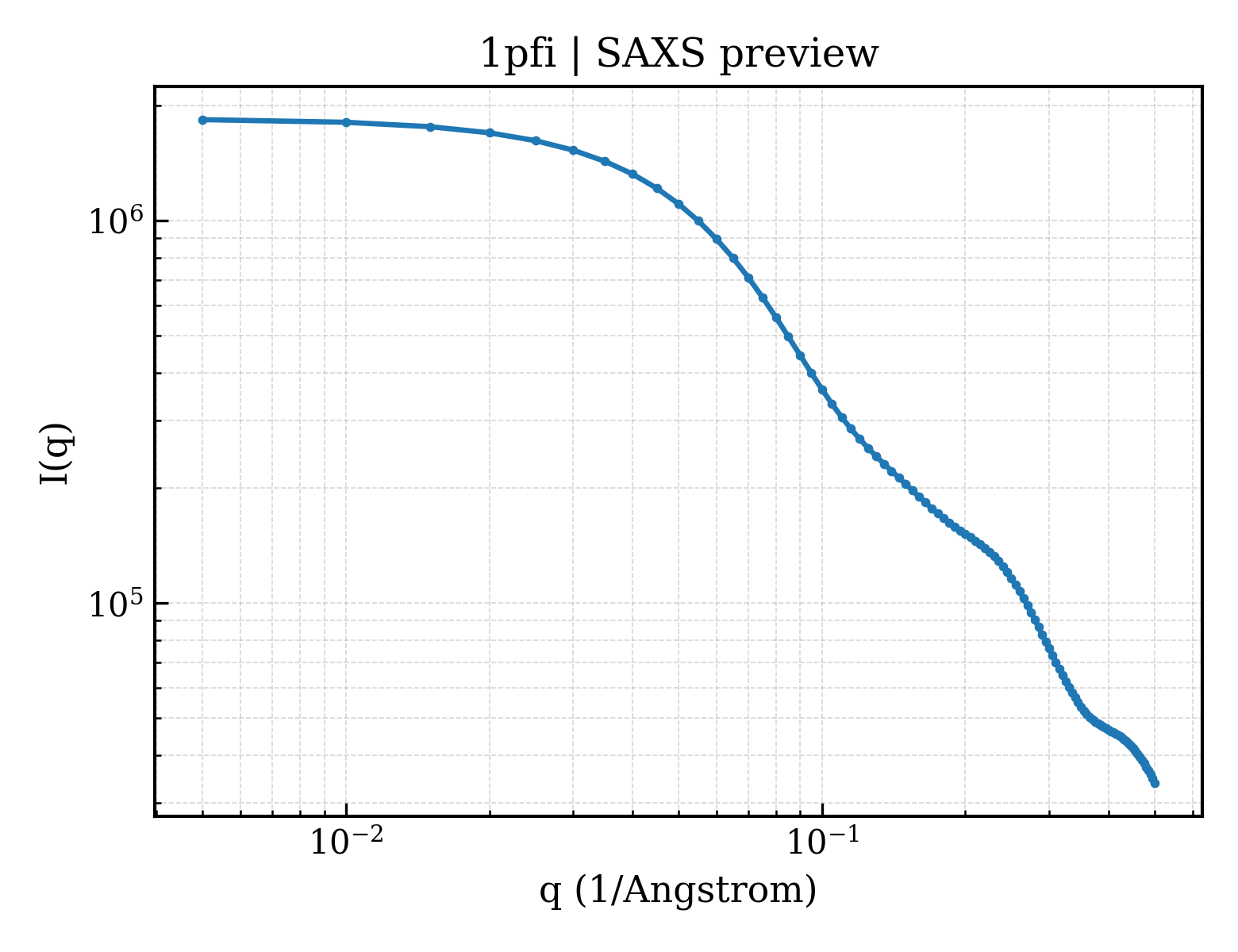

SAXS 散射曲线 SAXS Profile

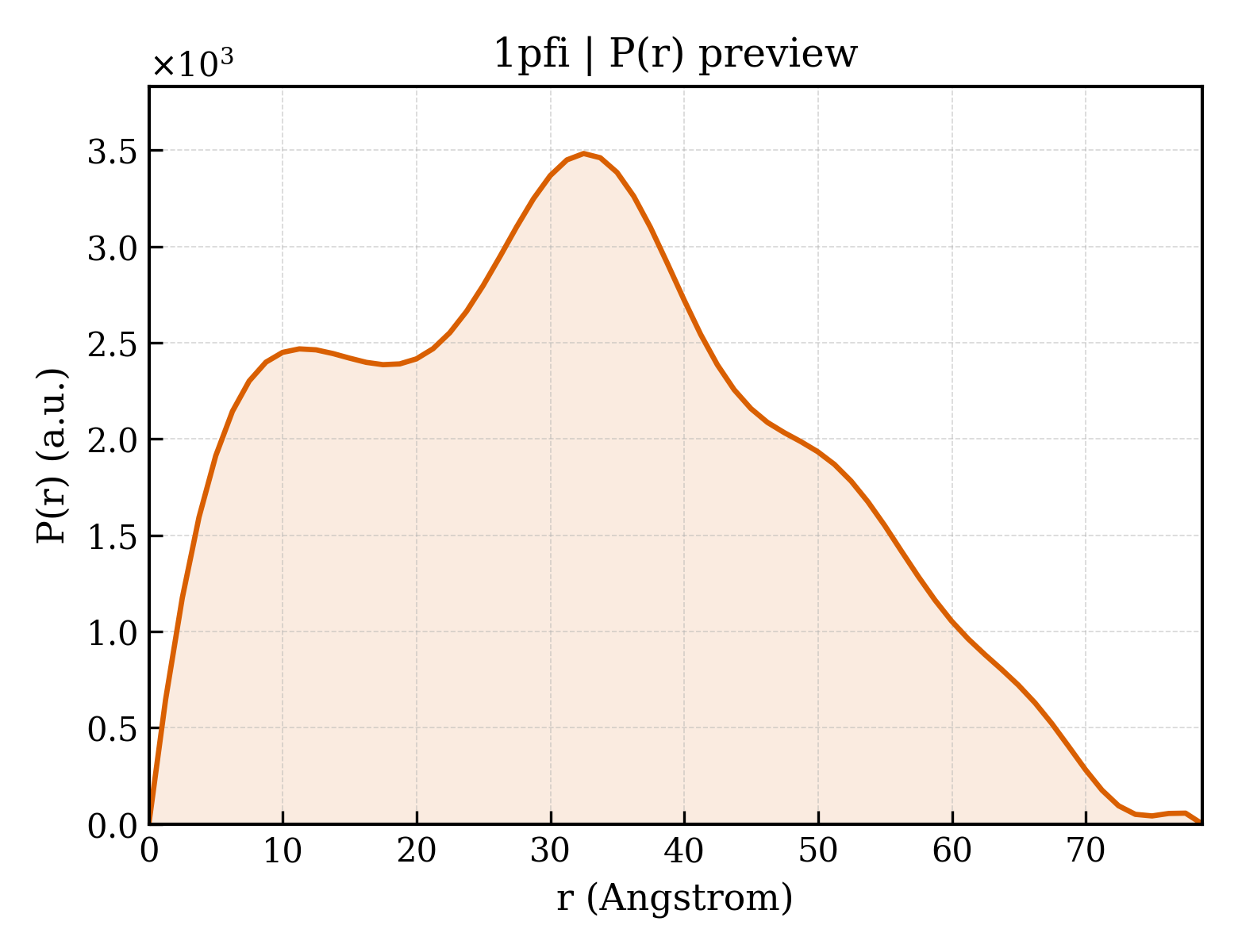

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1pfi
沉积日期 deposition_date	1994-04-06
结构标题 title	PF1 VIRUS STRUCTURE: HELICAL COAT PROTEIN AND DNA WITH PARAXIAL PHOSPHATES
关键词 keywords	COMPLEX(VIRAL COAT PROTEIN-DNA), Helical virus, Virus; VIRUS
实验方法 method	FIBER DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.99 Å
回转半径 Rg (电子) rg_electron	24.12 Å
零角强度 I(0) i0	1848710.00
分子量 molecular_weight	9797.0 kDa
排除体积 excluded_volume	12344 Å³
包络体积 envelope_volume	20147 Å³
水化壳体积 shell_volume	8173 Å³
包络直径 envelope_diameter	79.8 Å
壳层 Rg shell_rg	27.42 Å
包络 Rg envelope_rg	23.39 Å
形状 Rg shape_rg	24.08 Å
总 Rg total_rg	24.86 Å
总原子数 total_atoms	1392
残基数 n_residues	93
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.7 Å
Rg (实空间) rg_real	25.22 Å
Rg 误差 (实空间) rg_real_error	0.72 Å
I(0) (实空间) i0_real	1.8490e+06
I(0) 误差 (实空间) i0_real_error	2.7450e+04
Rg (倒空间) rg_reciprocal	25.17 Å
I(0) (倒空间) i0_reciprocal	1849000.0000
解质量估计 total_estimate	0.8090
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	32.5 Å
偏度 Skewness skewness	0.204
峰度 Kurtosis kurtosis	-0.728
角度范围 angular_range	— – 0.3200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	54660.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.640; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.641; Smooth: 0.954

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	MAJOR COAT PROTEIN OF PF1 VIRUS
分子量 formula_weight	4612.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	1392

GVIDTSAVESAITDGQGDMKAIGGYIVGALVILAVAGLIYSMLRKA

来源 Source

来源生物 organism	Pseudomonas phage Pf1
NCBI 分类编号 ncbi_taxonomy_id	10871

Entity 2 polymer

描述 description	;DNA (5'-D(P*C)-3') ;
分子量 formula_weight	307.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C,D

来源 Source

来源生物 organism	Pseudomonas phage Pf1
NCBI 分类编号 ncbi_taxonomy_id	10871

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1pfia_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.4 — Inovirus (filamentous phage) major coat protein
家族 Family family	h.1.4.1 — Inovirus (filamentous phage) major coat protein

结构域编号 domain_id	d1pfib_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.4 — Inovirus (filamentous phage) major coat protein
家族 Family family	h.1.4.1 — Inovirus (filamentous phage) major coat protein

CATH v4.4 (2 domains)

结构域编号 domain_id	1pfiA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	230 —

结构域编号 domain_id	1pfiB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	230 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	1

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/pf/1pfi/1pfi.fit
pddf	/app/data/pr_computation/pf/1pfi/1pfi.pr.out
profile	/app/data/saxs_computation/pf/1pfi/1pfi.dat
