SAXSdb — 1phr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LOW MOLECULAR WEIGHT PHOSPHOTYROSINE PROTEIN PHOSPHATASE

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–157	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.10 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1PHR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BVH SOLUTION STRUCTURE OF A LOW MOLECULAR WEIGHT PROTEIN TYROSINE PHOSPHATASE Deposited 1994-05-03	Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–157（157 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1C0E Active Site S19A Mutant of Bovine Heart Phosphotyrosyl Phosphatase Deposited 1999-07-15	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–157（157 aa）	Mutation：S19A	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；PEG 4000, TRIS BUFFER, pH 7.00	Resolution 2.20 Å R-free 0.244
1C0E Active Site S19A Mutant of Bovine Heart Phosphotyrosyl Phosphatase Deposited 1999-07-15	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–157（157 aa）	Mutation：S19A	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；PEG 4000, TRIS BUFFER, pH 7.00	Resolution 2.20 Å R-free 0.244
1DG9 CRYSTAL STRUCTURE OF BOVINE LOW MOLECULAR WEIGHT PTPASE COMPLEXED WITH HEPES Deposited 1999-11-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–157（157 aa）	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；20% PEG4k, 10% 2-propanol, 100mM HEPES, pH 7.5, VAPOR DIFFUSION	Resolution 1.90 Å
1PNT CRYSTAL STRUCTURE OF BOVINE HEART PHOSPHOTYROSYL PHOSPHATASE AT 2.2 ANGSTROMS RESOLUTION Deposited 1994-08-05	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–157（157 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1Z12 Crystal Structure of Bovine Low Molecular Weight PTPase Complexed with Vanadate Deposited 2005-03-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–157（157 aa）	Not recorded	VO4 VANADATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；PEG 4000, HEPES, Isopropanol, Na2VO4, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
1Z13 Crystal Structure of Bovine Low Molecular Weight PTPase Complexed with Molybdate Deposited 2005-03-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–157（157 aa）	Not recorded	MOO MOLYBDATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；PEG 4000, HEPES, Isopropanol, Na2MoO4, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.20 Å
5JNV Crystal structure of bovine low molecular weight protein tyrosine phosphatase (LMPTP) mutant (W49Y N50E) complexed with HEPES Deposited 2016-04-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–158（157 aa）	Mutation：W49Y N50E	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 DMS DIMETHYL SULFOXIDE × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；293 K；20% PEG 3350, 0.2 M NaCl, Bis Tris, HEPES	Resolution 1.60 Å R-free 0.200
5JNW Crystal structure of bovine low molecular weight protein tyrosine phosphatase (LMPTP) mutant (W49Y N50E) complexed with vanadate and uncompetitive inhibitor Deposited 2016-04-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–158（157 aa）	Mutation：W49Y N50E	VO4 VANADATE ION × 1 6LJ 2-(4-{[3-(piperidin-1-yl)propyl]amino}quinolin-2-yl)benzonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；293 K；20% PEG 3350, 0.2 M NaCl, Bis Tris	Resolution 1.86 Å R-free 0.209

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PPAC_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–157； UniProt 1–157

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1phr
Deposition date deposition_date	1994-07-05
Structure title title	THE CRYSTAL STRUCTURE OF A LOW MOLECULAR PHOSPHOTYROSINE PROTEIN PHOSPHATASE
Keywords keywords	PHOSPHOTYROSINE PROTEIN PHOSPHATASE; PHOSPHOTYROSINE PROTEIN PHOSPHATASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.91 Å
Radius of gyration Rg (electron density) rg_electron	14.66 Å
Forward intensity I(0) i0	6486690.00
Molecular weight molecular_weight	17692.0 kDa
Excluded volume excluded_volume	21824 Å³
Envelope volume envelope_volume	24309 Å³
Hydration-shell volume shell_volume	13844 Å³
Envelope diameter envelope_diameter	50.0 Å
Shell Rg shell_rg	20.74 Å
Envelope Rg envelope_rg	15.04 Å
Shape Rg shape_rg	14.66 Å
Total Rg total_rg	15.74 Å
Total atoms total_atoms	1238
Residues n_residues	154
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.1 Å
Rg (real space) rg_real	15.80 Å
Rg uncertainty (real space) rg_real_error	0.26 Å
I(0) (real space) i0_real	6.4870e+06
I(0) uncertainty (real space) i0_real_error	7.4320e+04
Rg (reciprocal space) rg_reciprocal	15.82 Å
I(0) (reciprocal space) i0_reciprocal	6487000.0000
Solution quality estimate total_estimate	0.8926
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.3 Å
Skewness Skewness skewness	0.128
Kurtosis Kurtosis kurtosis	-0.409
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1264000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1phra_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.44 — Phosphotyrosine protein phosphatases I-like
Superfamily Superfamily superfamily	c.44.1 — Phosphotyrosine protein phosphatases I
Family Family family	c.44.1.1 — Low-molecular-weight phosphotyrosine protein phosphatases

CATH v4.4 (1 domains)

Domain ID domain_id	1phrA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

▶

8. Citations (2)

▶

Unit-cell length a length_a	46.300 Å
Unit-cell length b length_b	62.200 Å
Unit-cell length c length_c	62.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1670
R_work r_work	0.1670
R_free r_free	0.2320

Description description	LOW MOLECULAR WEIGHT PHOSPHOTYROSINE PROTEIN PHOSPHATASE
Molecular weight formula_weight	17946.3 kDa
EC 编号 ec_number	3.1.3.48
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1308

THE CRYSTAL STRUCTURE OF A LOW MOLECULAR PHOSPHOTYROSINE PROTEIN PHOSPHATASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

LOW MOLECULAR WEIGHT PHOSPHOTYROSINE PROTEIN PHOSPHATASE

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

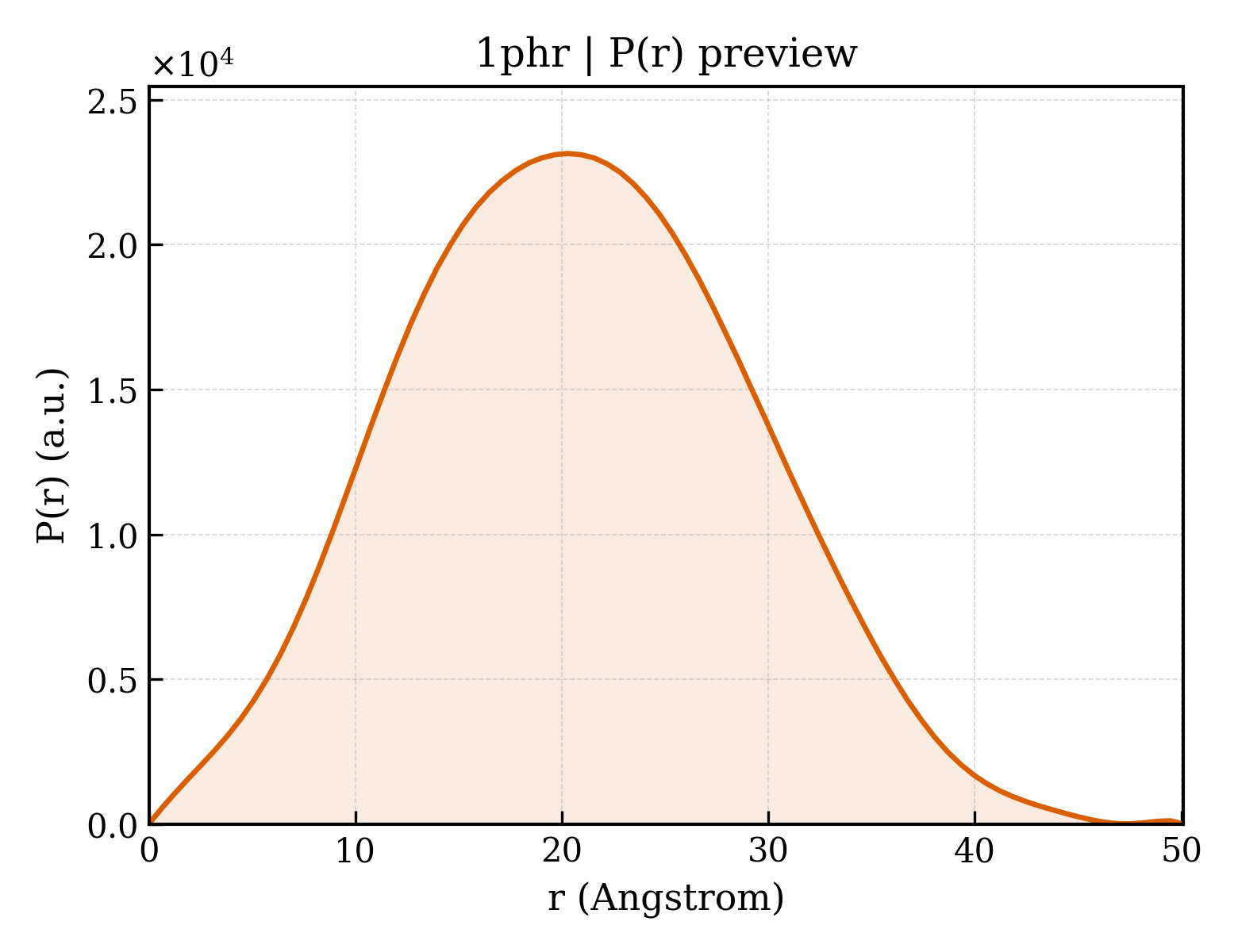

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	70

fit	/app/data/saxs_computation/ph/1phr/1phr.fit
pddf	/app/data/pr_computation/ph/1phr/1phr.pr.out
profile	/app/data/saxs_computation/ph/1phr/1phr.dat
