SAXSdb — 1pkh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bifunctional deaminase/diphosphatase

Methanocaldococcus jannaschii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	1,2-ETHANEDIOL × 27 water × 6	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	1,2-ETHANEDIOL × 3 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	1,2-ETHANEDIOL × 6 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DCD_METJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–204； UniProt 1–204 Author chain B； PDBConstruct 1–204； UniProt 1–204

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1pkh
Deposition date deposition_date	2003-06-05
Structure title title	STRUCTURAL BASIS FOR RECOGNITION AND CATALYSIS BY THE BIFUNCTIONAL DCTP DEAMINASE AND DUTPASE FROM METHANOCOCCUS JANNASCHII
Keywords keywords	DCTP DEAMINASE, DUTPASE, DCD-DUT, MJ0430, DCTP, DUTP, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1pkh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1pkh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

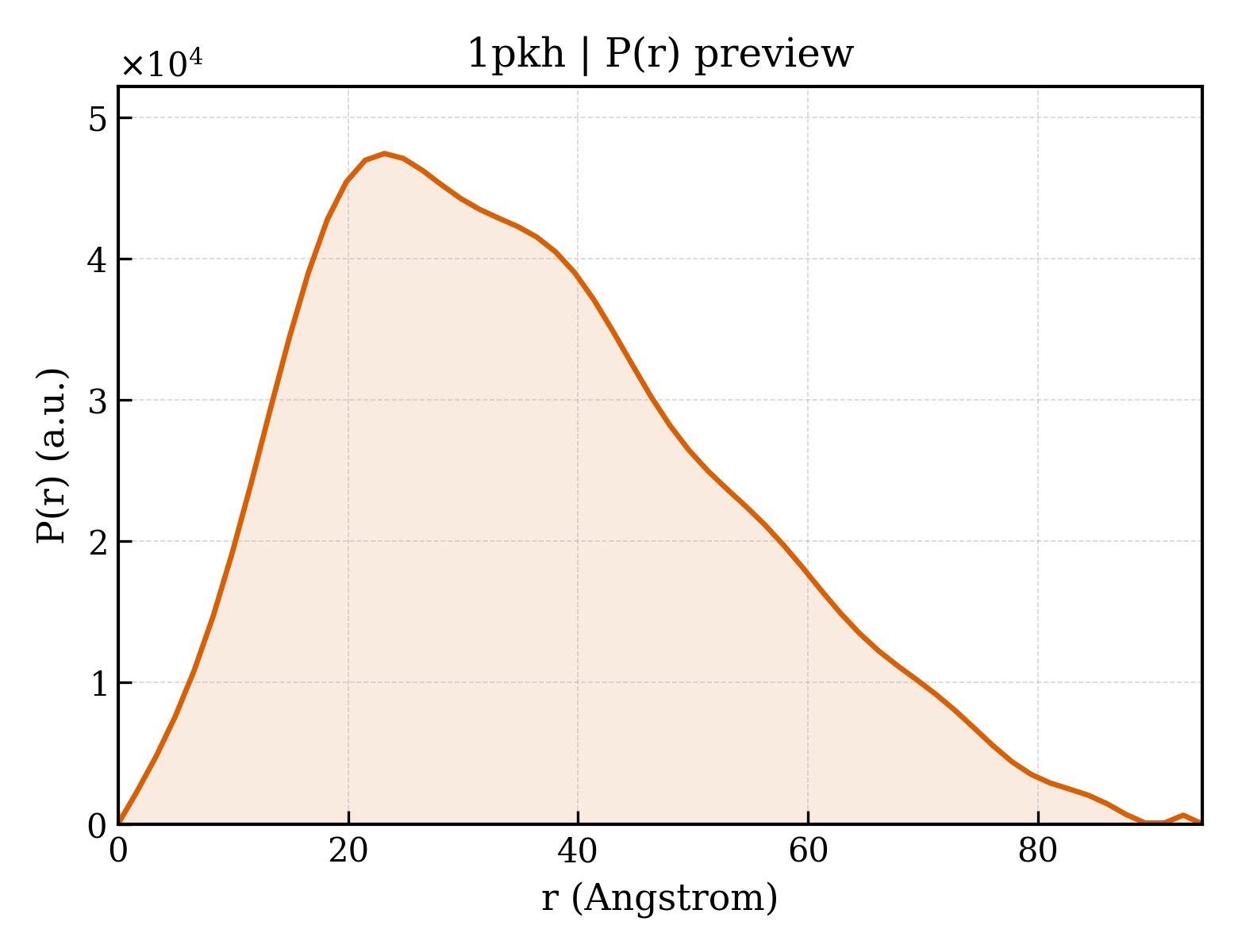

1pkh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.06 Å
Rg (electron density)	34.89 Å
Total Rg	35.22 Å
Atom count	8766
Residues	1071
Excluded volume	158490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1pkh__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1pkh__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1pkh__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Bifunctional deaminase/diphosphatase
Molecular weight formula_weight	23461.9 kDa
EC 编号 ec_number	3.5.4.13, 3.6.1.23
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3283

MILSDKDIIDYVTSKRIIIKPFNKDFVGPCSYDVTLGDEFIIYDDEVYDLSKELNYKRIKIKNSILVCPLNYNLTEEKINYFKEKYNVDYVVEGGVLGTTNEYIELPNDISAQYQGRSSLGRVFLTSHQTAGWIDAGFKGKITLEIVAFDKPVILYKNQRIGQLIFSKLLSPADVGYSERKTSKYAYQKSVMPSLIHLDNHKKD

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	361

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1pkha_
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.4 — dUTPase-like
Family Family family	b.85.4.1 — dUTPase-like

Domain ID domain_id	d1pkhb_
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.4 — dUTPase-like
Family Family family	b.85.4.1 — dUTPase-like

CATH v4.4 (2 domains)

Domain ID domain_id	1pkhA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	40 — Deoxyuridine 5'-Triphosphate Nucleotidohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Deoxyuridine triphosphatase (dUTPase)

Domain ID domain_id	1pkhB00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	40 — Deoxyuridine 5'-Triphosphate Nucleotidohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Deoxyuridine triphosphatase (dUTPase)

▶

Unit-cell length a length_a	110.700 Å
Unit-cell length b length_b	110.700 Å
Unit-cell length c length_c	110.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 3
Space-group number int_tables_number	198
Crystal system crystal_system	—

Resolution resolution	1.420 Å
Low-resolution limit resolution_low	45.000 Å
R factor r_factor	0.1860
R_work r_work	0.1853
R_free r_free	0.2028
