Gallus gallus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q90685_CHICK |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–131； UniProt 25–155 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1pxu |
| Deposition date deposition_date | 2003-07-07 |
| Structure title title | Crystal structure of chicken NtA from a eukaryotic source at 2.2A resolution |
| Keywords keywords | Agrin, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

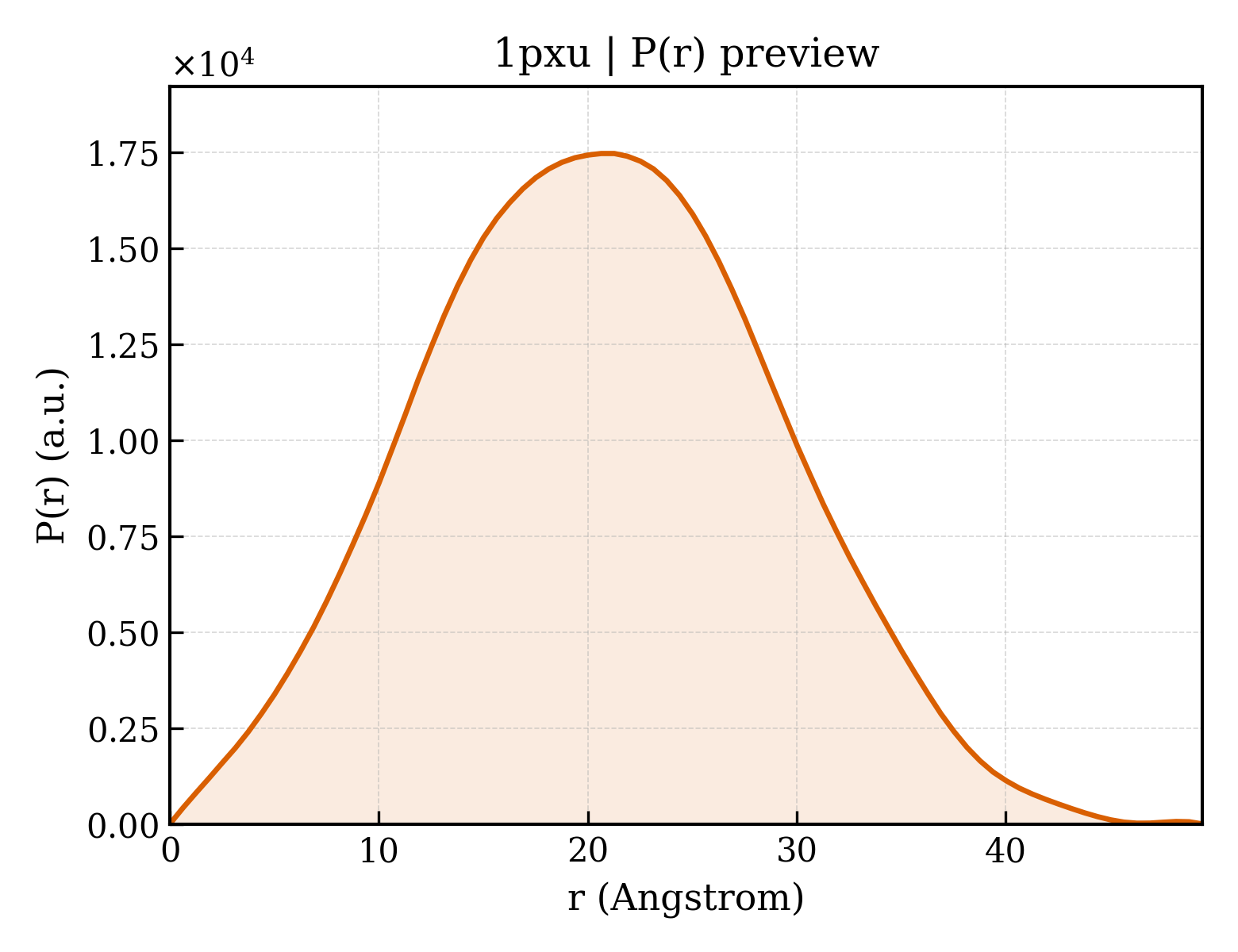

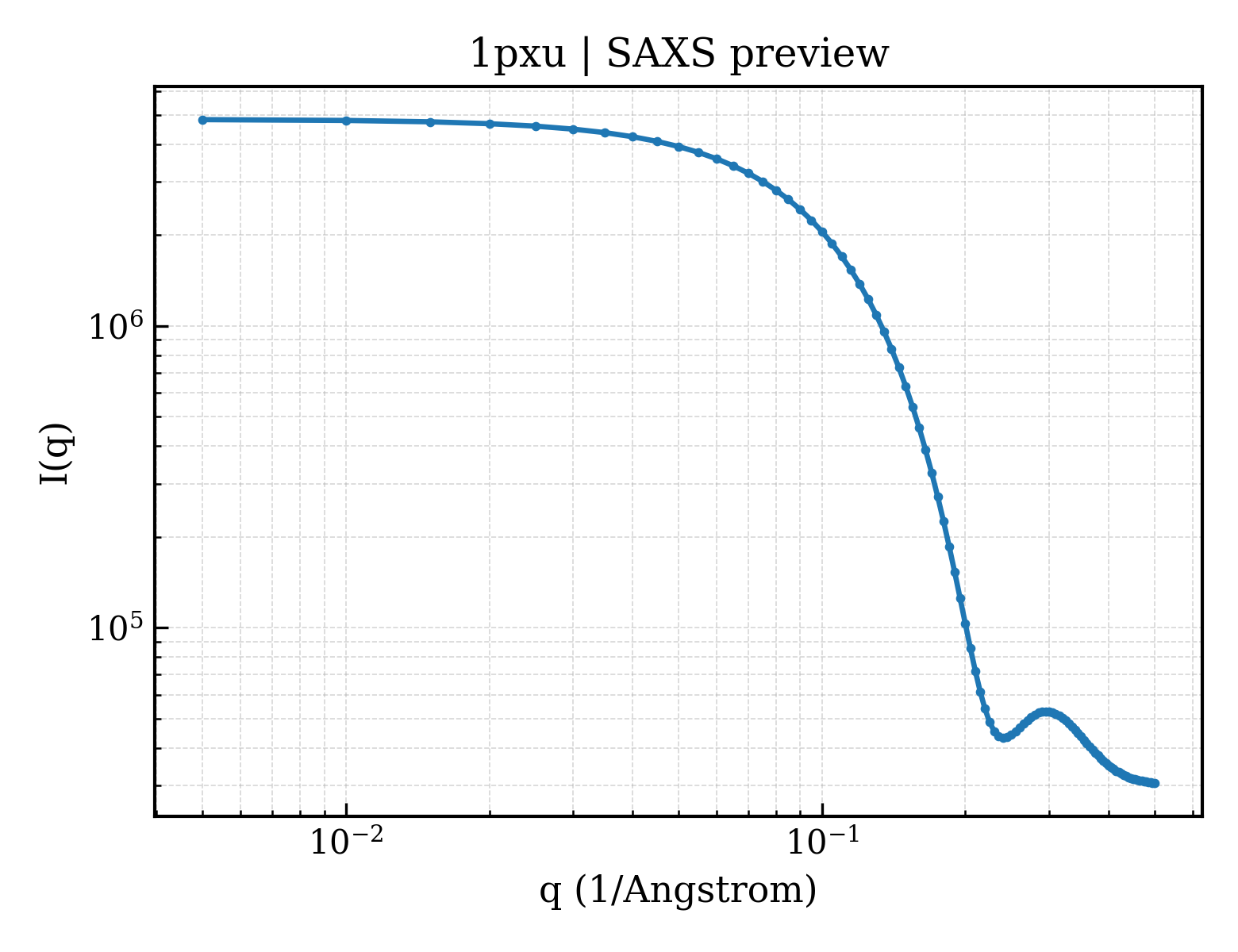

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.81 Å |
| Rg (electron density) | 14.53 Å |
| Total Rg | 15.69 Å |
| Atom count | 1062 |
| Residues | 131 |
| Excluded volume | 18788 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1pxua_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.40 — OB-fold |
| Superfamily Superfamily superfamily | b.40.3 — TIMP-like |
| Family Family family | b.40.3.2 — The laminin-binding domain of agrin |
| Domain ID domain_id | 1pxuA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 40 — Beta Barrel |
| Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| Homologous superfamily homologous superfamily | 120 — |
