SAXSdb — 1pys

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHENYLALANYL-TRNA SYNTHETASE

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–350	Not recorded	PHENYLALANYL-TRNA SYNTHETASE × 2 （Q5SGX1） MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.7；277 K；PROTEIN WAS CRYSTALLIZED FROM AMMONIUM SULFATE 28% OF SATURATION, 20 MM IMIDAZOLE, PH 7.7, 10 MM MGCL2, 1 MM NAN3 AT 4 DEGREES CELSIUS, temperature 277K	Resolution 2.90 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1PYS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EIY THE CRYSTAL STRUCTURE OF PHENYLALANYL-TRNA SYNTHETASE FROM THERMUS THERMOPHILUS COMPLEXED WITH COGNATE TRNAPHE Deposited 2000-02-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–785（785 aa） Fragment：BETA CHAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；ammonium sulphate, magnesium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 3.30 Å R-free 0.287
1JJC Crystal structure at 2.6A resolution of phenylalanyl-tRNA synthetase complexed with phenylalanyl-adenylate in the presence of manganese Deposited 2001-07-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–350（350 aa） Fragment：ALPHA CHAIN	Not recorded	FA5 ADENOSINE-5'-[PHENYLALANINYL-PHOSPHATE] × 2 MN MANGANESE (II) ION × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；277 K；(NH4)2SO4, Imidazole-HCl, ATP, L-phenylalanine, MnSO4, pH 7.8, VAPOR DIFFUSION, HANGING DROP at 277K	Resolution 2.60 Å R-free 0.258

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q5SGX2_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–350； UniProt 1–350

PHENYLALANYL-TRNA SYNTHETASE

OrganismNot specified

UniProt Q5SGX1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–785	Not recorded	PHENYLALANYL-TRNA SYNTHETASE × 2 （Q5SGX2） MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.7；277 K；PROTEIN WAS CRYSTALLIZED FROM AMMONIUM SULFATE 28% OF SATURATION, 20 MM IMIDAZOLE, PH 7.7, 10 MM MGCL2, 1 MM NAN3 AT 4 DEGREES CELSIUS, temperature 277K	Resolution 2.90 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1PYS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EIY THE CRYSTAL STRUCTURE OF PHENYLALANYL-TRNA SYNTHETASE FROM THERMUS THERMOPHILUS COMPLEXED WITH COGNATE TRNAPHE Deposited 2000-02-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain C 1–76（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；ammonium sulphate, magnesium sulphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 3.30 Å R-free 0.287
1JJC Crystal structure at 2.6A resolution of phenylalanyl-tRNA synthetase complexed with phenylalanyl-adenylate in the presence of manganese Deposited 2001-07-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–785（785 aa） Fragment：BETA CHAIN	Not recorded	FA5 ADENOSINE-5'-[PHENYLALANINYL-PHOSPHATE] × 2 MN MANGANESE (II) ION × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；277 K；(NH4)2SO4, Imidazole-HCl, ATP, L-phenylalanine, MnSO4, pH 7.8, VAPOR DIFFUSION, HANGING DROP at 277K	Resolution 2.60 Å R-free 0.258

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q5SGX1_THET8
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–785； UniProt 1–785

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1pys
Deposition date deposition_date	1996-11-14
Structure title title	PHENYLALANYL-TRNA SYNTHETASE FROM THERMUS THERMOPHILUS
Keywords keywords	;PHENYLALANYL-TRNA SYNTHETASE, CLASS II AMINOACYL-TRNA SYNTHETASE, THERMUS THERMOPHILUS, RBD DOMAIN, SH3 DOMAIN, HELIX-TURN-HELIX MOTIF, AMINOACYL-TRNA SYNTHETASE ;; AMINOACYL-TRNA SYNTHETASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.78 Å
Radius of gyration Rg (electron density) rg_electron	38.94 Å
Forward intensity I(0) i0	195394000.00
Molecular weight molecular_weight	116530.0 kDa
Excluded volume excluded_volume	147350 Å³
Envelope volume envelope_volume	200600 Å³
Hydration-shell volume shell_volume	45273 Å³
Envelope diameter envelope_diameter	141.9 Å
Shell Rg shell_rg	41.77 Å
Envelope Rg envelope_rg	39.60 Å
Shape Rg shape_rg	38.92 Å
Total Rg total_rg	39.17 Å
Total atoms total_atoms	9972
Residues n_residues	1051
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

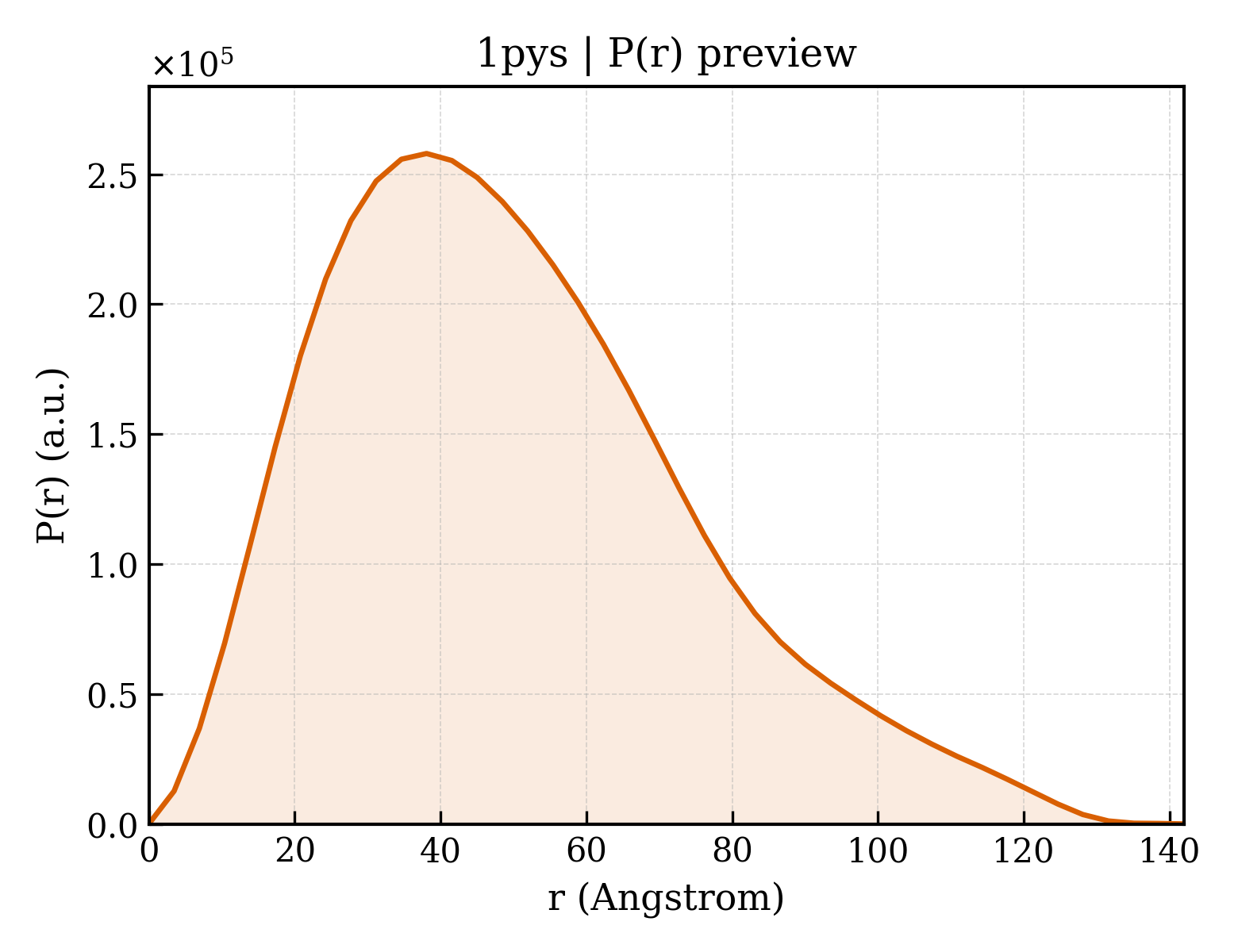

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	142.0 Å
Rg (real space) rg_real	39.25 Å
Rg uncertainty (real space) rg_real_error	1.89 Å
I(0) (real space) i0_real	1.9540e+08
I(0) uncertainty (real space) i0_real_error	3.9770e+06
Rg (reciprocal space) rg_reciprocal	38.96 Å
I(0) (reciprocal space) i0_reciprocal	195300000.0000
Solution quality estimate total_estimate	0.8122
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	38.1 Å
Skewness Skewness skewness	0.622
Kurtosis Kurtosis kurtosis	-0.011
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	39450000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.661; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.779; Smooth: 0.793

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PHENYLALANYL-TRNA SYNTHETASE
Molecular weight formula_weight	39309.2 kDa
EC 编号 ec_number	6.1.1.20
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10968

MLEEALAAIQNARDLEELKALKARYLGKKGLLTQEMKGLSALPLEERRKRGQELNAIKAALEAALEAREKALEEAALKEALERERVDVSLPGASLFSGGLHPITLMERELVEIFRALGYQAVEGPEVESEFFNFDALNIPEHHPARDMWDTFWLTGEGFRLEGPLGEEVEGRLLLRTHTSPMQVRYMVAHTPPFRIVVPGRVFRFEQTDATHEAVFHQLEGLVVGEGIAMAHLKGAIYELAQALFGPDSKVRFQPVYFPFVEPGAQFAVWWPEGGKWLELGGAGMVHPKVFQAVDAYRERLGLPPAYRGVTGFAFGLGVERLAMLRYGIPDIRYFFGGRLKFLEQFKGVL

Entity 2 Entity 2 polymer

Description description	PHENYLALANYL-TRNA SYNTHETASE
Molecular weight formula_weight	86720.7 kDa
EC 编号 ec_number	6.1.1.20
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MRVPFSWLKAYVPELESPEVLEERLAGLGFETDRIERVFPIPRGVVFARVLEAHPIPGTRLKRLVLDAGRTVEVVSGAENARKGIGVALALPGTELPGLGQKVGERVIQGVRSFGMALSPRELGVGEYGGGLLEFPEDALPPGTPLSEAWPEEVVLDLEVTPNRPDALGLLGLARDLHALGYALVEPEAALKAEALPLPFALKVEDPEGAPHFTLGYAFGLRVAPSPLWMQRALFAAGMRPINNVVDVTNYVMLERAQPMHAFDLRFVGEGIAVRRAREGERLKTLDGVERTLHPEDLVIAGWRGEESFPLGLAGVMGGAESEVREDTEAIALEVACFDPVSIRKTARRHGLRTEASHRFERGVDPLGQVPAQRRALSLLQALAGARVAEALLEAGSPKPPEAIPFRPEYANRLLGTSYPEAEQIAILKRLGCRVEGEGPTYRVTPPSHRLDLRLEEDLVEEVARIQGYETIPLALPAFFPAPDNRGVEAPYRKEQRLREVLSGLGFQEVYTYSFMDPEDARRFRLDPPRLLLLNPLAPEKAALRTHLFPGLVRVLKENLDLDRPERALLFEVGRVFREREETHLAGLLFGEGVGLPWAKERLSGYFLLKGYLEALFARLGLAFRVEAQAFPFLHPGVSGRVLVEGEEVGFLGALHPEIAQELELPPVHLFELRLPLPDKPLAFQDPSRHPAAFRDLAVVVPAPTPYGEVEALVREAAGPYLESLALFDLYQGPPLPEGHKSLAFHLRFRHPKRTLRDEEVEEAVSRVAEALRARGFGLRGLDTP

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	332

▼

7. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d1pysa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1pysb1
Class class	a — All alpha proteins
Fold Fold fold	a.6 — Putative DNA-binding domain
Superfamily Superfamily superfamily	a.6.1 — Putative DNA-binding domain
Family Family family	a.6.1.1 — Domains B1 and B5 of PheRS-beta, PheT

Domain ID domain_id	d1pysb2
Class class	a — All alpha proteins
Fold Fold fold	a.6 — Putative DNA-binding domain
Superfamily Superfamily superfamily	a.6.1 — Putative DNA-binding domain
Family Family family	a.6.1.1 — Domains B1 and B5 of PheRS-beta, PheT

Domain ID domain_id	d1pysb3
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.4 — Myf domain

Domain ID domain_id	d1pysb4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.13 — Anticodon-binding domain of PheRS
Family Family family	d.58.13.1 — Anticodon-binding domain of PheRS

Domain ID domain_id	d1pysb5
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1pysb6
Class class	b — All beta proteins
Fold Fold fold	b.153 — PheT/TilS domain
Superfamily Superfamily superfamily	b.153.1 — PheT/TilS domain
Family Family family	b.153.1.1 — B3/B4 domain of PheRS, PheT

CATH v4.4 (7 domains)

Domain ID domain_id	1pysA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1pysB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	56 — Phenylalanyl-tRNA Synthetase; Chain B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1pysB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1pysB03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	40 — Phenylalanyl-tRNA Synthetase; Chain B, domain 3
Homologous superfamily homologous superfamily	10 — Phenylalanyl-trna Synthetase, Chain B, domain 3

Domain ID domain_id	1pysB04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	56 — Phenylalanyl-tRNA Synthetase; Chain B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1pysB05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1pysB06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	380 — Ferrodoxin-fold anticodon-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	176.000 Å
Unit-cell length b length_b	176.000 Å
Unit-cell length c length_c	141.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1770
R_work r_work	0.1770
R_free r_free	0.2360

fit	/app/data/saxs_computation/py/1pys/1pys.fit
pddf	/app/data/pr_computation/py/1pys/1pys.pr.out
profile	/app/data/saxs_computation/py/1pys/1pys.dat
