SAXSdb — 1pzx

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1pzx
沉积日期 deposition_date	2003-07-14
结构标题 title	Hypothetical protein APC36103 from Bacillus stearothermophilus: a lipid binding protein
关键词 keywords	;Structural genomics, Two domains containing mixed alpha/beta structures, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, Lipid Binding Protein ;; LIPID BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.37 Å
回转半径 Rg (电子) rg_electron	28.75 Å
零角强度 I(0) i0	63521400.00
分子量 molecular_weight	64105.0 kDa
排除体积 excluded_volume	80895 Å³
包络体积 envelope_volume	98213 Å³
水化壳体积 shell_volume	28829 Å³
包络直径 envelope_diameter	100.2 Å
壳层 Rg shell_rg	35.46 Å
包络 Rg envelope_rg	28.55 Å
形状 Rg shape_rg	28.74 Å
总 Rg total_rg	29.46 Å
总原子数 total_atoms	4503
残基数 n_residues	566
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	95.2 Å
Rg (实空间) rg_real	29.43 Å
Rg 误差 (实空间) rg_real_error	0.67 Å
I(0) (实空间) i0_real	6.3520e+07
I(0) 误差 (实空间) i0_real_error	9.9850e+05
Rg (倒空间) rg_reciprocal	29.41 Å
I(0) (倒空间) i0_reciprocal	63520000.0000
解质量估计 total_estimate	0.8924
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.2 Å
偏度 Skewness skewness	0.344
峰度 Kurtosis kurtosis	-0.536
角度范围 angular_range	— – 0.2700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17640000.0000
实空间数据点数 n_real_points	55
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.911; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.912

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Hypothetical protein APC36103
分子量 formula_weight	32400.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4850

NAMPIEIITDSGADLPQSYIREHRIAFLPLVVHWNGQDYKDGITIEPKQVYDAMRQGHTVKTAQPSPLAMKELFLPYAKENRPCLYIAFSSKLSGTYQTAMAVRSELLDEYPEFRLTIIDSKCASLGQGLAVMKAVELAKQNTPYNLLCETIESYCRHMEHIFTVDNLDYLARGGRISKTAAAFGGLLNIKPLLHVEDGALIPLEKWRGRKKVLKRMVELMGERGDDLQKQTIGISHADDEETALELKQMIEETHGCTRFFLSDIGSAIGAHAGPGTIALFFLNKYIEI

来源 Source

来源生物 organism	Geobacillus stearothermophilus
NCBI 分类编号 ncbi_taxonomy_id	1422
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	PALMITIC ACID
分子量 formula_weight	256.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	347

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1pzxa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.119 — DAK1/DegV-like
超家族 Superfamily superfamily	c.119.1 — DAK1/DegV-like
家族 Family family	c.119.1.1 — DegV-like

结构域编号 domain_id	d1pzxb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.119 — DAK1/DegV-like
超家族 Superfamily superfamily	c.119.1 — DAK1/DegV-like
家族 Family family	c.119.1.1 — DegV-like

CATH v4.4 (6 domains)

结构域编号 domain_id	1pzxA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10440 — Dihydroxyacetone kinase; domain 1

结构域编号 domain_id	1pzxA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	28 — Rubrerythrin, domain 2
同源超家族 H-superfamily homologous superfamily	50 — DegV, N-terminal domain, peripheral subdomain

结构域编号 domain_id	1pzxA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1180 — Hypothetical Protein Tm841; Chain: A;domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1pzxB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10440 — Dihydroxyacetone kinase; domain 1

结构域编号 domain_id	1pzxB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	28 — Rubrerythrin, domain 2
同源超家族 H-superfamily homologous superfamily	50 — DegV, N-terminal domain, peripheral subdomain

结构域编号 domain_id	1pzxB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1180 — Hypothetical Protein Tm841; Chain: A;domain 3
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	65.980 Å
晶胞边长 b length_b	187.390 Å
晶胞边长 c length_c	53.290 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	34.540 Å
R 因子 r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2520

fit	/app/data/saxs_computation/pz/1pzx/1pzx.fit
pddf	/app/data/pr_computation/pz/1pzx/1pzx.pr.out
profile	/app/data/saxs_computation/pz/1pzx/1pzx.dat

Hypothetical protein APC36103 from Bacillus stearothermophilus: a lipid binding protein

SAXS 散射曲线 SAXS Profile

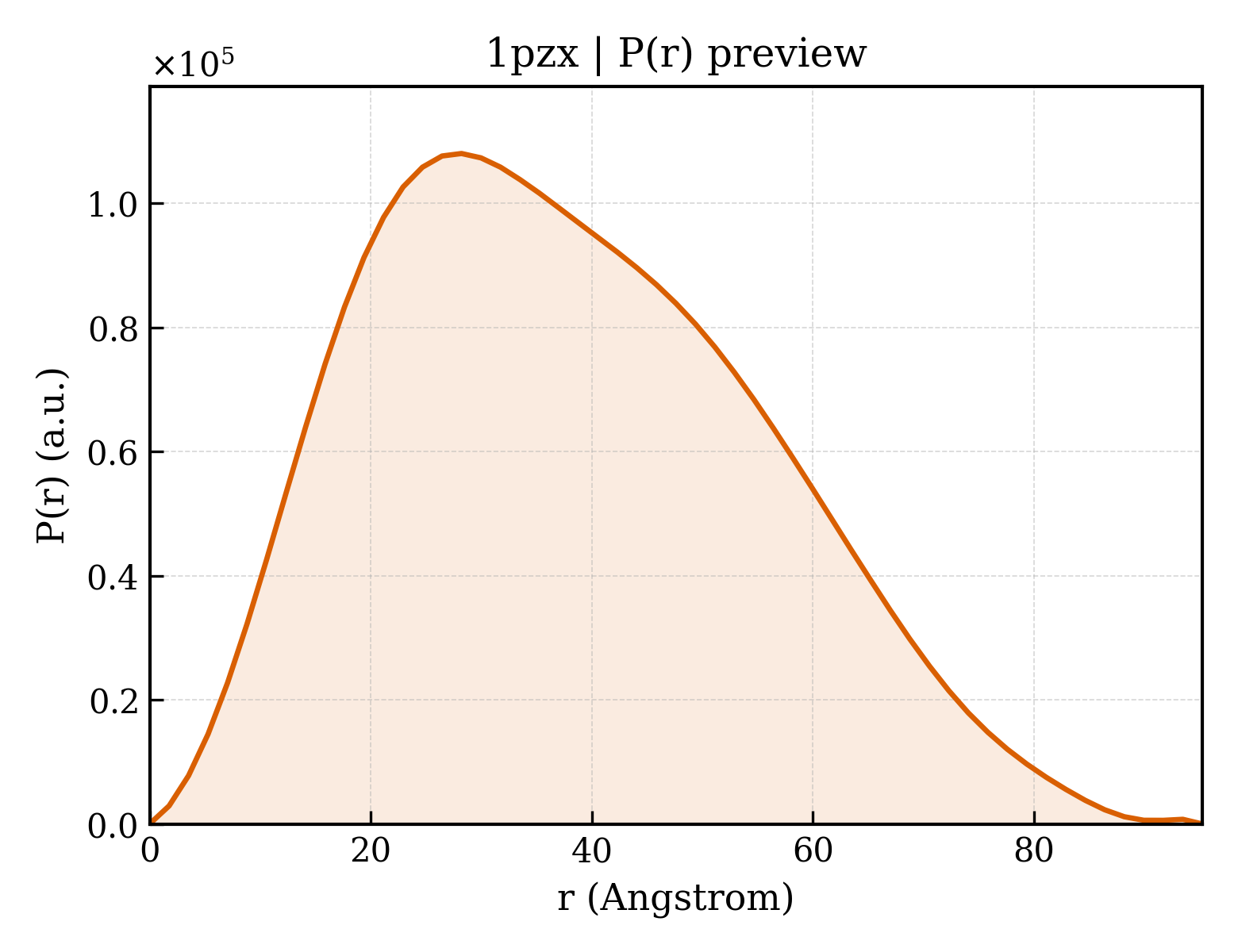

P(r) 距离分布 P(r) Distribution
