1q3r

Crystal structure of the chaperonin from Thermococcus strain KS-1 (nucleotide-free form of single mutant)

Method: X-RAY DIFFRACTION D_max: 156.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

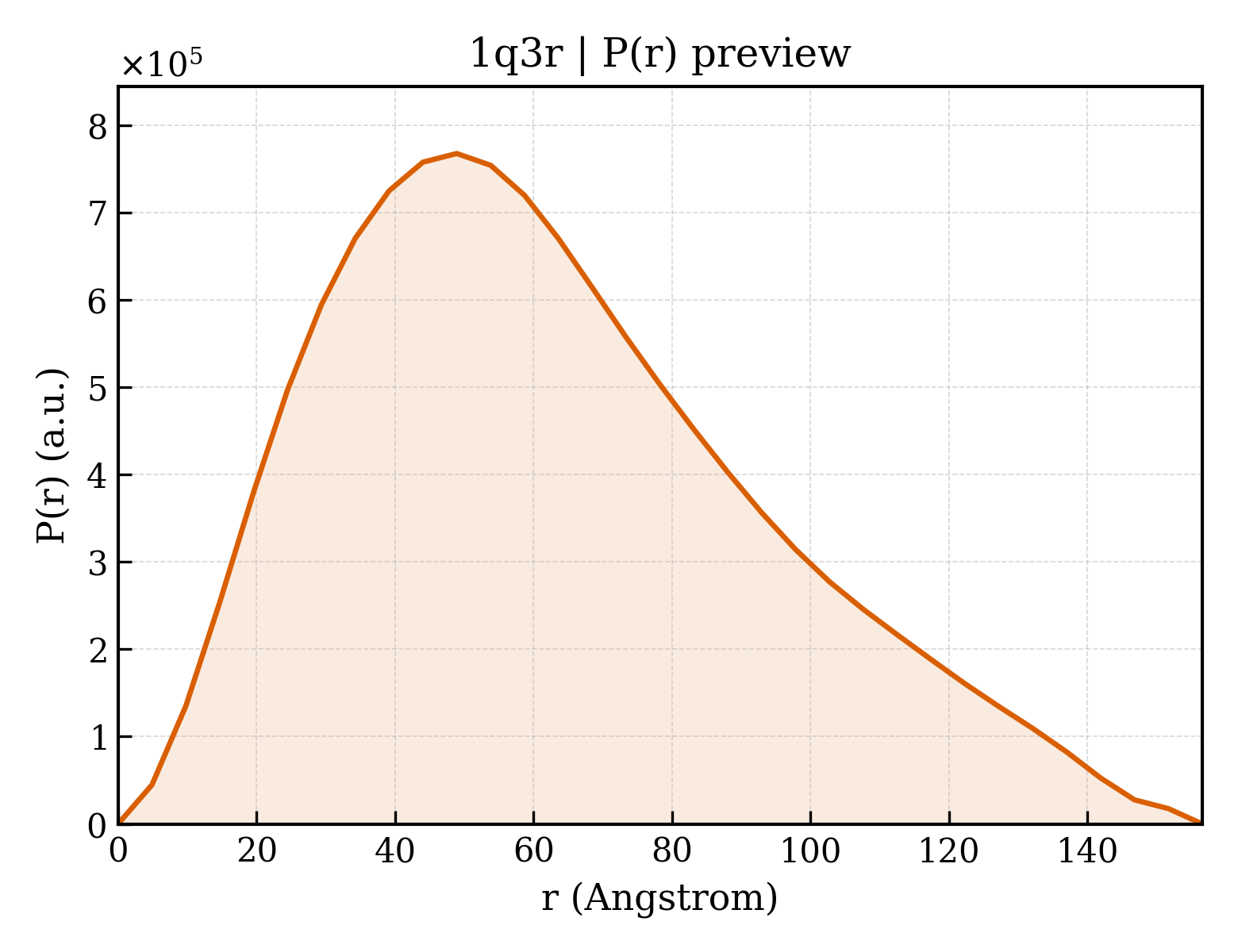

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1q3r
沉积日期 deposition_date	2003-07-31
结构标题 title	Crystal structure of the chaperonin from Thermococcus strain KS-1 (nucleotide-free form of single mutant)
关键词 keywords	chaperone, chaperonin, thermosome; CHAPERONE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.53 Å
回转半径 Rg (电子) rg_electron	48.90 Å
零角强度 I(0) i0	718047000.00
分子量 molecular_weight	225530.0 kDa
排除体积 excluded_volume	284950 Å³
包络体积 envelope_volume	407030 Å³
水化壳体积 shell_volume	72265 Å³
包络直径 envelope_diameter	163.8 Å
壳层 Rg shell_rg	49.69 Å
包络 Rg envelope_rg	48.67 Å
形状 Rg shape_rg	48.91 Å
总 Rg total_rg	48.92 Å
总原子数 total_atoms	15800
残基数 n_residues	2072
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	156.6 Å
Rg (实空间) rg_real	49.01 Å
Rg 误差 (实空间) rg_real_error	1.59 Å
I(0) (实空间) i0_real	7.1800e+08
I(0) 误差 (实空间) i0_real_error	1.4400e+07
Rg (倒空间) rg_reciprocal	48.54 Å
I(0) (倒空间) i0_reciprocal	717600000.0000
解质量估计 total_estimate	0.8218
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	48.9 Å
偏度 Skewness skewness	0.530
峰度 Kurtosis kurtosis	-0.320
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	60380000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.064

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Thermosome alpha subunit
分子量 formula_weight	59238.4 kDa
EC 编号 ec_number	3.6.4.9
突变 mutation	I125T
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	15800

MAQLSGQPVVILPEGTQRYVGRDAQRLNILAARIIAETVRTTLGPKGMDKMLVDSLGDIVVTNDGATILDKIDLQHPAAKMMVEVAKTQDKEAGDGTTTAVVIAGELLRKAEELLDQNIHPSIITKGYALAAEKAQEILDEIAIRVDPDDEETLLKIAATSITGKNAESHKELLAKLAVEAVKQVAEKKDGKYVVDLDNIKFEKKAGEGVEESELVRGVVIDKEVVHPRMPKRVENAKIALINEALEVKKTETDAKINITSPDQLMSFLEQEEKMLKDMVDHIAQTGANVVFVQKGIDDLAQHYLAKYGIMAVRRVKKSDMEKLAKATGAKIVTNVKDLTPEDLGYAEVVEERKLAGENMIFVEGCKNPKAVTILIRGGTEHVIDEVERALEDAVKVVKDVMEDGAVLPAGGAPEIELAIRLDEYAKQVGGKEALAIENFADALKIIPKTLAENAGLDTVEMLVKVISEHKNRGLGIGIDVFEGKPADMLEKGIIEPLRVKKQAIKSASEAAIMILRIDDVIAAKATKPEGGQGGGMPGGMGGMDMGM

来源 Source

来源生物 organism	Thermococcus sp.
NCBI 分类编号 ncbi_taxonomy_id	79679
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1q3ra1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.129 — GroEL equatorial domain-like
超家族 Superfamily superfamily	a.129.1 — GroEL equatorial domain-like
家族 Family family	a.129.1.2 — Group II chaperonin (CCT, TRIC), ATPase domain

结构域编号 domain_id	d1q3ra2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

结构域编号 domain_id	d1q3ra3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.56 — GroEL-intermediate domain like
超家族 Superfamily superfamily	d.56.1 — GroEL-intermediate domain like
家族 Family family	d.56.1.2 — Group II chaperonin (CCT, TRIC), intermediate domain

结构域编号 domain_id	d1q3rb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.129 — GroEL equatorial domain-like
超家族 Superfamily superfamily	a.129.1 — GroEL equatorial domain-like
家族 Family family	a.129.1.2 — Group II chaperonin (CCT, TRIC), ATPase domain

结构域编号 domain_id	d1q3rb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

结构域编号 domain_id	d1q3rb3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.56 — GroEL-intermediate domain like
超家族 Superfamily superfamily	d.56.1 — GroEL-intermediate domain like
家族 Family family	d.56.1.2 — Group II chaperonin (CCT, TRIC), intermediate domain

结构域编号 domain_id	d1q3rc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.129 — GroEL equatorial domain-like
超家族 Superfamily superfamily	a.129.1 — GroEL equatorial domain-like
家族 Family family	a.129.1.2 — Group II chaperonin (CCT, TRIC), ATPase domain

结构域编号 domain_id	d1q3rc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

结构域编号 domain_id	d1q3rc3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.56 — GroEL-intermediate domain like
超家族 Superfamily superfamily	d.56.1 — GroEL-intermediate domain like
家族 Family family	d.56.1.2 — Group II chaperonin (CCT, TRIC), intermediate domain

结构域编号 domain_id	d1q3rd1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.129 — GroEL equatorial domain-like
超家族 Superfamily superfamily	a.129.1 — GroEL equatorial domain-like
家族 Family family	a.129.1.2 — Group II chaperonin (CCT, TRIC), ATPase domain

结构域编号 domain_id	d1q3rd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.5 — GroEL apical domain-like
家族 Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

结构域编号 domain_id	d1q3rd3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.56 — GroEL-intermediate domain like
超家族 Superfamily superfamily	d.56.1 — GroEL-intermediate domain like
家族 Family family	d.56.1.2 — Group II chaperonin (CCT, TRIC), intermediate domain

CATH v4.4 (12 domains)

结构域编号 domain_id	1q3rA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	560 — GROEL; domain 1
同源超家族 H-superfamily homologous superfamily	10 — GroEL-like equatorial domain

结构域编号 domain_id	1q3rA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	260 — GROEL; domain 2
同源超家族 H-superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

结构域编号 domain_id	1q3rA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

结构域编号 domain_id	1q3rB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	560 — GROEL; domain 1
同源超家族 H-superfamily homologous superfamily	10 — GroEL-like equatorial domain

结构域编号 domain_id	1q3rB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	260 — GROEL; domain 2
同源超家族 H-superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

结构域编号 domain_id	1q3rB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

结构域编号 domain_id	1q3rC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	560 — GROEL; domain 1
同源超家族 H-superfamily homologous superfamily	10 — GroEL-like equatorial domain

结构域编号 domain_id	1q3rC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	260 — GROEL; domain 2
同源超家族 H-superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

结构域编号 domain_id	1q3rC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

结构域编号 domain_id	1q3rD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	560 — GROEL; domain 1
同源超家族 H-superfamily homologous superfamily	10 — GroEL-like equatorial domain

结构域编号 domain_id	1q3rD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	260 — GROEL; domain 2
同源超家族 H-superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

结构域编号 domain_id	1q3rD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	7 — GroEL
同源超家族 H-superfamily homologous superfamily	10 — GroEL

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	210.058 Å
晶胞边长 b length_b	210.058 Å
晶胞边长 c length_c	157.173 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	P 4 21 2
空间群编号 int_tables_number	90
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	93.940 Å
R 因子 r_factor	0.2120
R_work r_work	0.2120
R_free r_free	0.2570
