SAXSdb — 1q3x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mannan-binding lectin serine protease 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SODIUM ION × 1 GLYCEROL × 4 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SODIUM ION × 1 GLYCEROL × 3 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MASP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–328； UniProt 363–686 Author chain B； PDBConstruct 1–328； UniProt 363–686

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q3x
Deposition date deposition_date	2003-08-01
Structure title title	Crystal structure of the catalytic region of human MASP-2
Keywords keywords	complement, serine protease, modular structure, hinge bending, autoactivation, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1q3x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1q3x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

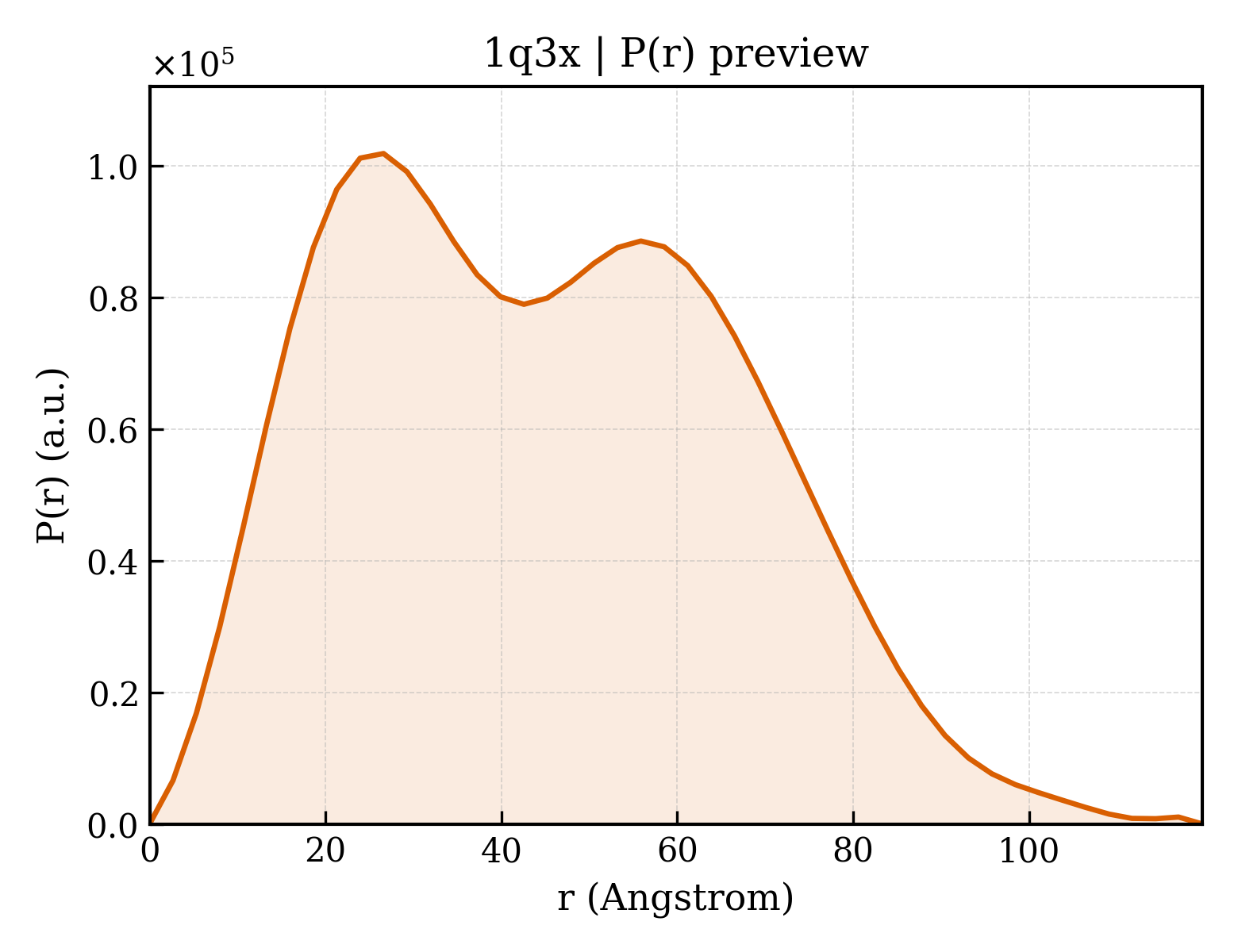

1q3x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.74 Å
Rg (electron density)	22.13 Å
Total Rg	22.84 Å
Atom count	2472
Residues	321
Excluded volume	43819 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1q3x__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1q3x__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Mannan-binding lectin serine protease 2
Molecular weight formula_weight	35756.3 kDa
EC 编号 ec_number	3.4.21.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5232

ASMTIVDCGPPDDLPSGRVEYITGPGVTTYKAVIQYSCEETFYTMKVNDGKYVCEADGFWTSSKGEKSLPVCEPVCGLSARTTGGRIYGGQKAKPGDFPWQVLILGGTTAAGALLYDNWVLTAAHAVYEQKHDASALDIRMGTLKRLSPHYTQAWSEAVFIHEGYTHDAGFDNDIALIKLNNKVVINSNITPICLPRKEAESFMRTDDIGTASGWGLTQRGFLARNLMYVDIPIVDHQKCTAAYEKPPYPRGSVTANMLCAGLESGGKDSCRGDSGGALVFLDSETERWFVGGIVSWGSMNCGEAGQYGVYTKVINYIPWIENIISDF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	362

▼

6. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1q3xa1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1q3xa2
Class class	g — Small proteins
Fold Fold fold	g.18 — Complement control module/SCR domain
Superfamily Superfamily superfamily	g.18.1 — Complement control module/SCR domain
Family Family family	g.18.1.1 — Complement control module/SCR domain

Domain ID domain_id	d1q3xa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1q3xb1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1q3xb2
Class class	g — Small proteins
Fold Fold fold	g.18 — Complement control module/SCR domain
Superfamily Superfamily superfamily	g.18.1 — Complement control module/SCR domain
Family Family family	g.18.1.1 — Complement control module/SCR domain

CATH v4.4 (6 domains)

Domain ID domain_id	1q3xA01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	70 — Complement Module; domain 1
Homologous superfamily homologous superfamily	10 — Complement Module, domain 1

Domain ID domain_id	1q3xA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1q3xA03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1q3xB01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	70 — Complement Module; domain 1
Homologous superfamily homologous superfamily	10 — Complement Module, domain 1

Domain ID domain_id	1q3xB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1q3xB03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	40.950 Å
Unit-cell length b length_b	41.521 Å
Unit-cell length c length_c	102.994 Å
Unit-cell angle α angle_alpha	96.44 °
Unit-cell angle β angle_beta	91.77 °
Unit-cell angle γ angle_gamma	119.52 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.230 Å
Low-resolution limit resolution_low	50.640 Å
R factor r_factor	0.1760
R_work r_work	0.1740
R_free r_free	0.2240

Crystal structure of the catalytic region of human MASP-2
