1q5n
Crystal Structure of beta-carboxy-cis,cis-muconate cycloisomerase (CMLE) from Acinetobacter calcoaceticus sp. ADP1
SAXS 散射曲线 SAXS Profile

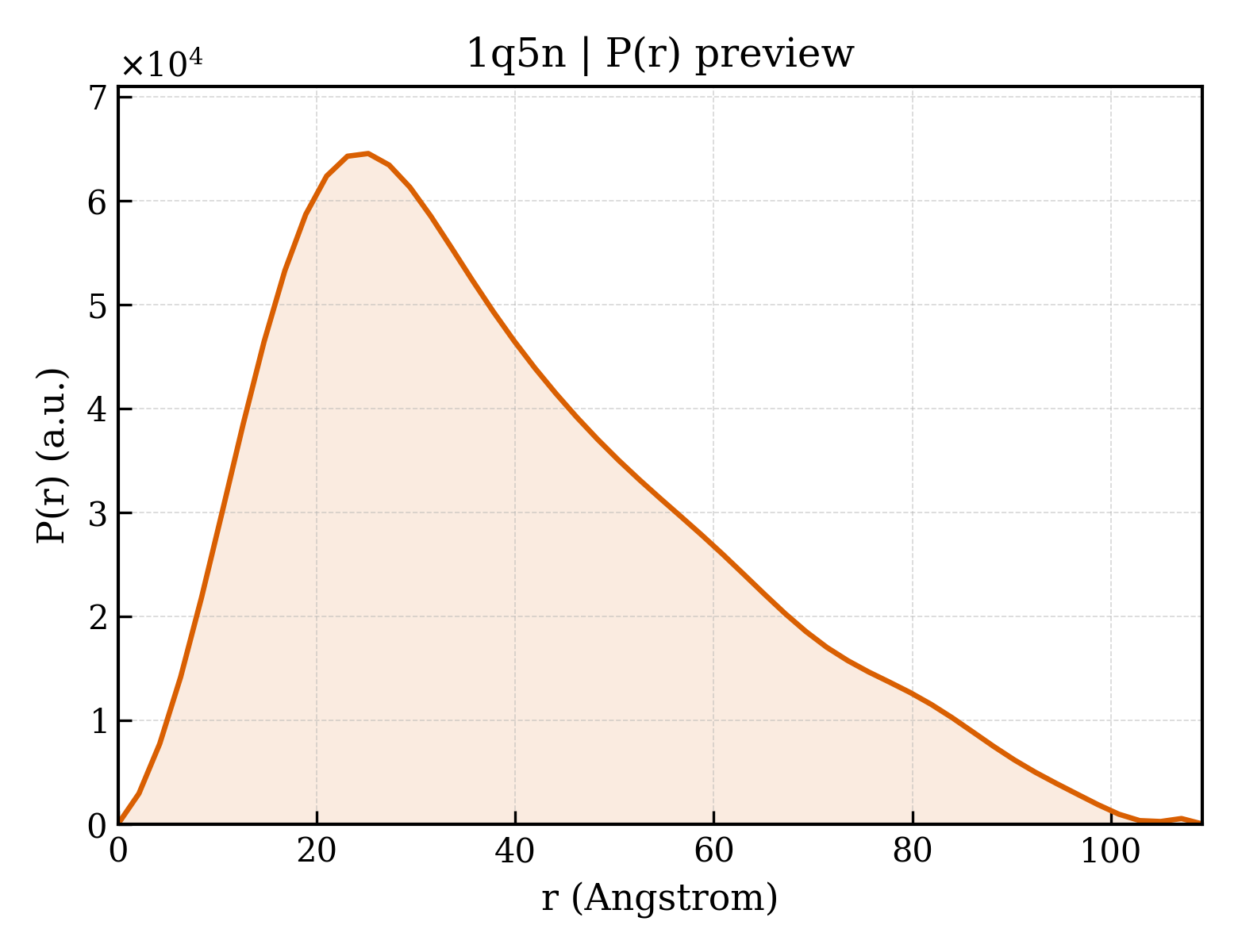

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1q5n |
| 沉积日期 deposition_date | 2003-08-08 |
| 结构标题 title | Crystal Structure of beta-carboxy-cis,cis-muconate cycloisomerase (CMLE) from Acinetobacter calcoaceticus sp. ADP1 |
| 关键词 keywords | CMLE, cycloisomerase, aromatic degradation, ISOMERASE; ISOMERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 30.57 Å |
| 回转半径 Rg (电子) rg_electron | 30.66 Å |
| 零角强度 I(0) i0 | 37307500.00 |
| 分子量 molecular_weight | 47257.0 kDa |
| 排除体积 excluded_volume | 59072 ų |
| 包络体积 envelope_volume | 77904 ų |
| 水化壳体积 shell_volume | 23936 ų |
| 包络直径 envelope_diameter | 113.4 Å |
| 壳层 Rg shell_rg | 33.51 Å |
| 包络 Rg envelope_rg | 31.10 Å |
| 形状 Rg shape_rg | 30.68 Å |
| 总 Rg total_rg | 30.89 Å |
| 总原子数 total_atoms | 3317 |
| 残基数 n_residues | 431 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 109.2 Å |
| Rg (实空间) rg_real | 31.10 Å |
| Rg 误差 (实空间) rg_real_error | 1.26 Å |
| I(0) (实空间) i0_real | 3.7310e+07 |
| I(0) 误差 (实空间) i0_real_error | 6.7550e+05 |
| Rg (倒空间) rg_reciprocal | 30.88 Å |
| I(0) (倒空间) i0_reciprocal | 37300000.0000 |
| 解质量估计 total_estimate | 0.7462 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 25.2 Å |
| 偏度 Skewness skewness | 0.658 |
| 峰度 Kurtosis kurtosis | -0.237 |
| 角度范围 angular_range | — – 0.2600 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 6939000.0000 |
| 实空间数据点数 n_real_points | 53 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.527; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.304; Smooth: 0.813 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1q5na_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.127 — L-aspartase-like |
| 超家族 Superfamily superfamily | a.127.1 — L-aspartase-like |
| 家族 Family family | a.127.1.1 — L-aspartase/fumarase |
CATH v4.4 (3 domains)
| 结构域编号 domain_id | 1q5nA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 275 — Fumarase C; Chain B, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Fumarase/aspartase (N-terminal domain) |
| 结构域编号 domain_id | 1q5nA02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 200 — Fumarase C; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Fumarase/aspartase (Central domain) |
| 结构域编号 domain_id | 1q5nA03 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 40 — Ribonucleotide Reductase Protein R1; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 30 — Fumarase/aspartase (C-terminal domain) |
