SAXSdb — 1q6e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

beta-amylase

Glycine max

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 2	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 alpha-D-glucopyranose-(1-4)-beta-D-glucopyranose × 1 SULFATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q42795_SOYBN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–495； UniProt 2–496

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q6e
Deposition date deposition_date	2003-08-13
Structure title title	Crystal Structure of Soybean Beta-Amylase Mutant (E178Y) with Increased pH Optimum at pH 5.4
Keywords keywords	BETA-ALPHA-BARRELS, BETA-AMYLASE, MALTOSE COMPLEX, INCREASED pH OPTIMUM, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1q6e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1q6e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

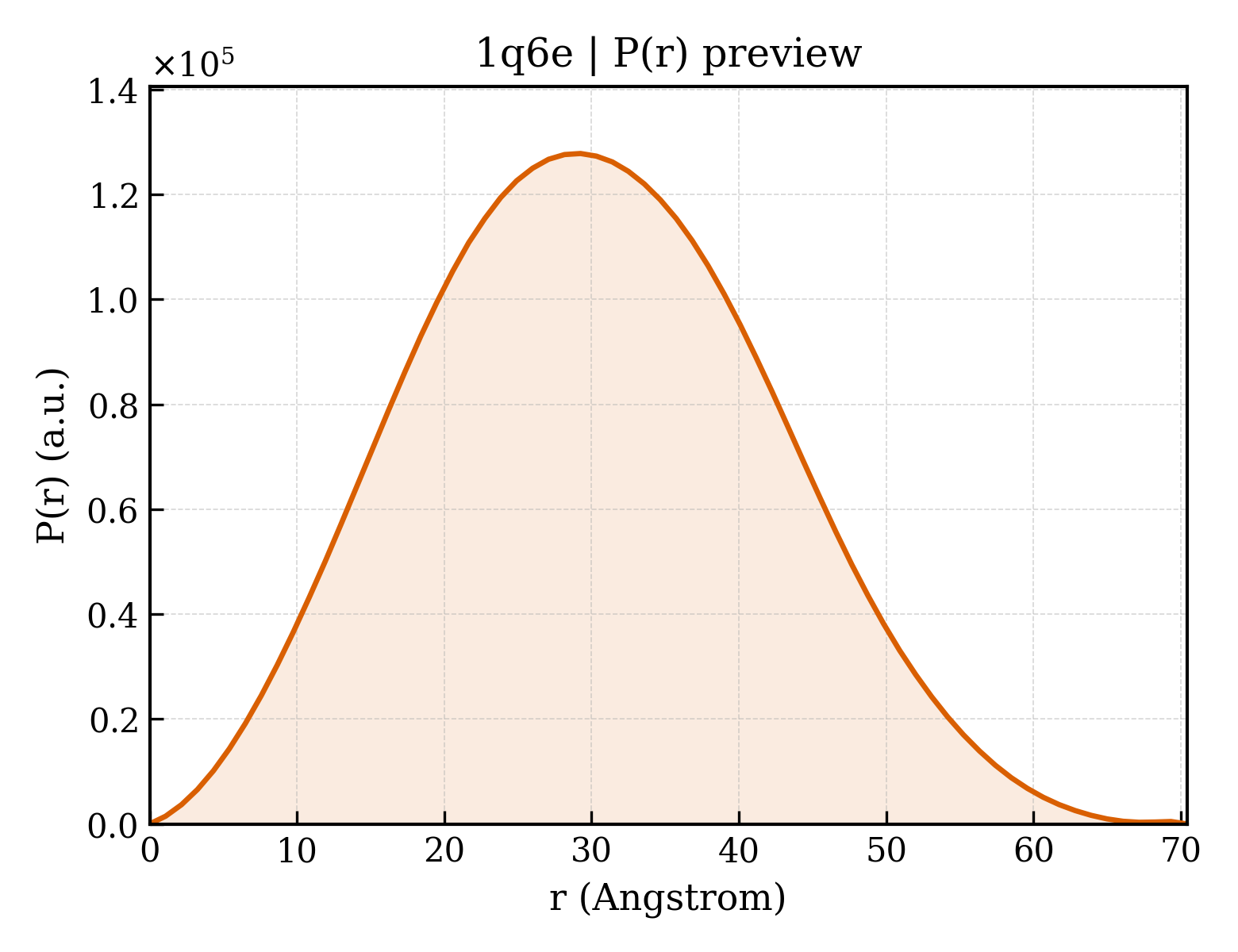

1q6e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.06 Å
Rg (electron density)	21.83 Å
Total Rg	22.73 Å
Atom count	3974
Residues	490
Excluded volume	70619 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1q6e__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	beta-amylase
Molecular weight formula_weight	55999.2 kDa
EC 编号 ec_number	3.2.1.2
Mutation mutation	E178Y
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4318

ATSDSNMLLNYVPVYVMLPLGVVNVDNVFEDPDGLKEQLLQLRAAGVDGVMVDVWWGIIELKGPKQYDWRAYRSLLQLVQECGLTLQAIMSFHQCGGNVGDIVNIPIPQWVLDIGESNHDIFYTNRSGTRNKEYLTVGVDNEPIFHGRTAIEIYSDYMKSFRENMSDFLESGLIIDIYVGLGPAGELRYPSYPQSQGWEFPGIGEFQCYDKYLKADFKAAVARAGHPEWELPDDAGKYNDVPESTGFFKSNGTYVTEKGKFFLTWYSNKLLNHGDQILDEANKAFLGCKVKLAIKVSGIHWWYKVENHAAELTAGYYNLNDRDGYRPIARMLSRHHAILNFTCLEMRDSEQPSDAKSGPQELVQQVLSGGWREDIRVAGENALPRYDATAYNQIILNARPQGVNNNGPPKLSMFGVTYLRLSDDLLQKSNFNIFKKFVLKMHADQDYCANPQKYNHAITPLKPSAPKIPIEVLLEATKPTLPFPWLPETDMKVDG

Source Source

Source organism organism	Glycine max
Common name common_name	soybean
NCBI taxonomy ID ncbi_taxonomy_id	3847
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	alpha-D-glucopyranose-(1-4)-beta-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	312

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1q6ea_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

CATH v4.4 (1 domains)

Domain ID domain_id	1q6eA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

Unit-cell length a length_a	85.928 Å
Unit-cell length b length_b	85.928 Å
Unit-cell length c length_c	144.899 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	14.910 Å
R factor r_factor	0.1750
R_work r_work	0.1750
R_free r_free	0.2130
