1q6w

X-Ray structure of Monoamine oxidase regulatory protein from Archaeoglobus fulgius

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

monoamine oxidase regulatory protein, putative

Archaeoglobus fulgidus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count
7	Protein homooligomer	Homooligomer	Protein 6	No other associated polymer	Consistent with protein count
8	Protein homooligomer	Homooligomer	Protein 6	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O28346_ARCFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–161； UniProt 1–161 Author chain B； PDBConstruct 1–161； UniProt 1–161 Author chain C； PDBConstruct 1–161； UniProt 1–161 Author chain D； PDBConstruct 1–161； UniProt 1–161 Author chain E； PDBConstruct 1–161； UniProt 1–161 Author chain F； PDBConstruct 1–161； UniProt 1–161 Author chain G； PDBConstruct 1–161； UniProt 1–161 Author chain H； PDBConstruct 1–161； UniProt 1–161 Author chain I； PDBConstruct 1–161； UniProt 1–161 Author chain J； PDBConstruct 1–161； UniProt 1–161 Author chain K； PDBConstruct 1–161； UniProt 1–161 Author chain L； PDBConstruct 1–161； UniProt 1–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q6w
Deposition date deposition_date	2003-08-14
Structure title title	X-Ray structure of Monoamine oxidase regulatory protein from Archaeoglobus fulgius
Keywords keywords	;STRUCTURAL GENOMICS, NYSGXRC T805, Hot dog fold, originally observed for the beta-hydroxydecanoyl thiol ester dehydrase, PSI, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1q6w__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1q6w__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

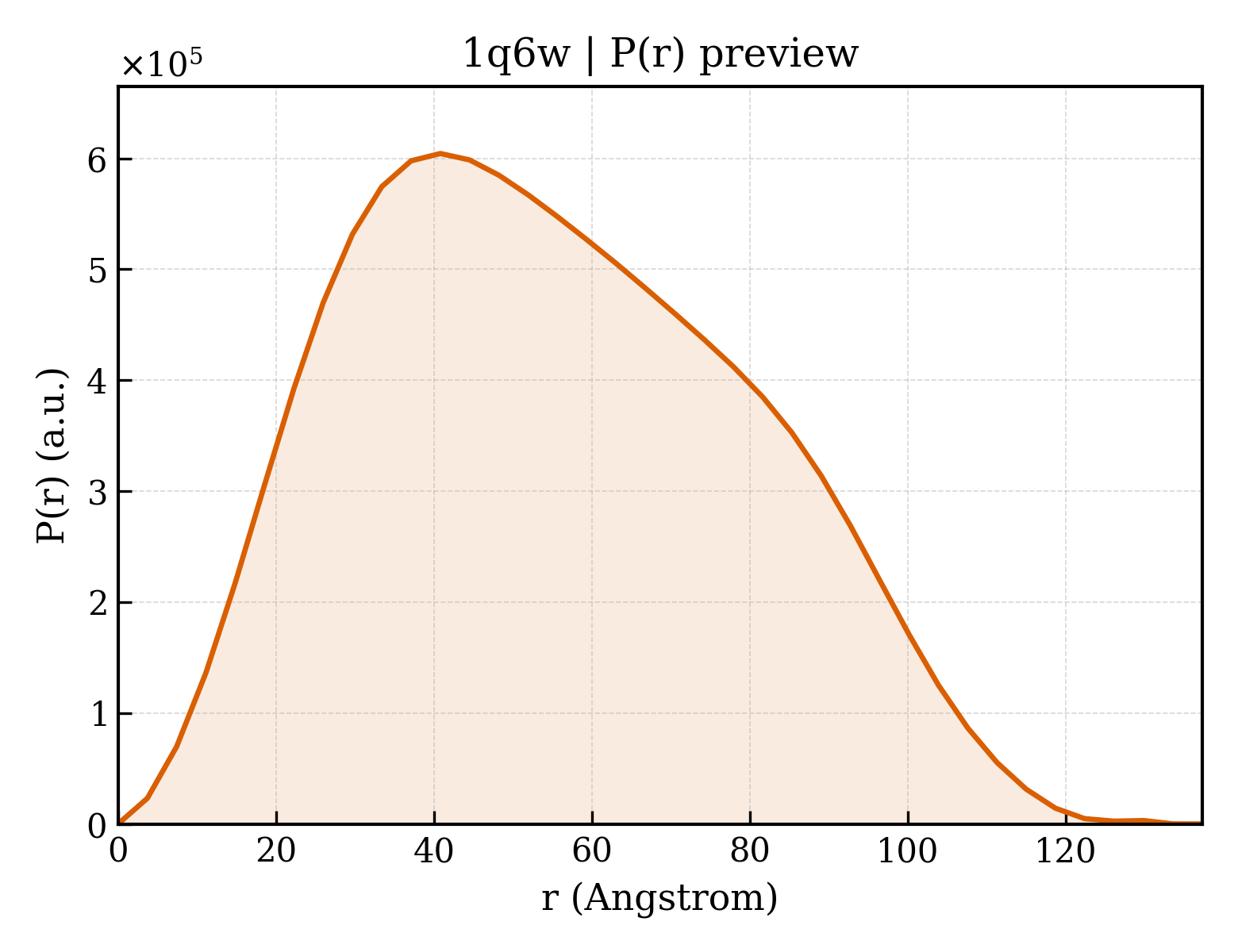

1q6w__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.77 Å
Rg (electron density)	19.56 Å
Total Rg	20.44 Å
Atom count	2384
Residues	298
Excluded volume	43343 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1q6w__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1q6w__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1q6w__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1q6w__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1q6w__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1q6w__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`1q6w__assembly_7__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`1q6w__assembly_8__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1q6wa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6we_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wg_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wi_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wk_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

Domain ID domain_id	d1q6wl_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.4 — MaoC-like

CATH v4.4 (12 domains)

Domain ID domain_id	1q6wA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wG00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wH00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wI00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wJ00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wK00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1q6wL00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

▶

Unit-cell length a length_a	127.744 Å
Unit-cell length b length_b	136.503 Å
Unit-cell length c length_c	127.426 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.810 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2490
R_work r_work	0.2420
R_free r_free	0.2760

Description description	monoamine oxidase regulatory protein, putative
Molecular weight formula_weight	18199.8 kDa
Source method src_method	man
Copy count entity_count	12

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	14224

X-Ray structure of Monoamine oxidase regulatory protein from Archaeoglobus fulgius

1. Protein Identity and Related Structures Protein Identity & Related Structures

monoamine oxidase regulatory protein, putative

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1q6w__assembly_1__model_1

1q6w__assembly_1__model_1 | I(q)

1q6w__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Source organism organism	Archaeoglobus fulgidus
NCBI taxonomy ID ncbi_taxonomy_id	224325
Host organism host_organism	Escherichia coli

X-Ray structure of Monoamine oxidase regulatory protein from Archaeoglobus fulgius

1. Protein Identity and Related Structures Protein Identity & Related Structures

monoamine oxidase regulatory protein, putative

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1q6w__assembly_1__model_1

1q6w__assembly_1__model_1 | I(q)

1q6w__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)
