SAXSdb — 1q79

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Poly(A) polymerase alpha

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MANGANESE (II) ION × 2 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 GLYCEROL × 5 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAPOA_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–514； UniProt 1–513

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q79
Deposition date deposition_date	2003-08-16
Structure title title	CRYSTAL STRUCTURE OF MAMMALIAN POLY(A) POLYMERASE
Keywords keywords	mRNA PROCESSING, nucleotidyl TRANSFERASE, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1q79__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

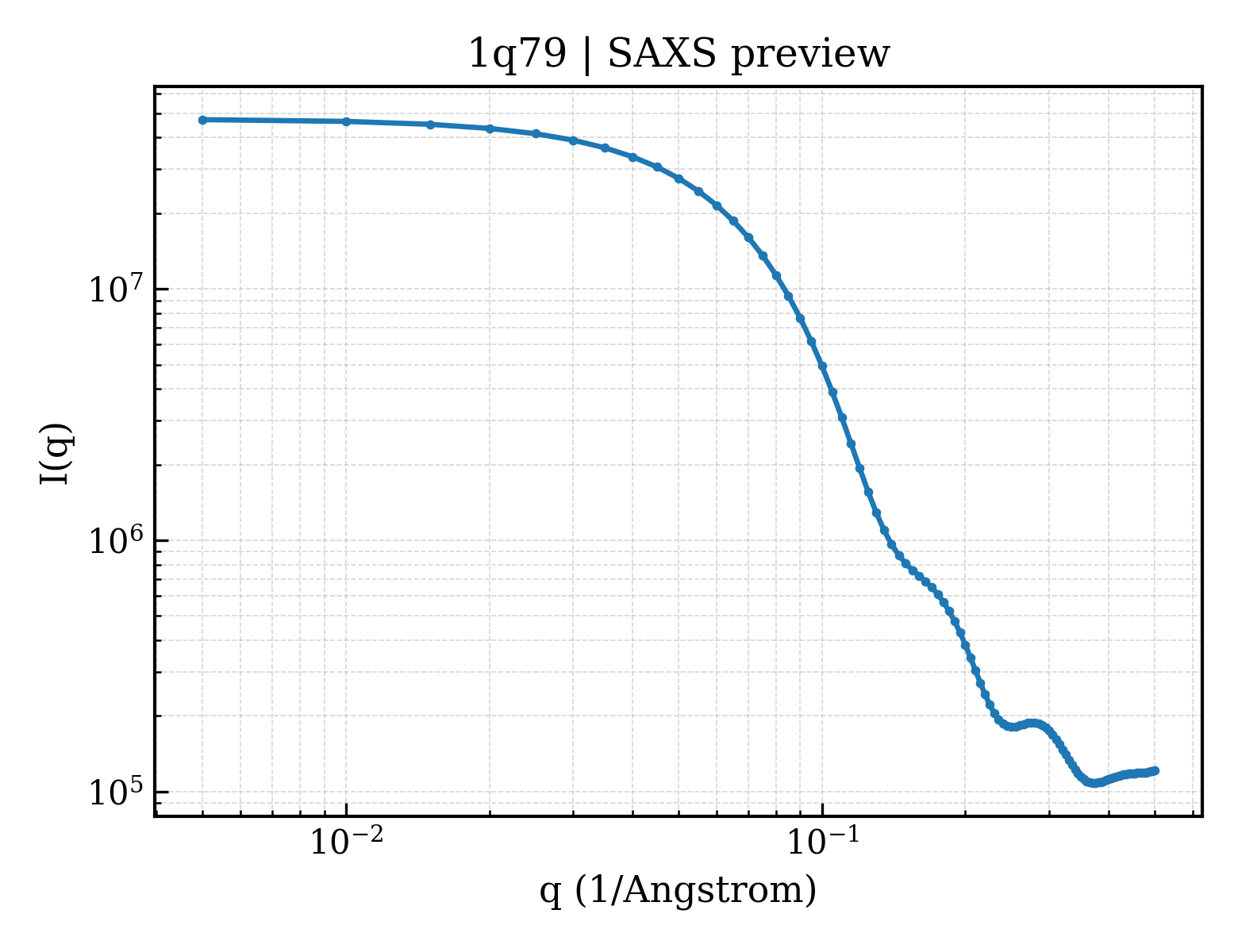

1q79__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1q79__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.41 Å
Rg (electron density)	24.37 Å
Total Rg	25.24 Å
Atom count	3878
Residues	467
Excluded volume	69824 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1q79__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Poly(A) polymerase alpha
Molecular weight formula_weight	59231.3 kDa
EC 编号 ec_number	2.7.7.19
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4253

MPFPVTTQGSQQTQPPQKHYGITSPISLAAPKETDCLLTQKLVETLKPFGVFEEEEELQRRILILGKLNNLVKEWIREISESKNLPQSVIENVGGKIFTFGSYRLGVHTKGADIDALCVAPRHVDRSDFFTSFYDKLKLQEEVKDLRAVEEAFVPVIKLCFDGIEIDILFARLALQTIPEDLDLRDDSLLKNLDIRCIRSLNGCRVTDEILHLVPNIDNFRLTLRAIKLWAKRHNIYSNILGFLGGVSWAMLVARTCQLYPNAIASTLVHKFFLVFSKWEWPNPVLLKQPEECNLNLPVWDPRVNPSDRYHLMPIITPAYPQQNSTYNVSVSTRMVMVEEFKQGLAITDEILLSKAEWSKLFEAPNFFQKYKHYIVLLASAPTEKQRLEWVGLVESKIRILVGSLEKNEFITLAHVNPQSFPAPKENPDKEEFRTMWVIGLVFKKTENSENLSVDLTYDIQSFTDTVYRQAINSKMFEVDMKIAAMHVKRKQLHQLLPSHVLQKKKKHSTEGVK

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	3'-DEOXYADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	491.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	375

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1q79a1
Class class	a — All alpha proteins
Fold Fold fold	a.160 — PAP/OAS1 substrate-binding domain
Superfamily Superfamily superfamily	a.160.1 — PAP/OAS1 substrate-binding domain
Family Family family	a.160.1.1 — Poly(A) polymerase, PAP, middle domain

Domain ID domain_id	d1q79a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.218 — Nucleotidyltransferase
Superfamily Superfamily superfamily	d.218.1 — Nucleotidyltransferase
Family Family family	d.218.1.3 — Poly(A) polymerase, PAP, N-terminal domain

Domain ID domain_id	d1q79a3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.16 — PAP/Archaeal CCA-adding enzyme, C-terminal domain
Family Family family	d.58.16.1 — Poly(A) polymerase, PAP, C-terminal domain

CATH v4.4 (3 domains)

Domain ID domain_id	1q79A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	590 — Poly(A) polymerase predicted RNA binding domain

Domain ID domain_id	1q79A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	460 — Beta Polymerase; domain 2
Homologous superfamily homologous superfamily	10 — Beta Polymerase, domain 2

Domain ID domain_id	1q79A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1410 — Poly(a)-polymerase, middle domain
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	57.640 Å
Unit-cell length b length_b	63.070 Å
Unit-cell length c length_c	181.340 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	29.790 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2350
