SAXSdb — 1q8f

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1q8f
沉积日期 deposition_date	2003-08-21
结构标题 title	Crystal Structure of the E.coli pyrimidine nucleoside hydrolase yeiK
关键词 keywords	open alpha-beta structure, NH-fold, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.59 Å
回转半径 Rg (电子) rg_electron	33.96 Å
零角强度 I(0) i0	267999000.00
分子量 molecular_weight	133930.0 kDa
排除体积 excluded_volume	168230 Å³
包络体积 envelope_volume	196450 Å³
水化壳体积 shell_volume	46913 Å³
包络直径 envelope_diameter	110.8 Å
壳层 Rg shell_rg	41.74 Å
包络 Rg envelope_rg	33.96 Å
形状 Rg shape_rg	33.99 Å
总 Rg total_rg	34.39 Å
总原子数 total_atoms	9360
残基数 n_residues	1232
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	112.1 Å
Rg (实空间) rg_real	34.49 Å
Rg 误差 (实空间) rg_real_error	0.80 Å
I(0) (实空间) i0_real	2.6800e+08
I(0) 误差 (实空间) i0_real_error	4.0090e+06
Rg (倒空间) rg_reciprocal	34.55 Å
I(0) (倒空间) i0_reciprocal	268000000.0000
解质量估计 total_estimate	0.9010
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	46.3 Å
偏度 Skewness skewness	0.165
峰度 Kurtosis kurtosis	-0.622
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	213500000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.985

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Pyrimidine nucleoside hydrolase
分子量 formula_weight	33761.9 kDa
EC 编号 ec_number	3.2.2.8
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	10415

MEKRKIILDCDPGHDDAIAIMMAAKHPAIDLLGITIVAGNQTLDKTLINGLNVCQKLEINVPVYAGMPQPIMRQQIVADNIHGDTGLDGPVFEPLTRQAESTHAVKYIIDTLMASDGDITLVPVGPLSNIAVAMRMQPAILPKIREIVLMGGAYGTGNFTPSAEFNIFADPEAARVVFTSGVPLVMMGLDLTNQTVCTPDVIARMERAGGPAGELFSDIMNFTLKTQFENYGLAGGPVHDATCIGYLINPDGIKTQEMYVEVDVNSGPCYGRTVCDELGVLGKPANTKVGITIDTDWFWGLVEECVRGYIKTH

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1055

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1q8fa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.70 — Nucleoside hydrolase
超家族 Superfamily superfamily	c.70.1 — Nucleoside hydrolase
家族 Family family	c.70.1.1 — Nucleoside hydrolase

结构域编号 domain_id	d1q8fb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.70 — Nucleoside hydrolase
超家族 Superfamily superfamily	c.70.1 — Nucleoside hydrolase
家族 Family family	c.70.1.1 — Nucleoside hydrolase

结构域编号 domain_id	d1q8fc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.70 — Nucleoside hydrolase
超家族 Superfamily superfamily	c.70.1 — Nucleoside hydrolase
家族 Family family	c.70.1.1 — Nucleoside hydrolase

结构域编号 domain_id	d1q8fd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.70 — Nucleoside hydrolase
超家族 Superfamily superfamily	c.70.1 — Nucleoside hydrolase
家族 Family family	c.70.1.1 — Nucleoside hydrolase

CATH v4.4 (4 domains)

结构域编号 domain_id	1q8fA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	245 — Inosine-uridine Nucleoside N-ribohydrolase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonucleoside hydrolase-like

结构域编号 domain_id	1q8fB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	245 — Inosine-uridine Nucleoside N-ribohydrolase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonucleoside hydrolase-like

结构域编号 domain_id	1q8fC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	245 — Inosine-uridine Nucleoside N-ribohydrolase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonucleoside hydrolase-like

结构域编号 domain_id	1q8fD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	245 — Inosine-uridine Nucleoside N-ribohydrolase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonucleoside hydrolase-like

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	44.808 Å
晶胞边长 b length_b	85.707 Å
晶胞边长 c length_c	90.678 Å
晶胞夹角 α angle_alpha	112.95 °
晶胞夹角 β angle_beta	101.95 °
晶胞夹角 γ angle_gamma	85.92 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	43.830 Å
R 因子 r_factor	0.1535
R_work r_work	0.1533
R_free r_free	0.1699

fit	/app/data/saxs_computation/q8/1q8f/1q8f.fit
pddf	/app/data/pr_computation/q8/1q8f/1q8f.pr.out
profile	/app/data/saxs_computation/q8/1q8f/1q8f.dat

Crystal Structure of the E.coli pyrimidine nucleoside hydrolase yeiK

SAXS 散射曲线 SAXS Profile

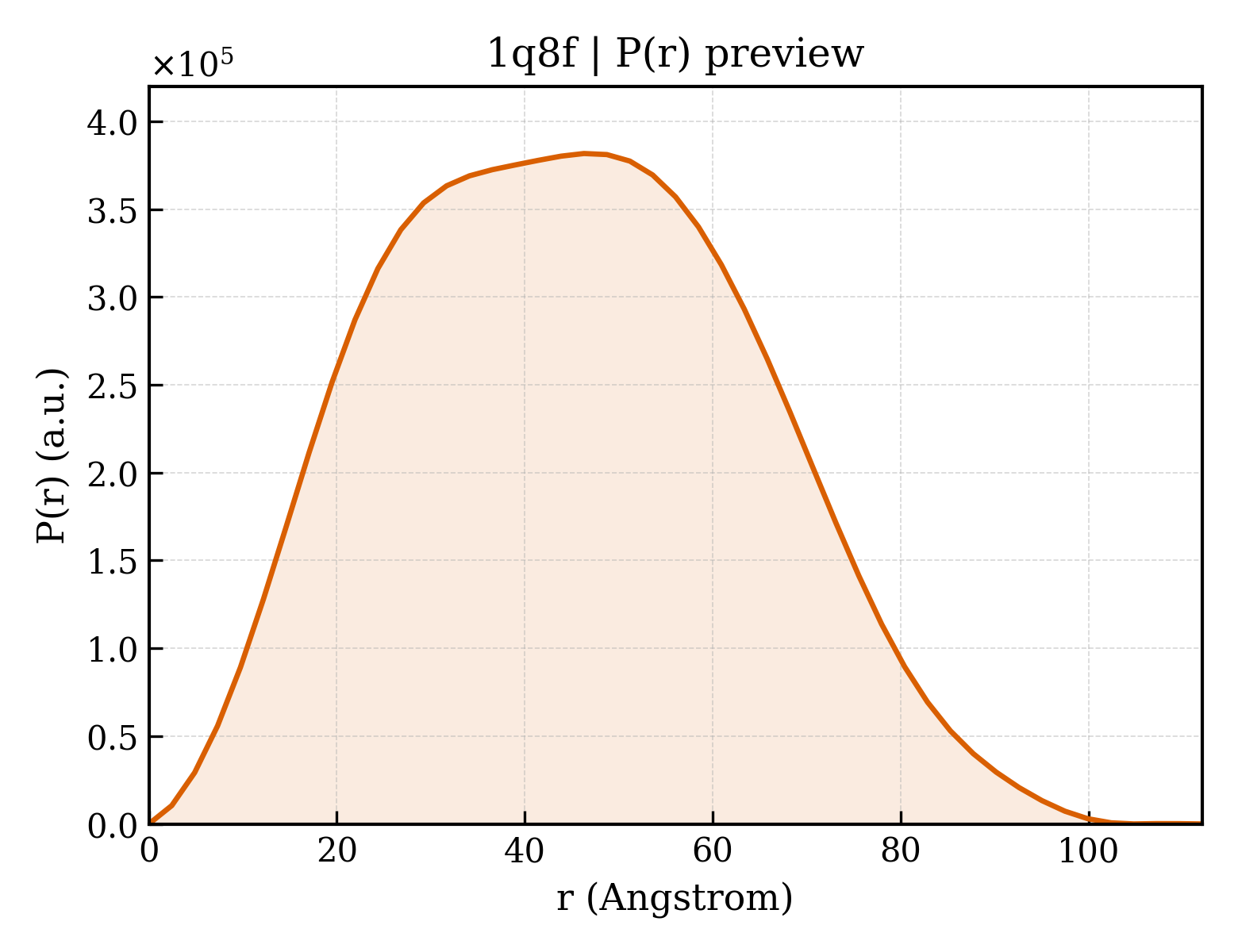

P(r) 距离分布 P(r) Distribution
