SAXSdb — 1q8k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic translation initiation factor 2 subunit 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IF2A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–300； UniProt 4–302

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q8k
Deposition date deposition_date	2003-08-21
Structure title title	Solution structure of alpha subunit of human eIF2
Keywords keywords	Translation, Translation Initiation, Eukaryotic translation initiation factor 2; TRANSLATION
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1q8k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1q8k__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

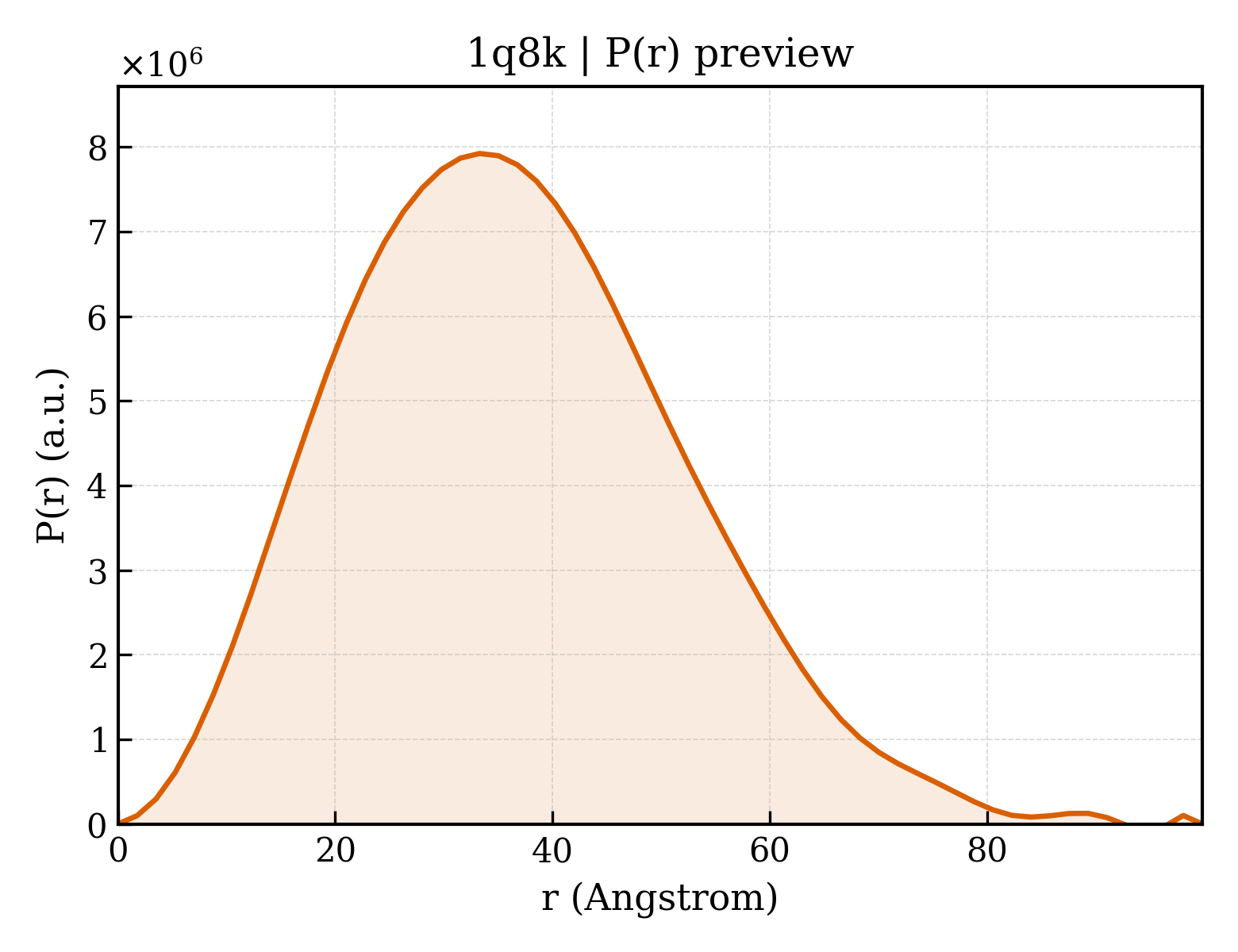

1q8k__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.77 Å
Rg (electron density)	29.52 Å
Total Rg	30.00 Å
Atom count	4874
Residues	300
Excluded volume	43161 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1q8k__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`1q8k__assembly_1__model_2`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`1q8k__assembly_1__model_3`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`1q8k__assembly_1__model_4`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`1q8k__assembly_1__model_5`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`1q8k__assembly_1__model_6`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`1q8k__assembly_1__model_7`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`1q8k__assembly_1__model_8`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	9	`1q8k__assembly_1__model_9`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	10	`1q8k__assembly_1__model_10`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	11	`1q8k__assembly_1__model_11`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	12	`1q8k__assembly_1__model_12`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	13	`1q8k__assembly_1__model_13`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	14	`1q8k__assembly_1__model_14`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	15	`1q8k__assembly_1__model_15`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1q8ka2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.51 — eIF-2-alpha, C-terminal domain
Family Family family	d.58.51.1 — eIF-2-alpha, C-terminal domain

Domain ID domain_id	d1q8ka3
Class class	a — All alpha proteins
Fold Fold fold	a.60 — SAM domain-like
Superfamily Superfamily superfamily	a.60.14 — eIF2alpha middle domain-like
Family Family family	a.60.14.1 — eIF2alpha middle domain-like

Domain ID domain_id	d1q8ka4
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d1q8ka5
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	1q8kA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1q8kA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	190 — Translation initiation factor 2; subunit 1; domain 2

Domain ID domain_id	1q8kA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1130 — EIF_2_alpha

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	Eukaryotic translation initiation factor 2 subunit 1
Molecular weight formula_weight	35741.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	73110

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Solution structure of alpha subunit of human eIF2
