SAXSdb — 1qdb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C NITRITE REDUCTASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 SULFATE ION × 6 HEME C × 10 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 SULFATE ION × 6 HEME C × 10 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NRFA_SULDE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–473； UniProt 42–514 Author chain B； PDBConstruct 1–473； UniProt 42–514 Author chain C； PDBConstruct 1–473； UniProt 42–514

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qdb
Deposition date deposition_date	1999-05-19
Structure title title	CYTOCHROME C NITRITE REDUCTASE
Keywords keywords	C-TYPE CYTOCHROME LYSINE-COORDINATED HEME NITRITE REDUCTASE, oxidoreductase; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qdb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1qdb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

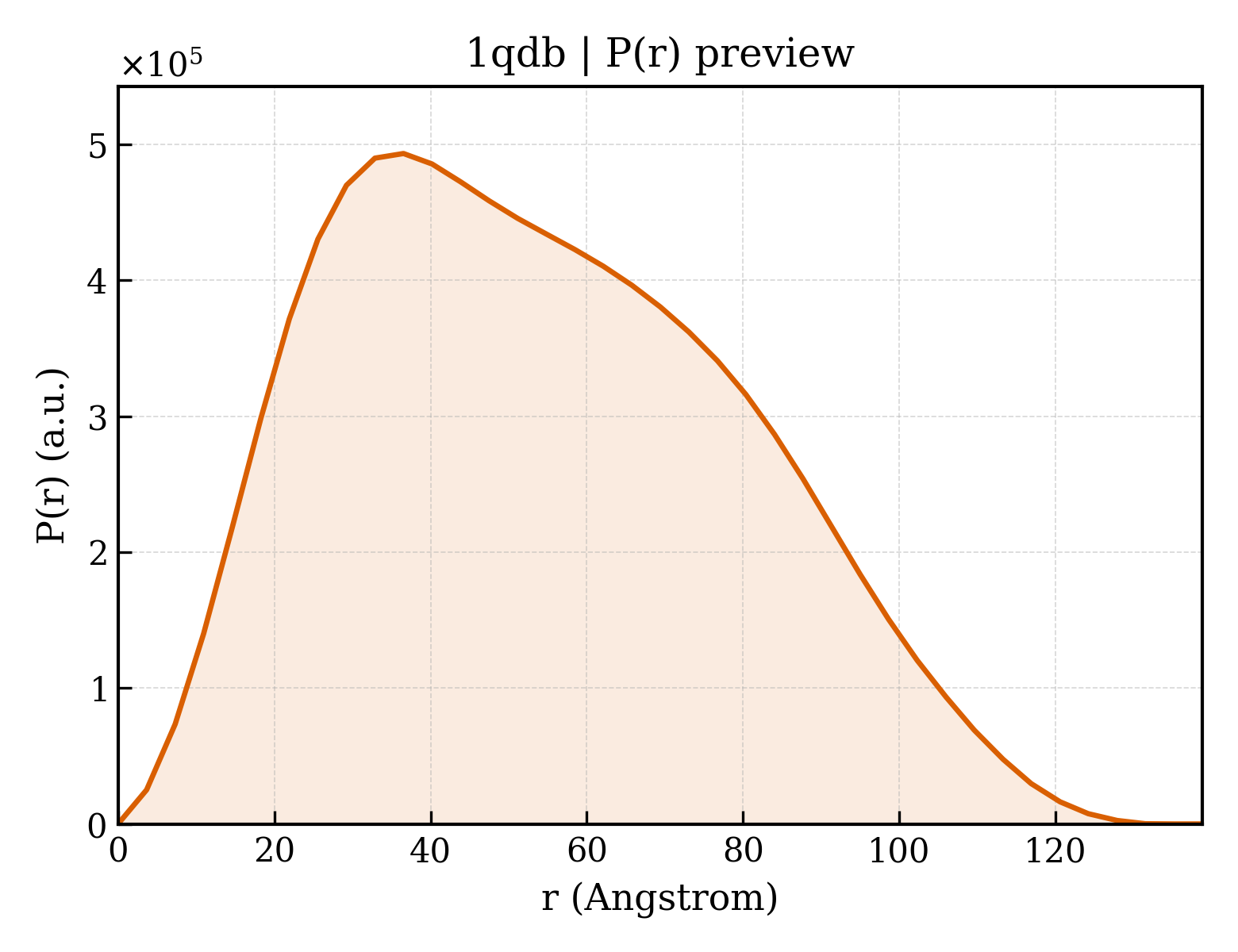

1qdb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.44 Å
Rg (electron density)	32.10 Å
Total Rg	32.61 Å
Atom count	7964
Residues	946
Excluded volume	141330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1qdb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1qdb__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME C NITRITE REDUCTASE
Molecular weight formula_weight	53376.3 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	13431

GIAGKEKSEEWAKYYPRQFDSWKKTKEYDSFTDMLAKDPALVIAWSGYAFSKDYNSPRGHYYALQDNVNSLRTGAPVDAKTGPLPTACWTCKSPDVPRLIEEDGELEYFTGKWAKYGSQIVNVIGCANCHDDKTAELKVRVPHLNRGLQAAGLKTFEESTHQDKRTLVCAQCHVEYYFKKTEWKDAKGADKTAMVVTLPWANGVGKDGNAGVEGMIKYYDEINFSDWTHNISKTPMLKAQHPGFEFWKSGIHGQKGVSCADCHMPYTQEGSVKYSDHQVKENPLDSMDQSCMNCHRESESKLRGIVHQKYERKEFLNKVAFDNIGKAHLETGKAIEAGASDEELKEVRKLIRHGQFKADMAIAAHGNYFHAPEETLRLLAAGSDDAQKARLLLVKILAKHGVMDYIAPDFDTKDKAQKLAKVDIAALAAEKMKFKQTLEQEWKKEAKAKGRANPELYKDVDTINDGKSSWNKK

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1485

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1qdba_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

Domain ID domain_id	d1qdbb_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

Domain ID domain_id	d1qdbc_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

CATH v4.4 (6 domains)

Domain ID domain_id	1qdbA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

Domain ID domain_id	1qdbA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1qdbB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

Domain ID domain_id	1qdbB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	1qdbC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

Domain ID domain_id	1qdbC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

▶

Unit-cell length a length_a	107.484 Å
Unit-cell length b length_b	185.344 Å
Unit-cell length c length_c	92.192 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	—
R_work r_work	0.1840
R_free r_free	0.2200
