SAXSdb — 1qg0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (FERREDOXIN:NADP+ REDUCTASE)

Pisum sativum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	FLAVIN-ADENINE DINUCLEOTIDE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	FLAVIN-ADENINE DINUCLEOTIDE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FENR1_PEA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–308； UniProt 53–360 Author chain B； PDBConstruct 1–308； UniProt 53–360

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qg0
Deposition date deposition_date	1999-04-18
Structure title title	WILD-TYPE PEA FNR
Keywords keywords	FLAVOENZYME, PHOTOSYNTHESIS, ELECTRON TRANSFER, HYDRIDE TRANSFER, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qg0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1qg0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

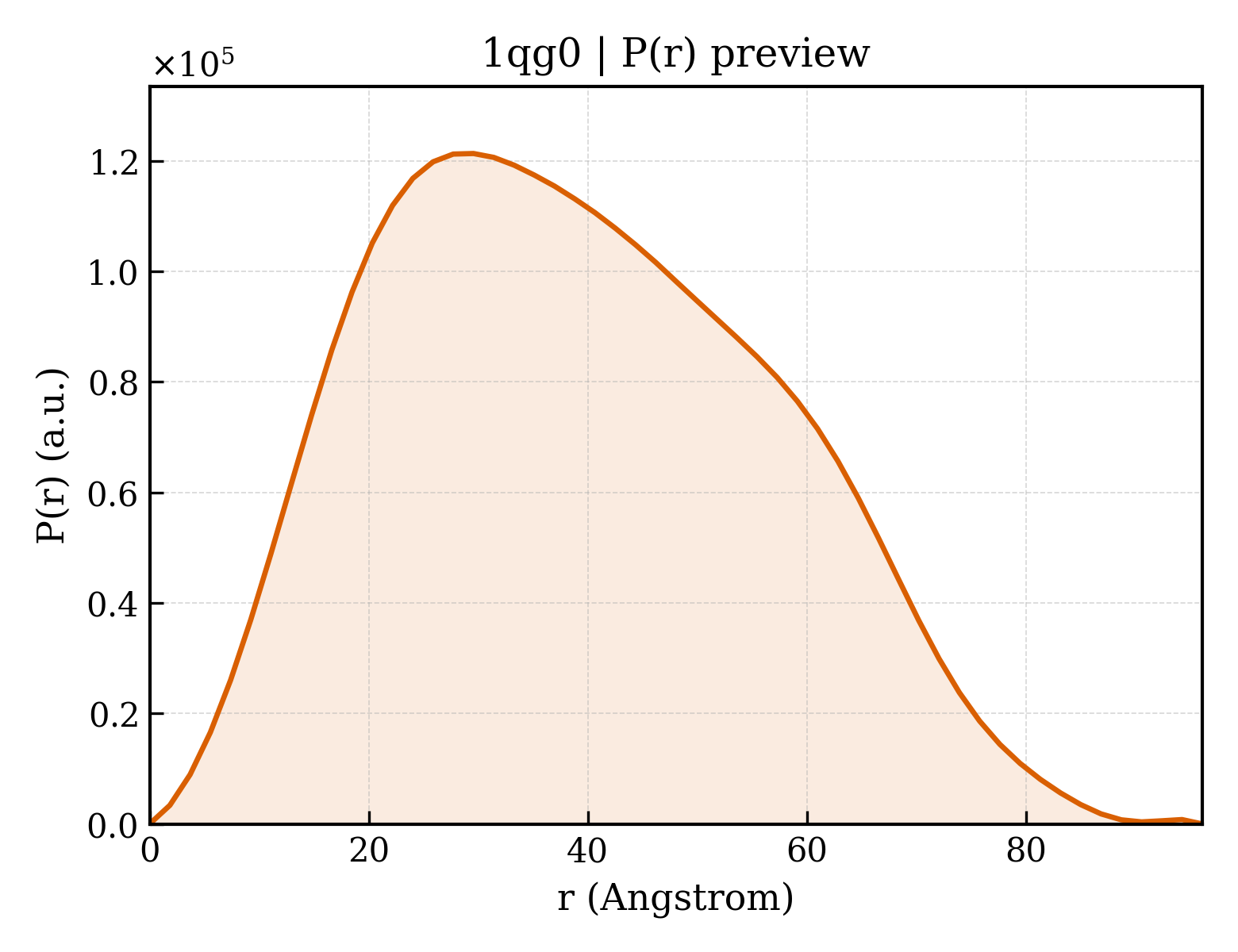

1qg0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.75 Å
Rg (electron density)	19.56 Å
Total Rg	20.44 Å
Atom count	2410
Residues	296
Excluded volume	43070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1qg0__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1qg0__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROTEIN (FERREDOXIN:NADP+ REDUCTASE)
Molecular weight formula_weight	34844.1 kDa
EC 编号 ec_number	1.18.1.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5030

QVTTEAPAKVVKHSKKQDENIVVNKFKPKEPYVGRCLLNTKITGDDAPGETWHMVFSTEGEVPYREGQSIGIVPDGIDKNGKPHKLRLYSIASSAIGDFGDSKTVSLCVKRLVYTNDAGEVVKGVCSNFLCDLKPGSEVKITGPVGKEMLMPKDPNATVIMLGTGTGIAPFRSFLWKMFFEKHEDYQFNGLAWLFLGVPTSSSLLYKEEFEKMKEKAPENFRLDFAVSREQVNDKGEKMYIQTRMAQYAEELWELLKKDNTFVYMCGLKGMEKGIDDIMVSLAAKDGIDWIEYKRTLKKAEQWNVEVY

Source Source

Source organism organism	Pisum sativum
Common name common_name	pea
NCBI taxonomy ID ncbi_taxonomy_id	3888
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1qg0a1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.4 — Riboflavin synthase domain-like
Family Family family	b.43.4.2 — Ferredoxin reductase FAD-binding domain-like

Domain ID domain_id	d1qg0a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.25 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Superfamily Superfamily superfamily	c.25.1 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Family Family family	c.25.1.1 — Reductases

Domain ID domain_id	d1qg0b1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.4 — Riboflavin synthase domain-like
Family Family family	b.43.4.2 — Ferredoxin reductase FAD-binding domain-like

Domain ID domain_id	d1qg0b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.25 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Superfamily Superfamily superfamily	c.25.1 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Family Family family	c.25.1.1 — Reductases

CATH v4.4 (4 domains)

Domain ID domain_id	1qg0A01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1qg0A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	80 — Nucleotide-binding domain of ferredoxin-NADP reductase (FNR) module

Domain ID domain_id	1qg0B01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1qg0B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	80 — Nucleotide-binding domain of ferredoxin-NADP reductase (FNR) module

▶

Unit-cell length a length_a	73.900 Å
Unit-cell length b length_b	94.100 Å
Unit-cell length c length_c	140.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2180
R_free r_free	0.2730
