SAXSdb — 1qg3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (INTEGRIN BETA-4 SUBUNIT)

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1126–1320 Chain B； UniProt 1126–1320	Fragment：FIRST TANDEM PAIR OF FIBRONECTIN TYPE III DOMAINS	CAC CACODYLATE ION × 2 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.2；100 MM CACODYLIC ACID/NAOH PH 6.2 200 MM LI2SO4 30% 400 MM POLYETHYLENE GLYCOL	Resolution 2.15 Å R-free 0.262

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1QG3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2YRZ Solution structure of the fibronectin type III domain of human Integrin beta-4 Deposited 2007-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1518–1622（105 aa） Fragment：fn3	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.21mM sample U-15N,13C; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
3F7P Crystal structure of a complex between integrin beta4 and plectin Deposited 2008-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1126–1370（245 aa） Fragment：Fibronectin type-III, residues 1126-1370	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.8；298 K；0.1M Sodium Acetate, 0.2M CaCl2, 10% PEG 6000, pH 5.8, VAPOR DIFFUSION, temperature 298K	Resolution 2.75 Å R-free 0.257
3F7P Crystal structure of a complex between integrin beta4 and plectin Deposited 2008-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1126–1370（245 aa） Fragment：Fibronectin type-III, residues 1126-1370	Not recorded	EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.8；298 K；0.1M Sodium Acetate, 0.2M CaCl2, 10% PEG 6000, pH 5.8, VAPOR DIFFUSION, temperature 298K	Resolution 2.75 Å R-free 0.257
3F7P Crystal structure of a complex between integrin beta4 and plectin Deposited 2008-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1126–1370（245 aa） Fragment：Fibronectin type-III, residues 1126-1370	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.8；298 K；0.1M Sodium Acetate, 0.2M CaCl2, 10% PEG 6000, pH 5.8, VAPOR DIFFUSION, temperature 298K	Resolution 2.75 Å R-free 0.257
3F7Q First pair of Fibronectin type III domains and part of the connecting segment of the integrin beta4 Deposited 2008-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1126–1355（230 aa） Fragment：Fibronectin type-III, residues 1126-1355	Not recorded	CL CHLORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 1PE PENTAETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；0.1M Tris-HCl, 0.3M NaCl, 24% PEG 200, pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.75 Å R-free 0.182
3F7Q First pair of Fibronectin type III domains and part of the connecting segment of the integrin beta4 Deposited 2008-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1126–1355（230 aa） Fragment：Fibronectin type-III, residues 1126-1355	Not recorded	CL CHLORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；0.1M Tris-HCl, 0.3M NaCl, 24% PEG 200, pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 1.75 Å R-free 0.182
3F7R First pair of Fibronectin type III domains and part of the connecting segment of the integrin beta4 Deposited 2008-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1126–1370（245 aa） Fragment：Fibronectin type-III, residues 1126-1370	Not recorded	CL CHLORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；298 K；0.1M Cacodylate, 18.75% PEG 600, 6.25% Glycerol, 0.7M NaCl, pH 6.5, VAPOR DIFFUSION, temperature 298K	Resolution 2.04 Å R-free 0.215
3FQ4 Crystal structure of the Calx-beta domain of integrin beta4 Deposited 2009-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 989–1107（119 aa） Fragment：Calx-beta domain, residues 989-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；298 K；50mM Tris-HCl, 26% PEG 1500, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.49 Å R-free 0.189
3FQ4 Crystal structure of the Calx-beta domain of integrin beta4 Deposited 2009-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 989–1107（119 aa） Fragment：Calx-beta domain, residues 989-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；298 K；50mM Tris-HCl, 26% PEG 1500, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.49 Å R-free 0.189
3FSO Crystal structure of the Calx-beta domain of integrin beta4, calcium soak Deposited 2009-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 989–1107（119 aa） Fragment：Calx-beta domain, residues 989-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；298 K；50mM Tris-HCl, 26% PEG 1500; CRYSTAL WAS SOAKED IN 50mM Tris-HCl, 25% PEG 1500, 10mM CaCl2 PRIOR TO DATA COLLECTION, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.41 Å R-free 0.211
3FSO Crystal structure of the Calx-beta domain of integrin beta4, calcium soak Deposited 2009-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 989–1107（119 aa） Fragment：Calx-beta domain, residues 989-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；298 K；50mM Tris-HCl, 26% PEG 1500; CRYSTAL WAS SOAKED IN 50mM Tris-HCl, 25% PEG 1500, 10mM CaCl2 PRIOR TO DATA COLLECTION, pH 8.3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.41 Å R-free 0.211
3H6A Structure of the Calx-beta domain of integrin beta4 crystallized in the presence of calcium Deposited 2009-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 989–1107（119 aa） Fragment：CALX-BETA DOMAIN, RESIDUES 989-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；298 K；50MM TRIS-HCL, 2MM CACL2, 26% PEG 1500, pH 7.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.61 Å R-free 0.212
3H6A Structure of the Calx-beta domain of integrin beta4 crystallized in the presence of calcium Deposited 2009-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 989–1107（119 aa） Fragment：CALX-BETA DOMAIN, RESIDUES 989-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；298 K；50MM TRIS-HCL, 2MM CACL2, 26% PEG 1500, pH 7.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.61 Å R-free 0.212
4Q58 Crystal structure of the plectin 1a actin-binding domain/integrin beta 4 fragment complex Deposited 2014-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1126–1320（195 aa） Fragment：fibronectin type III domains 1 and 2 (UNP residues 1126-1320)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；20 mM HEPES, pH 6.5, 150 mM sodium formate, 7.5% PEG550 MME, 3% sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 4.00 Å R-free 0.287
4Q58 Crystal structure of the plectin 1a actin-binding domain/integrin beta 4 fragment complex Deposited 2014-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1126–1320（195 aa） Fragment：fibronectin type III domains 1 and 2 (UNP residues 1126-1320)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；20 mM HEPES, pH 6.5, 150 mM sodium formate, 7.5% PEG550 MME, 3% sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 4.00 Å R-free 0.287
4WTW Crystal structure of the third FnIII domain of integrin beta4 Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1457–1548（92 aa） Fragment：Third FnIII domain, UNP residues 1457-1548	Not recorded	SO4 SULFATE ION × 2 1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M Tris-HCl, 12.5% glycerol, 36% PEG 600, 0.5 M (NH4)2SO4	Resolution 1.61 Å R-free 0.180
4WTW Crystal structure of the third FnIII domain of integrin beta4 Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1457–1548（92 aa） Fragment：Third FnIII domain, UNP residues 1457-1548	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M Tris-HCl, 12.5% glycerol, 36% PEG 600, 0.5 M (NH4)2SO4	Resolution 1.61 Å R-free 0.180
4WTX Crystal structure of the fourth FnIII domain of integrin beta4 Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1572–1666（95 aa） Fragment：Fourth FnIII domain, UNP residues 1572-1666	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M Sodium Acetate (pH 4.2), 0.7 M NaH2PO4, 1.05 M K2HPO4, 2 mM DTT	Resolution 1.50 Å R-free 0.218
6GVK Second pair of Fibronectin type III domains of integrin beta4 (T1663R mutant) bound to the bullous pemphigoid antigen BP230 (BPAG1e) Deposited 2018-06-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1527–1736（210 aa）	Mutation：T1663R	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；0.1 M Na-acetate (pH 5.0), 20% PEG 6000, 0.2 M MgCl2	Resolution 1.55 Å R-free 0.210
6GVL Second pair of Fibronectin type III domains of integrin beta4 bound to the bullous pemphigoid antigen BP230 (BPAG1e) Deposited 2018-06-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1527–1736（210 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；298 K；0.1 phosphate-citrate pH 4.2, 20% PEG 8000, 0.2 M NaCl	Resolution 2.05 Å R-free 0.236

12 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ITB4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–195； UniProt 1126–1320 Author chain B； PDBConstruct 1–195； UniProt 1126–1320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qg3
Deposition date deposition_date	1999-04-19
Structure title title	CRYSTAL STRUCTURE OF A TANDEM PAIR OF FIBRONECTIN TYPE III DOMAINS FROM THE CYTOPLASMIC TAIL OF INTEGRIN ALPHA6 BETA4
Keywords keywords	INTEGRIN, HEMIDESMOSOME, FIBRONECTIN, CARCINOMA, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.33 Å
Radius of gyration Rg (electron density) rg_electron	33.19 Å
Forward intensity I(0) i0	32741400.00
Molecular weight molecular_weight	43577.0 kDa
Excluded volume excluded_volume	53802 Å³
Envelope volume envelope_volume	78201 Å³
Hydration-shell volume shell_volume	20690 Å³
Envelope diameter envelope_diameter	116.5 Å
Shell Rg shell_rg	38.08 Å
Envelope Rg envelope_rg	32.02 Å
Shape Rg shape_rg	33.14 Å
Total Rg total_rg	33.75 Å
Total atoms total_atoms	3052
Residues n_residues	389
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	113.0 Å
Rg (real space) rg_real	33.47 Å
Rg uncertainty (real space) rg_real_error	0.93 Å
I(0) (real space) i0_real	3.2740e+07
I(0) uncertainty (real space) i0_real_error	5.4120e+05
Rg (reciprocal space) rg_reciprocal	33.41 Å
I(0) (reciprocal space) i0_reciprocal	32740000.0000
Solution quality estimate total_estimate	0.7821
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	47.1 Å
Skewness Skewness skewness	0.259
Kurtosis Kurtosis kurtosis	-0.321
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1400000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.501; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.841; Smooth: 0.819

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (INTEGRIN BETA-4 SUBUNIT)
Molecular weight formula_weight	21668.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3447

DLGAPQNPNAKAAGSRKIHFNWLPPSGKPMGYRVKYWIQGDSESEAHLLDSKVPSVELTNLYPYCDYEMKVCAYGAQGEGPYSSLVSCRTHQEVPSEPGRLAFNVVSSTVTQLSWAEPAETNGEITAYEVCYGLVNDDNRPIGPMKKVLVDNPKNRMLLIENLRESQPYRYTVKARNGAGWGPEREAIINLATQP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CACODYLATE ION
Molecular weight formula_weight	137.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	381

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1qg3a1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1qg3a2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1qg3b1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1qg3b2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

CATH v4.4 (4 domains)

Domain ID domain_id	1qg3A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1qg3A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1qg3B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1qg3B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	59.040 Å
Unit-cell length b length_b	59.040 Å
Unit-cell length c length_c	246.050 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2010
R_free r_free	0.2620

fit	/app/data/saxs_computation/qg/1qg3/1qg3.fit
pddf	/app/data/pr_computation/qg/1qg3/1qg3.pr.out
profile	/app/data/saxs_computation/qg/1qg3/1qg3.dat

CRYSTAL STRUCTURE OF A TANDEM PAIR OF FIBRONECTIN TYPE III DOMAINS FROM THE CYTOPLASMIC TAIL OF INTEGRIN ALPHA6 BETA4

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (INTEGRIN BETA-4 SUBUNIT)

State in the Current Structure

Other States of the Same Protein in the Database

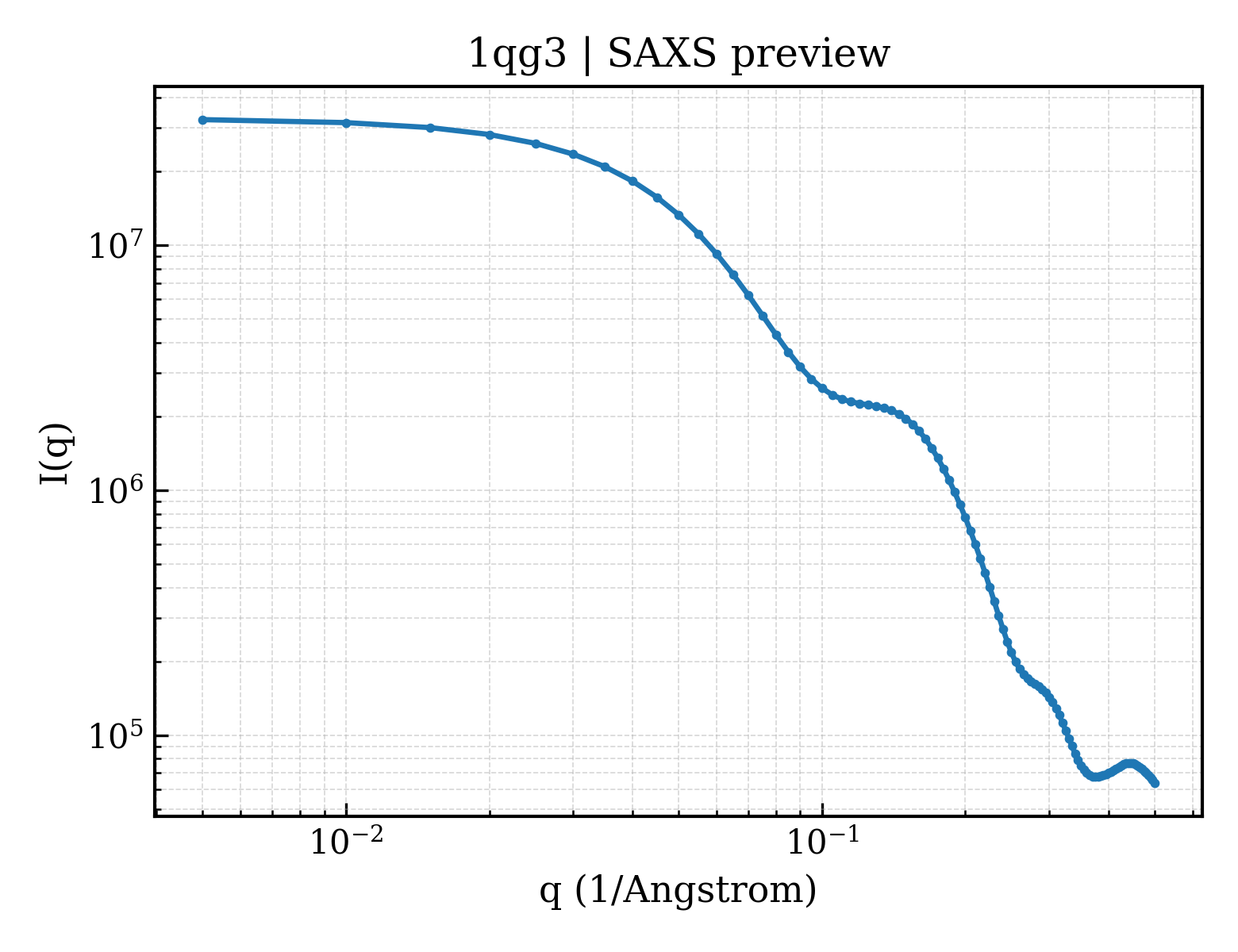

SAXS scattering curve SAXS Profile

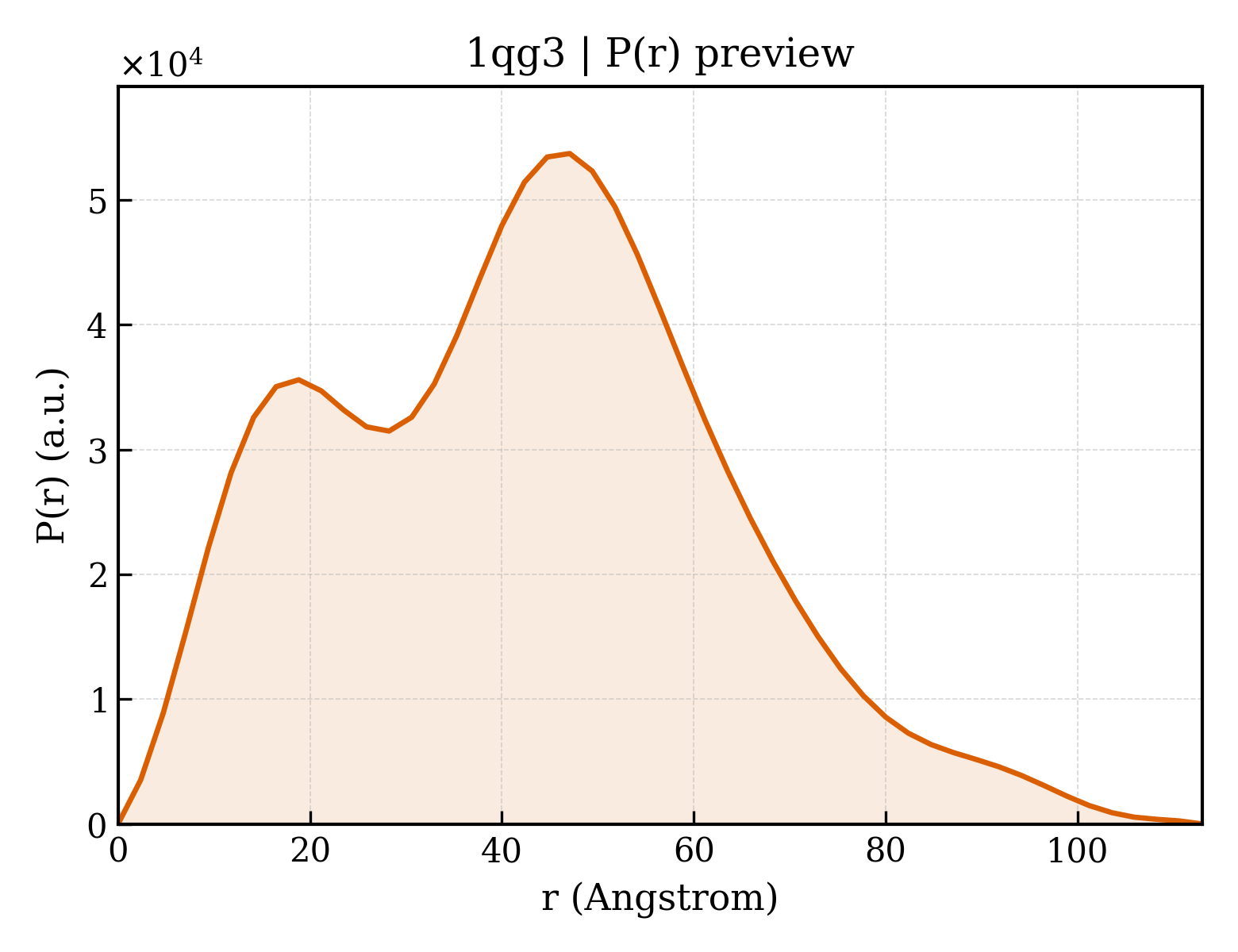

P(r) Distance Distribution P(r) Distribution
