SAXSdb — 1qlv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PYRONE SYNTHASE

GERBERA HYBRIDA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CHS2_GERHY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–402； UniProt 1–402 Author chain B； PDBConstruct 1–402； UniProt 1–402

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qlv
Deposition date deposition_date	1999-09-16
Structure title title	Pyrone synthase (PYS) from Gerbera hybrida
Keywords keywords	POLYKETIDE SYNTHASE, POLYKETIDE, PYRONE BIOSYNTHESIS, CHALCONE; POLYKETIDE SYNTHASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qlv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1qlv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

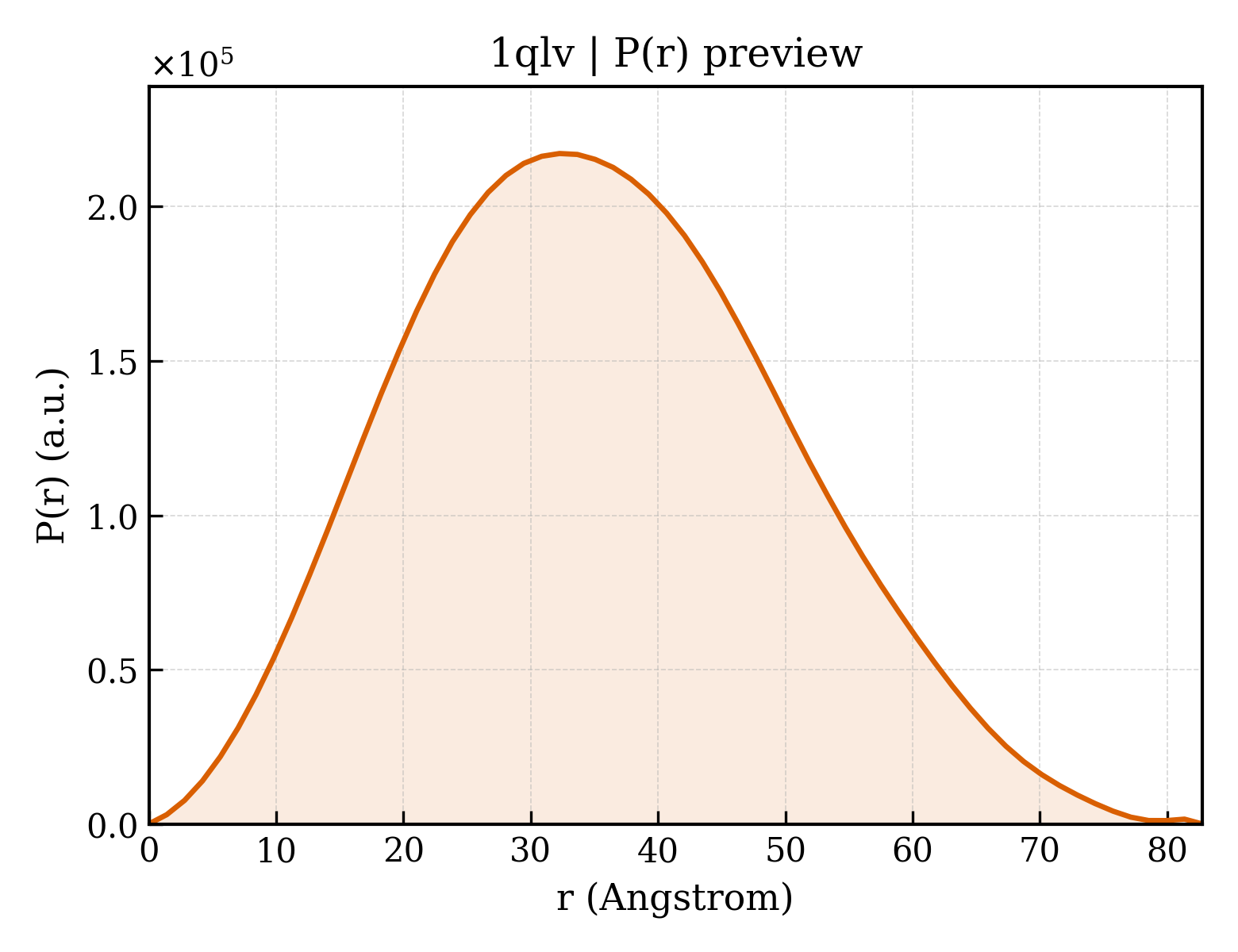

1qlv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.10 Å
Rg (electron density)	25.84 Å
Total Rg	26.64 Å
Atom count	5780
Residues	752
Excluded volume	103910 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1qlv__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1qlva1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d1qlva2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d1qlvb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

Domain ID domain_id	d1qlvb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.2 — Chalcone synthase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1qlvA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1qlvA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1qlvB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	1qlvB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

▶

Unit-cell length a length_a	82.140 Å
Unit-cell length b length_b	82.140 Å
Unit-cell length c length_c	241.325 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1808
R_work r_work	—
R_free r_free	0.2689

Description description	PYRONE SYNTHASE
Molecular weight formula_weight	43833.5 kDa
EC 编号 ec_number	2.3.1.74
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6673

Pyrone synthase (PYS) from Gerbera hybrida

1. Protein Identity and Related Structures Protein Identity & Related Structures

PYRONE SYNTHASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1qlv__assembly_1__model_1

1qlv__assembly_1__model_1 | I(q)

1qlv__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	GERBERA HYBRIDA
NCBI taxonomy ID ncbi_taxonomy_id	18101
Host organism host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	775
