1qmf

PENICILLIN-BINDING PROTEIN 2X (PBP-2X) ACYL-ENZYME COMPLEX

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PENICILLIN-BINDING PROTEIN 2X

STREPTOCOCCUS PNEUMONIAE

UniProt P14677

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 2-[CARBOXY-(2-FURAN-2-YL-2-METHOXYIMINO-ACETYLAMINO)-METHYL]-5-METHYL-3,6-DIHYDRO-2H-[1,3]THIAZINE-4-CARBOXYLIC ACID × 1 CEFUROXIME (OCT-3-ENE FORM) × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1pmd 1qme 1qmf 1rp5 1rp5

5 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name PBPX_STRPN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–702； UniProt 49–750

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1qmf
Deposition date deposition_date1999-09-28
Structure title titlePENICILLIN-BINDING PROTEIN 2X (PBP-2X) ACYL-ENZYME COMPLEX
Keywords keywordsPEPTIDOGLYCAN SYNTHESIS, CELL WALL, CELL CYCLE; CELL CYCLE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qmf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

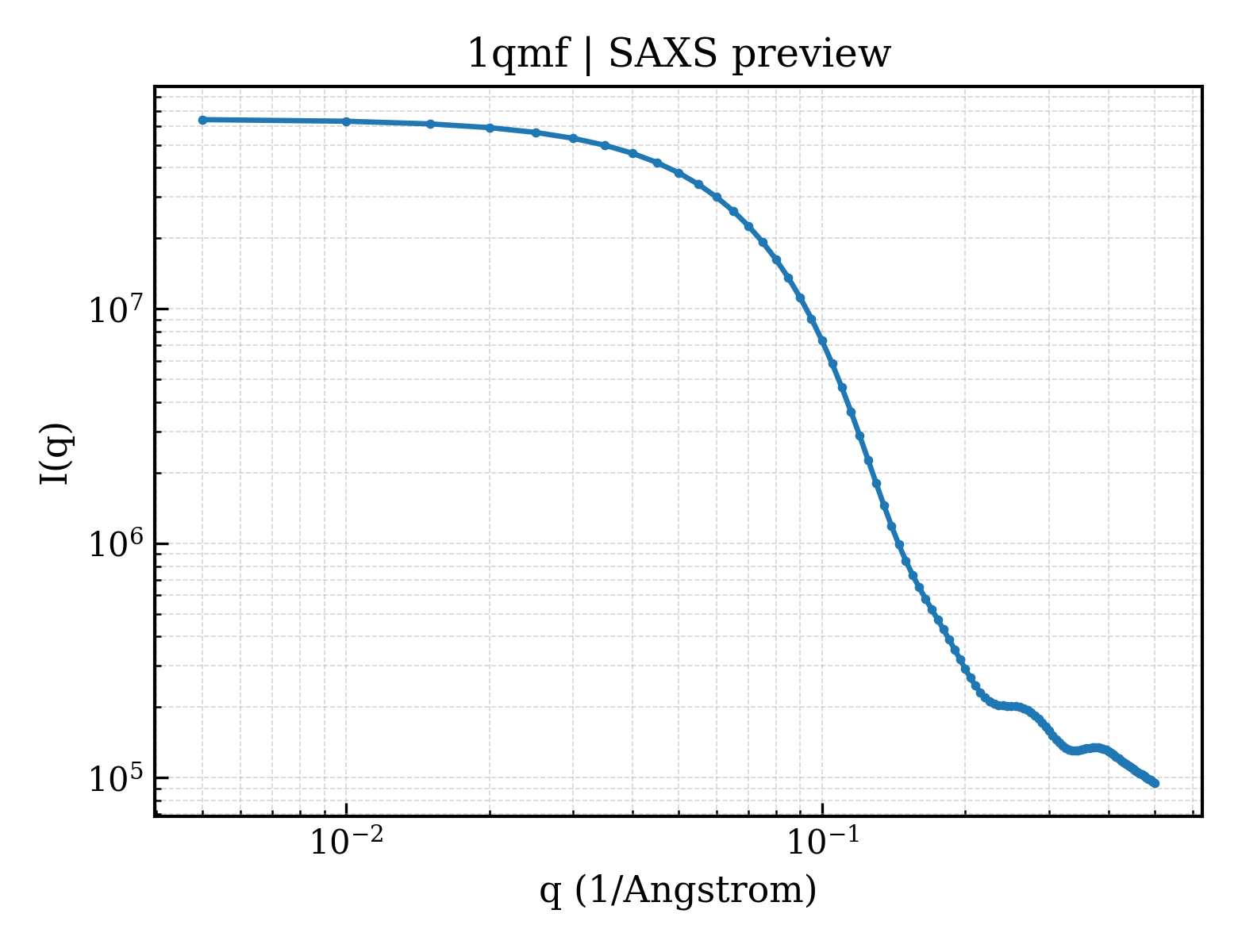

1qmf__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1qmf__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）25.08 Å
Rg (electron density)24.02 Å
Total Rg24.91 Å
Atom count4316
Residues559
Excluded volume76437 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1qmf__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd1qmfa1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
Superfamily Superfamily superfamilyd.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
Family Family familyd.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
Domain ID domain_idd1qmfa2
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
Superfamily Superfamily superfamilyd.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
Family Family familyd.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
Domain ID domain_idd1qmfa3
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.175 — Penicillin binding protein dimerisation domain
Superfamily Superfamily superfamilyd.175.1 — Penicillin binding protein dimerisation domain
Family Family familyd.175.1.1 — Penicillin binding protein dimerisation domain
Domain ID domain_idd1qmfa4
Class classe — Multi-domain proteins (alpha and beta)
Fold Fold folde.3 — beta-lactamase/transpeptidase-like
Superfamily Superfamily superfamilye.3.1 — beta-lactamase/transpeptidase-like
Family Family familye.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

CATH v4.4 (2 domains)

Domain ID domain_id1qmfA01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology1310 — Penicillin-binding protein 2a (Domain 2)
Homologous superfamily homologous superfamily10 — Penicillin-binding protein 2a (Domain 2)
Domain ID domain_id1qmfA02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology710 — Beta-lactamase
Homologous superfamily homologous superfamily10 — DD-peptidase/beta-lactamase superfamily
▶
