1qp9

STRUCTURE OF HAP1-PC7 COMPLEXED TO THE UAS OF CYC7

Method: X-RAY DIFFRACTION D_max: 90.8 Å Quality: GOOD

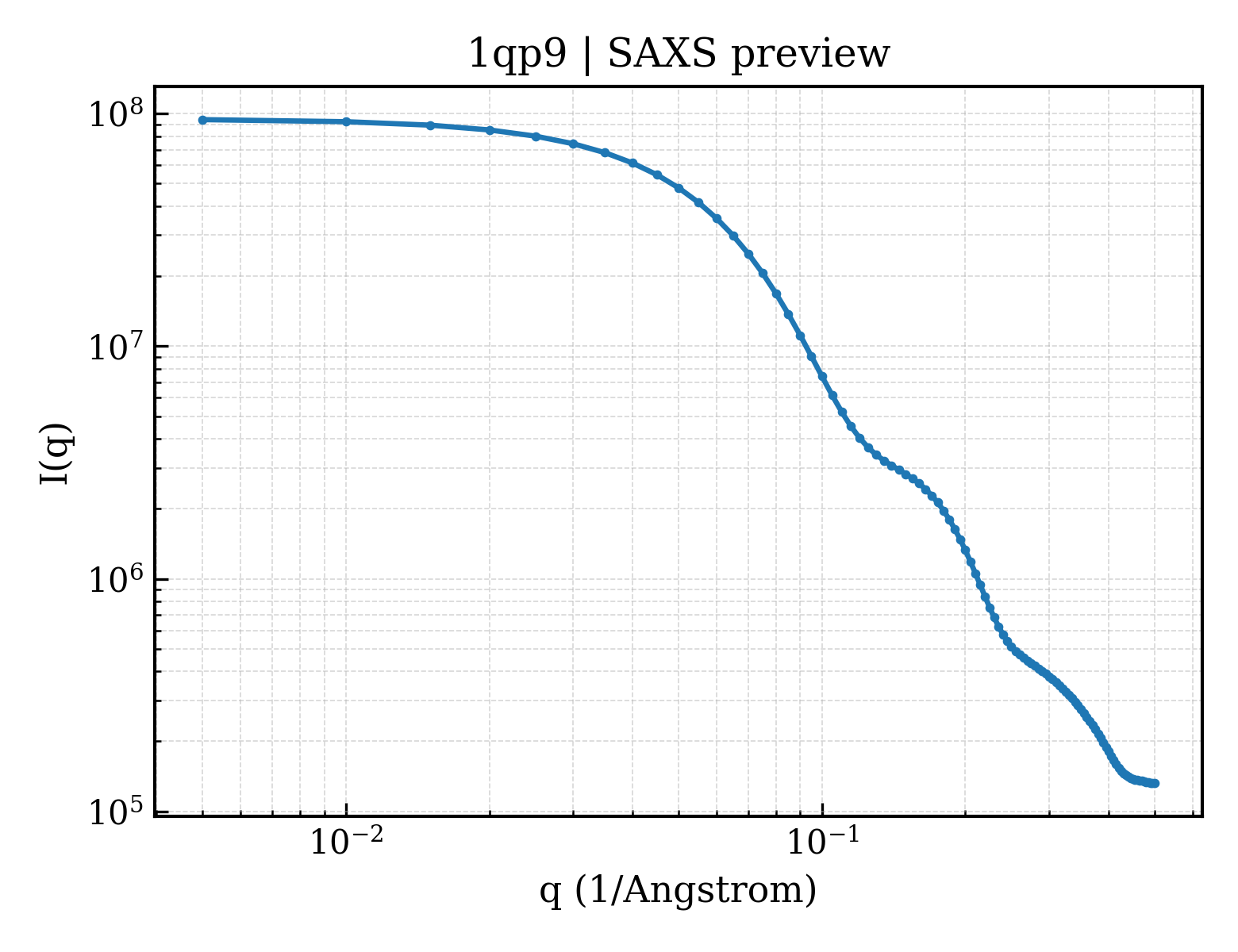

SAXS 散射曲线 SAXS Profile

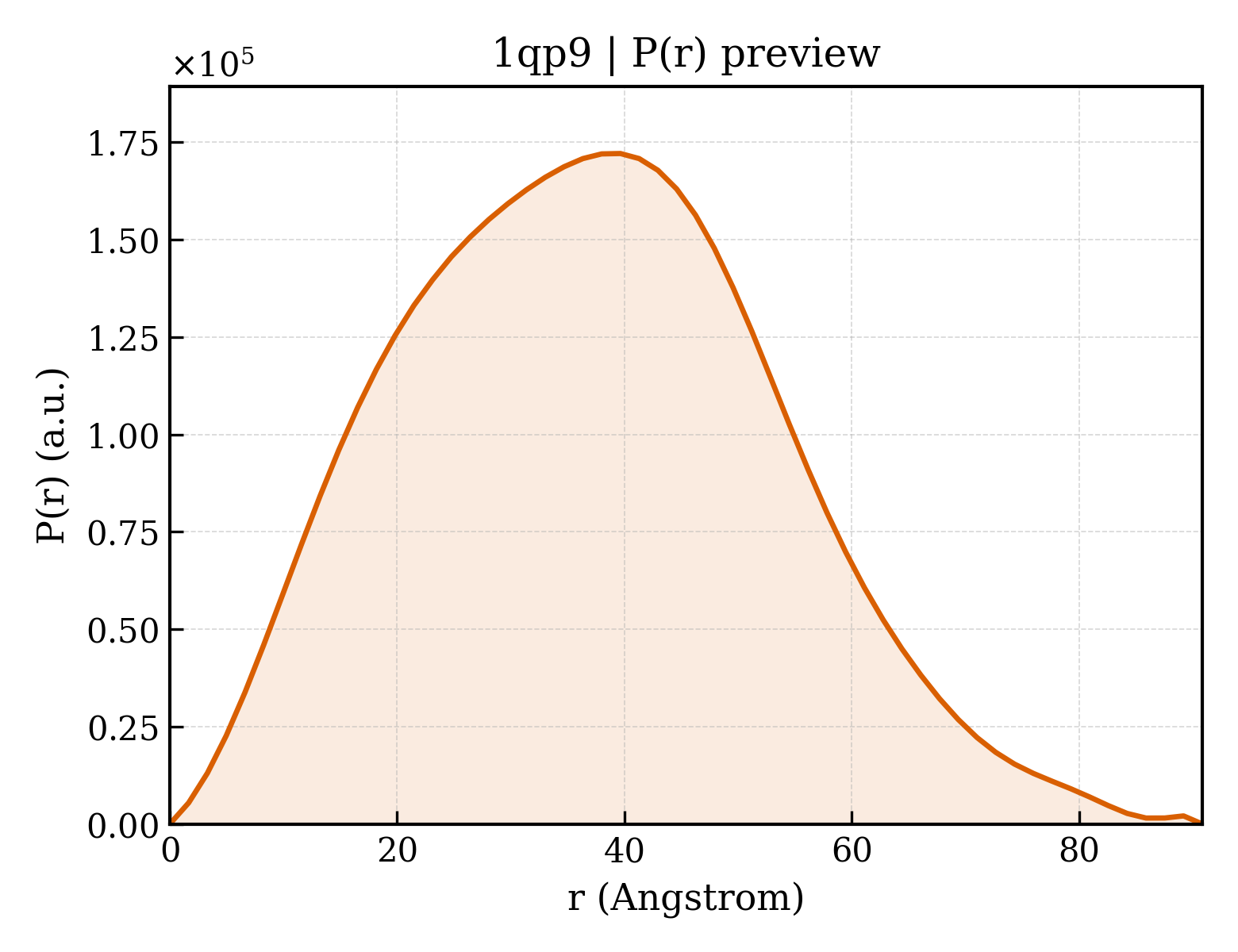

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1qp9
沉积日期 deposition_date	1999-06-01
结构标题 title	STRUCTURE OF HAP1-PC7 COMPLEXED TO THE UAS OF CYC7
关键词 keywords	ZINC BINUCLEAR CLUSTER, COILED-COIL, HEPTAD REPEAT, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.58 Å
回转半径 Rg (电子) rg_electron	27.63 Å
零角强度 I(0) i0	94797300.00
分子量 molecular_weight	59390.0 kDa
排除体积 excluded_volume	66995 Å³
包络体积 envelope_volume	94745 Å³
水化壳体积 shell_volume	29103 Å³
包络直径 envelope_diameter	97.7 Å
壳层 Rg shell_rg	34.23 Å
包络 Rg envelope_rg	27.49 Å
形状 Rg shape_rg	27.64 Å
总 Rg total_rg	28.13 Å
总原子数 total_atoms	4018
残基数 n_residues	373
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	90.8 Å
Rg (实空间) rg_real	28.54 Å
Rg 误差 (实空间) rg_real_error	0.75 Å
I(0) (实空间) i0_real	9.4800e+07
I(0) 误差 (实空间) i0_real_error	1.3670e+06
Rg (倒空间) rg_reciprocal	28.56 Å
I(0) (倒空间) i0_reciprocal	94800000.0000
解质量估计 total_estimate	0.8999
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.6 Å
偏度 Skewness skewness	0.229
峰度 Kurtosis kurtosis	-0.388
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4130000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.889

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	;DNA (5'-D(APCPGPCPTPAPTPTPAPTPCPGPCPTPAPTPTPAPGPT)-3') ;
分子量 formula_weight	6099.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,G
原子数 atom_count	4114

ACGCTATTATCGCTATTAGT

Entity 2 polymer

描述 description	;DNA (5'-D(APCPTPAPAPTPAPGPCPGPAPTPAPAPTPAPGPCPGPT)-3') ;
分子量 formula_weight	6166.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	F,H

ACTAATAGCGATAATAGCGT

Entity 3 polymer

描述 description	CYP1(HAP1-PC7) ACTIVATORY PROTEIN
分子量 formula_weight	9087.8 kDa
突变 mutation	S63G
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D

RKRNRIPLGCTICRKRKVKCDKLRPHCQQCTKTGVAHLCHYMEQTWAEEAEKELLKDNELKKLRERVKSLEKTLSK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	9

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	96

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1qp9a1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.38 — Zn2/Cys6 DNA-binding domain
超家族 Superfamily superfamily	g.38.1 — Zn2/Cys6 DNA-binding domain
家族 Family family	g.38.1.1 — Zn2/Cys6 DNA-binding domain

结构域编号 domain_id	d1qp9a2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1qp9b1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.38 — Zn2/Cys6 DNA-binding domain
超家族 Superfamily superfamily	g.38.1 — Zn2/Cys6 DNA-binding domain
家族 Family family	g.38.1.1 — Zn2/Cys6 DNA-binding domain

结构域编号 domain_id	d1qp9b2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1qp9c1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.38 — Zn2/Cys6 DNA-binding domain
超家族 Superfamily superfamily	g.38.1 — Zn2/Cys6 DNA-binding domain
家族 Family family	g.38.1.1 — Zn2/Cys6 DNA-binding domain

结构域编号 domain_id	d1qp9c2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1qp9d1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.38 — Zn2/Cys6 DNA-binding domain
超家族 Superfamily superfamily	g.38.1 — Zn2/Cys6 DNA-binding domain
家族 Family family	g.38.1.1 — Zn2/Cys6 DNA-binding domain

结构域编号 domain_id	d1qp9d2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1qp9A01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	240 — CD2-Gal4
同源超家族 H-superfamily homologous superfamily	10 — Zn(2)-C6 fungal-type DNA-binding domain

结构域编号 domain_id	1qp9A02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1qp9B01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	240 — CD2-Gal4
同源超家族 H-superfamily homologous superfamily	10 — Zn(2)-C6 fungal-type DNA-binding domain

结构域编号 domain_id	1qp9B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1qp9C01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	240 — CD2-Gal4
同源超家族 H-superfamily homologous superfamily	10 — Zn(2)-C6 fungal-type DNA-binding domain

结构域编号 domain_id	1qp9C02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1qp9D01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	240 — CD2-Gal4
同源超家族 H-superfamily homologous superfamily	10 — Zn(2)-C6 fungal-type DNA-binding domain

结构域编号 domain_id	1qp9D02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	85.900 Å
晶胞边长 b length_b	90.900 Å
晶胞边长 c length_c	96.500 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	0.2550
R_work r_work	0.2550
R_free r_free	0.2940
