SAXSdb — 1qu9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

YJGF PROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YJGF_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–128； UniProt 1–127 Author chain B； PDBConstruct 2–128； UniProt 1–127 Author chain C； PDBConstruct 2–128； UniProt 1–127

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qu9
Deposition date deposition_date	1999-07-07
Structure title title	1.2 A CRYSTAL STRUCTURE OF YJGF GENE PRODUCT FROM E. COLI
Keywords keywords	structural genomics; STRUCTURAL GENOMICS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qu9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1qu9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

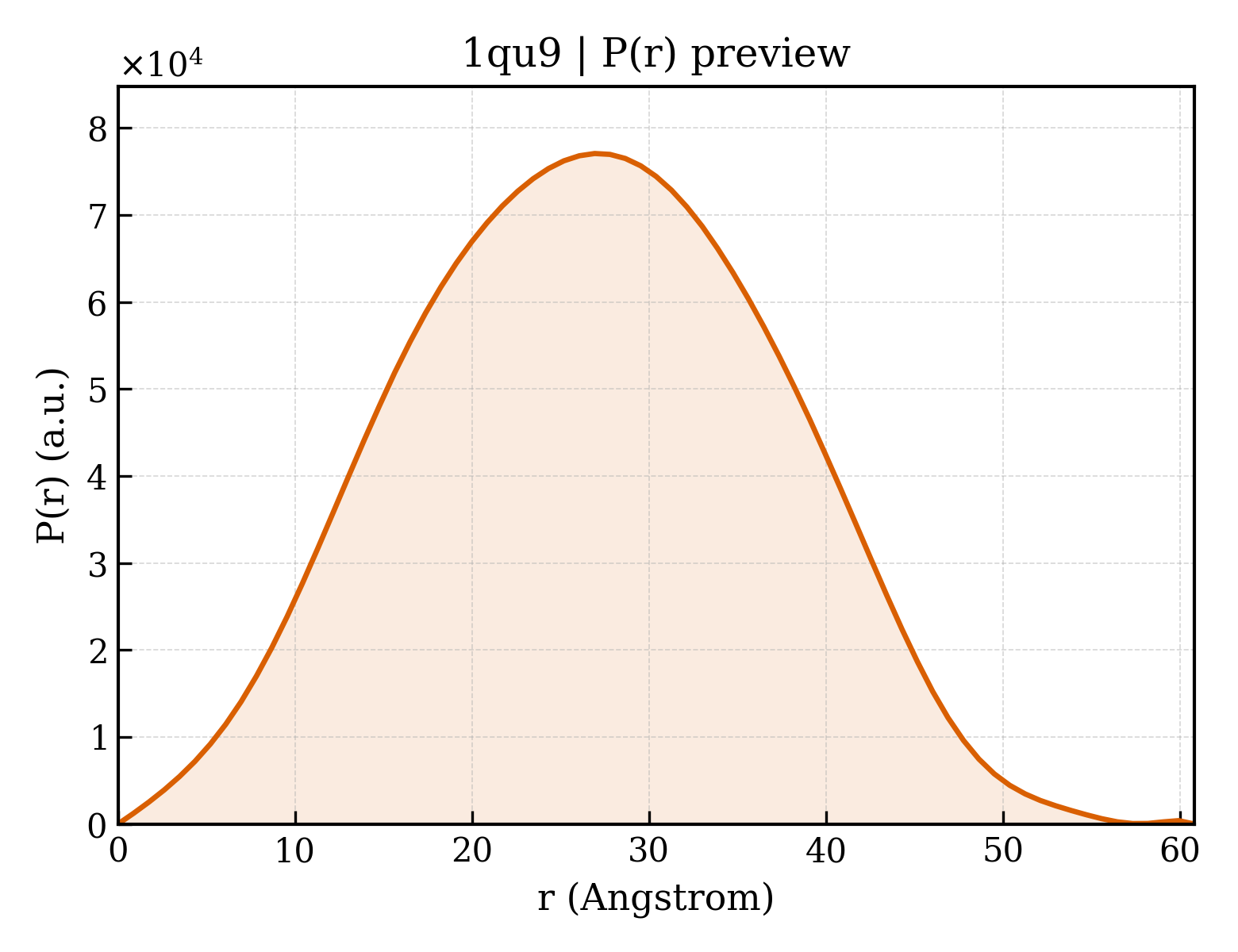

1qu9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.43 Å
Rg (electron density)	19.08 Å
Total Rg	19.97 Å
Atom count	2841
Residues	378
Excluded volume	50794 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1qu9__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1qu9a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

Domain ID domain_id	d1qu9b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

Domain ID domain_id	d1qu9c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

CATH v4.4 (3 domains)

Domain ID domain_id	1qu9A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

Domain ID domain_id	1qu9B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

Domain ID domain_id	1qu9C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

▶

Unit-cell length a length_a	72.220 Å
Unit-cell length b length_b	72.220 Å
Unit-cell length c length_c	72.220 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 2 2 2
Space-group number int_tables_number	16
Crystal system crystal_system	—

Resolution resolution	1.200 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	—
R_work r_work	0.1640
R_free r_free	—

Description description	YJGF PROTEIN
Molecular weight formula_weight	13705.5 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	3321

1.2 A CRYSTAL STRUCTURE OF YJGF GENE PRODUCT FROM E. COLI

1. Protein Identity and Related Structures Protein Identity & Related Structures

YJGF PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1qu9__assembly_1__model_1

1qu9__assembly_1__model_1 | I(q)

1qu9__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

CATH v4.4 (3 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	474
