SAXSdb — 1qwr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mannose-6-phosphate isomerase

Bacillus subtilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 2 ZINC ION × 1 ACETATE ION × 1 FORMIC ACID × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 ZINC ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MANA_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–319； UniProt 1–316 Author chain B； PDBConstruct 4–319； UniProt 1–316

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qwr
Deposition date deposition_date	2003-09-03
Structure title title	Crystal Structure Analysis of the Mannose 6-Phosphate Isomerase from Bacillus subtilis
Keywords keywords	;Structural genomics, D-Mannose 6-phosphate, Isomerase, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG ;; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qwr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1qwr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

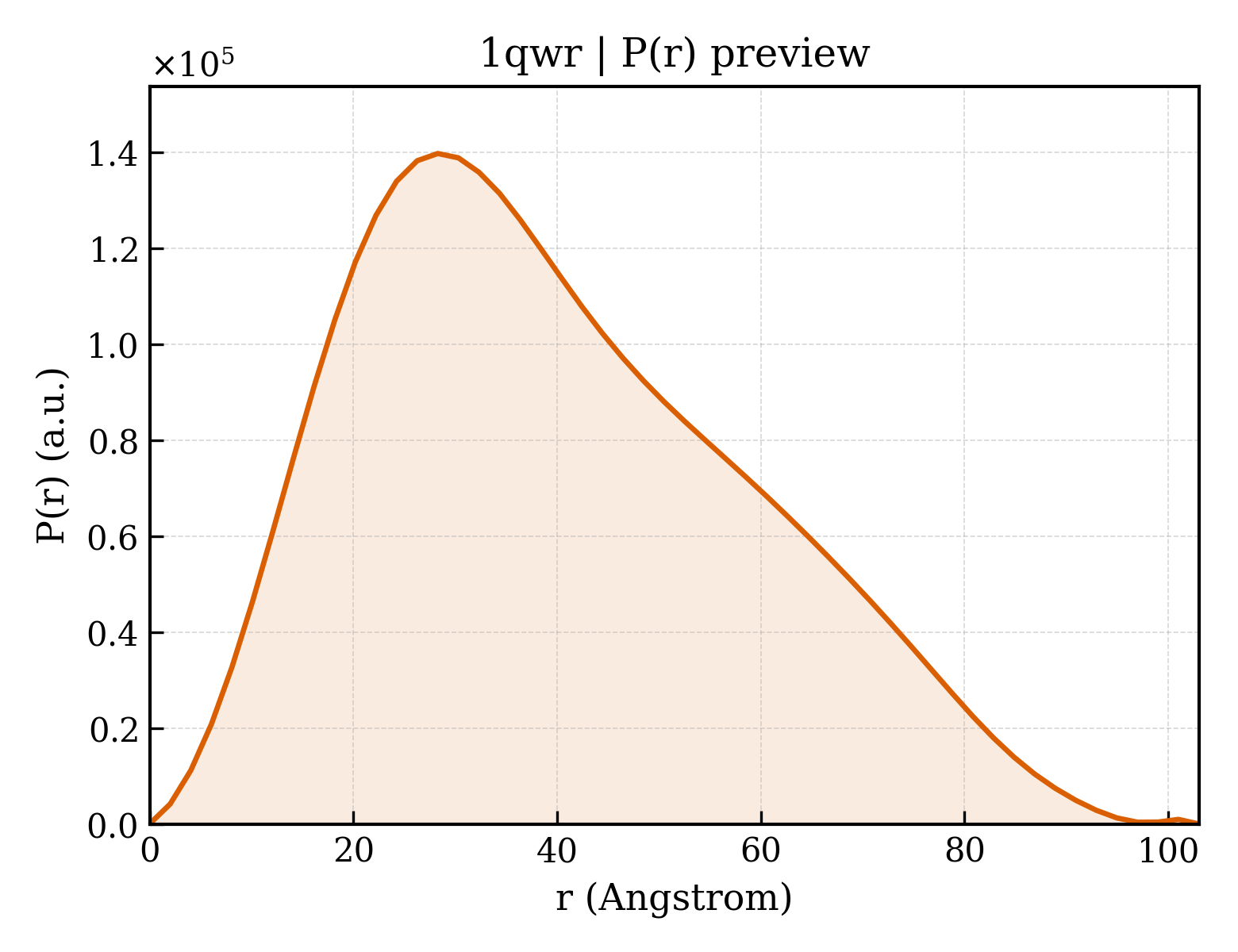

1qwr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.83 Å
Rg (electron density)	19.66 Å
Total Rg	20.62 Å
Atom count	2507
Residues	312
Excluded volume	44509 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1qwr__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1qwr__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Mannose-6-phosphate isomerase
Molecular weight formula_weight	35883.9 kDa
EC 编号 ec_number	5.3.1.8
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5683

SNAMTQSPIFLTPVFKEKIWGGTALRDRFGYSIPSESTGECWAISAHPKGPSTVANGPYKGKTLIELWEEHREVFGGVEGDRFPLLTKLLDVKEDTSIKVHPDDYYAGENEEGELGKTECWYIIDCKENAEIIYGHTARSKTELVTMINSGDWEGLLRRIKIKPGDFYYVPSGTLHALCKGALVLETQQNSDATYRVYDYDRLDSNGSPRELHFAKAVNAATVPHVDGYIDESTESRKGITIKTFVQGEYFSVYKWDINGEAEMAQDESFLICSVIEGSGLLKYEDKTCPLKKGDHFILPAQMPDFTIKGTCTLIVSHI

Source Source

Source organism organism	Bacillus subtilis
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	558

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1qwra_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.3 — Type I phosphomannose isomerase

Domain ID domain_id	d1qwrb_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.3 — Type I phosphomannose isomerase

CATH v4.4 (4 domains)

Domain ID domain_id	1qwrA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1qwrA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1qwrB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1qwrB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

▶

Unit-cell length a length_a	59.116 Å
Unit-cell length b length_b	72.534 Å
Unit-cell length c length_c	70.309 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.89 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	45.810 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.2320

Crystal Structure Analysis of the Mannose 6-Phosphate Isomerase from Bacillus subtilis
