1qwt

Auto-inhibitory interferon regulation factor-3 (IRF3) transactivation domain

Method: X-RAY DIFFRACTION Dmax: 86.8 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon regulatory factor 3

Homo sapiens

UniProt Q14653

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 173–427 Chain B； UniProt 173–427 Not recorded PO4 PHOSPHATE ION × 8 X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 2.10 Å R-free 0.214

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1QWT Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1J2F X-ray crystal structure of IRF-3 and its functional implications Deposited 2003-01-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 175–427（253 aa） Fragment：residues 170-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；277 K；magnesium formate, pH 4.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.242
1J2F X-ray crystal structure of IRF-3 and its functional implications Deposited 2003-01-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 175–427（253 aa） Fragment：residues 170-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；277 K；magnesium formate, pH 4.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.242
1T2K Structure Of The DNA Binding Domains Of IRF3, ATF-2 and Jun Bound To DNA Deposited 2004-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 1–112（112 aa） Fragment：N-terminal DNA binding domain
Chain B 1–112（112 aa） Fragment：N-terminal DNA binding domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；100 mM NaCacodylate, pH 6.5, 12.5% (w/v) PEG 6000, 400 mM NH4OAc, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 3.00 Å R-free 0.296
1ZOQ IRF3-CBP complex Deposited 2005-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 196–386（191 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.2 M ammonium acetate, 0.15 M Mg acetate, 5% (v/v) PEG 4000, 50 mM Na HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.37 Å R-free 0.226
1ZOQ IRF3-CBP complex Deposited 2005-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 196–386（191 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.2 M ammonium acetate, 0.15 M Mg acetate, 5% (v/v) PEG 4000, 50 mM Na HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.37 Å R-free 0.226
2O61 Crystal Structure of NFkB, IRF7, IRF3 bound to the interferon-b enhancer Deposited 2006-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 9–111（103 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；100 mM HEPES, pH 7.0, 15% (w/v) PEG 4000, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.80 Å R-free 0.278
2O6G Crystal structure of IRF-3 bound to the interferon-b enhancer Deposited 2006-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric
Chain E 1–123（123 aa） Fragment：DNA binding domain, residues 3-112
Chain F 1–123（123 aa） Fragment：DNA binding domain, residues 3-112
Chain G 1–123（123 aa） Fragment：DNA binding domain, residues 3-112
Chain H 1–123（123 aa） Fragment：DNA binding domain, residues 3-112
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；100 mM Tris, 20% (w/v) PEG 6000, 500 mM NH4OAc, 100 mM NaCl, 5 mM MgCl2, 5% glycerol, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.10 Å R-free 0.265
2PI0 Crystal Structure of IRF-3 bound to the PRDIII-I regulatory element of the human interferon-B enhancer Deposited 2007-04-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric
Chain A 1–113（113 aa） Fragment：IRF-3 DNA Binding Domain
Chain B 1–113（113 aa） Fragment：IRF-3 DNA Binding Domain
Chain C 1–113（113 aa） Fragment：IRF-3 DNA Binding Domain
Chain D 1–113（113 aa） Fragment：IRF-3 DNA Binding Domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；12%PEG 400,200mM NaCl, pH 7., VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.31 Å R-free 0.264
3A77 The crystal structure of phosphorylated IRF-3 Deposited 2009-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Non-standard monomer：Yes (specific site not provided by mmCIF) ACY ACETIC ACID × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；10% MPD, 50mM sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.80 Å R-free 0.221
3A77 The crystal structure of phosphorylated IRF-3 Deposited 2009-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 189–427（239 aa） Fragment：UNP residues 189-427
Non-standard monomer：Yes (specific site not provided by mmCIF) MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；10% MPD, 50mM sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.80 Å R-free 0.221
3A77 The crystal structure of phosphorylated IRF-3 Deposited 2009-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 189–427（239 aa） Fragment：UNP residues 189-427
Non-standard monomer：Yes (specific site not provided by mmCIF) ACY ACETIC ACID × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；10% MPD, 50mM sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.80 Å R-free 0.221
3A77 The crystal structure of phosphorylated IRF-3 Deposited 2009-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 189–427（239 aa） Fragment：UNP residues 189-427
Non-standard monomer：Yes (specific site not provided by mmCIF) MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；10% MPD, 50mM sodium acetate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.80 Å R-free 0.221
5JEJ Phosphorylated STING in complex with IRF-3 CTD Deposited 2016-04-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Chain B 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris, pH 5.5, 200 mM MgCl2, 20% PEG 3350
Resolution 2.00 Å R-free 0.237
5JEK Phosphorylated MAVS in complex with IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris pH 5.5, 80 mM MgCl2, 20% PEG 3350
Resolution 2.40 Å R-free 0.251
5JEK Phosphorylated MAVS in complex with IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris pH 5.5, 80 mM MgCl2, 20% PEG 3350
Resolution 2.40 Å R-free 0.251
5JEL Phosphorylated TRIF in complex with IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1M NaAc pH 4.6, 2.0M NaCl
Resolution 1.60 Å R-free 0.187
5JEL Phosphorylated TRIF in complex with IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1M NaAc pH 4.6, 2.0M NaCl
Resolution 1.60 Å R-free 0.187
5JEM Complex of IRF-3 with CBP Deposited 2016-04-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 189–398（210 aa） Fragment：UNP residues 189-398
Chain B 189–398（210 aa） Fragment：UNP residues 189-398
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES pH 7.5, 25% PEG 3350
Resolution 2.50 Å R-free 0.242
5JEM Complex of IRF-3 with CBP Deposited 2016-04-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 189–398（210 aa） Fragment：UNP residues 189-398
Chain G 189–398（210 aa） Fragment：UNP residues 189-398
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES pH 7.5, 25% PEG 3350
Resolution 2.50 Å R-free 0.242
5JEO Phosphorylated Rotavirus NSP1 in complex with IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES sodium pH7.5, 0.8 M NaH2PO4, 0.8 M KH2PO4
Resolution 1.72 Å R-free 0.183
5JEO Phosphorylated Rotavirus NSP1 in complex with IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded PO4 PHOSPHATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M HEPES sodium pH7.5, 0.8 M NaH2PO4, 0.8 M KH2PO4
Resolution 1.72 Å R-free 0.183
5JER Structure of Rotavirus NSP1 bound to IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris pH 5.5, 200 mM MgCl2, 23% PEG 3350
Resolution 2.91 Å R-free 0.250
5JER Structure of Rotavirus NSP1 bound to IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris pH 5.5, 200 mM MgCl2, 23% PEG 3350
Resolution 2.91 Å R-free 0.250
5JER Structure of Rotavirus NSP1 bound to IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris pH 5.5, 200 mM MgCl2, 23% PEG 3350
Resolution 2.91 Å R-free 0.250
5JER Structure of Rotavirus NSP1 bound to IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris pH 5.5, 200 mM MgCl2, 23% PEG 3350
Resolution 2.91 Å R-free 0.250
5JER Structure of Rotavirus NSP1 bound to IRF-3 Deposited 2016-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 189–427（239 aa） Fragment：UNP residues 189-427
Chain C 189–427（239 aa） Fragment：UNP residues 189-427
Chain E 189–427（239 aa） Fragment：UNP residues 189-427
Chain G 189–427（239 aa） Fragment：UNP residues 189-427
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M Bis-Tris pH 5.5, 200 mM MgCl2, 23% PEG 3350
Resolution 2.91 Å R-free 0.250
6SIV Structure of HPV16 E6 oncoprotein in complex with mutant IRF3 LxxLL motif Deposited 2019-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 137–148（12 aa）
Mutation：;K84A,K240A,E360A,K363A,D364A,N2146E,M2147E,V2148R,K84A,K240A,E360A,K363A,D364A,N2146E,M2147E,V2148R,K84A,K240A,E360A,K363A,D364A,N2146E,M2147E,V2148R,K84A,K240A,E360A,K363A,D364A,N2146E,M2147E,V2148R ; ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；298 K；PEG 1500 30%
Resolution 1.75 Å R-free 0.220
6SJA Structure of HPV16 E6 oncoprotein in complex with IRF3 LxxLL motif Deposited 2019-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 137–148（12 aa）
Mutation：E360A,K363A,D364A,K84A,K240A ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.8；298 K；PEG 1500 30%
Resolution 1.50 Å R-free 0.191
7JFL Crystal structure of human phosphorylated IRF-3 bound to CBP Deposited 2020-07-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 189–398（210 aa）
Chain B 189–398（210 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium acetate pH 5.0, 0.2 M MgCl2, 5% PEG 3350
Resolution 1.68 Å R-free 0.223

16 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name IRF3_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–255； UniProt 173–427 Author chain B； PDBConstruct 1–255； UniProt 173–427

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1qwt

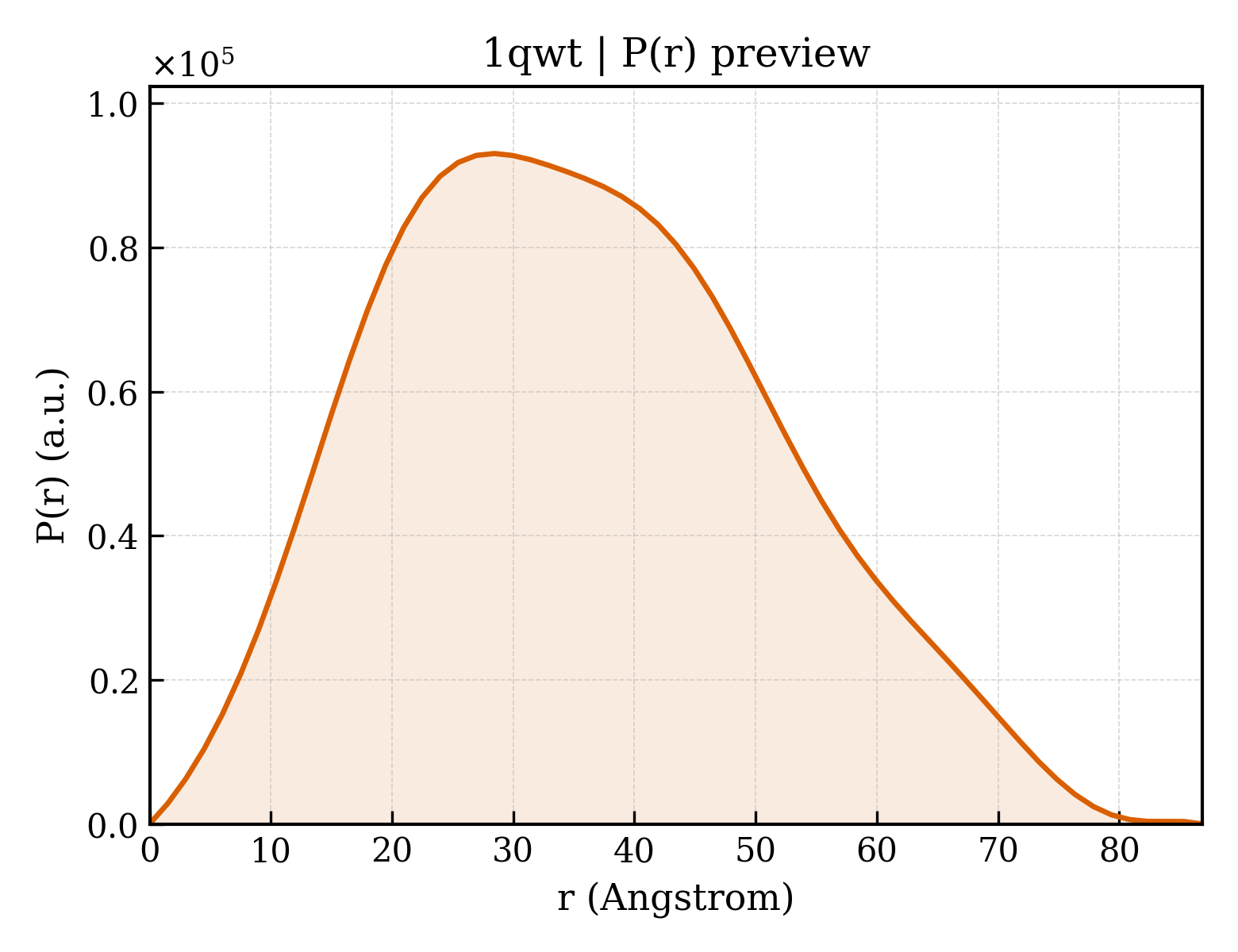

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1qwt
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1qwt
Deposition date deposition_date2003-09-03
Structure title titleAuto-inhibitory interferon regulation factor-3 (IRF3) transactivation domain
Keywords keywordsDNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier27.58 Å
Radius of gyration Rg (electron density) rg_electron26.31 Å
Forward intensity I(0) i050614400.00
Molecular weight molecular_weight53766.0 kDa
Excluded volume excluded_volume66529 ų
Envelope volume envelope_volume84758 ų
Hydration-shell volume shell_volume27065 ų
Envelope diameter envelope_diameter89.7 Å
Shell Rg shell_rg33.48 Å
Envelope Rg envelope_rg26.10 Å
Shape Rg shape_rg26.29 Å
Total Rg total_rg27.13 Å
Total atoms total_atoms3778
Residues n_residues478
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax86.8 Å
Rg (real space) rg_real27.57 Å
Rg uncertainty (real space) rg_real_error0.42 Å
I(0) (real space) i0_real5.0610e+07
I(0) uncertainty (real space) i0_real_error7.1400e+05
Rg (reciprocal space) rg_reciprocal27.57 Å
I(0) (reciprocal space) i0_reciprocal50610000.0000
Solution quality estimate total_estimate0.9065
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary28.4 Å
Skewness Skewness skewness0.289
Kurtosis Kurtosis kurtosis-0.521
Angular range angular_range— – 0.2900 Å−1
Current regularization parameter α current_alpha0.0001
Highest regularization parameter α highest_alpha11000000.0000
Real-space data points n_real_points59
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.953
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd1qwta_
Class classb — All beta proteins
Fold Fold foldb.26 — SMAD/FHA domain
Superfamily Superfamily superfamilyb.26.1 — SMAD/FHA domain
Family Family familyb.26.1.3 — Interferon regulatory factor 3 (IRF3), transactivation domain
Domain ID domain_idd1qwtb_
Class classb — All beta proteins
Fold Fold foldb.26 — SMAD/FHA domain
Superfamily Superfamily superfamilyb.26.1 — SMAD/FHA domain
Family Family familyb.26.1.3 — Interferon regulatory factor 3 (IRF3), transactivation domain

CATH v4.4 (2 domains)

Domain ID domain_id1qwtA00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology200 — Tumour Suppressor Smad4
Homologous superfamily homologous superfamily10 —
Domain ID domain_id1qwtB00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology200 — Tumour Suppressor Smad4
Homologous superfamily homologous superfamily10 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
