SAXSdb — 1qzq

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1qzq
沉积日期 deposition_date	2003-09-17
结构标题 title	human Tyrosyl DNA phosphodiesterase
关键词 keywords	DNA Repair, replication, hydrolase, DNA binding protein; hydrolase, DNA binding protein
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.21 Å
回转半径 Rg (电子) rg_electron	33.81 Å
零角强度 I(0) i0	140755000.00
分子量 molecular_weight	99042.0 kDa
排除体积 excluded_volume	125360 Å³
包络体积 envelope_volume	155580 Å³
水化壳体积 shell_volume	38722 Å³
包络直径 envelope_diameter	113.7 Å
壳层 Rg shell_rg	40.13 Å
包络 Rg envelope_rg	33.48 Å
形状 Rg shape_rg	33.77 Å
总 Rg total_rg	34.43 Å
总原子数 total_atoms	7012
残基数 n_residues	876
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	112.4 Å
Rg (实空间) rg_real	34.34 Å
Rg 误差 (实空间) rg_real_error	0.77 Å
I(0) (实空间) i0_real	1.4080e+08
I(0) 误差 (实空间) i0_real_error	1.9820e+06
Rg (倒空间) rg_reciprocal	34.26 Å
I(0) (倒空间) i0_reciprocal	140700000.0000
解质量估计 total_estimate	0.8633
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	31.8 Å
偏度 Skewness skewness	0.398
峰度 Kurtosis kurtosis	-0.607
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	40790000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.799; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.881

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	tyrosyl-DNA phosphodiesterase 1
分子量 formula_weight	54919.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7250

MEEYMPTEHHHHHHENLYFQGTSGEGQDIWDMLDKGNPFQFYLTRVSGVKPKYNSGALHIKDILSPLFGTLVSSAQFNYCFDVDWLVKQYPPEFRKKPILLVHGDKREAKAHLHAQAKPYENISLCQAKLDIAFGTHHTKMMLLLYEEGLRVVIHTSNLIHADWHQKTQGIWLSPLYPRIADGTHKSGESPTHFKADLISYLMAYNAPSLKEWIDVIHKHDLSETNVYLIGSTPGRFQGSQKDNWGHFRLKKLLKDHASSMPNAESWPVVGQFSSVGSLGADESKWLCSEFKESMLTLGKESKTPGKSSVPLYLIYPSVENVRTSLEGYPAGGSLPYSIQTAEKQNWLHSYFHKWSAETSGRSNAMPHIKTYMRPSPDFSKIAWFLVTSANLSKAAWGALEKNGTQLMIRSYELGVLFLPSAFGLDSFKVKQKFFAGSQEPMATFPVPYDLPPELYGSKDRPWIWNIPYVKAPDTHGNMWVPS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	238

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1qzqa1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.136 — Phospholipase D/nuclease
超家族 Superfamily superfamily	d.136.1 — Phospholipase D/nuclease
家族 Family family	d.136.1.3 — Tyrosyl-DNA phosphodiesterase TDP1

结构域编号 domain_id	d1qzqa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.136 — Phospholipase D/nuclease
超家族 Superfamily superfamily	d.136.1 — Phospholipase D/nuclease
家族 Family family	d.136.1.3 — Tyrosyl-DNA phosphodiesterase TDP1

结构域编号 domain_id	d1qzqb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.136 — Phospholipase D/nuclease
超家族 Superfamily superfamily	d.136.1 — Phospholipase D/nuclease
家族 Family family	d.136.1.3 — Tyrosyl-DNA phosphodiesterase TDP1

结构域编号 domain_id	d1qzqb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.136 — Phospholipase D/nuclease
超家族 Superfamily superfamily	d.136.1 — Phospholipase D/nuclease
家族 Family family	d.136.1.3 — Tyrosyl-DNA phosphodiesterase TDP1

CATH v4.4 (4 domains)

结构域编号 domain_id	1qzqA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	870 — Endonuclease; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Endonuclease Chain A

结构域编号 domain_id	1qzqA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	870 — Endonuclease; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Endonuclease Chain A

结构域编号 domain_id	1qzqB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	870 — Endonuclease; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Endonuclease Chain A

结构域编号 domain_id	1qzqB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	870 — Endonuclease; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Endonuclease Chain A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	50.024 Å
晶胞边长 b length_b	105.131 Å
晶胞边长 c length_c	194.153 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	48.540 Å
R 因子 r_factor	—
R_work r_work	0.1850
R_free r_free	0.2340

fit	/app/data/saxs_computation/qz/1qzq/1qzq.fit
pddf	/app/data/pr_computation/qz/1qzq/1qzq.pr.out
profile	/app/data/saxs_computation/qz/1qzq/1qzq.dat

human Tyrosyl DNA phosphodiesterase

SAXS 散射曲线 SAXS Profile

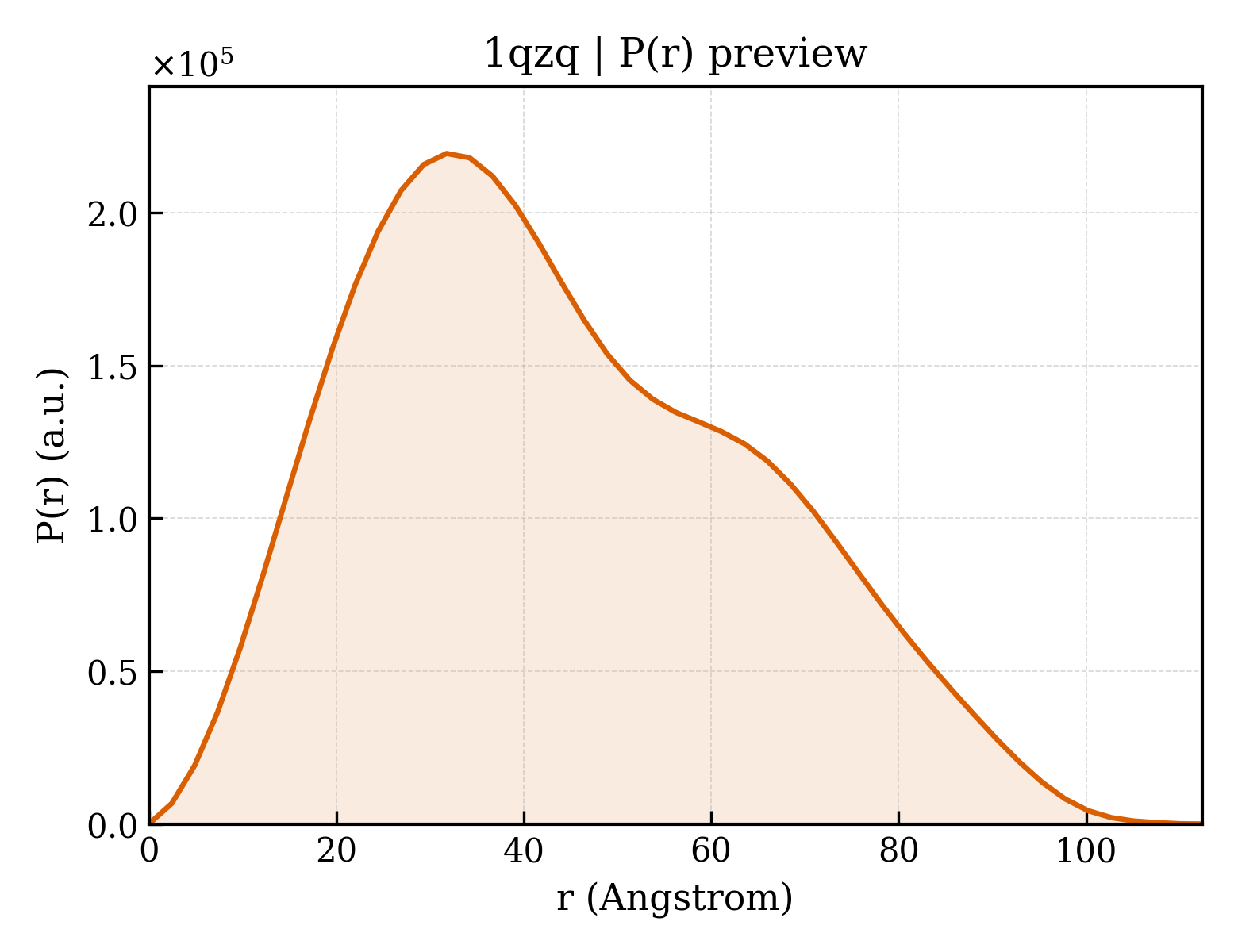

P(r) 距离分布 P(r) Distribution
