SAXSdb — 1r1k

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1r1k
沉积日期 deposition_date	2003-09-24
结构标题 title	Crystal structure of the ligand-binding domains of the heterodimer EcR/USP bound to ponasterone A
关键词 keywords	;NUCLEAR RECEPTOR, TRANSCRIPTION REGULATION, HETERODIMER, ALPHA-HELICAL SANDWICH, Structural Proteomics in Europe, SPINE, Structural Genomics, hormone-growth factor receptor COMPLEX ;; hormone/growth factor receptor
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.14 Å
回转半径 Rg (电子) rg_electron	22.75 Å
零角强度 I(0) i0	47214800.00
分子量 molecular_weight	55297.0 kDa
排除体积 excluded_volume	70159 Å³
包络体积 envelope_volume	82611 Å³
水化壳体积 shell_volume	29280 Å³
包络直径 envelope_diameter	74.2 Å
壳层 Rg shell_rg	30.48 Å
包络 Rg envelope_rg	22.91 Å
形状 Rg shape_rg	22.76 Å
总 Rg total_rg	23.62 Å
总原子数 total_atoms	3879
残基数 n_residues	477
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	73.0 Å
Rg (实空间) rg_real	23.96 Å
Rg 误差 (实空间) rg_real_error	0.34 Å
I(0) (实空间) i0_real	4.7210e+07
I(0) 误差 (实空间) i0_real_error	5.6930e+05
Rg (倒空间) rg_reciprocal	24.00 Å
I(0) (倒空间) i0_reciprocal	47220000.0000
解质量估计 total_estimate	0.9077
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.8 Å
偏度 Skewness skewness	0.111
峰度 Kurtosis kurtosis	-0.514
角度范围 angular_range	— – 0.3300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9285000.0000
实空间数据点数 n_real_points	65
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.998

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Ecdysone receptor
分子量 formula_weight	30369.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D
原子数 atom_count	3887

GSHMASMTGGQQMGRDPLKNVPPLTANQKSLIARLVWYQEGYEQPSEEDLKRVTQTWQSDEDDEDSDMPFRQITEMTILTVQLIVEFAKGLPGFAKISQSDQITLLKACSSEVMMLRVARRYDAATDSVLFANNQAYTRDNYRKAGMAYVIEDLLHFCRCMYSMMMDNVHYALLTAIVIFSDRPGLEQPLLVEEIQRYYLNTLRVYILNQNSASPRCAVIFGKILGILTEIRTLGMQNSNMCISLKLKNRKLPPFLEEIWDVADVA

来源 Source

来源生物 organism	Heliothis virescens
通用名 common_name	tobacco budworm
NCBI 分类编号 ncbi_taxonomy_id	7102
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	ULTRASPIRACLE PROTEIN
分子量 formula_weight	29951.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MVQELSIERLLEMESLVADPSEEFQFLRVGPDSNVPPKFRAPVSSLCQIGNKQIAALVVWARDIPHFSQLEMEDQILLIKGSWNELLLFAIAWRSMEFLTEERDGVDGTGNRTTSPPQLMCLMPGMTLHRNSALQAGVGQIFDRVLSELSLKMRTLRVDQAEYVALKAIILLNPDVKGLKNRQEVEVLREKMFLCLDEYCRRSRSSEEGRFAALLLRLPALRSISLKSFEHLFFFHLVADTSIAGYIRDALRNHAPPIDTNMM

来源 Source

来源生物 organism	Heliothis virescens
通用名 common_name	tobacco budworm
NCBI 分类编号 ncbi_taxonomy_id	7102
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	2,3,14,20,22-PENTAHYDROXYCHOLEST-7-EN-6-ONE
分子量 formula_weight	464.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	L-ALPHA-PHOSPHATIDYL-BETA-OLEOYL-GAMMA-PALMITOYL-PHOSPHATIDYLETHANOLAMINE
分子量 formula_weight	709.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1r1ka_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.123 — Nuclear receptor ligand-binding domain
超家族 Superfamily superfamily	a.123.1 — Nuclear receptor ligand-binding domain
家族 Family family	a.123.1.1 — Nuclear receptor ligand-binding domain

结构域编号 domain_id	d1r1kd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.123 — Nuclear receptor ligand-binding domain
超家族 Superfamily superfamily	a.123.1 — Nuclear receptor ligand-binding domain
家族 Family family	a.123.1.1 — Nuclear receptor ligand-binding domain

CATH v4.4 (2 domains)

结构域编号 domain_id	1r1kA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	565 — Retinoid X Receptor
同源超家族 H-superfamily homologous superfamily	10 — Retinoid X Receptor

结构域编号 domain_id	1r1kD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	565 — Retinoid X Receptor
同源超家族 H-superfamily homologous superfamily	10 — Retinoid X Receptor

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	57.401 Å
晶胞边长 b length_b	57.401 Å
晶胞边长 c length_c	302.696 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2430
R_work r_work	0.2430
R_free r_free	0.3040

fit	/app/data/saxs_computation/r1/1r1k/1r1k.fit
pddf	/app/data/pr_computation/r1/1r1k/1r1k.pr.out
profile	/app/data/saxs_computation/r1/1r1k/1r1k.dat

Crystal structure of the ligand-binding domains of the heterodimer EcR/USP bound to ponasterone A

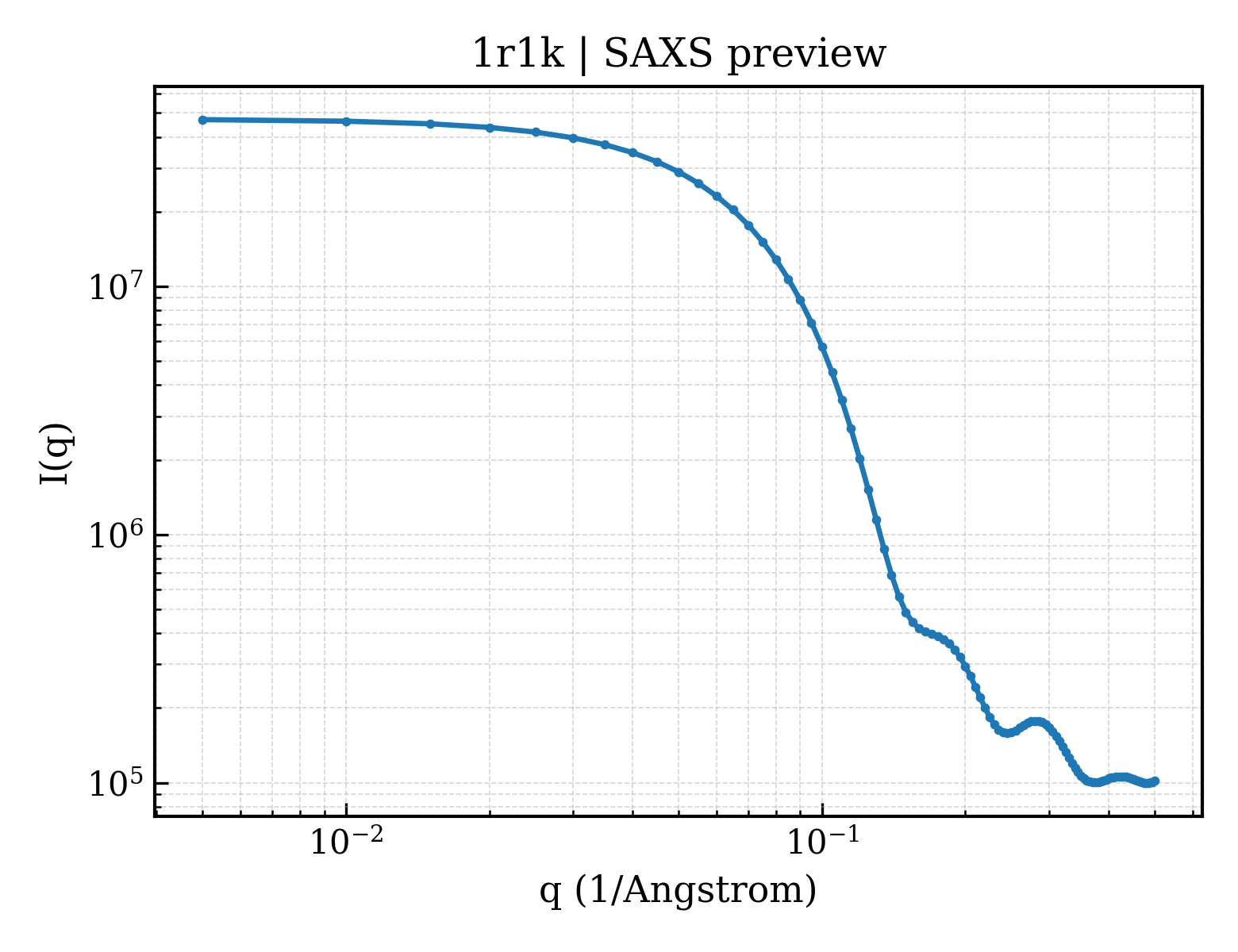

SAXS 散射曲线 SAXS Profile
