1r2c

PHOTOSYNTHETIC REACTION CENTER BLASTOCHLORIS VIRIDIS (ATCC)

Method: X-RAY DIFFRACTION D_max: 126.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

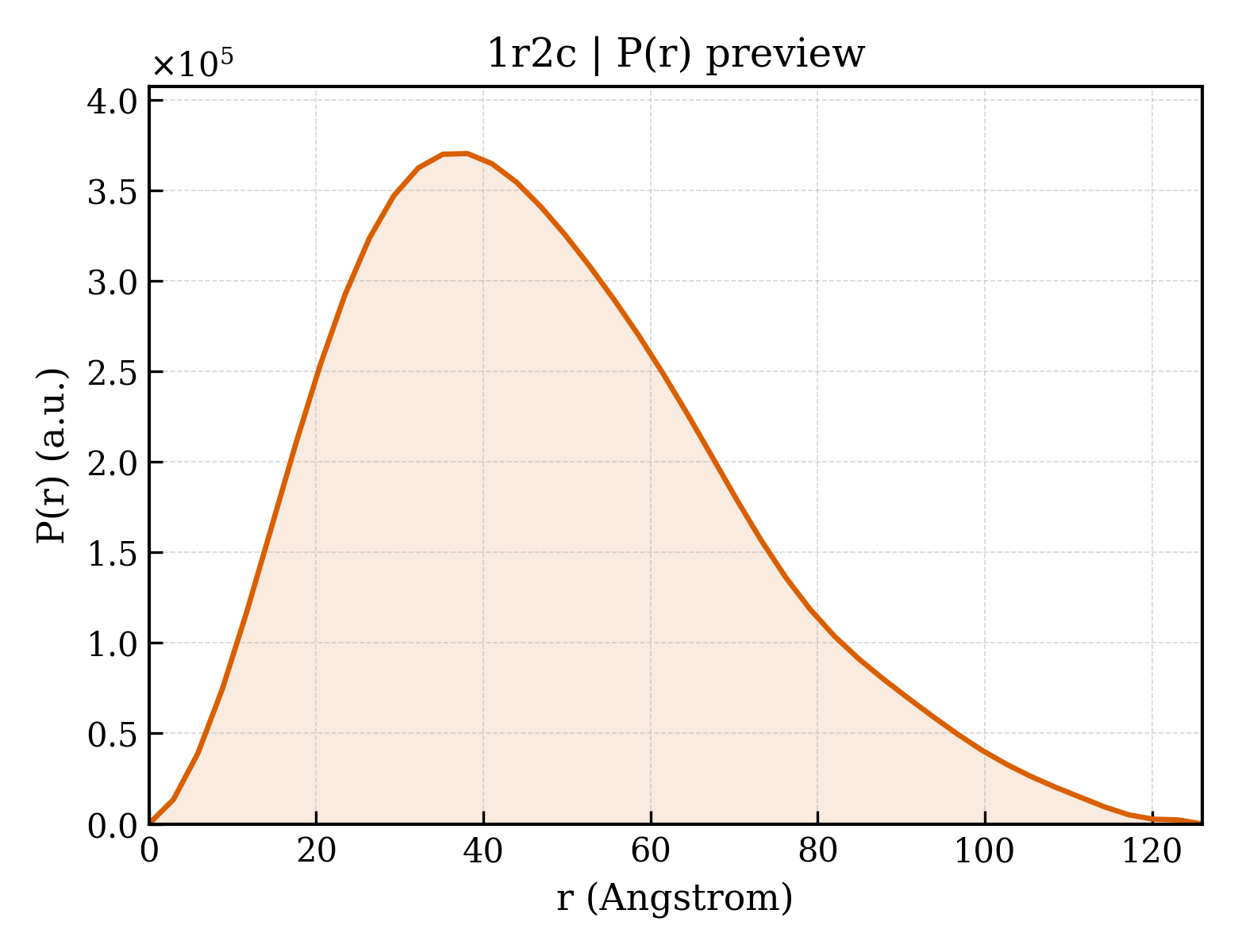

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1r2c
沉积日期 deposition_date	2003-09-26
结构标题 title	PHOTOSYNTHETIC REACTION CENTER BLASTOCHLORIS VIRIDIS (ATCC)
关键词 keywords	PHOTOSYNTHETIC REACTION CENTER, SECONDARY QUINONE (QB), PHOTOSYNTHESIS; PHOTOSYNTHESIS
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.56 Å
回转半径 Rg (电子) rg_electron	35.61 Å
零角强度 I(0) i0	260103000.00
分子量 molecular_weight	143130.0 kDa
排除体积 excluded_volume	183730 Å³
包络体积 envelope_volume	210030 Å³
水化壳体积 shell_volume	49673 Å³
包络直径 envelope_diameter	133.4 Å
壳层 Rg shell_rg	41.35 Å
包络 Rg envelope_rg	36.16 Å
形状 Rg shape_rg	35.54 Å
总 Rg total_rg	36.27 Å
总原子数 total_atoms	10140
残基数 n_residues	1185
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.0 Å
Rg (实空间) rg_real	36.81 Å
Rg 误差 (实空间) rg_real_error	1.12 Å
I(0) (实空间) i0_real	2.6010e+08
I(0) 误差 (实空间) i0_real_error	4.3450e+06
Rg (倒空间) rg_reciprocal	36.66 Å
I(0) (倒空间) i0_reciprocal	260100000.0000
解质量估计 total_estimate	0.8396
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	38.1 Å
偏度 Skewness skewness	0.537
峰度 Kurtosis kurtosis	-0.143
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	44950000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.792; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.850; Smooth: 0.684

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (13)

Entity 1 polymer

描述 description	Photosynthetic reaction center cytochrome C subunit precursor
分子量 formula_weight	37450.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C
原子数 atom_count	10140

CFEPPPATTTQTGFRGLSMGEVLHPATVKAKKERDAQYPPALAAVKAEGPPVSQVYKNVKVLGNLTEAEFLRTMTAITEWVSPQEGCTYCHDENNLASEAKYPYVVARRMLEMTRAINTNWTQHVAQTGVTCYTCHRGTPLPPYVRYLEPTLPLNNRETPTHVERVETRSGYVVRLAKYTAYSALNYDPFTMFLANDKRQVRVVPQTALPLVGVSRGKERRPLSDAYATFALMMSISDSLGTNCTFCHNAQTFESWGKKSTPQRAIAWWGIRMVRDLNMNYLAPLNASLPASRLGRQGEAPQADCRTCHQGVTKPLFGASRLKDYPELGPIKAAAK

Entity 2 polymer

描述 description	Reaction center protein L chain
分子量 formula_weight	30469.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

ALLSFERKYRVRGGTLIGGDLFDFWVGPYFVGFFGVSAIFFIFLGVSLIGYAASQGPTWDPFAISINPPDLKYGLGAAPLLEGGFWQAITVCALGAFISWMLREVEISRKLGIGWHVPLAFCVPIFMFCVLQVFRPLLLGSWGHAFPYGILSHLDWVNNFGYQYLNWHYNPGHMSSVSFLFVNAMALGLHGGLILSVANPGDGDKVKTAEHENQYFRDVVGYSIGALSIHRLGLFLASNIFLTGAFGTIASGPFWTRGWPEWWGWWLDIPFWS

Entity 3 polymer

描述 description	Reaction center protein M chain
分子量 formula_weight	35932.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

ADYQTIYTQIQARGPHITVSGEWGDNDRVGKPFYSYWLGKIGDAQIGPIYLGASGIAAFAFGSTAILIILFNMAAEVHFDPLQFFRQFFWLGLYPPKAQYGMGIPPLHDGGWWLMAGLFMTLSLGSWWIRVYSRARALGLGTHIAWNFAAAIFFVLCIGCIHPTLVGSWSEGVPFGIWPHIDWLTAFSIRYGNFYYCPWHGFSIGFAYGCGLLFAAHGATILAVARFGGDREIEQITDRGTAVERAALFWRWTIGFNATIESVHRWGWFFSLMVMVSASVGILLTGTFVDNWYLWCVKHGAAPDYPAYLPATPDPASLPGAPK

Entity 4 polymer

描述 description	Reaction center protein H chain
分子量 formula_weight	28557.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MYHGALAQHLDIAQLVWYAQWLVIWTVVLLYLRREDRREGYPLVEPLGLVKLAPEDGQVYELPYPKTFVLPHGGTVTVPRRRPETRELKLAQTDGFEGAPLQPTGNPLVDAVGPASYAERAEVVDATVDGKAKIVPLRVATDFSIAEGDVDPRGLPVVAADGVEAGTVTDLWVDRSEHYFRYLELSVAGSARTALIPLGFCDVKKDKIVVTSILSEQFANVPRLQSRDQITLREEDKVSAYYAGGLLYATPERAESLL

Entity 5 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 non-polymer

描述 description	BACTERIOCHLOROPHYLL B
分子量 formula_weight	909.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 7 non-polymer

描述 description	BACTERIOPHEOPHYTIN B
分子量 formula_weight	887.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 8 non-polymer

描述 description	UBIQUINONE-2
分子量 formula_weight	318.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	LAURYL DIMETHYLAMINE-N-OXIDE
分子量 formula_weight	229.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 10 non-polymer

描述 description	FE (II) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 11 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 12 non-polymer

描述 description	MENAQUINONE-7
分子量 formula_weight	649.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 13 non-polymer

描述 description	15-cis-1,2-dihydroneurosporene
分子量 formula_weight	540.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 13 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d1r2cc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.138 — Multiheme cytochromes
超家族 Superfamily superfamily	a.138.1 — Multiheme cytochromes
家族 Family family	a.138.1.2 — Photosynthetic reaction centre (cytochrome subunit)

结构域编号 domain_id	d1r2ch1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.41 — PRC-barrel domain
超家族 Superfamily superfamily	b.41.1 — PRC-barrel domain
家族 Family family	b.41.1.1 — Photosynthetic reaction centre, H-chain, cytoplasmic domain

结构域编号 domain_id	d1r2ch2
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.23 — Single transmembrane helix
超家族 Superfamily superfamily	f.23.10 — Photosystem II reaction centre subunit H, transmembrane region
家族 Family family	f.23.10.1 — Photosystem II reaction centre subunit H, transmembrane region

结构域编号 domain_id	d1r2cl_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
超家族 Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
家族 Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

结构域编号 domain_id	d1r2cm_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
超家族 Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
家族 Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

CATH v4.4 (8 domains)

结构域编号 domain_id	1r2cC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	468 — Photosynthetic Reaction Center, subunit C; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Photosynthetic Reaction Center, subunit C, domain 2

结构域编号 domain_id	1r2cC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	468 — Photosynthetic Reaction Center, subunit C; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Photosynthetic Reaction Center, subunit C, domain 2

结构域编号 domain_id	1r2cH01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	540 — Photosynthetic Reaction Center; Chain H, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosynthetic reaction centre, H subunit, N-terminal domain

结构域编号 domain_id	1r2cH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	50 — Photosynthetic Reaction Center; Chain H, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Photosynthetic Reaction Center, subunit H, domain 2

结构域编号 domain_id	1r2cL01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

结构域编号 domain_id	1r2cL02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

结构域编号 domain_id	1r2cM01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

结构域编号 domain_id	1r2cM02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	223.500 Å
晶胞边长 b length_b	223.500 Å
晶胞边长 c length_c	112.500 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 43 21 2
空间群编号 int_tables_number	96
晶系 crystal_system	—

分辨率 resolution	2.860 Å
最低分辨率 resolution_low	48.830 Å
R 因子 r_factor	0.2020
R_work r_work	0.2020
R_free r_free	0.2280
