1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1r44
沉积日期 deposition_date	2003-10-03
结构标题 title	Crystal Structure of VanX
关键词 keywords	VanX, E.faecium, dipeptidase, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.34 Å
回转半径 Rg (电子) rg_electron	51.22 Å
零角强度 I(0) i0	303923000.00
分子量 molecular_weight	140640.0 kDa
排除体积 excluded_volume	174300 Å³
包络体积 envelope_volume	228470 Å³
水化壳体积 shell_volume	44042 Å³
包络直径 envelope_diameter	182.4 Å
壳层 Rg shell_rg	43.36 Å
包络 Rg envelope_rg	51.60 Å
形状 Rg shape_rg	51.22 Å
总 Rg total_rg	50.91 Å
总原子数 total_atoms	9912
残基数 n_residues	1212
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	171.4 Å
Rg (实空间) rg_real	50.83 Å
Rg 误差 (实空间) rg_real_error	2.37 Å
I(0) (实空间) i0_real	3.0390e+08
I(0) 误差 (实空间) i0_real_error	6.1520e+06
Rg (倒空间) rg_reciprocal	49.35 Å
I(0) (倒空间) i0_reciprocal	303300000.0000
解质量估计 total_estimate	0.6216
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.1 Å
偏度 Skewness skewness	0.689
峰度 Kurtosis kurtosis	-0.357
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	27710000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.282; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.157; Smooth: 0.077

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	D-alanyl-D-alanine dipeptidase
分子量 formula_weight	23408.2 kDa
EC 编号 ec_number	3.4.13.-
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	9924

MEIGFTFLDEIVHGVRWDAKYATWDNFTGKPVDGYEVNRIVGTYELAESLLKAKELAATQGYGLLLWDGYRPKRAVNCFMQWAAQPENNLTKESYYPNIDRTEMISKGYVASKSSHSRGSAIDLTLYRLDTGELVPMGSRFDFMDERSHHAANGISCNEAQNRRRLRSIMENSGFEAYSLEWWHYVLRDEPYPNSYFDFPVK

来源 Source

来源生物 organism	Enterococcus faecium
NCBI 分类编号 ncbi_taxonomy_id	1352
宿主生物 host_organism	Escherichia coli str. K12 substr. W3110

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1r44a_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.65 — Hedgehog/DD-peptidase
超家族 Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
家族 Family family	d.65.1.4 — VanX-like

结构域编号 domain_id	d1r44b_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.65 — Hedgehog/DD-peptidase
超家族 Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
家族 Family family	d.65.1.4 — VanX-like

结构域编号 domain_id	d1r44c_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.65 — Hedgehog/DD-peptidase
超家族 Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
家族 Family family	d.65.1.4 — VanX-like

结构域编号 domain_id	d1r44d_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.65 — Hedgehog/DD-peptidase
超家族 Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
家族 Family family	d.65.1.4 — VanX-like

结构域编号 domain_id	d1r44e_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.65 — Hedgehog/DD-peptidase
超家族 Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
家族 Family family	d.65.1.4 — VanX-like

结构域编号 domain_id	d1r44f_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.65 — Hedgehog/DD-peptidase
超家族 Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
家族 Family family	d.65.1.4 — VanX-like

CATH v4.4 (6 domains)

结构域编号 domain_id	1r44A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1r44B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1r44C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1r44D00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1r44E00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1r44F00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	82.597 Å
晶胞边长 b length_b	44.694 Å
晶胞边长 c length_c	169.428 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	103.76 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.250 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2580
R_work r_work	0.2540
R_free r_free	0.3010

fit	/app/data/saxs_computation/r4/1r44/1r44.fit
pddf	/app/data/pr_computation/r4/1r44/1r44.pr.out
profile	/app/data/saxs_computation/r4/1r44/1r44.dat

Crystal Structure of VanX

SAXS 散射曲线 SAXS Profile

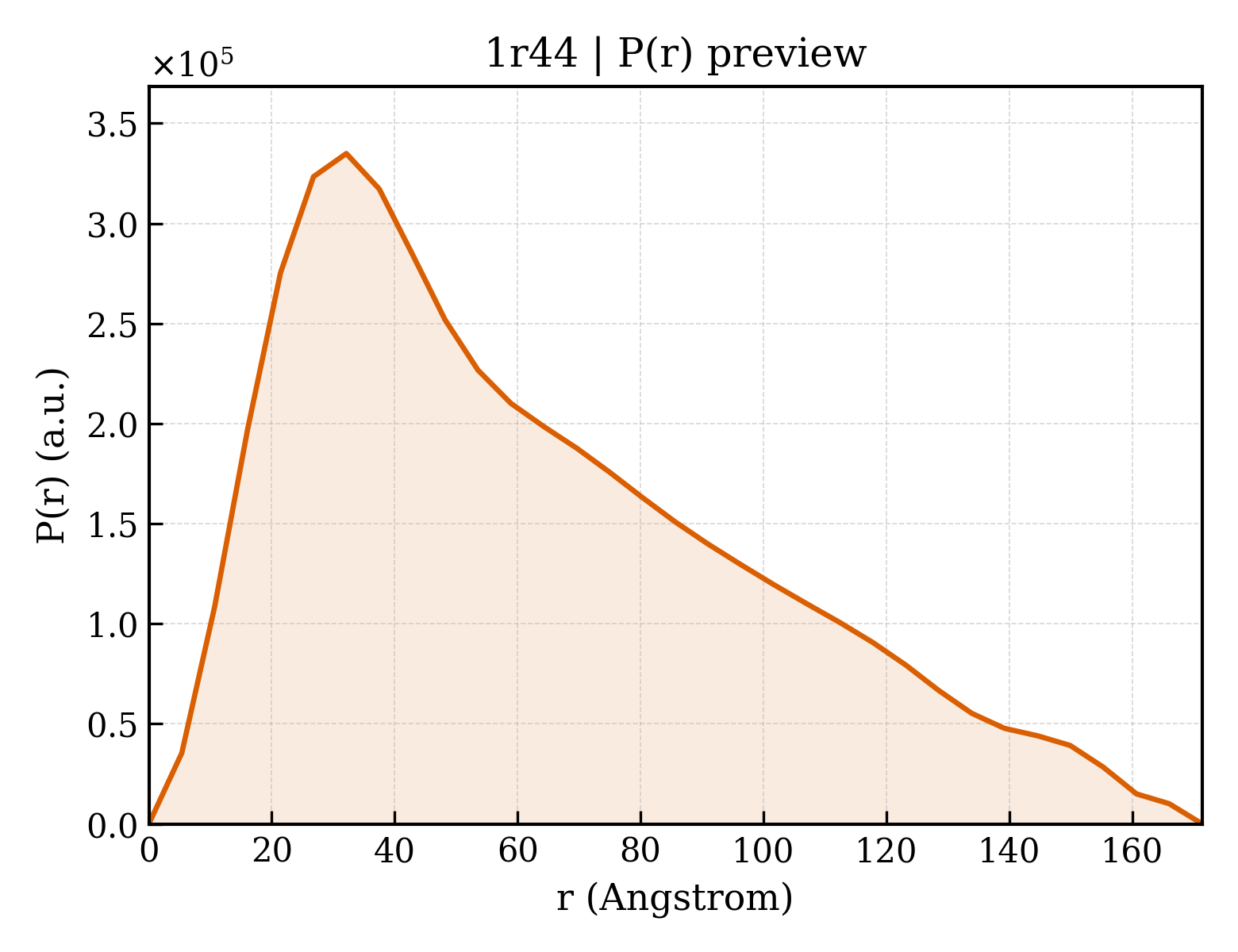

P(r) 距离分布 P(r) Distribution
