SAXSdb — 1r6t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tryptophanyl-tRNA synthetase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	TRYPTOPHANYL-5'AMP × 1 GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYW_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–466； UniProt 1–466 Author chain B； PDBConstruct 1–466； UniProt 1–466

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1r6t
Deposition date deposition_date	2003-10-16
Structure title title	crystal structure of human tryptophanyl-tRNA synthetase
Keywords keywords	Class Ic tRNA synthetase, Rossmann fold catalytical domain, anticodon recognition domain, bound Trp-AMP, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1r6t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

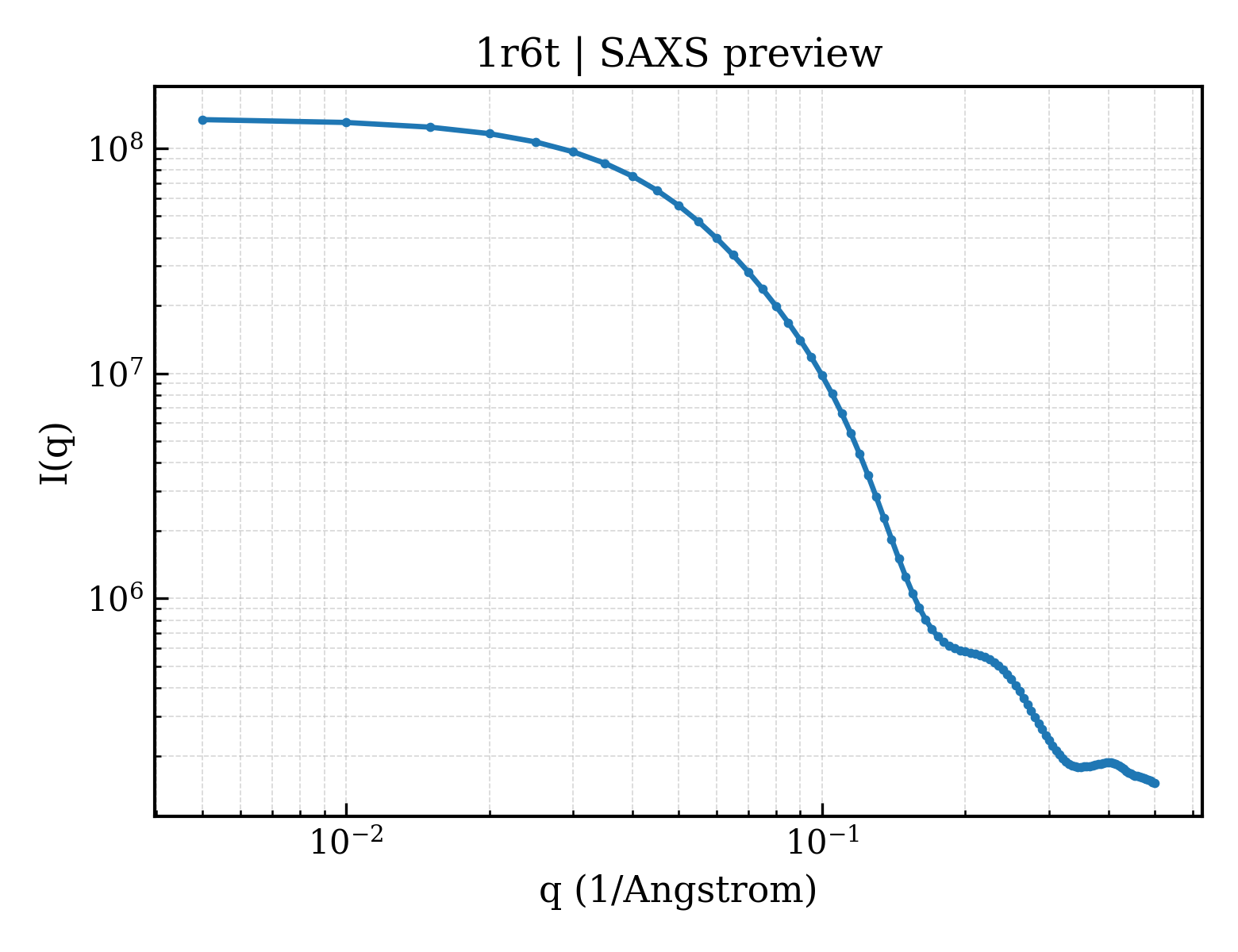

1r6t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

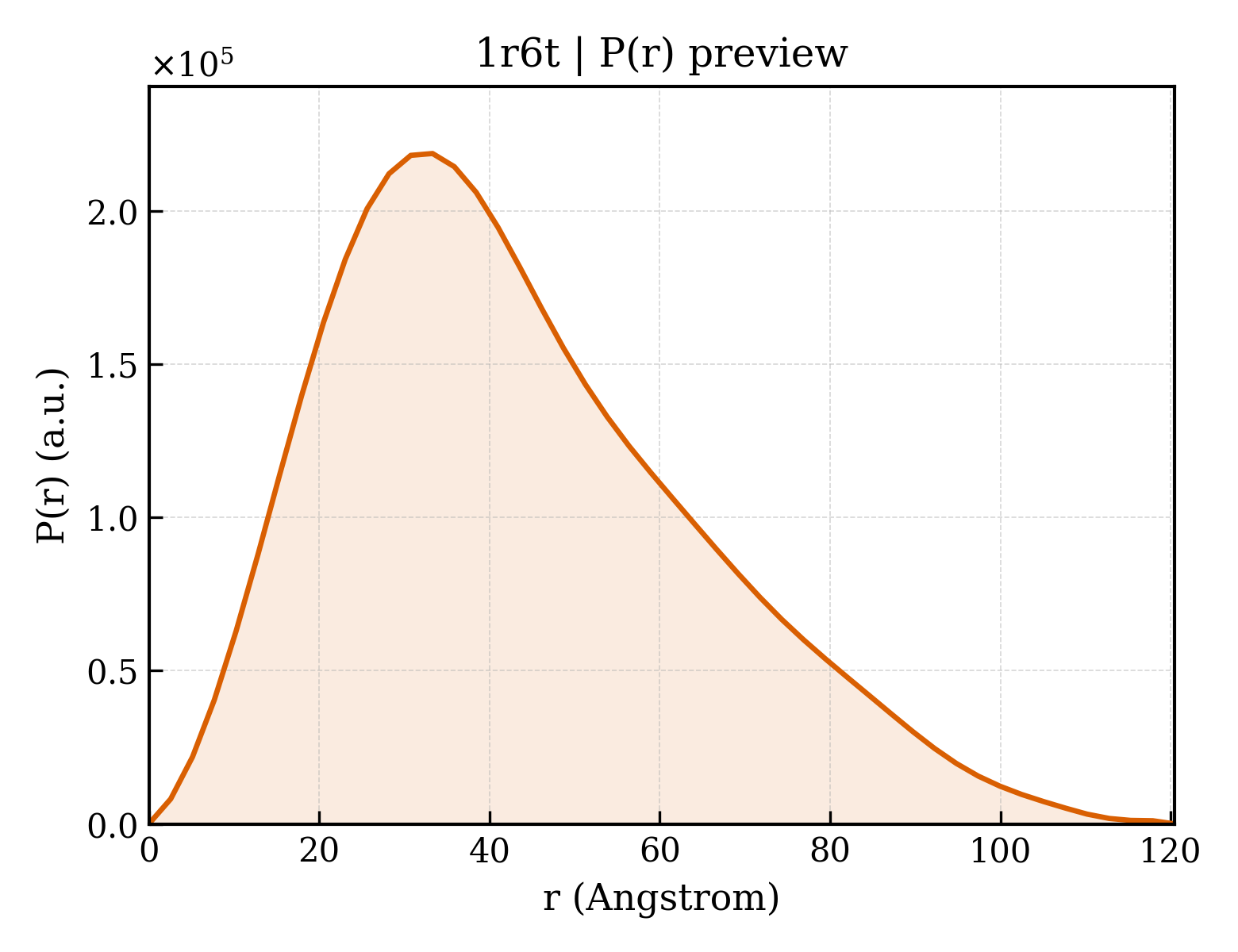

1r6t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.73 Å
Rg (electron density)	33.43 Å
Total Rg	33.80 Å
Atom count	6484
Residues	781
Excluded volume	115970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1r6t__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Tryptophanyl-tRNA synthetase
Molecular weight formula_weight	54375.6 kDa
EC 编号 ec_number	6.1.1.2
Mutation mutation	S213G, Y214D
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6778

MPNSEPASLLELFNSIATQGELVRSLKAGNASKDEIDSAVKMLVSLKMSYKAAAGEDYKADCPPGNPAPTSNHGPDATEAEEDFVDPWTVQTSSAKGIDYDKLIVRFGSSKIDKELINRIERATGQRPHHFLRRGIFFSHRDMNQVLDAYENKKPFYLYTGRGPSSEAMHVGHLIPFIFTKWLQDVFNVPLVIQMTDDEKYLWKDLTLDQAYGDAVENAKDIIACGFDINKTFIFSDLDYMGMSSGFYKNVVKIQKHVTFNQVKGIFGFTDSDCIGKISFPAIQAAPSFSNSFPQIFRDRTDIQCLIPCAIDQDPYFRMTRDVAPRIGYPKPALLHSTFFPALQGAQTKMSASDPNSSIFLTDTAKQIKTKVNKHAFSGGRDTIEEHRQFGGNCDVDVSFMYLTFFLEDDDKLEQIRKDYTSGAMLTGELKKALIEVLQPLIAEHQARRKEVTDEIVKEFMTPRKLAAALEHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	TRYPTOPHANYL-5'AMP
Molecular weight formula_weight	533.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	294

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1r6ta1
Class class	a — All alpha proteins
Fold Fold fold	a.16 — S15/NS1 RNA-binding domain
Superfamily Superfamily superfamily	a.16.1 — S15/NS1 RNA-binding domain
Family Family family	a.16.1.3 — a tRNA synthase domain

Domain ID domain_id	d1r6ta2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

Domain ID domain_id	d1r6ta3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1r6tb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

Domain ID domain_id	d1r6tb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (5 domains)

Domain ID domain_id	1r6tA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	10 — S15/NS1, RNA-binding

Domain ID domain_id	1r6tA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1r6tA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	240 — Tyrosyl-Transfer RNA Synthetase
Homologous superfamily homologous superfamily	10 — Tyrosyl-Transfer RNA Synthetase

Domain ID domain_id	1r6tB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1r6tB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	240 — Tyrosyl-Transfer RNA Synthetase
Homologous superfamily homologous superfamily	10 — Tyrosyl-Transfer RNA Synthetase

▶

Unit-cell length a length_a	152.146 Å
Unit-cell length b length_b	95.713 Å
Unit-cell length c length_c	98.506 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.62 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2082
R_work r_work	0.2080
R_free r_free	0.2386

crystal structure of human tryptophanyl-tRNA synthetase
