The Crystal Structure of the Argonaute2 PAZ domain (as a MBP fusion)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chimera of Maltose-binding periplasmic protein and Argonaute 2

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 3 其他Polymer 3	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 3 NICKEL (II) ION × 9 water × 3	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 1	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 NICKEL (II) ION × 3 water × 1	Consistent with protein count
3	Other combination	Monomer	Protein 1 其他Polymer 1	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 NICKEL (II) ION × 3 water × 1	Consistent with protein count
4	Other combination	Monomer	Protein 1 其他Polymer 1	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 1 NICKEL (II) ION × 3 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MALE_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–367； UniProt 27–392 Author chain P； PDBConstruct 2–367； UniProt 27–392 Author chain Z； PDBConstruct 2–367； UniProt 27–392

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1r6z
Deposition date deposition_date	2003-10-17
Structure title title	The Crystal Structure of the Argonaute2 PAZ domain (as a MBP fusion)
Keywords keywords	deviant OB fold, RNAi, GENE REGULATION; GENE REGULATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1r6z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

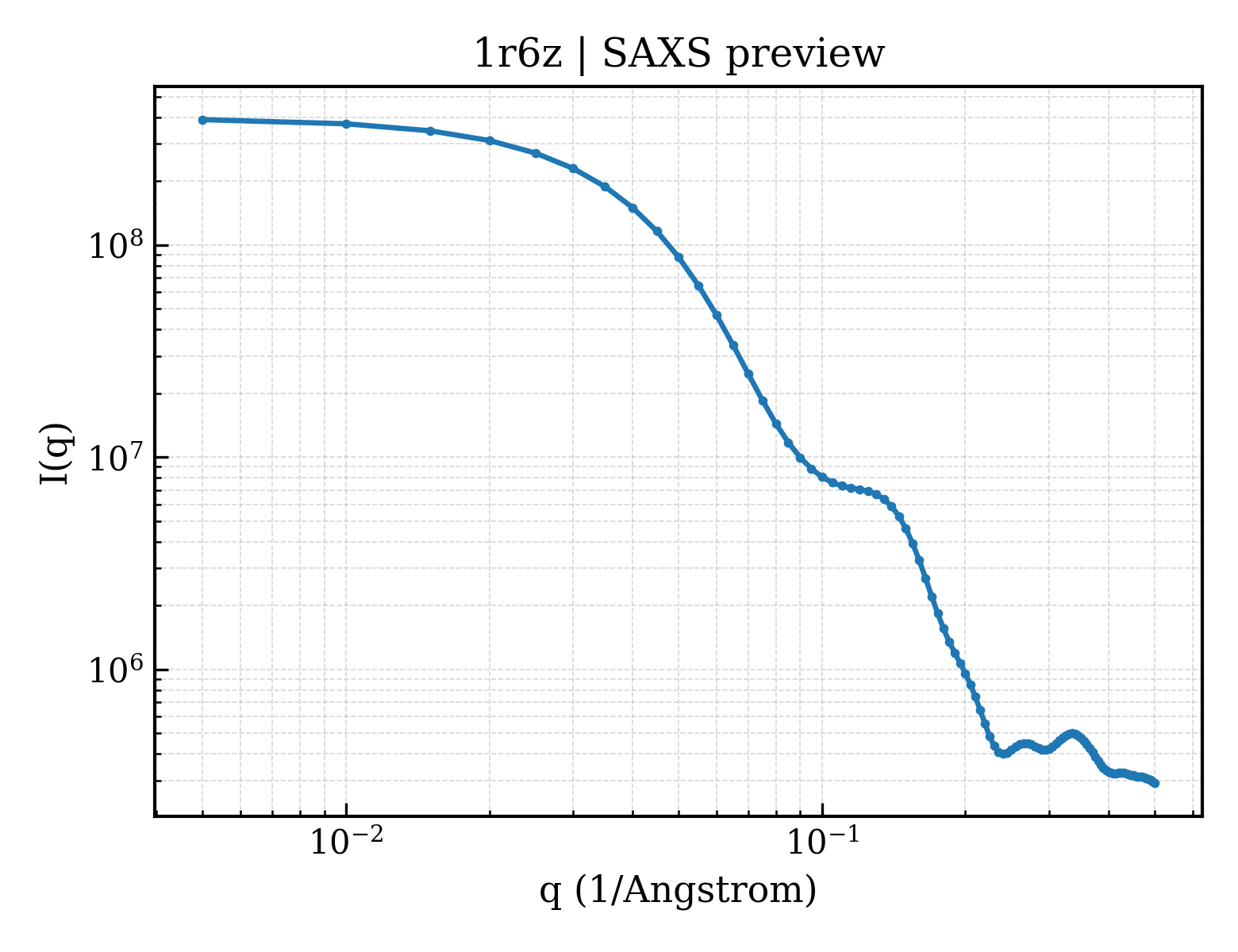

1r6z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

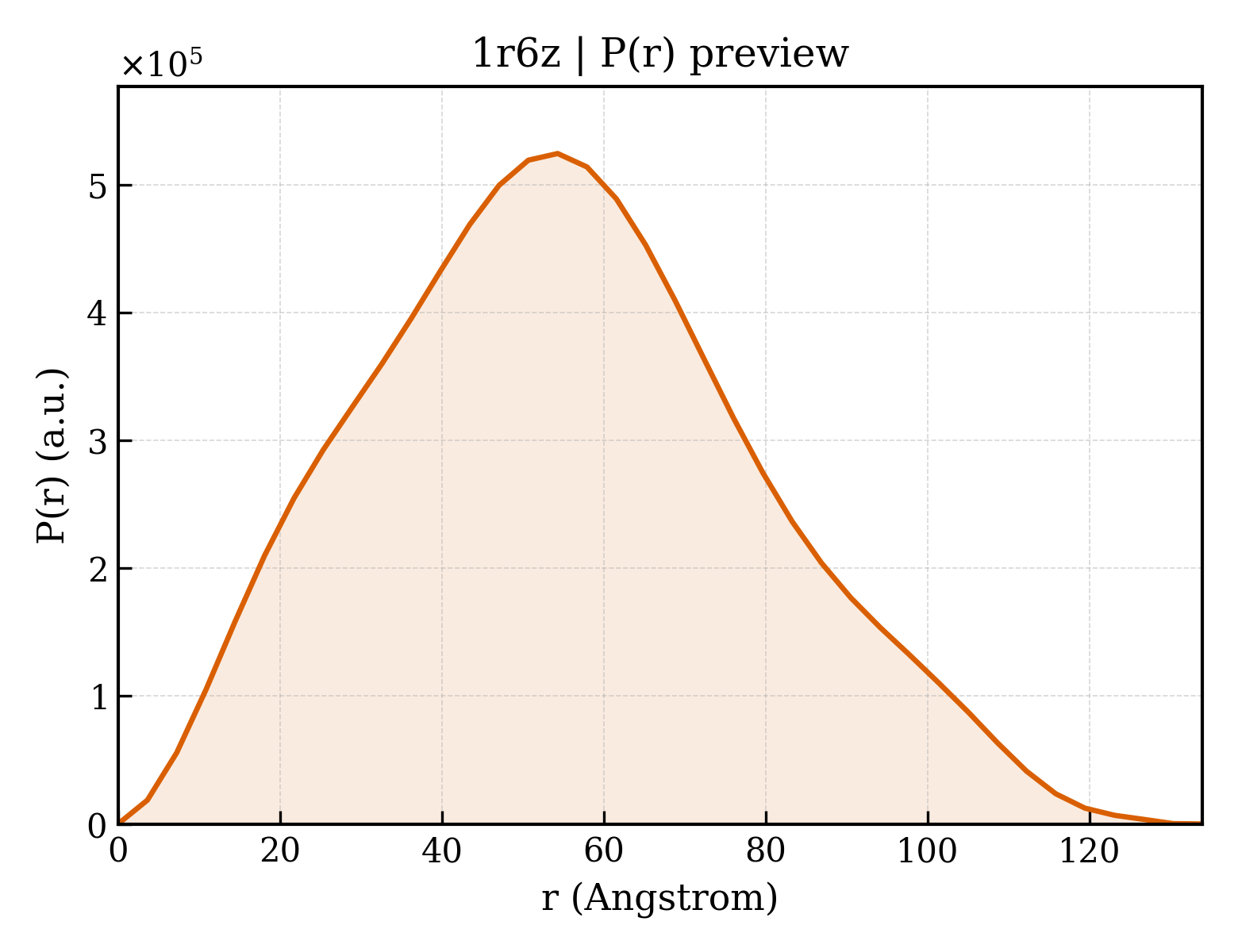

1r6z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.53 Å
Rg (electron density)	41.84 Å
Total Rg	42.37 Å
Atom count	11777
Residues	1494
Excluded volume	210770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1r6z__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1r6z__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1r6z__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1r6z__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Chimera of Maltose-binding periplasmic protein and Argonaute 2
Molecular weight formula_weight	56467.0 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,A,Z
Atom count atom_count	11834

MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNAAAEFVDISHKSFPISMPMIEYLERFSLKAKINNTTNLDYSRRFLEPFLRGINVVYTPPQSFQSAPRVYRVNGLSRAPASSETFEHDGKKVTIASYFHSRNYPLKFPQLHCLNVGSSIKSILLPIELCSIEEGQALNRKDG

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	, fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	57

▼

6. Fold Classification (SCOP + CATH) 15 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1r6za1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.14 — PAZ domain
Family Family family	b.34.14.1 — PAZ domain

Domain ID domain_id	d1r6za2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d1r6zp1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.14 — PAZ domain
Family Family family	b.34.14.1 — PAZ domain

Domain ID domain_id	d1r6zp2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d1r6zz1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.14 — PAZ domain
Family Family family	b.34.14.1 — PAZ domain

Domain ID domain_id	d1r6zz2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

CATH v4.4 (9 domains)

Domain ID domain_id	1r6zA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1r6zA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1r6zA03
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	260 — paz domain
Homologous superfamily homologous superfamily	10 — paz domain

Domain ID domain_id	1r6zP01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1r6zP02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1r6zP03
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	260 — paz domain
Homologous superfamily homologous superfamily	10 — paz domain

Domain ID domain_id	1r6zZ01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1r6zZ02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1r6zZ03
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	260 — paz domain
Homologous superfamily homologous superfamily	10 — paz domain

▶

Unit-cell length a length_a	89.811 Å
Unit-cell length b length_b	89.811 Å
Unit-cell length c length_c	380.326 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	44.910 Å
R factor r_factor	—
R_work r_work	0.2270
R_free r_free	0.2810
