1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1r7i
沉积日期 deposition_date	2003-10-21
结构标题 title	HMG-CoA Reductase from P. mevalonii, native structure at 2.2 angstroms resolution.
关键词 keywords	4-ELECTRON OXIDO-REDUCTASE, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.92 Å
回转半径 Rg (电子) rg_electron	25.71 Å
零角强度 I(0) i0	104803000.00
分子量 molecular_weight	79439.0 kDa
排除体积 excluded_volume	99178 Å³
包络体积 envelope_volume	115210 Å³
水化壳体积 shell_volume	35996 Å³
包络直径 envelope_diameter	83.5 Å
壳层 Rg shell_rg	34.38 Å
包络 Rg envelope_rg	26.00 Å
形状 Rg shape_rg	25.72 Å
总 Rg total_rg	26.53 Å
总原子数 total_atoms	5570
残基数 n_residues	747
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	79.3 Å
Rg (实空间) rg_real	26.75 Å
Rg 误差 (实空间) rg_real_error	0.32 Å
I(0) (实空间) i0_real	1.0480e+08
I(0) 误差 (实空间) i0_real_error	1.0950e+06
Rg (倒空间) rg_reciprocal	26.80 Å
I(0) (倒空间) i0_reciprocal	104800000.0000
解质量估计 total_estimate	0.9130
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.6 Å
偏度 Skewness skewness	0.126
峰度 Kurtosis kurtosis	-0.544
角度范围 angular_range	— – 0.2950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	23950000.0000
实空间数据点数 n_real_points	60
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.971; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.965

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	3-hydroxy-3-methylglutaryl-coenzyme A reductase
分子量 formula_weight	45641.2 kDa
EC 编号 ec_number	1.1.1.88
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5833

MSLDSRLPAFRNLSPAARLDHIGQLLGLSHDDVSLLANAGALPMDIANGMIENVIGTFELPYAVASNFQINGRDVLVPLVVEEPSIVAAASYMAKLARANGGFTTSSSAPLMHAQVQIVGIQDPLNARLSLLRRKDEIIELANRKDQLLNSLGGGCRDIEVHTFADTPRGPMLVAHLIVDVRDAMGANTVNTMAEAVAPLMEAITGGQVRLRILSNLADLRLARAQVRITPQQLETAEFSGEAVIEGILDAYAFAAVDPYRAATHNKGIMNGIDPLIVATGNDWRAVEAGAHAYACRSGHYGSLTTWEKDNNGHLVGTLEMPMPVGLVGGATKTHPLAQLSLRILGVKTAQALAEIAVAVGLAQNLGAMRALATEGIQRGHMALHARNIAVVAGARGDEVDWVARQLVEYHDVRADRAVALLKQKRGQ

来源 Source

来源生物 organism	Pseudomonas mevalonii
NCBI 分类编号 ncbi_taxonomy_id	32044
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	263

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1r7ia1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.20 — NAD-binding domain of HMG-CoA reductase
家族 Family family	d.58.20.1 — NAD-binding domain of HMG-CoA reductase

结构域编号 domain_id	d1r7ia2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.179 — Substrate-binding domain of HMG-CoA reductase
超家族 Superfamily superfamily	d.179.1 — Substrate-binding domain of HMG-CoA reductase
家族 Family family	d.179.1.1 — Substrate-binding domain of HMG-CoA reductase

结构域编号 domain_id	d1r7ib1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.20 — NAD-binding domain of HMG-CoA reductase
家族 Family family	d.58.20.1 — NAD-binding domain of HMG-CoA reductase

结构域编号 domain_id	d1r7ib2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.179 — Substrate-binding domain of HMG-CoA reductase
超家族 Superfamily superfamily	d.179.1 — Substrate-binding domain of HMG-CoA reductase
家族 Family family	d.179.1.1 — Substrate-binding domain of HMG-CoA reductase

CATH v4.4 (4 domains)

结构域编号 domain_id	1r7iA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	420 — Hydroxymethylglutaryl-CoA reductase, class I/II, NAD/NADP-binding domain

结构域编号 domain_id	1r7iA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	770 — 3-hydroxy-3-methylglutaryl-coenzyme A Reductase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — 3-hydroxy-3-methylglutaryl-coenzyme A Reductase; Chain A, domain 2

结构域编号 domain_id	1r7iB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	420 — Hydroxymethylglutaryl-CoA reductase, class I/II, NAD/NADP-binding domain

结构域编号 domain_id	1r7iB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	770 — 3-hydroxy-3-methylglutaryl-coenzyme A Reductase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — 3-hydroxy-3-methylglutaryl-coenzyme A Reductase; Chain A, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	226.186 Å
晶胞边长 b length_b	226.186 Å
晶胞边长 c length_c	226.186 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	96

空间群 space_group	I 41 3 2
空间群编号 int_tables_number	214
晶系 crystal_system	—

分辨率 resolution	2.210 Å
最低分辨率 resolution_low	26.660 Å
R 因子 r_factor	0.2560
R_work r_work	0.2560
R_free r_free	0.2700

fit	/app/data/saxs_computation/r7/1r7i/1r7i.fit
pddf	/app/data/pr_computation/r7/1r7i/1r7i.pr.out
profile	/app/data/saxs_computation/r7/1r7i/1r7i.dat

HMG-CoA Reductase from P. mevalonii, native structure at 2.2 angstroms resolution.

SAXS 散射曲线 SAXS Profile

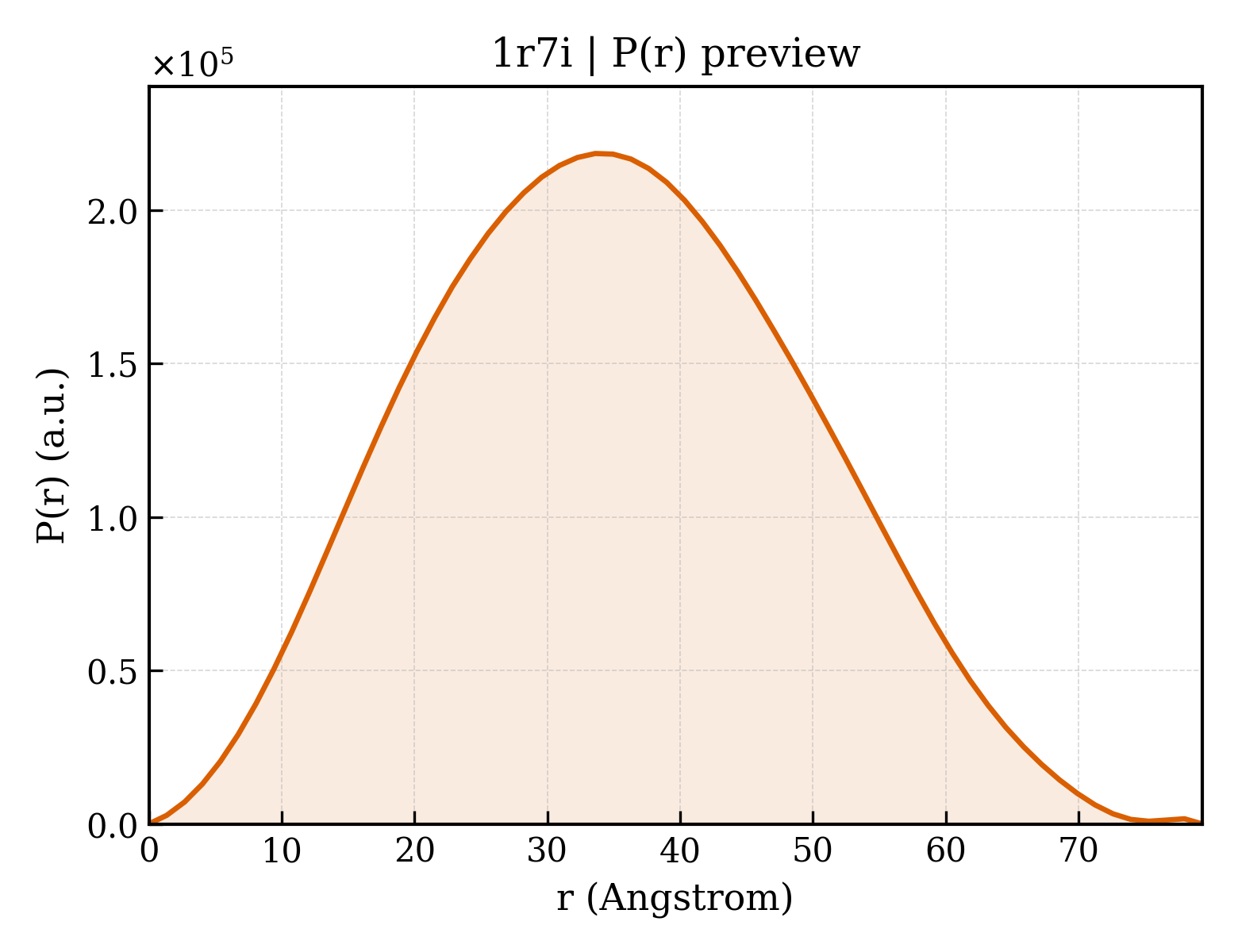

P(r) 距离分布 P(r) Distribution
