1req

METHYLMALONYL-COA MUTASE

Method: X-RAY DIFFRACTION D_max: 173.4 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

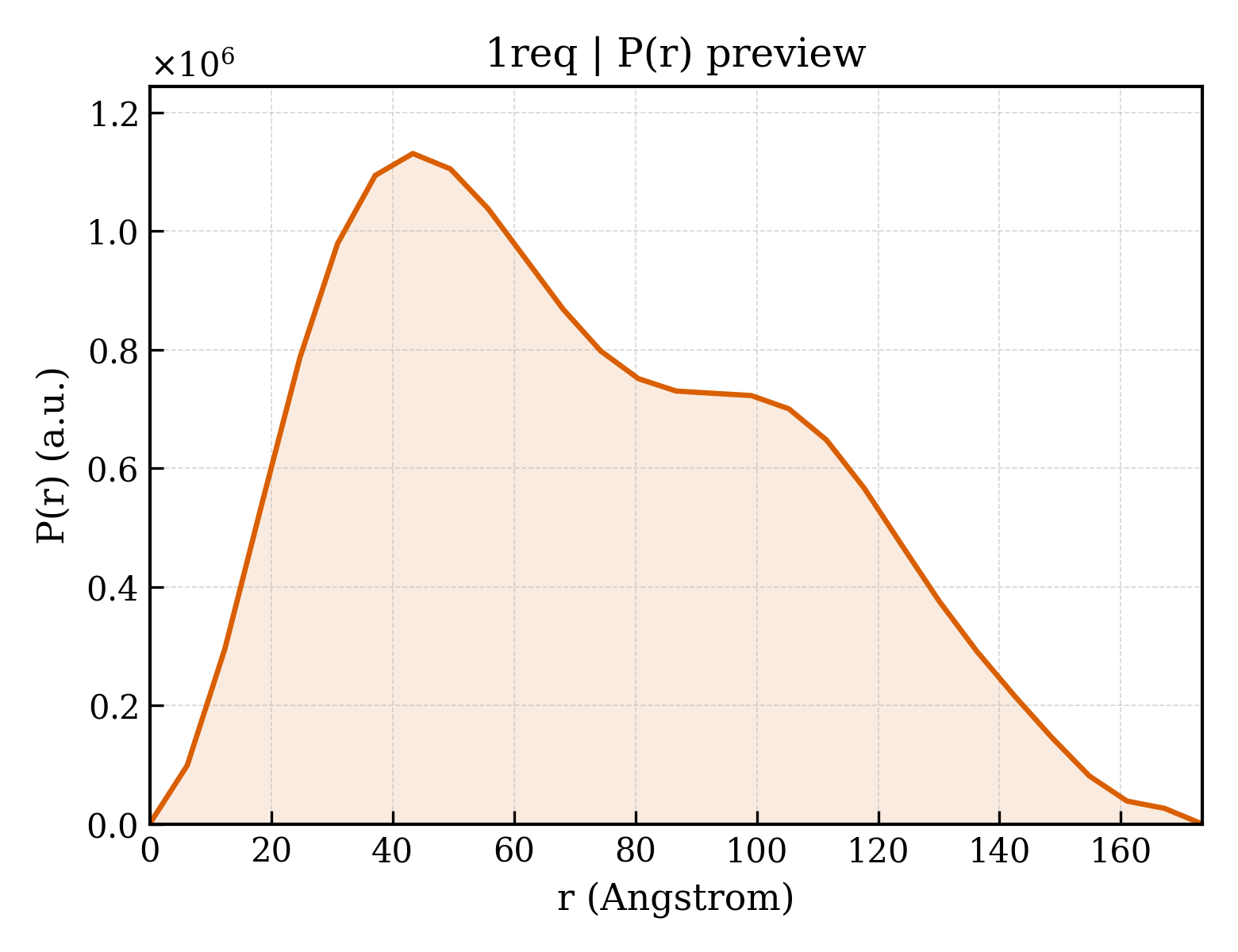

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1req
沉积日期 deposition_date	1996-01-19
结构标题 title	METHYLMALONYL-COA MUTASE
关键词 keywords	ISOMERASE, MUTASE, INTRAMOLECULAR TRANSFERASE; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.52 Å
回转半径 Rg (电子) rg_electron	55.79 Å
零角强度 I(0) i0	1259250000.00
分子量 molecular_weight	295980.0 kDa
排除体积 excluded_volume	369560 Å³
包络体积 envelope_volume	491370 Å³
水化壳体积 shell_volume	73401 Å³
包络直径 envelope_diameter	186.3 Å
壳层 Rg shell_rg	58.23 Å
包络 Rg envelope_rg	54.49 Å
形状 Rg shape_rg	55.76 Å
总 Rg total_rg	55.96 Å
总原子数 total_atoms	20840
残基数 n_residues	2695
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	173.4 Å
Rg (实空间) rg_real	55.85 Å
Rg 误差 (实空间) rg_real_error	1.95 Å
I(0) (实空间) i0_real	1.2590e+09
I(0) 误差 (实空间) i0_real_error	2.5900e+07
Rg (倒空间) rg_reciprocal	55.19 Å
I(0) (倒空间) i0_reciprocal	1258000000.0000
解质量估计 total_estimate	0.5787
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.4 Å
偏度 Skewness skewness	0.372
峰度 Kurtosis kurtosis	-0.760
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	95890000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.831; Stabil: 1.000; Sysdev: 0.041; Positv: 1.000; Valcen: 0.885; Smooth: 0.018

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	METHYLMALONYL-COA MUTASE
分子量 formula_weight	80137.9 kDa
EC 编号 ec_number	5.4.99.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	22372

STLPRFDSVDLGNAPVPADAARRFEELAAKAGTGEAWETAEQIPVGTLFNEDVYKDMDWLDTYAGIPPFVHGPYATMYAFRPWTIRQYAGFSTAKESNAFYRRNLAAGQKGLSVAFDLPTHRGYDSDNPRVAGDVGMAGVAIDSIYDMRELFAGIPLDQMSVSMTMNGAVLPILALYVVTAEEQGVKPEQLAGTIQNDILKEFMVRNTYIYPPQPSMRIISEIFAYTSANMPKWNSISISGYHMQEAGATADIEMAYTLADGVDYIRAGESVGLNVDQFAPRLSFFWGIGMNFFMEVAKLRAARMLWAKLVHQFGPKNPKSMSLRTHSQTSGWSLTAQDVYNNVVRTCIEAMAATQGHTQSLHTNSLDEAIALPTDFSARIARNTQLFLQQESGTTRVIDPWSGSAYVEELTWDLARKAWGHIQEVEKVGGMAKAIEKGIPKMRIEEAAARTQARIDSGRQPLIGVNKYRLEHEPPLDVLKVDNSTVLAEQKAKLVKLRAERDPEKVKAALDKITWAAGNPDDKDPDRNLLKLCIDAGRAMATVGEMSDALEKVFGRYTAQIRTISGVYSKEVKNTPEVEEARELVEEFEQAEGRRPRILLAKMGQDGHDRGQKVIATAYADLGFDVDVGPLFQTPEETARQAVEADVHVVGVSSLAGGHLTLVPALRKELDKLGRPDILITVGGVIPEQDFDELRKDGAVEIYTPGTVIPESAISLVKKLRASLDA

来源 Source

来源生物 organism	Propionibacterium freudenreichii subsp. shermanii
NCBI 分类编号 ncbi_taxonomy_id	1752
宿主生物 host_organism	K38 PGP1-2

Entity 2 polymer

描述 description	METHYLMALONYL-COA MUTASE
分子量 formula_weight	69430.2 kDa
EC 编号 ec_number	5.4.99.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

SSTDQGTNPADTDDLTPTTLSLAGDFPKATEEQWEREVEKVLNRGRPPEKQLTFAECLKRLTVHTVDGIDIVPMYRPKDAPKKLGYPGVAPFTRGTTVRNGDMDAWDVRALHEDPDEKFTRKAILEGLERGVTSLLLRVDPDAIAPEHLDEVLSDVLLEMTKVEVFSRYDQGAAAEALVSVYERSDKPAKDLALNLGLDPIGFAALQGTEPDLTVLGDWVRRLAKFSPDSRAVTIDANIYHNAGAGDVAELAWALATGAEYVRALVEQGFTATEAFDTINFRVTATHDQFLTIARLRALREAWARIGEVFGVDEDKRGARQNAITSWRELTREDPYVNILRGSIATFSASVGGAESITTLPFTQALGLPEDDFPLRIARNTGIVLAEEVNIGRVNDPAGGSYYVESLTRSLADAAWKEFQEVEKLGGMSKAVMTEHVTKVLDACNAERAKRLANRKQPITAVSEFPMIGARSIETKPFPAAPARKGLAWHRDSEVFEQLMDRSTSVSERPKVFLACLGTRRDFGGREGFSSPVWHIAGIDTPQVEGGTTAEIVEAFKKSGAQVADLCSSAKVYAQQGLEVAKALKAAGAKALYLSGAFKEFGDDAAEAEKLIDGRLFMGMDVVDTLSSTLDILGVAK

来源 Source

来源生物 organism	Propionibacterium freudenreichii subsp. shermanii
NCBI 分类编号 ncbi_taxonomy_id	1752
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	COBALAMIN
分子量 formula_weight	1330.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	DESULFO-COENZYME A
分子量 formula_weight	735.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	9

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1532

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1reqa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.19 — Cobalamin (vitamin B12)-dependent enzymes
家族 Family family	c.1.19.1 — Methylmalonyl-CoA mutase, N-terminal (CoA-binding) domain

结构域编号 domain_id	d1reqa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.6 — Cobalamin (vitamin B12)-binding domain
家族 Family family	c.23.6.1 — Cobalamin (vitamin B12)-binding domain

结构域编号 domain_id	d1reqb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.19 — Cobalamin (vitamin B12)-dependent enzymes
家族 Family family	c.1.19.1 — Methylmalonyl-CoA mutase, N-terminal (CoA-binding) domain

结构域编号 domain_id	d1reqb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.6 — Cobalamin (vitamin B12)-binding domain
家族 Family family	c.23.6.1 — Cobalamin (vitamin B12)-binding domain

结构域编号 domain_id	d1reqc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.19 — Cobalamin (vitamin B12)-dependent enzymes
家族 Family family	c.1.19.1 — Methylmalonyl-CoA mutase, N-terminal (CoA-binding) domain

结构域编号 domain_id	d1reqc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.6 — Cobalamin (vitamin B12)-binding domain
家族 Family family	c.23.6.1 — Cobalamin (vitamin B12)-binding domain

结构域编号 domain_id	d1reqd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.19 — Cobalamin (vitamin B12)-dependent enzymes
家族 Family family	c.1.19.1 — Methylmalonyl-CoA mutase, N-terminal (CoA-binding) domain

结构域编号 domain_id	d1reqd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.6 — Cobalamin (vitamin B12)-binding domain
家族 Family family	c.23.6.1 — Cobalamin (vitamin B12)-binding domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1reqA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	240 — Methylmalonyl-CoA mutase

结构域编号 domain_id	1reqA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	280 — Cobalamin-binding domain

结构域编号 domain_id	1reqB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	240 — Methylmalonyl-CoA mutase

结构域编号 domain_id	1reqB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	280 — Cobalamin-binding domain

结构域编号 domain_id	1reqC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	240 — Methylmalonyl-CoA mutase

结构域编号 domain_id	1reqC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	280 — Cobalamin-binding domain

结构域编号 domain_id	1reqD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	240 — Methylmalonyl-CoA mutase

结构域编号 domain_id	1reqD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	280 — Cobalamin-binding domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	119.800 Å
晶胞边长 b length_b	161.300 Å
晶胞边长 c length_c	88.400 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.10 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2200
R_free r_free	0.2750

fit	/app/data/saxs_computation/re/1req/1req.fit
pddf	/app/data/pr_computation/re/1req/1req.pr.out
profile	/app/data/saxs_computation/re/1req/1req.dat
