SAXSdb — 1rhz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Preprotein translocase secY subunit

Methanocaldococcus jannaschii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Preprotein translocase secE subunit × 1 （Q57817） SecBeta × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SECY_METJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–436； UniProt 1–436

Preprotein translocase secE subunit

Methanocaldococcus jannaschii

UniProt Q57817

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Preprotein translocase secY subunit × 1 （Q60175） SecBeta × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SECE_METJA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–74； UniProt 1–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rhz
Deposition date deposition_date	2003-11-15
Structure title title	The structure of a protein conducting channel
Keywords keywords	Protein translocation, SecY, Membrane Protein, Protein Channels, protein transport; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rhz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

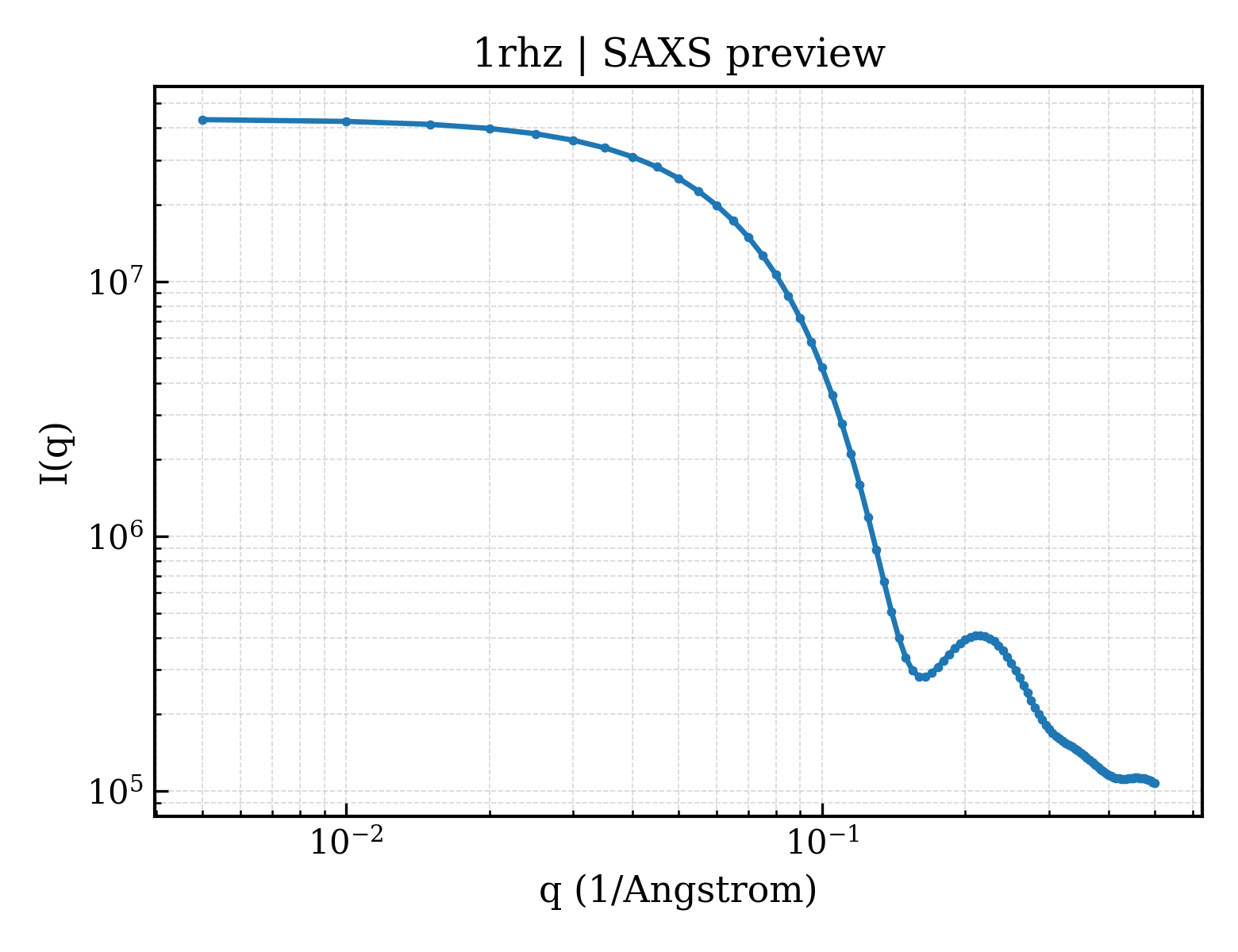

1rhz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

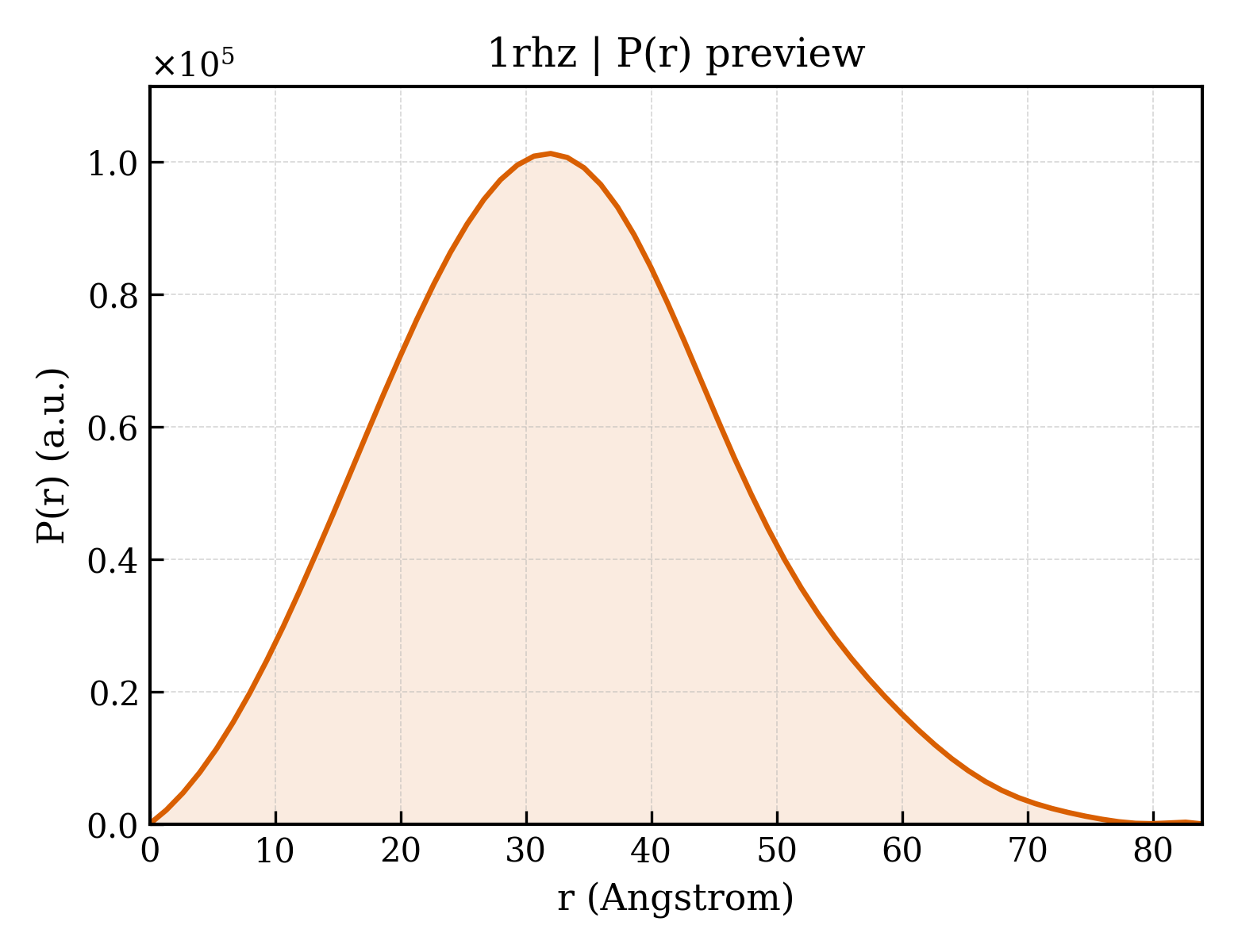

1rhz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.27 Å
Rg (electron density)	24.29 Å
Total Rg	25.34 Å
Atom count	4090
Residues	529
Excluded volume	75785 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rhz__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Preprotein translocase secY subunit
Molecular weight formula_weight	47482.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4090

MKKLIPILEKIPEVELPVKEITFKEKLKWTGIVLVLYFIMGCIDVYTAGAQIPAIFEFWQTITASRIGTLITLGIGPIVTAGIIMQLLVGSGIIQMDLSIPENRALFQGCQKLLSIIMCFVEAVLFVGAGAFGILTPLLAFLVIIQIAFGSIILIYLDEIVSKYGIGSGIGLFIAAGVSQTIFVGALGPEGYLWKFLNSLIQGVPNIEYIAPIIGTIIVFLMVVYAECMRVEIPLAHGRIKGAVGKYPIKFVYVSNIPVILAAALFANIQLWGLALYRMGIPILGHYEGGRAVDGIAYYLSTPYGLSSVISDPIHAIVYMIAMIITCVMFGIFWVETTGLDPKSMAKRIGSLGMAIKGFRKSEKAIEHRLKRYIPPLTVMSSAFVGFLATIANFIGALGGGTGVLLTVSIVYRMYEQLLREKVSELHPAIAKLLNK

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Preprotein translocase secE subunit
Molecular weight formula_weight	8451.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKTDFNQKIEQLKEFIEECRRVWLVLKKPTKDEYLAVAKVTALGISLLGIIGYIIHVPATYIKGILKPPTTPRV

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	SecBeta
Molecular weight formula_weight	5967.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSKREETGLATSAGLIRYMDETFSKIRVKPEHVIGVTVAFVIIEAILTYGRFL

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1rhza_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.41 — Preprotein translocase SecY subunit
Superfamily Superfamily superfamily	f.41.1 — Preprotein translocase SecY subunit
Family Family family	f.41.1.1 — Preprotein translocase SecY subunit

Domain ID domain_id	d1rhzb_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.23 — Single transmembrane helix
Superfamily Superfamily superfamily	f.23.28 — Preprotein translocase SecE subunit
Family Family family	f.23.28.1 — Preprotein translocase SecE subunit

Domain ID domain_id	d1rhzc_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.6 — Sec-beta or SecG subunit of protein translocation channel
Family Family family	f.17.6.1 — Sec-beta subunit

CATH v4.4 (2 domains)

Domain ID domain_id	1rhzA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3370 — Preprotein translocase SecY subunit
Homologous superfamily homologous superfamily	10 — SecY subunit domain

Domain ID domain_id	1rhzB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	820 — Preprotein translocase SecE subunit

▶

Unit-cell length a length_a	92.746 Å
Unit-cell length b length_b	149.361 Å
Unit-cell length c length_c	79.475 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	9.990 Å
R factor r_factor	0.2540
R_work r_work	0.2540
R_free r_free	0.3300
