SAXSdb — 1rje

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rje
沉积日期 deposition_date	2003-11-19
结构标题 title	Structure of PPM1, a leucine carboxy methyltransferase involved in the regulation of protein phosphatase 2A activity
关键词 keywords	SAM dependent methyltransferase, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.80 Å
回转半径 Rg (电子) rg_electron	32.69 Å
零角强度 I(0) i0	206522000.00
分子量 molecular_weight	115690.0 kDa
排除体积 excluded_volume	145100 Å³
包络体积 envelope_volume	181420 Å³
水化壳体积 shell_volume	45768 Å³
包络直径 envelope_diameter	115.5 Å
壳层 Rg shell_rg	40.00 Å
包络 Rg envelope_rg	32.51 Å
形状 Rg shape_rg	32.69 Å
总 Rg total_rg	33.22 Å
总原子数 total_atoms	8104
残基数 n_residues	990
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	106.4 Å
Rg (实空间) rg_real	34.35 Å
Rg 误差 (实空间) rg_real_error	0.27 Å
I(0) (实空间) i0_real	2.0330e+08
I(0) 误差 (实空间) i0_real_error	2.3770e+06
Rg (倒空间) rg_reciprocal	33.78 Å
I(0) (倒空间) i0_reciprocal	206500000.0000
解质量估计 total_estimate	0.7074
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	0
主峰位置 r_peak_primary	— Å
偏度 Skewness skewness	0.263
峰度 Kurtosis kurtosis	-0.504
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	3.5610
最高正则化参数 α highest_alpha	132700000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.954; Stabil: 0.918; Sysdev: 0.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.632

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	carboxy methyl transferase for protein phosphatase 2A catalytic subunit
分子量 formula_weight	38567.4 kDa
EC 编号 ec_number	2.1.1.-
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	9100

MERIIQQTDYDALSCKLAAISVGYLPSSGLQRLSVDLSKKYTEWHRSYLITLKKFSRRAFGKVDKAMRSSFPVMNYGTYLRTVGIDAAILEFLVANEKVQVVNLGCGSDLRMLPLLQMFPHLAYVDIDYNESVELKNSILRESEILRISLGLSKEDTAKSPFLIDQGRYKLAACDLNDITETTRLLDVCTKREIPTIVISECLLCYMHNNESQLLINTIMSKFSHGLWISYDPIGGSQPNDRFGAIMQSNLKESRNLEMPTLMTYNSKEKYASRWSAAPNVIVNDMWEIFNAQIPESERKRLRSLQFLDELEELKVMQTHYILMKAQWHHHHHH

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	S-ADENOSYL-L-HOMOCYSTEINE
分子量 formula_weight	384.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	BETA-MERCAPTOETHANOL
分子量 formula_weight	78.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	990

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1rjea1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.37 — Leucine carboxy methyltransferase Ppm1

结构域编号 domain_id	d1rjea2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1rjeb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.37 — Leucine carboxy methyltransferase Ppm1

结构域编号 domain_id	d1rjeb2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1rjec1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.37 — Leucine carboxy methyltransferase Ppm1

结构域编号 domain_id	d1rjec2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

结构域编号 domain_id	1rjeA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1rjeB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	1rjeC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	110.747 Å
晶胞边长 b length_b	110.747 Å
晶胞边长 c length_c	165.613 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	P 65
空间群编号 int_tables_number	170
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	24.470 Å
R 因子 r_factor	0.1614
R_work r_work	0.1588
R_free r_free	0.2103

fit	/app/data/saxs_computation/rj/1rje/1rje.fit
pddf	/app/data/pr_computation/rj/1rje/1rje.pr.out
profile	/app/data/saxs_computation/rj/1rje/1rje.dat

Structure of PPM1, a leucine carboxy methyltransferase involved in the regulation of protein phosphatase 2A activity

SAXS 散射曲线 SAXS Profile

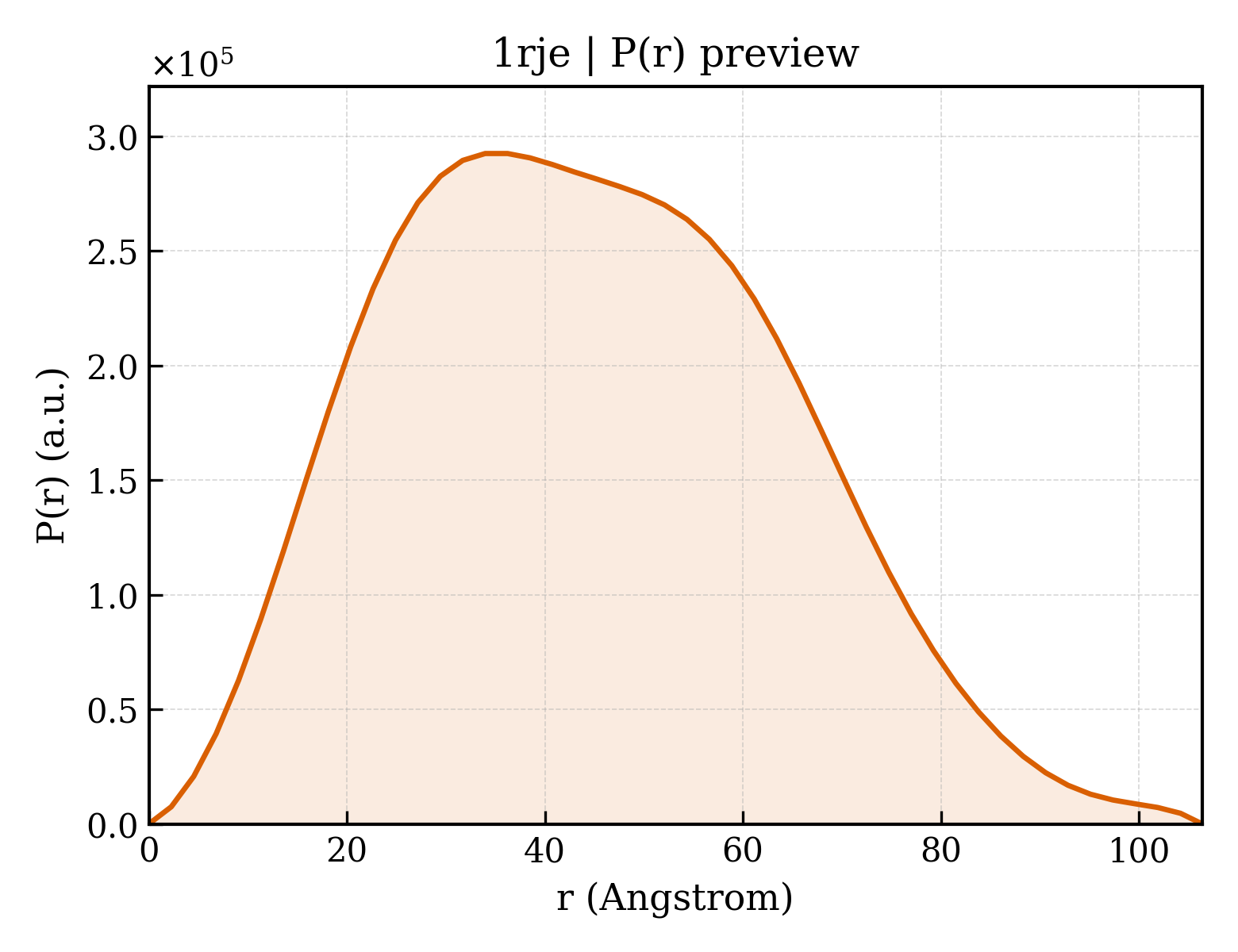

P(r) 距离分布 P(r) Distribution
