SAXSdb — 1rjl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer surface protein B

Borrelia burgdorferi

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Fab H6831 L-chain × 1 Fab H6831 H-chain × 1 Outer surface protein B × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OSPB1_BORBU
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–95； UniProt 202–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rjl
Deposition date deposition_date	2003-11-19
Structure title title	Structure of the complex between OspB-CT and bactericidal Fab-H6831
Keywords keywords	Beta Sheet, Antibody-Protein Complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rjl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rjl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

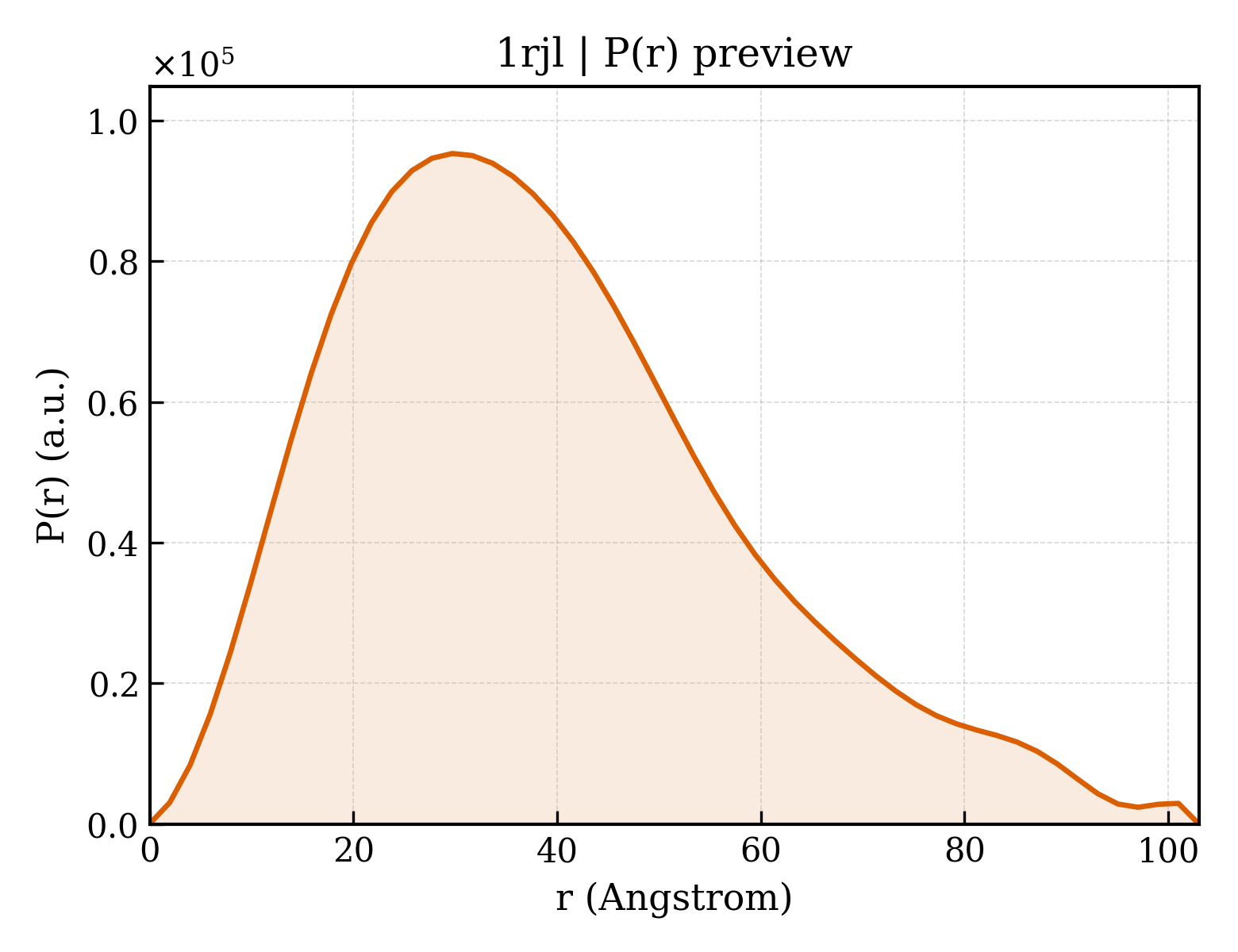

1rjl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.20 Å
Rg (electron density)	30.14 Å
Total Rg	30.64 Å
Atom count	4044
Residues	533
Excluded volume	71487 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rjl__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fab H6831 L-chain
Molecular weight formula_weight	23218.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4188

DIQMNQSPSSLSASLGDTITITCHASQNINVWLNWFQQKPGSIPKLLIYMASNLHTGVPSRFSGSGSGTGFTLTISSLQPEDIATYYCQQGQSFPLTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN

Entity 2 Entity 2 polymer

Description description	Fab H6831 H-chain
Molecular weight formula_weight	23659.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLQQPGSVLVRPGASVKLSCKASGFTFTSSWMHWAKQRPGQGLEWIGEIHPNSGNTHYNEKFKGKATLTVDTSSSTAYVDLSSLTSEDSAVYYCARMRYGDYYAMDNWGQGTSVTVSSAKTTAPPVYPLAPVCGDTTGSSVTLGCLVKGYFPESVTLLWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEPRG

Entity 3 Entity 3 polymer

Description description	Outer surface protein B
Molecular weight formula_weight	10310.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

TVEIKEGTVTLKREIEKDGKVKVFLNDTAGSNKKTGKWEDSTSTLTISADSKKTKDLVFLTDGTITVQQYNTAGTSLEGSASEIKNLSELKNALK

Source Source

Source organism organism	Borrelia burgdorferi
Common name common_name	Lyme disease spirochete
NCBI taxonomy ID ncbi_taxonomy_id	139
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Outer surface protein B
Molecular weight formula_weight	443.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

XXXXX

Source Source

Source organism organism	Borrelia burgdorferi
Common name common_name	Lyme disease spirochete
NCBI taxonomy ID ncbi_taxonomy_id	139
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	144

▼

6. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1rjla1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1rjla2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1rjlb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1rjlb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1rjlb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1rjlc_
Class class	b — All beta proteins
Fold Fold fold	b.76 — open-sided beta-meander
Superfamily Superfamily superfamily	b.76.1 — Outer surface protein
Family Family family	b.76.1.1 — Outer surface protein

CATH v4.4 (5 domains)

Domain ID domain_id	1rjlA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1rjlA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1rjlB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1rjlB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1rjlC00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	930 — Outer Surface Protein A; domain 3
Homologous superfamily homologous superfamily	1 —

▶

Unit-cell length a length_a	186.286 Å
Unit-cell length b length_b	37.271 Å
Unit-cell length c length_c	87.939 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.66 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	30.090 Å
R factor r_factor	—
R_work r_work	0.1910
R_free r_free	0.2350
